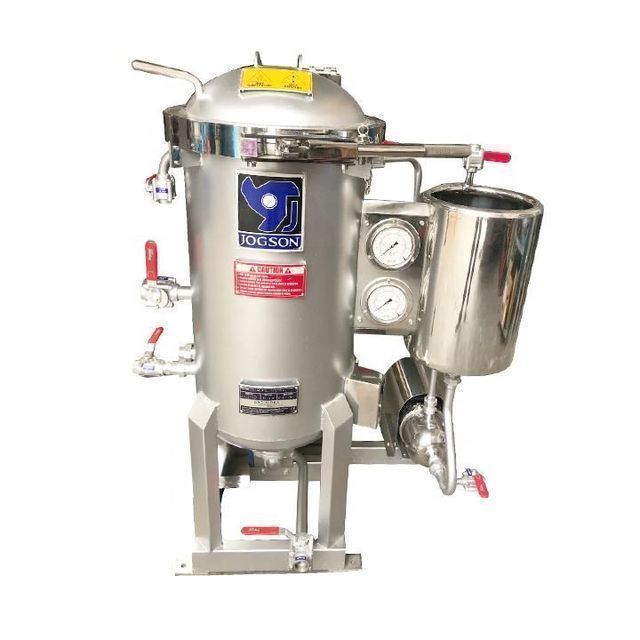

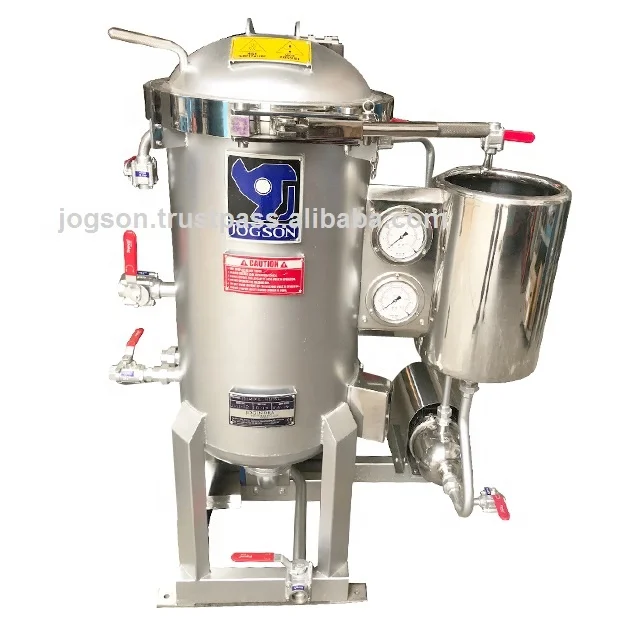

HTHP vertical dyeing machine with control panel, with JOGSON staining programmer TPR13I/PLC and touch interface (optional)

feature

* The machine body and all parts in contact with the dye solution are made of AISI SS 316Ti/316L, which is highly corrosion-resistant
* Two-stage turbo pump (In-Out & Out-In) for liquid circulation, variable speed drive

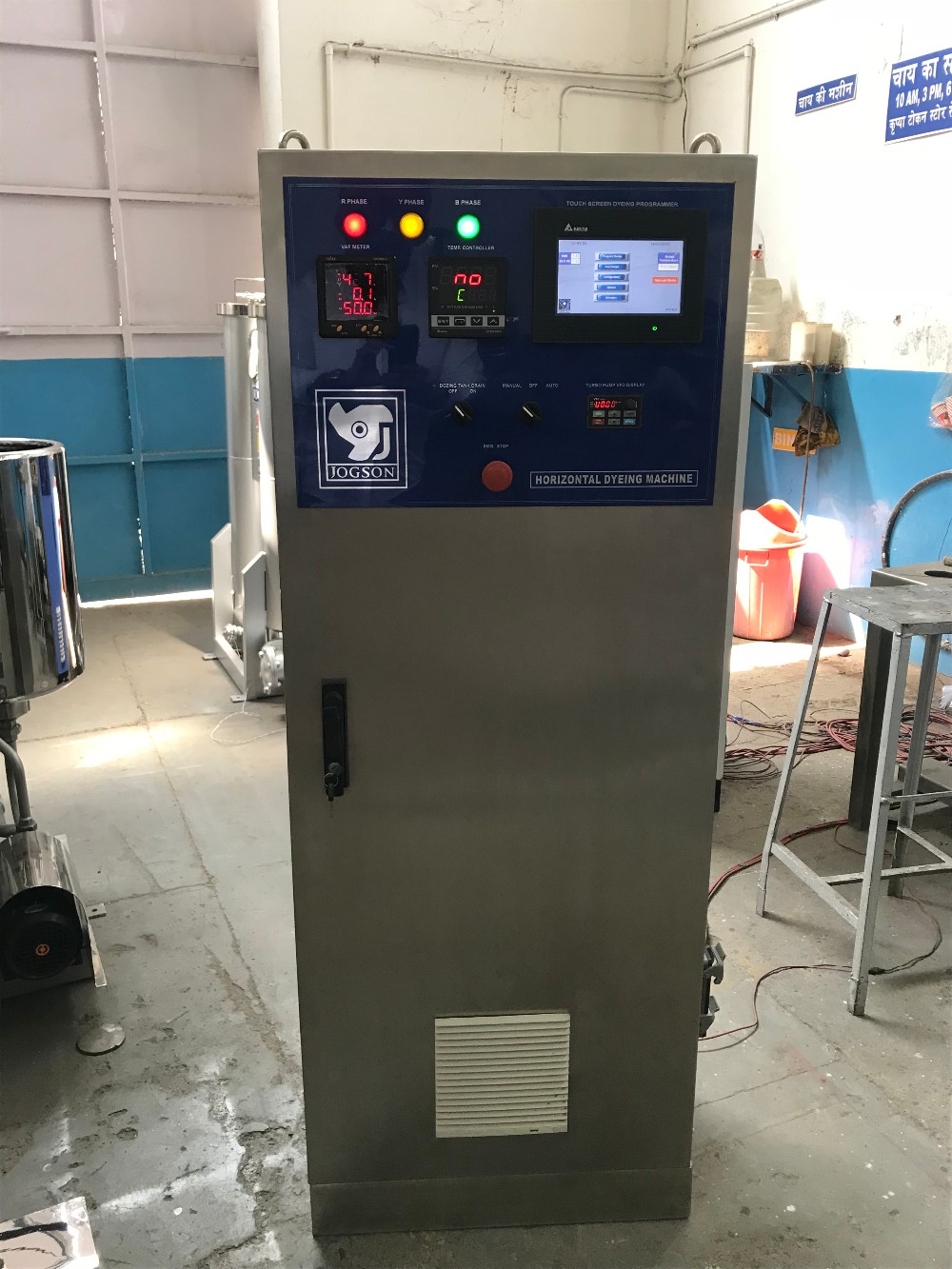

* Control panel with JOGSON staining programmer TPR13/PLC and touch interface (optional)

* 1:5 (full submersion) 1:4 (air cushion system) MLR
*Air cushion system manually injects air into the machine to create static pressure and minimize liquor ratio
* Color adding tank with syringe pump is used to inject dye liquor into the machine
* The high-efficiency heat exchanger inside the machine will not lose heat to the environment
* Variable loading with flexible loading shaft or capacity reduction dummies
* HT Drain - machine can drain at 130° C
* Sampling jars to check staining results while the machine is running

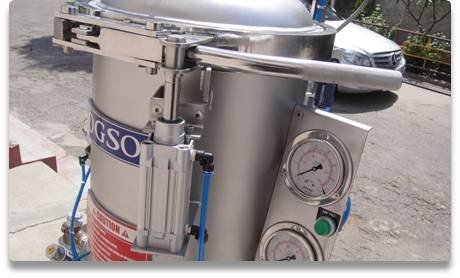

* Pneumatic roof opening/closing
* Man-machine safety interlock device

advantage

* The compact arrangement of JOGSON dyeing pumps, heat exchangers and piping is the main key to save floor space
* 1:5 MLR, consumes less dyes, chemicals, steam, water and produces less waste water discharge, so it is ECO friendly and reduces production cost
* Variable frequency drive turbo pump for variable flow control; save up to 40% power consumption, so more energy efficient
* 130°C HT Drain for oligomer elimination in polyester dyeing process
* Variable load with dummies and air cushions to maintain constant MLR and flow

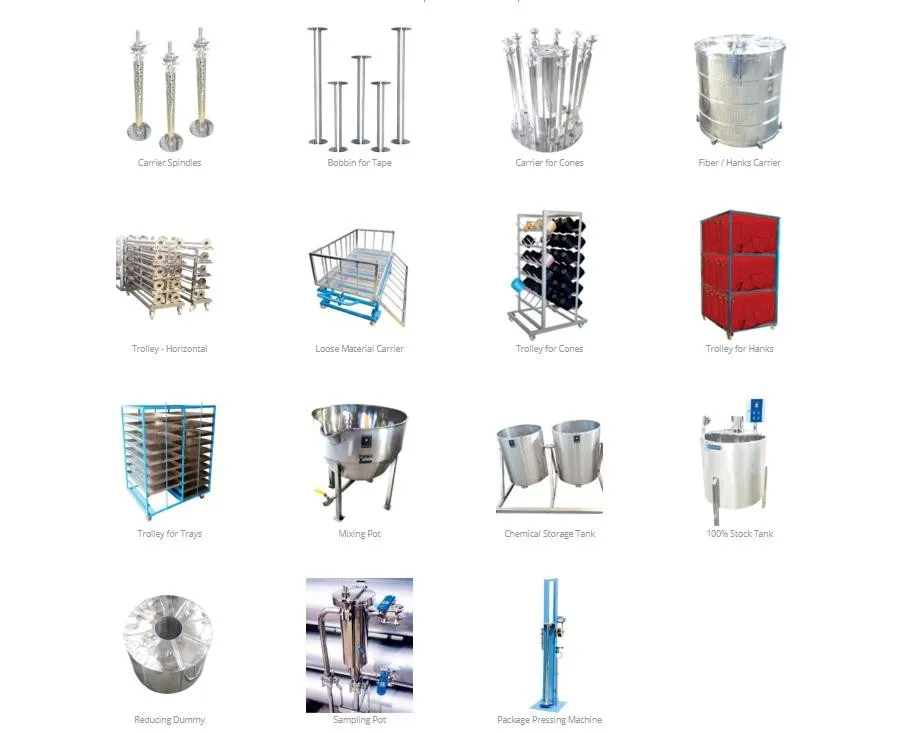

* Interchangeable dye carriers for cones, loose fibres, fabrics, sleeves, tops, bobbins and more.
* Excellent dyeing effect and level dyeing, reducing yarn loss
* Water level, pressure, unique temperature multiple safety interlocks to ensure safe operation

optional features

* Multiple filling, metering filling, proportional filling
* Multiple drainage
* Various heating methods, such as electric heater, thermal fluid, steam and gas/diesel burner
* Full capacity storage tank with heating and mixing agitator and delivery pump ph meter
* Hydro extraction device

Technical data

* Maximum design pressure 5 bar
* Maximum design temperature 140°C
* Heating gradient 25°C - 130°C approximately 5°C/min. (dry saturated vapor pressure 7 bar)
* Cooling gradient 130°C - 85°C about 3.5°C/min. (cold water at 25°C at 3 bar)
