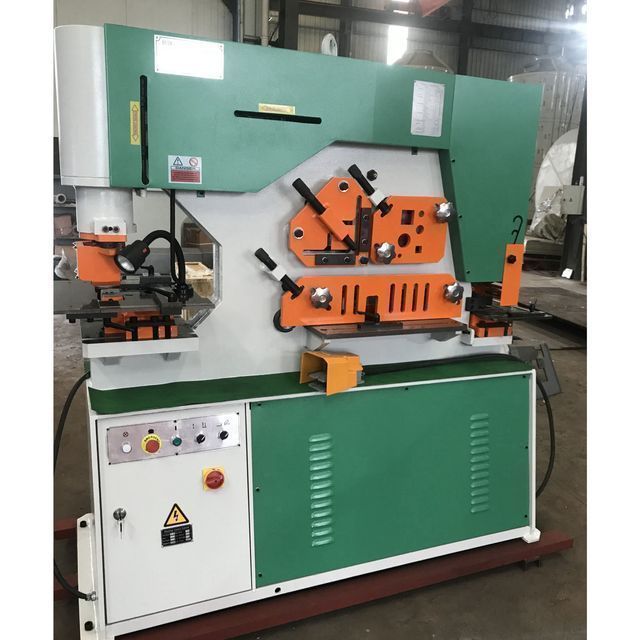

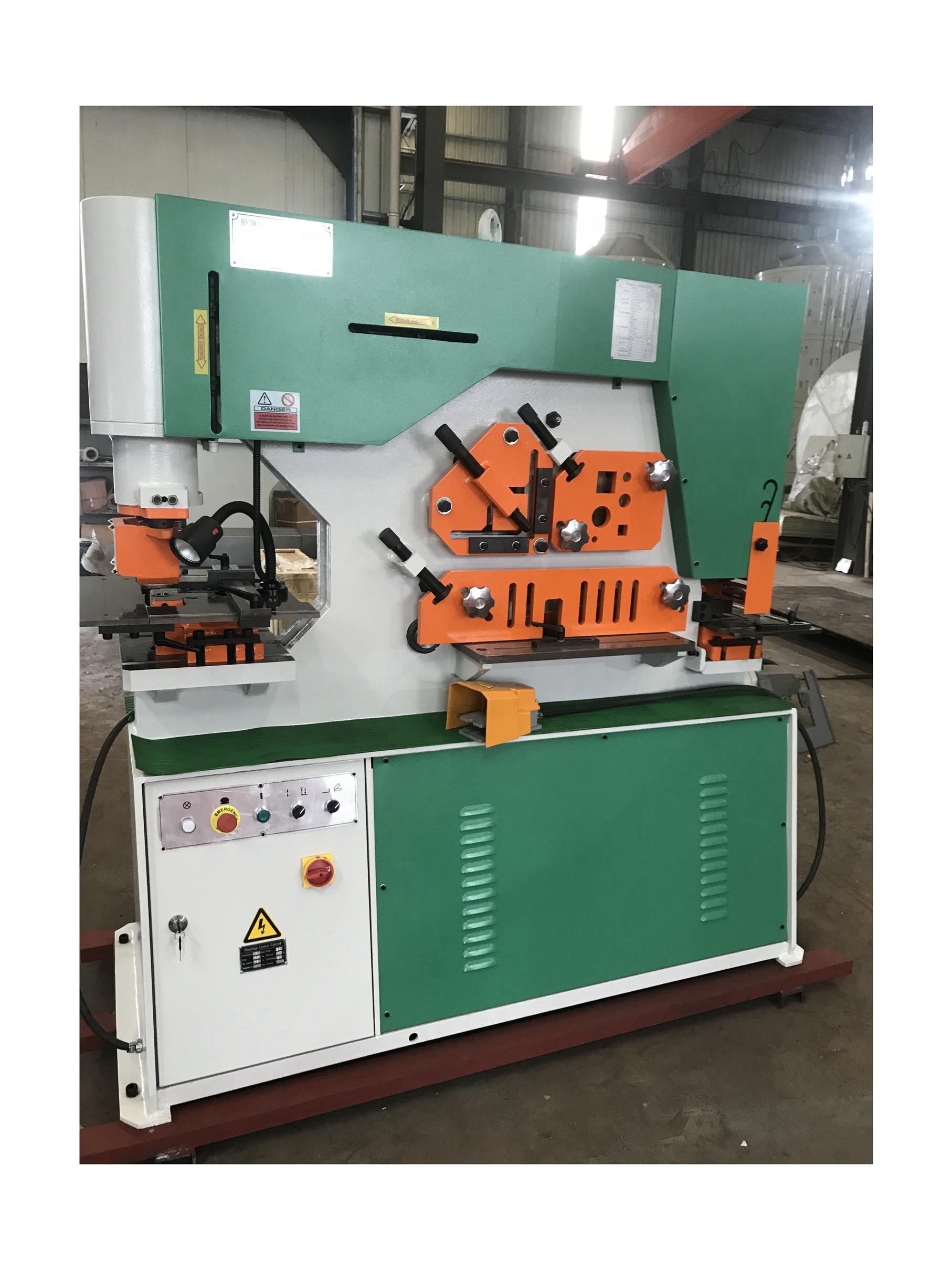

Factory inventory Q35Y series steel ironwork hydraulic steel punching and shearing machine steel punching and shearing machine

Supplier: Jingjiang Yilite CNC Machine Tool Manufacturing Co., Ltd.
Region: Jiangsu, China
Price: $5460.00 / 1 - 4 pieces
$5400.00 / 5 - 14 pieces
$5380.00 / >=15 pieces
Min. Order: 1 piece

Click here to contact

Product details

Warranty:	1 year	Main selling points:	multifunctional
Applicable industries:	Manufacturing plants, construction works, others	Health status:	new
Showroom location:	Indonesia	Energy source:	hydraulic
place of origin; place of origin:	China	CNC or not:	CNC
Weight (ton):	2.3	Voltage:	optional
brand:	YLT	Dimensions (LWH):	18609001900mm
payment terms:	L/C, T/T, PayPal	Nominal force (kN):	900

Name			value	unit
momentum			900	KN
flat steel shears	Flat Bar (W x D)	330×20	mm
flat steel shears		Maximum Capacity (W x D)	480×10	mm
section cutting	square stick scissors	50	mm
		Round steel shears	50	mm
		channel cut	160	mm
		H beam shear	160	mm
		90° equiangular	140×12	mm
slotting	thickness	10	mm
		width	80	mm
		depth	100	mm
punching	Thickness (maximum)	20	mm
		diameter (maximum)	30	mm
		deep throat	355	mm
		stroke length	80	mm
		Cycle times/minute (20mm stroke)	twenty two	times/min
tensile strength		450	N/m㎡
oil quantity	Hydraulic oil (46#)	80	large
motor	strength	5.5	kilowatt
Machine size	length	1860	mm
		width	900	mm
		high	1900	mm
weight		2300	Kilogram
Punch table height			1010	mm
Cutting Platform Height			900	mm
Grooving table height			900	mm
Corner piece, height of corner base			1180	mm
Cutting round bar, groove bottom height			1220/1300	mm
