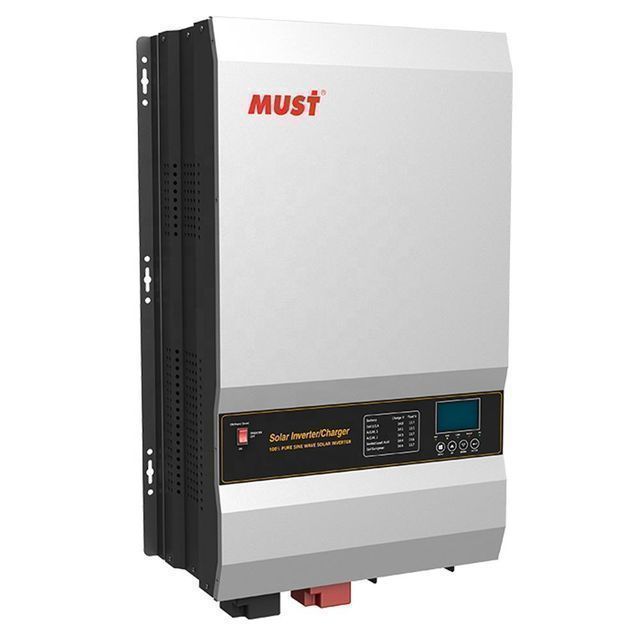

10000w 48v Hybrid Solar Inverter 10kw with MPPT Charger for Home and Government Solar System

Supplier: Shenzhen Must Energy Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Cleo Must Power
Price: $167.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply capacity:	More orders of 5000 pieces per month will be discounted	MPPT maximum efficiency:	98%
Audible Noise:	60 dB	Input voltage:	100v/110v/120v/220v/230v
size:	505701330mm	The output voltage:	100v/110v/120v/220v/230v
model:	PV3500 5-15K, PV3500 5-15K	weight:	40-70kg
payment terms:	L/C,Western Union,T/T	output type:	single
place of origin; place of origin:	Guangdong, China	color:	red or green or OEM
exhibit:	LCD+LED display	Warranty:	one year
Output frequency:	50-60 Hz	Output current:	30A-100A, 45/60A
Rated charging current:	100A	type:	DC/AC inverter
Packaging Details:	Our 10KW inverter packing: carton or wooden box, or according to customer needs	brand:	must, must
Output Power:	1 - 200KW	port:	Shenzhen/Hong Kong

Product Description

^{MeterUST 8KW 10KW 12KW 48V dc AC Inverter Off Grid Solar Inverter with Charger}

^{Low Frequency Off Grid Solar Inverterr}

PV3500 Pro series (4-12KW)

PV3500 series is a multifunctional inverter that combines the functions of inverter and mppt solar charger controller, solar charger and battery charger to provide uninterruptible power support in a portable size. A comprehensive LCD display provides user-configurable and easily accessible button operations such as battery charge current, AC/solar charger priority, and selectable input voltage based on different applications.

Model

PV35-4K

PV35-5K

PV35-6K

PV35-8K

PV35-10K

PV35-12K

Nominal battery system voltage

24V

48V

48VDC

Inverter output

rated power

4KW

5KW

6KW

8.0KW

10.0KW

12.0KW

Surge rating (20ms)

12KW

15KW

18KW

24KW

30KW

36KW

able to start the motor

2HP

3HP

4HP

5HP

6HP

waveform

Pure sine wave / same as input (bypass mode)

Nominal output voltage rms

220V/230V/240VAC (+/-10% RMS)

Output frequency

50Hz/60Hz +/-0.3Hz

Inverter Efficiency (Peak)

>85%

>88%

Line Mode Efficiency

>95%

power factor

0.8

Typical transfer time

10ms (max)

AC input

Voltage

230VAC

Optional voltage range

154~272VAC (for personal computer)

Frequency Range

50Hz/60Hz (auto-sensing)

Battery

Minimum starting voltage

20.0VDC/21.0VDC for 24VDC mode (40.0VDC/42.0VDC for 48VDC mode)

Low battery alert

21.0VDC+/-0.3V for 24VDC mode (42.0VDC+/-0.6V for 48VDC mode)

Low battery cut off

20.0VDC+/-0.3V for 24VDC mode (40.0VDC+/-0.6V for 48VDC mode)

High pressure alarm

32.0VDC+/-0.3V for 24VDC mode (64.0VDC+/-0.6V for 48VDC mode)

High battery voltage recovery

31.0VDC+/-0.3V for 24VDC mode (62.0VDC+/-0.6V for 48VDC mode)

Idle Consumption - Search Mode

<25W when power saving is turned on

AC charger

Depends on battery type

The output voltage

Depends on battery type

40A

50A

80A

Charger AC Input Breaker Ratings

40A

50A

80A

Overcharge Protection SD

31.4VDC for 24VDC mode (62.8VDC for 48VDC mode)

40A

50A

60A

70A

80A

Maximum charging current

65A

40A

50A

60A

70A

80A

BTS

Continuous output power

is the change in charge voltage and SD voltage based on battery temperature

Bypass and Protection

Input voltage waveform

Sine wave (grid or generator)

Nominal input frequency

50Hz or 60Hz

Overload protection (SMPS load)

breaker

Output short circuit protection

breaker

Bypass Breaker Ratings

40A

63A

Maximum bypass current

40 amps

80 amps

Solar Charger & AC Charger

Maximum photovoltaic charging current

60A

60A (120A optional)

DC voltage

24V/48V automatic work

48V

Maximum PV array power

1600W

3200W

3200W (120A optional 6400W)

MPPT range @ working voltage (VDC)

32-145VDC for 24V mode, 64-147V for 48V mode

64~147VDC

Maximum PV Array Open Circuit Voltage

147VDC

maximum efficiency

>98%

Standby power consumption

<2W

Mechanical Specifications

Machine size(W*H*D)(mm)

620*385*215mm

670*410*215mm

Package size(W*H*D)(mm)

755*515*455mm

638*395*241

884*618*443mm

other

audible noise

60dB maximum

exhibit

LED+LCD display

Loading (20GP/40GP/40HQ)

140pcs / 280pcs / 320pcs

Operating temperature

0°C -40°C

Storage temperature

-15°C -60°C

detailed image

customer photo

Features:

1. Smart LCD settings (working mode, charging current, charging voltage, etc.)
2. Built-in MPPT solar charge controller 60A/120A
3. MPPT efficiency up to 98%
4. Powerful charging rate up to 100Amp

5. Built-in pure copper UI transformer
6. DC start & automatic self-diagnosis function
7. RS485/USB monitoring function, with CD
8. Support AGS, BTS ports
9. Compatible generator
