Construction prestressing 30 tons mono stressing hydraulic jacks

Supplier: Liuzhou Lingqiao Prestressed Machinery Co., Ltd.
Region: Guangxi, China
Contact: Ms Zoe Zeng
Price: $164.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	LINGQIAO;	Packaging Detail:	wooden case;
Port:	Shenzhen,Guangzhou,Shanghai,Fangchenggang;	Name:	Engineering Construction Post Tension;
Type:	Hydraulic Jack;	Certification:	CE ISO;
Color:	Requirement;	Nominal tension force:	250 KN;
Place of Origin:	Guangxi China (Mainland);	Model Number:	YDC;
Min Height:	125mm;	Max Height:	500mm;
Product name:	Construction prestressing 30 tons mono stressing hydraulic jacks;	Stroke for tension:	200 mm;
Packing:	Wooden Case;	N.W:	20;
Supply Ability:	6000 Set/Sets per Month Hydraulic Mono Single Strand Post Tensioning Jack With Prestress;	Application:	Prestressing hydrauilc jack tension mono steel wire;
Material:	Steel;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Electric Jack;
Capacity (Load):	21-30T;	Model number:	YDC250QX;

Construction prestressing 30 tons mono stressing hydraulic jacks

Product Description

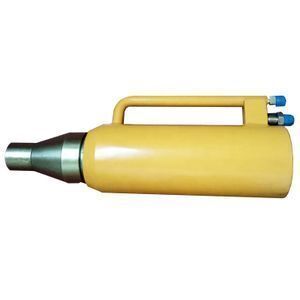

Mono jack products show:

Main Accessories :

One Set jack will complete with 2pcs oil pipe;stressing device,retracting device,1 set wedge,and seal rings.

Production Line and Flow Chart:

Mono jack Description:

Construction prestressing 30 tons mono stressing hydraulic jacks are a multipurpose prestressed tensioning device, easy to operate. Mainly used for single hole tension. also used for,porous preloaded , tensioning and troubleshooting,and can be applied to a variety of sizes of high strength steel wire and steel strand.

mono stressing hydraulic jacks Especially for high-altitude operations, easy to carry.Steel stranded wire reserve length is 200 mm can be tensioned , can save prestressed tendon material.

Technical parameters

The following form is the technical parameters of our mono jack:

Type	Nominal tension force KN	Nominal oil pressure MPg	Tension piston area m²	Return piston area m²	Stroke for tension mm	Overall size mm	Coss-core aperture Φ mm	Mass KG	Supporing oil pump
YDC250QX-200	250	52	4.77×10^-3	1.335×10^-3	200	Φ114×474	19	21.5	zb4-500

Send inquiry or contact us,

Click here

Engineering

construction and range of application:

Packaging & Shipping

Packaging is Plywood wooden box .

ABOUT

We,Liuzhou Lingqiao Prestressed Machinery Co.,Ltd,established in 2011.With the guidance of experienced bulding experts in prestress.We Lingqiao prestressing anchorage,jack,pump or other prestressed equipment are improving for construction demand.

Our product are extensively applied in many projects, such as highway,railway,bridges,bulding construction,hydroelectric projects,TV tower,large containers,rock anchors and ground anchors.

Our Services

Pr e-sales service

* Inquiry and consulting support.

* Custom processing services

* View our Factory.

After-sales service

* Technical support

* Quality assurance services

Certifications

FAQ

Q WIi

Are there calibration certificate of the jack?

Our Jack are calibrated by China authority,is our China standard.But please kindly confirm you need.

What can I get the anchorage?

If you need the anchorage based on your drawing,just kindly provide the drawing for our check before producing.and we have 12.7mm(0.5") and 15.24mm(0.6") types of wedge.

What is your term of delivery?

We accept EXW, FOB Shenzhen,FOB Guangzhou,CIF,DDU.You can choosethe one which is the most convenient or cost effective for you.The DDU is often delivery by express.

What about the lead time for the mass production?

A We often arrange our product within 7 working days .But h onestly, it depends on the order quantity and the season you place the order.
