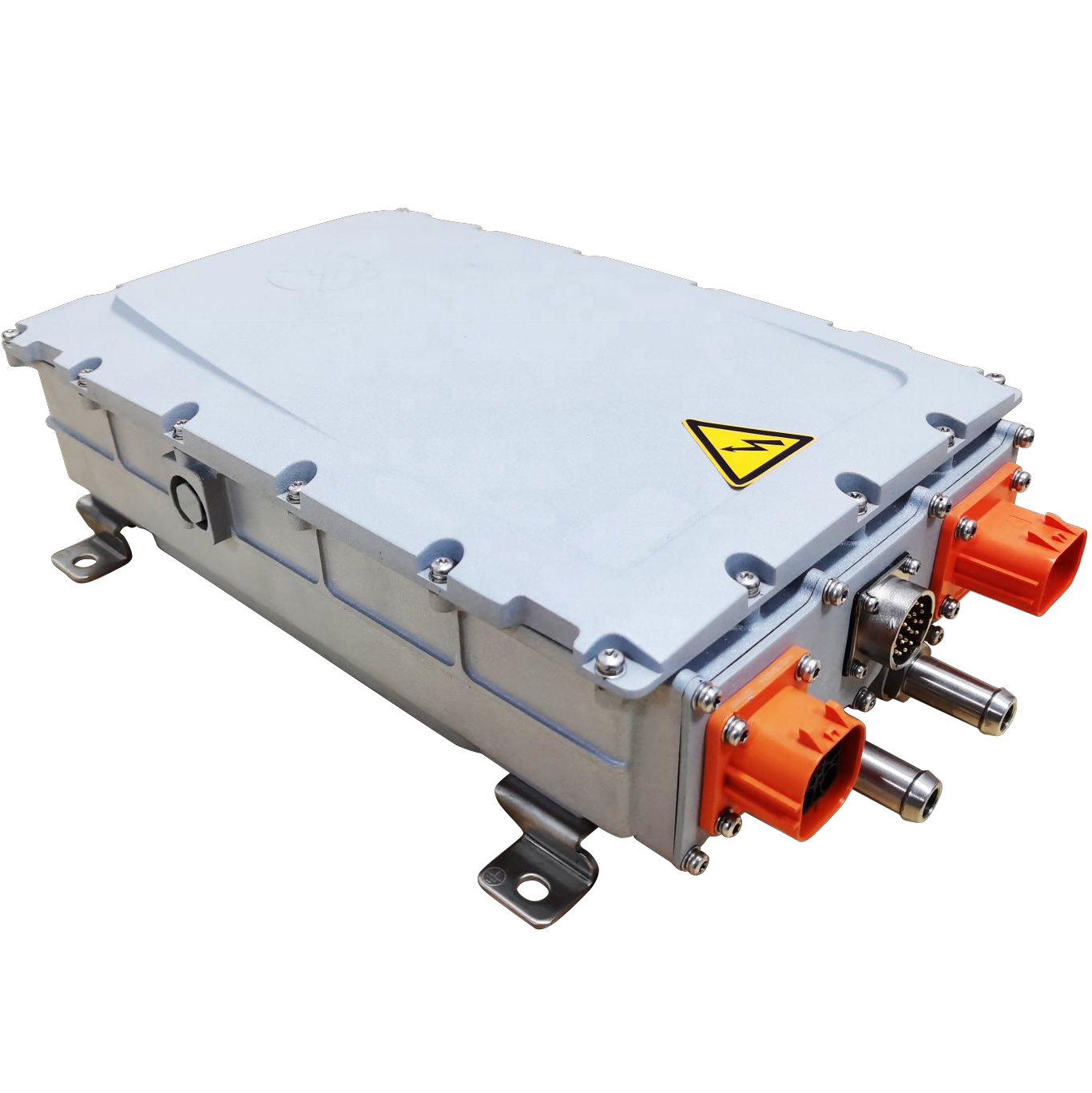

11KW car charger 200V~450V suitable for EV and electric bus Products from Beian (suzhou) New Energy Co., Ltd.

Product Details

port:	Shanghai, Shenzhen	Packaging Preview:
DC output maximum current:	32A	place of origin; place of origin:	Guangdong, China
model:	WT11KW	Packaging Details:	export carton with pallet
waterproof:	IP67	communication:	CAN-BUS
payment terms:	wire transfer	efficiency:	≥94%
brand:	lithium battery	noise:	≤45dB

OBC Technical Specificationsunit
code	OBC-066-W400	OBC-110-W400	unit
Output Power	6,6	11	kilowatt
Input voltage range	(85 ~ 264)	(175-265)	vacuum
Output voltage range	(250 ~ 455)	(250 ~ 455)	DC voltage
output maximum current	20	32	One
efficiency	≥93	≥93	%
Operating temperature	-40 to 85	-40 to 85	°C
cooling system	liquid cooling	liquid cooling
Coolant type	50%	50%
Inlet liquid temperature	< 65	<65	°C
communication method	CAN communication	CAN communication
Environmental class	IP67	IP67
aspect	412x265x119	412x265x1119	mm
weight	9	11.2	Kilogram

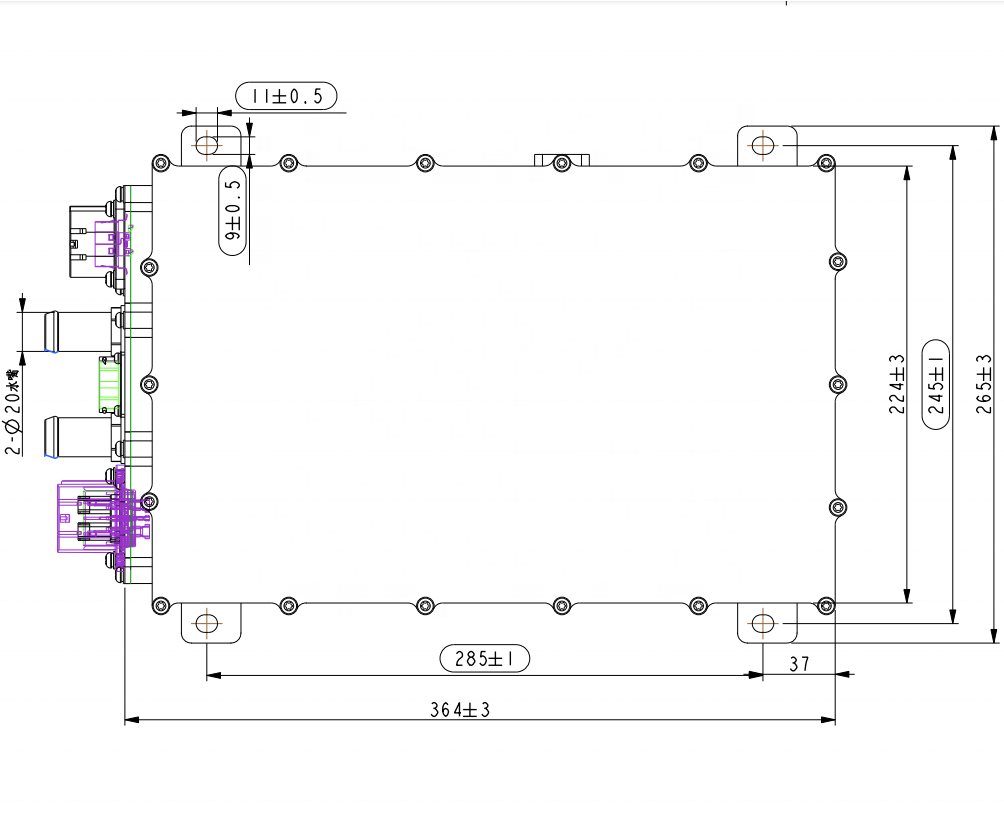

Onboard size

Dimensions are for reference. The size is subject to the actual product.

Please confirm with us for purchase.

Product Features

SafetyActive PFC and LLC technology for fast response to faults; fast active software and passive hardware protection for voltage; battery protection with advanced charging strategies.reliabilityThe shell is formed by integrated die-casting technology and filled with special glue. This series of chargers has been proven to operate in various industrial environments (humid, hot, cold, high altitude) for more than ten years.FunctionCAN bus interface; three-color indicator; vehicle charging lock system; 12V auxiliary power supply;

Protective function

● Burnout protection: If the temperature of the charger exceeds the limit, the charger will reduce the power load. If the ambient temperature exceeds 65°C, the charger will stop charging and automatically switch to standby mode until the temperature drops. ●Battery reverse connection protection: When the battery is reversely connected, the internal circuit of the charger is closed. ●No-load protection: no output without battery. ●Short-circuit protection: When the output is short-circuited, the internal circuit of the charger will be closed. ●Automatic shutdown when fully charged: The charger automatically shuts down when the battery is fully charged.
