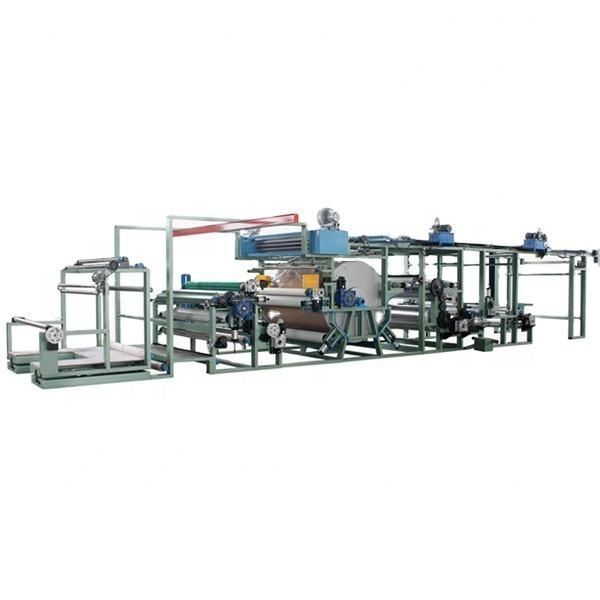

Automatic mattress laminating machine

cloth laminating machine

Mattress Laminating Machine

Hygienic material laminating machine

usage:It is used for the lamination and lamination of various materials such as textiles, non-woven fabrics, waterproof and breathable membranes, and is especially suitable for lamination of terry cloth, sanitary materials, and waterproof and breathable membranes.

feature:

• Suitable for solvent-based glue or PU glue.
• With this laminating machine, the material is firmly bonded, and the product is soft, comfortable, washable and breathable.
• Optional:Controlled by programmable logic controller system, touch screen and modular design structure, this laminating machine is easy to operate.
• International famous brand motors, frequency converters, electrical components, thermostats and other components can be installed, and the machine performance is stable.
• The tension-free unwinder makes the laminate smooth and flat, ensuring a good bond.
• The fabric and film opener also allows for a smooth, level feed of material.
• Optional:For four-way stretchable fabrics, a special fabric conveying system can be installed on the laminating machine.
• Optional:The parallel centering device ensures that the material is fed in sequence.
• The specially designed gluing system controls the amount of glue and ensures the accuracy.
• Automatic edge trimmer and edge waste remover facilitate automatic operation and save labor.
• Cooling unit enhances good lamination bond.
• The final laminate can be rewound into small or large rolls.
• Low maintenance cost and low operating noise.
• Advanced technology, safe quality control and satisfactory after-sales service make our laminating machine the first choice for domestic and foreign customers.

Technical data:

Width: 1200-3600mm

Speed: up to 50m/min

Adhesives: PU adhesives and solvent-based glues

Coating thickness: 3-500g/m2 (according to the number of glue rollers)

application:
