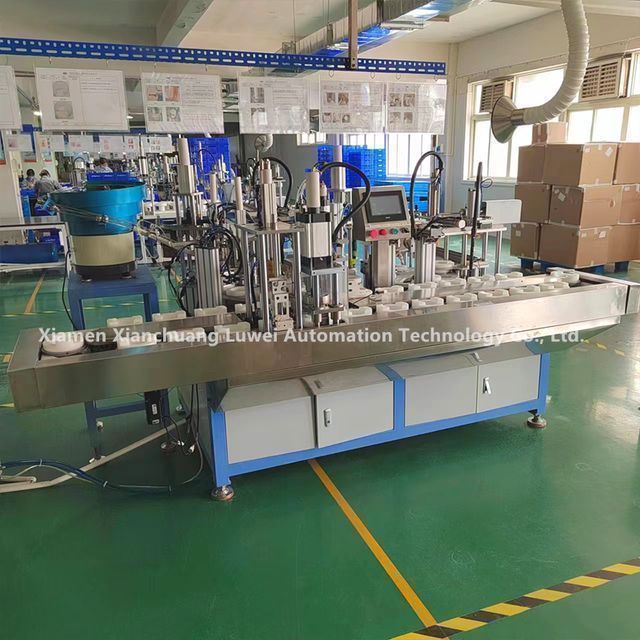

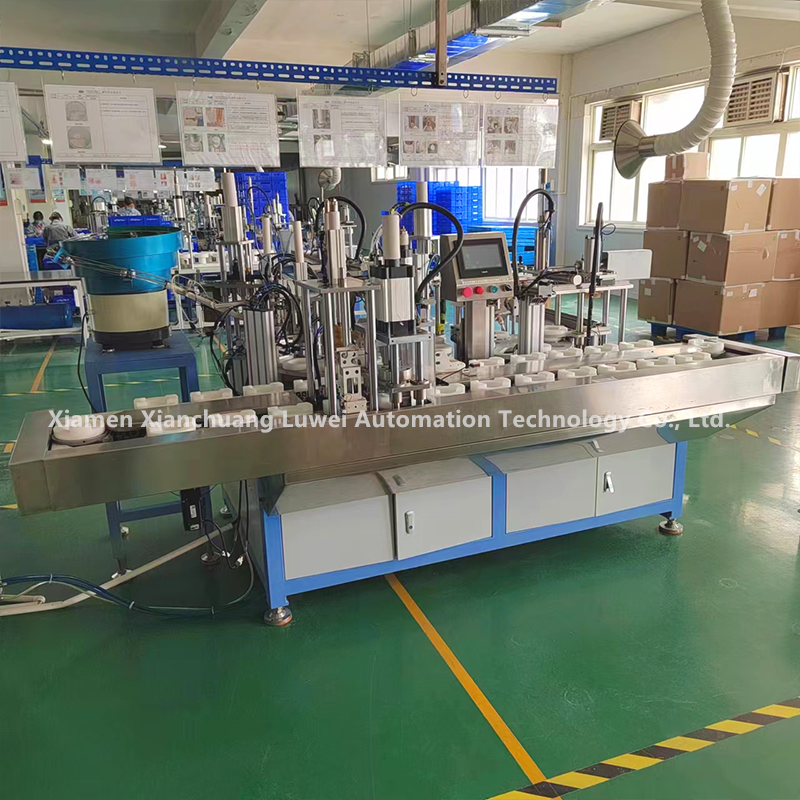

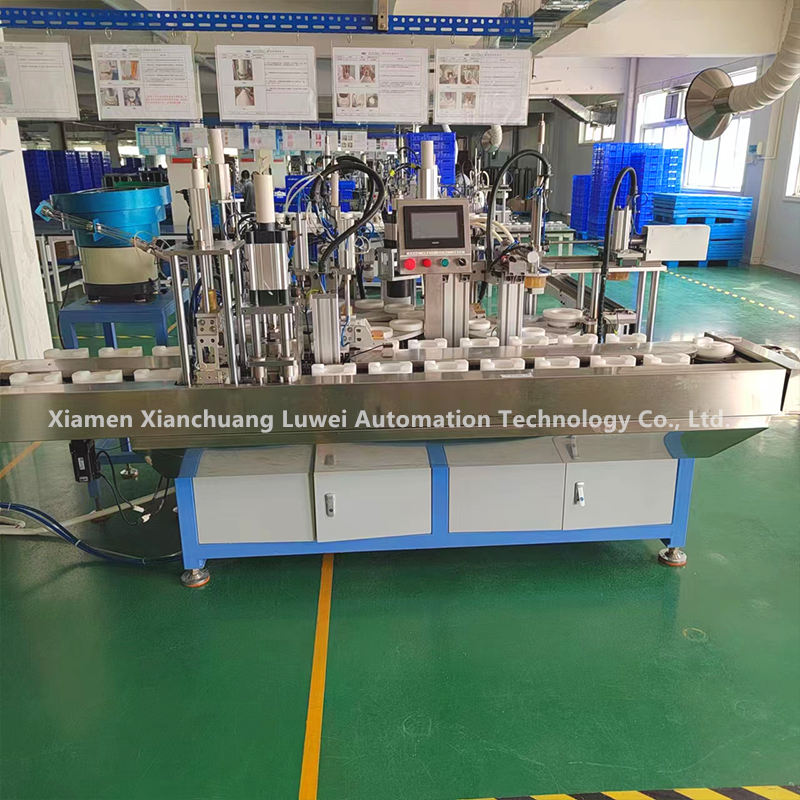

XCLW LED light bulb automatic assembly line/LED light automatic assembly line machine
-
Supplier: Xiamen Xianchuang Luwei Automation Technology Co., Ltd. -
Region: Fujian, China -
Price: $2000.00 /set -
Min. Order: 1 set
Product details
| product name: | LED bulb automatic assembly machine | weight: | 1800kg |
| Key machines: | other | Key words: | light bulb maker |
| port: | Xiamen | Auto grade: | automatic |
| Used for: | LED bulb assembly | Controller: | Imported PLC module |
| payment terms: | L/C,Western Union,T/T,MoneyGram | Mechanical Capability: | 1300/hour |
| Voltage: | 220V / 110V | place of origin; place of origin: | Fujian China |
| application: | Type A & Type T bulbs | Dimensions (L*W*H): | 4300*4000*1800mm |
| strength: | 1500W | capacity: | 1200~1500 pieces/hour |
| feature: | fast conversion | year: | 2020 |
| Health status: | new | brand: | XCLW |

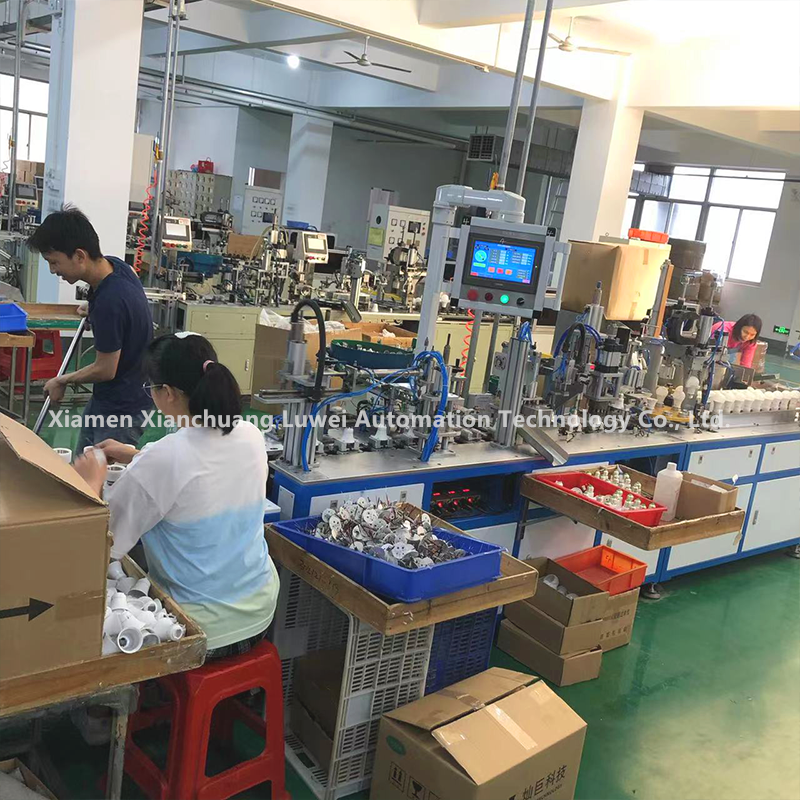

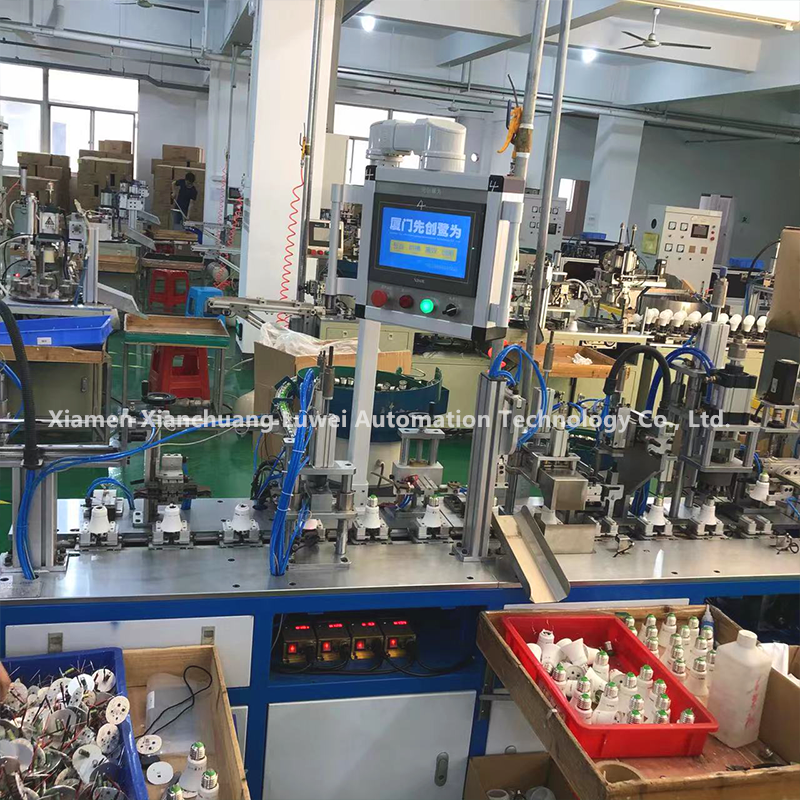

XCLW LED light bulb automatic assembly line/LED light automatic assembly line machine
title
product description

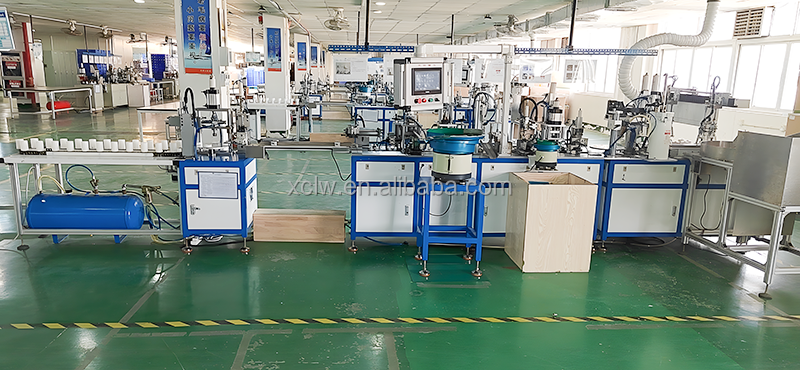

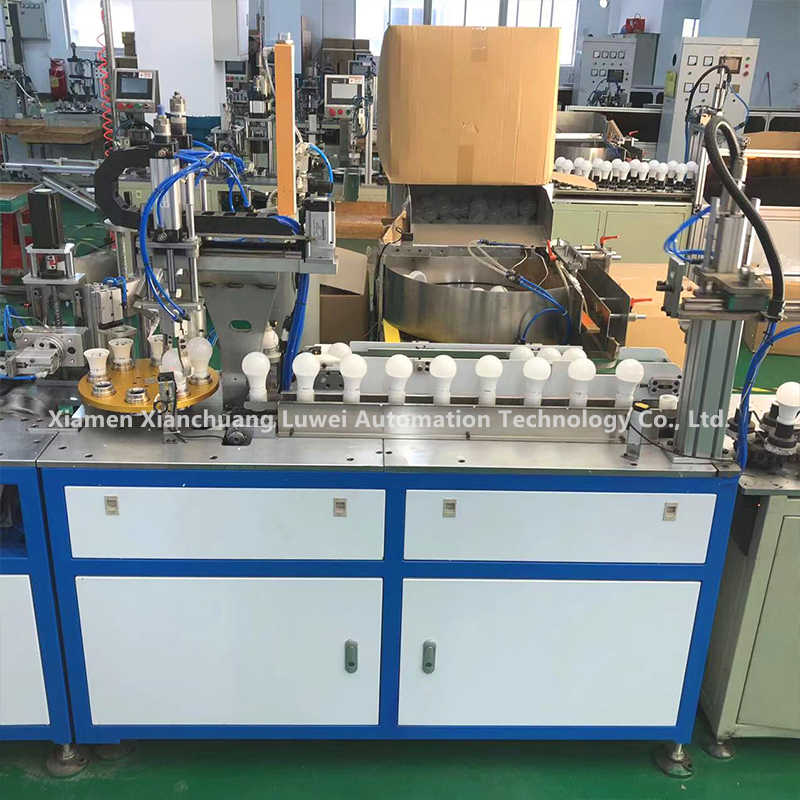

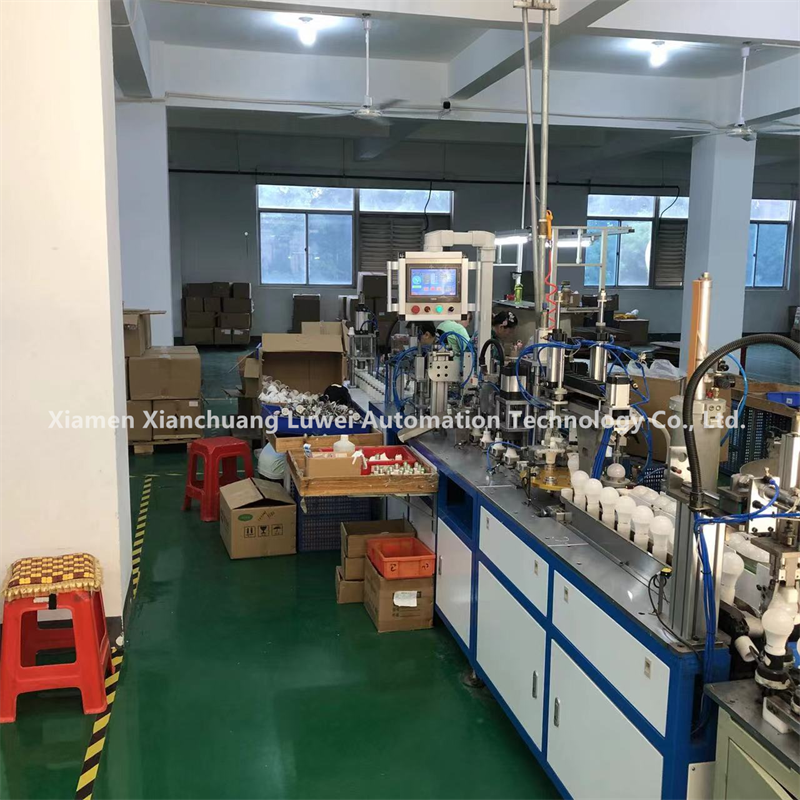

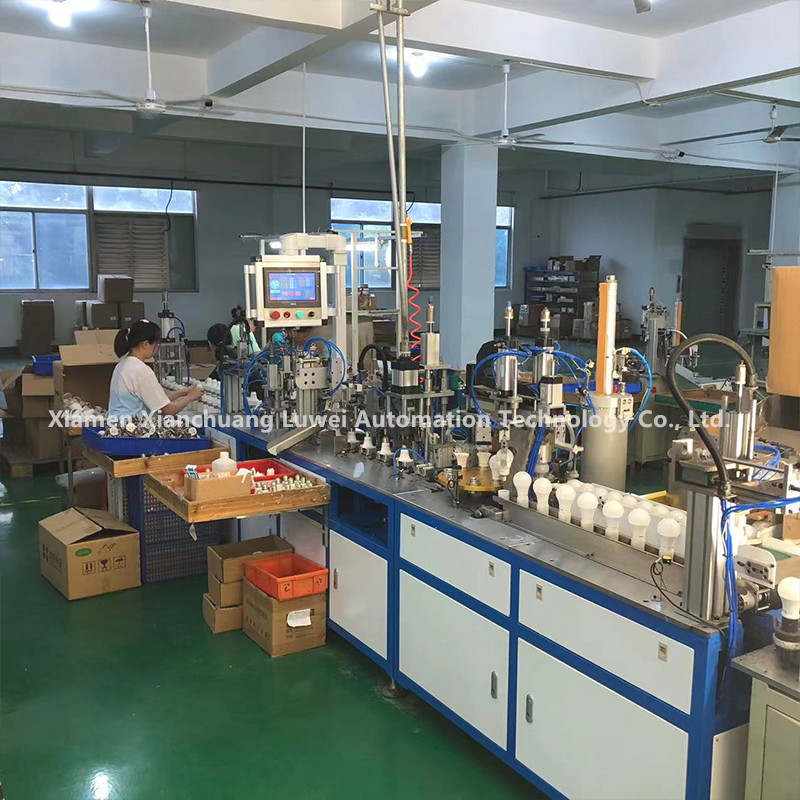

| LED-A Bulb Automatic Assembly Line-E27 | |
| Device Information | |
| Device No | XCLW-APS-001 |
| Rated Capacity | 1500PCS/H |
| match operator | 3-5 people |
| Device parameters | |
| Input voltage | 220V/50HZ |
| input pressure | 0.6-0.7Mpa |
| maximum. air pressure | 1.3m³/min |
| Maximum power | 3.6KW |
| skills requirement | |
| Applicable lamp type | E27 bulb (C37,G45,A50,A55,A60,A65,A70) |
| midline | A-share hard line 0.4-0.5mm, the center line must be 29-32mm higher than the edge of the cup |
| cap | E27 large-caliber lamp holder, which can be used for general automatic assembly of lamp holders (the circumference of the lamp holder, the depth is not less than 4mm, the rivet diameter is ≥3.2mm, and there must be a slope) |
| cover | No burrs and deformations |
| Plastic buckets | Capacity 2600ML, glue should not be too thick or too thin, gluing speed 25g/min |
