Automatic Mixing Dispensing Line Filling Machine Large Flow Dynamic AB Double Liquid Dispensing Machine

Supplier: Dongguan BoYee Electronic Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Elena liu
Price: $610.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales service provided:	Video technical support, online support	place of origin; place of origin:	Guangdong, China
Single package size:	30X30X20 cm	brand:	Boyi
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Printing Shops, Energy and Mining, Advertising Agencies	size:	1L
Inlet size:	1/8" npt(f)	Minimum emissions:	0.01ml
Outer diameter of glue outlet:	2mm (can be connected to any pin)	Gross weight per piece:	20.000 kg
Running speed:	<600/min	Feed pressure:	<10KG
Voltage:	110/220V	Local service location:	not any
Health status:	new	product name:	Dynamic stirring dispensing equipment
Warranty:	3 months	Sales unit:	single product
Material:	Stainless steel + aluminum alloy	Discharge pressure adjustment range:	0-0.06mpa
After Warranty Service:	Video technical support, online support	Showroom location:	not any

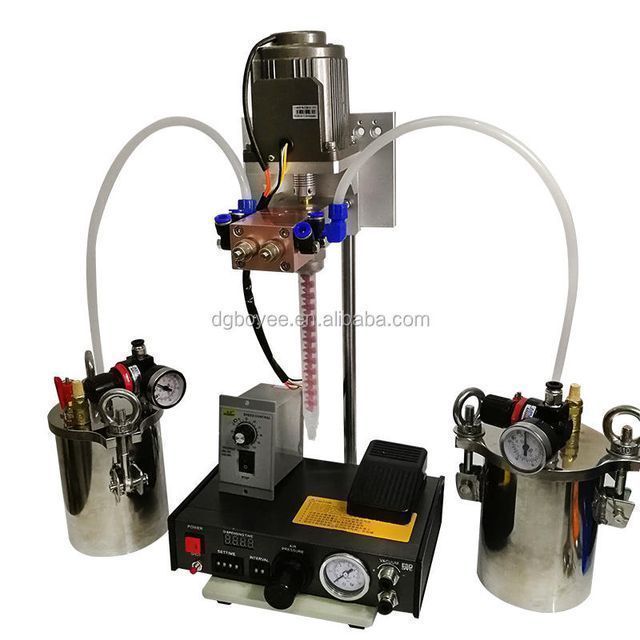

The dispensing system consists of three parts:

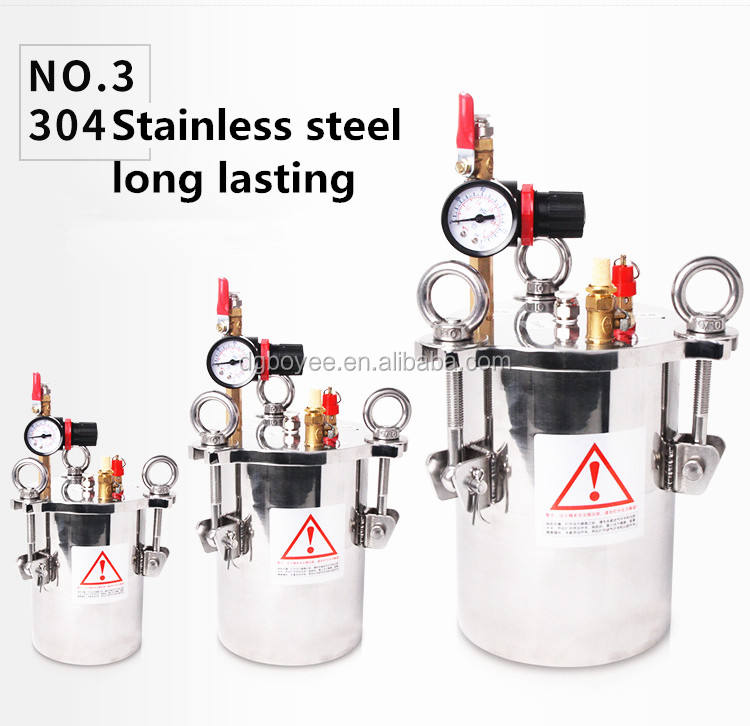

1. Two pressure barrels, the main function is to supply and store two different glues for the dispensing valve

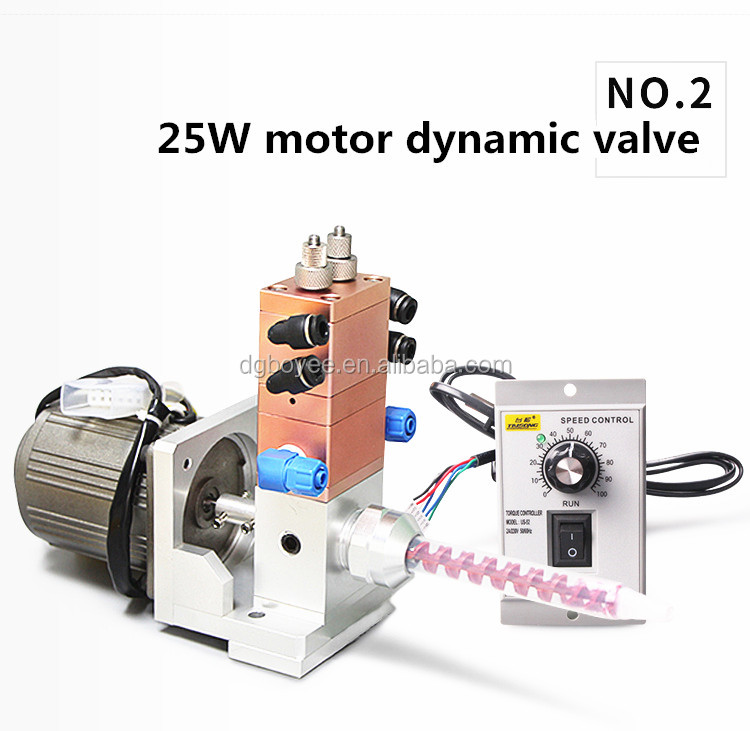

2. The main function of the dynamic stirring AB double-liquid dispensing valve is to mix the two glues together in different proportions, and solidify after a certain period of time.

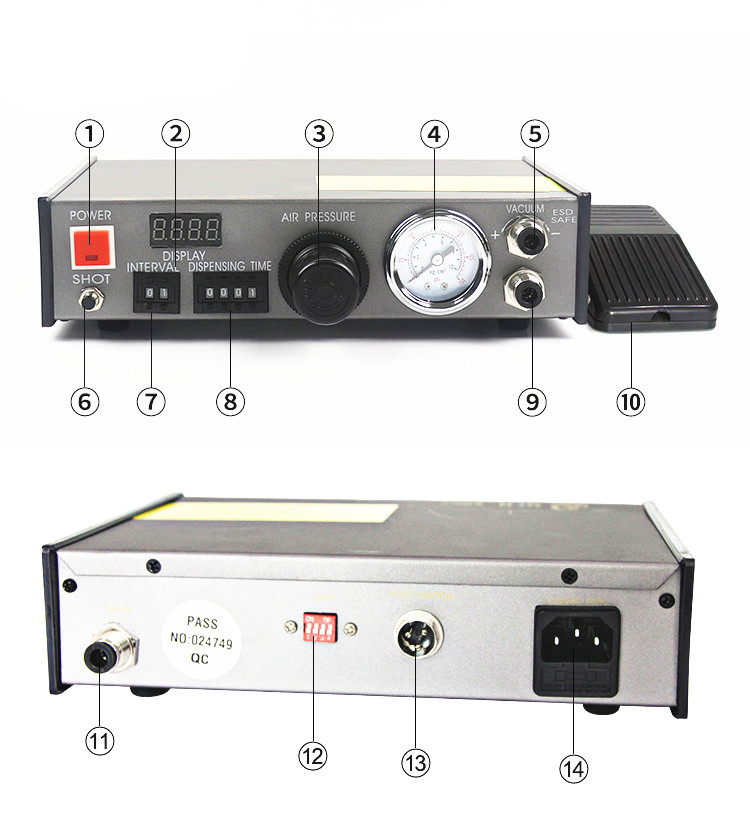

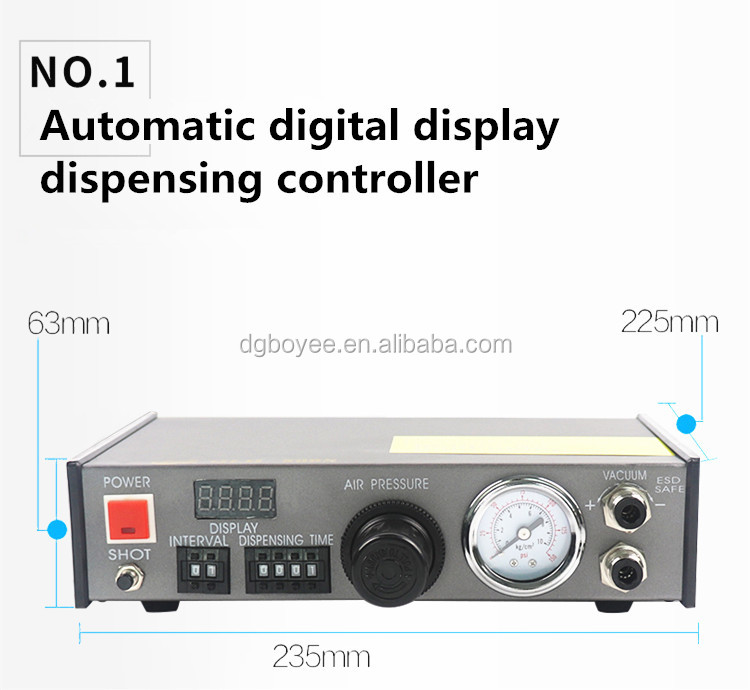

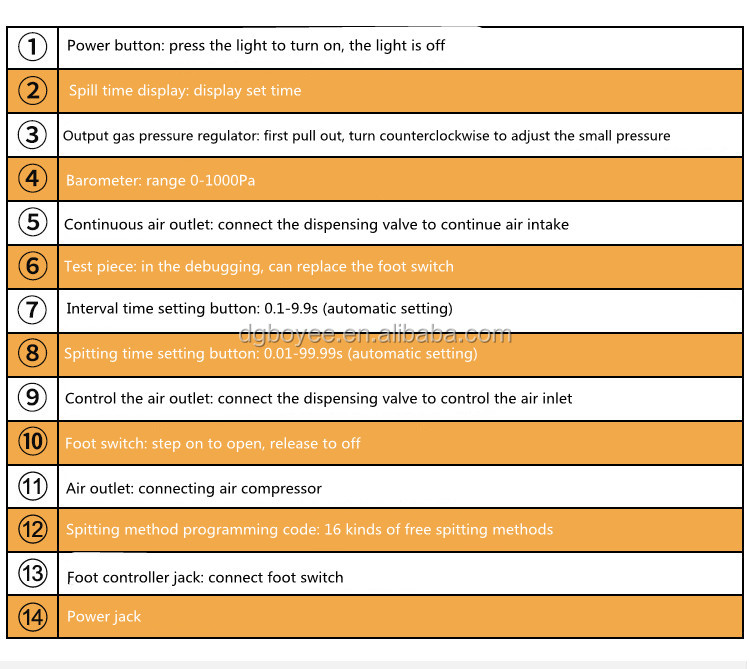

3. Dual-port dispensing controller, the main function is to control the amount of dispensing and the frequency and accuracy of dispensing

Scope of application:

It is suitable for dispensing processes such as AB glue pouring, dripping, and circle drawing, including epoxy potting glue, UV potting glue, polyurethane AB glue, black and white glue, etc. The glue filling trajectory can be seen, which saves the workpiece accuracy, simplifies the positioning procedure time, and improves the production quality and work efficiency.

technical parameter:

1. Power supply: AC220V/110V.
2. Power consumption: MAX10VA
3. Air source: 4～8kgf/cm2 dry compressed air
4. Air pressure adjustment: 0.2～7.0kgf/cm2 (0.02～0.69MPa)
5. Action mode: manual mode/automatic mode
6. Action signal: foot switch
7. AB glue mixing ratio: 1:1 (optional)

Packing list:

Pressure tank 1L*2

Dispense valve*1

Dispensing controller*1

Standing stand*1

Need to configure pressure barrels of different volumes, please contact customer service, thank you.
