Eltek 48V 24V 150A to 600A Rectifier 5U to 8U Flatpack2 Integrated Rack DC Power System (CTO2xxxx.nnnn CTOxxxxx.nnnn)
- 999.00 1 - 9 sets
- 899.00 >=10 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| weight: | 5kg | Maximum input voltage: | 300VAC |
| Supply capacity: | 1500 sets per month | aspect: | 482 x 267 x 380 mm |
| Warranty: | 12 months | model: | 5U to 8U Flatpack2 Integrated Power System |
| port: | Shenzhen | Packaging Details: | carton or wooden frame |
| payment terms: | letter of credit, wire transfer | type: | Telecom Power System |
| Part Number: | CTO2xxxx.nnnn(24vdc) CTOxxxxx.nnnn(48vdc) | Model: | Eltek 5U to 8U Flatpack2 Integrated Power System |
| Output current: | 600 ADCs | brand: | Ertec |
| use: | telecommunications | Rectifier module: | Flatpack2 HE SHE Rectifier |
| place of origin; place of origin: | Guangdong, China | Max output: | 48 VDC |
| Maximum power: | 32kW |
Product Description

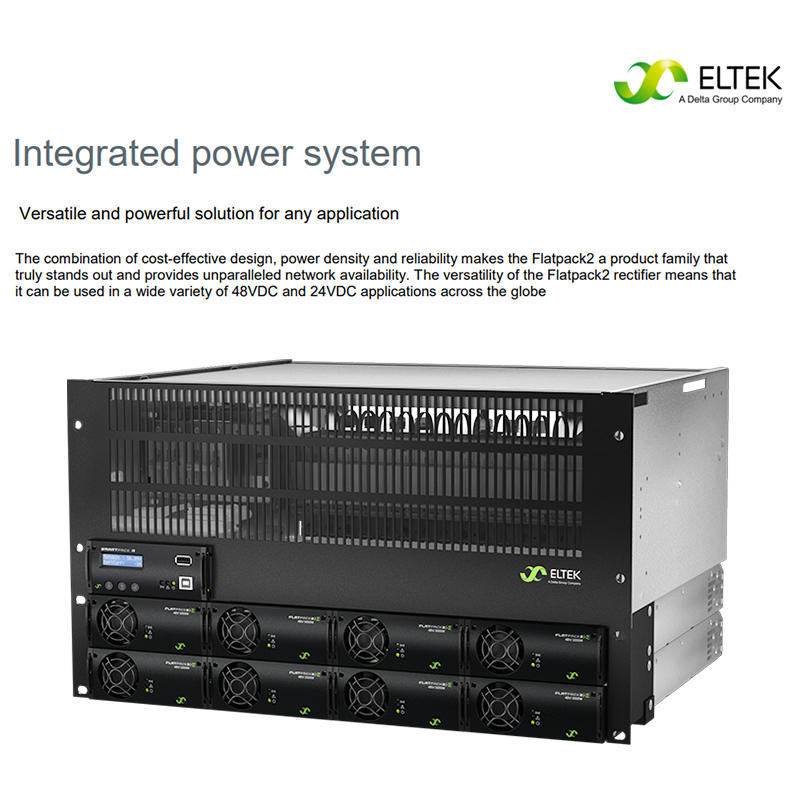

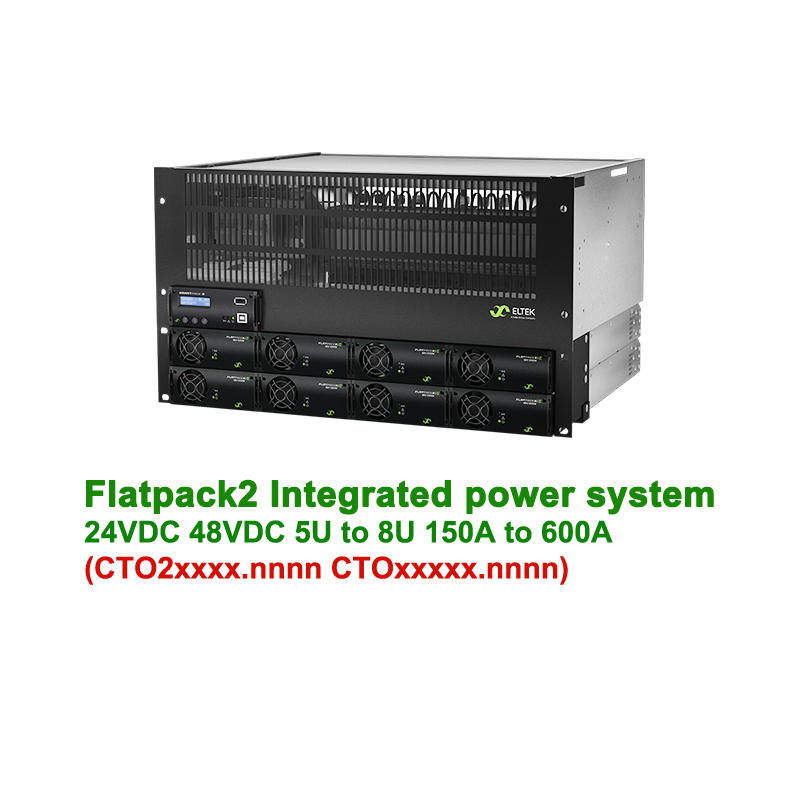

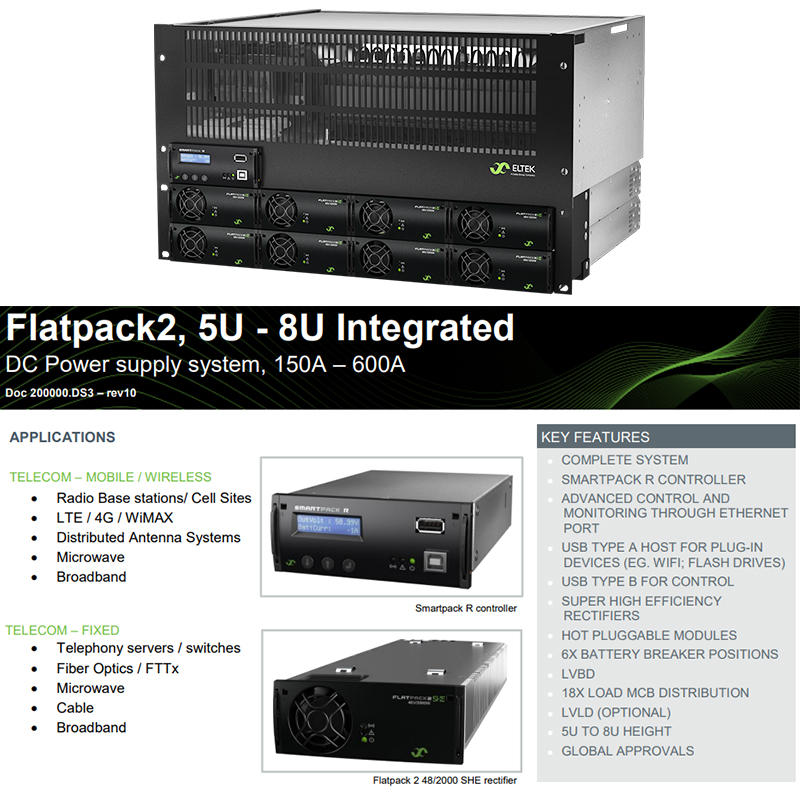

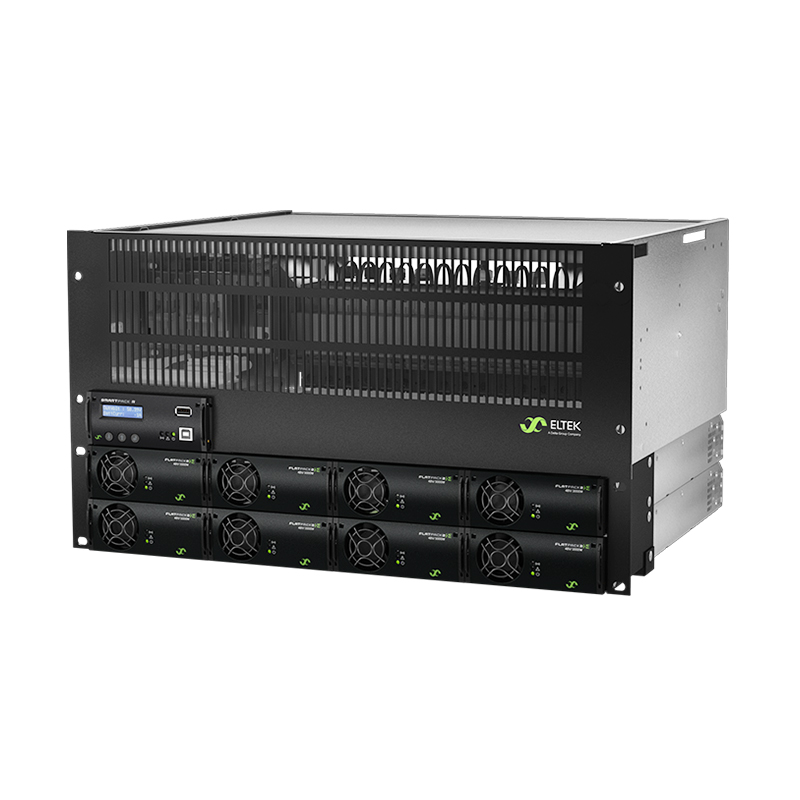

Flatpack2 Integrated Power System 5U to 8U
Main features:
* Highest efficiency in the smallest space
* Digital controller
* heat management
* Unique connection
* Global certification
* Digital controller
* heat management
* Unique connection
* Global certification

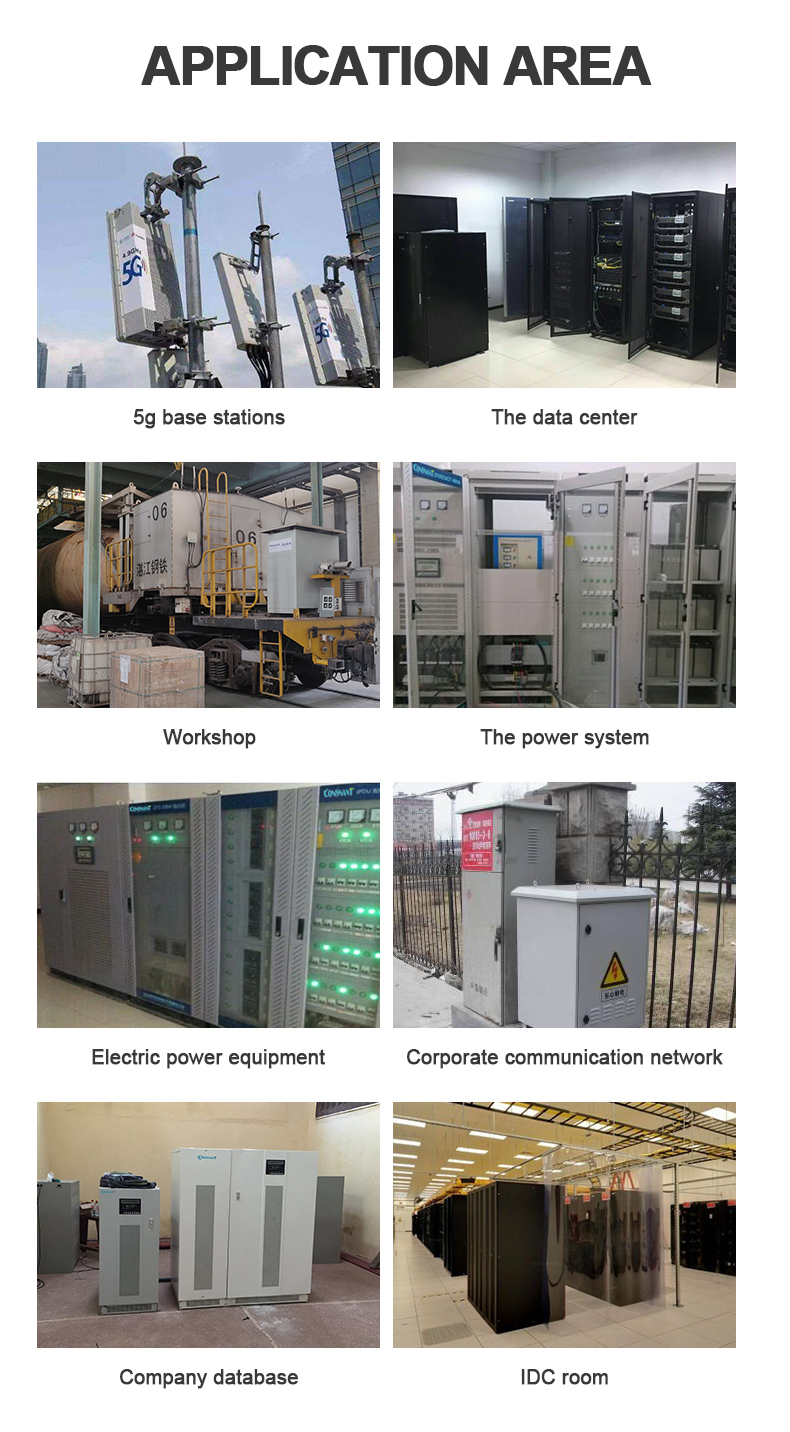

application

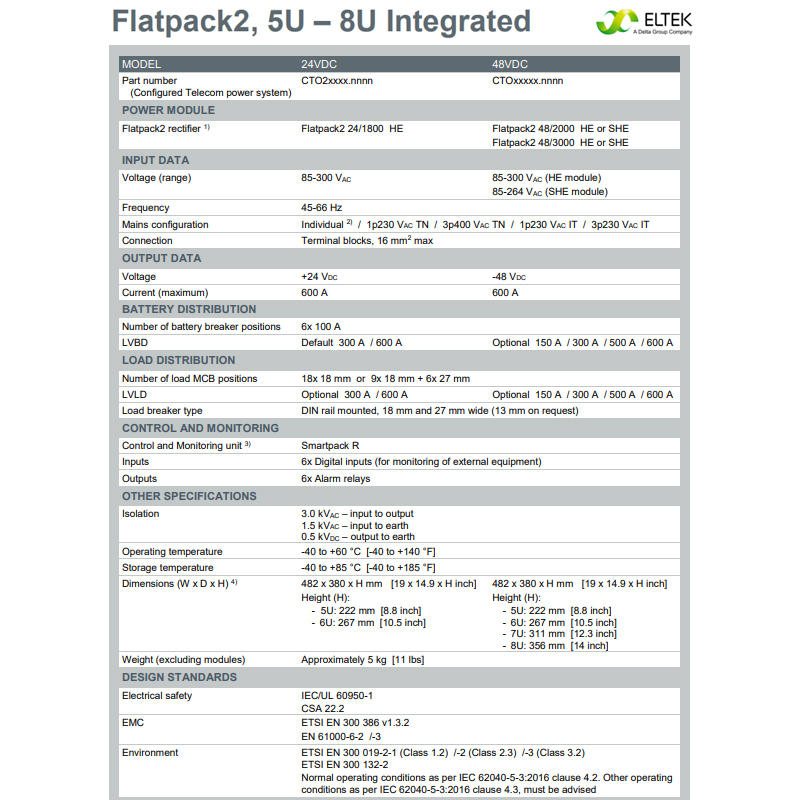

Specification
model | 5U to 8U Flatpack2 Integrated Power System |
type | Telecom Power System |
place of origin; place of origin | Guangdong, China |
brand | Ertec |
use | telecommunications |
Model | Eltek 5U to 8U Flatpack2 Integrated Power System |
Warranty | 12 months |
Part Number | CTO2xxxx.nnnn(24vdc) CTOxxxxx.nnnn(48vdc) |
aspect | 482 x 267 x 380 mm |
weight | 5kg |
maximum output | 48 VDC |
Maximum power | 32kW |
Rectifier module | Flatpack2 HE SHE Rectifier |
Maximum input voltage | 300VAC |
Output current | 600 ADCs |
OEM & ODM service

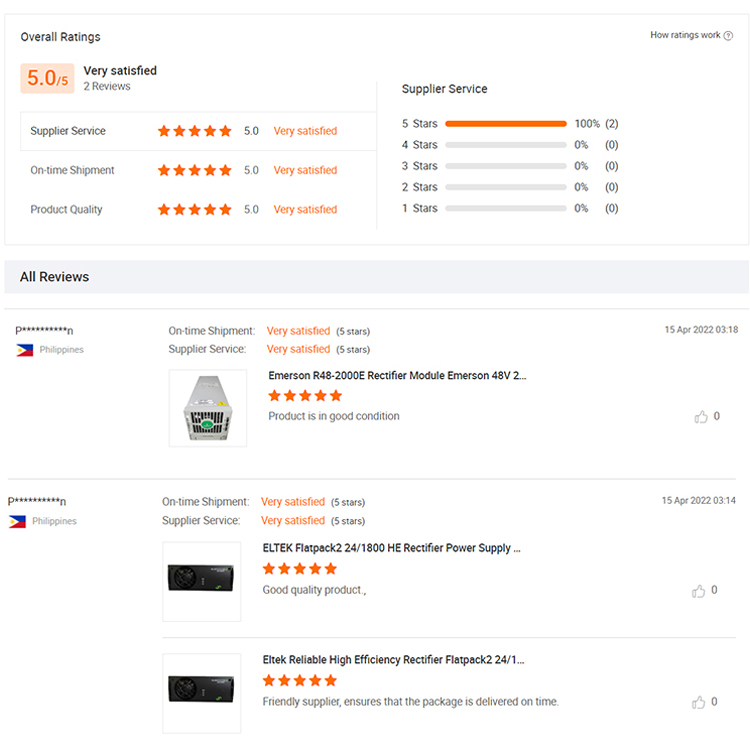

customer feedback
