Pure sine wave low frequency inverter board built in MPPT/PWM controller

Supplier: Shenzhen Tuorui New Energy Technology Co., Ltd.
Region: Guangdong, China
Price: $220.00 / 1 - 10 sets
$218.00 / 11 - 100 sets
$215.00 / 101 - 500 sets
$212.00 / >=501 sets
Min. Order: 1 set

Click here to contact

Product details

frequency:	45-65Hz	type:	DC/AC inverter
size:	520420222	Battery charging current:	30A (default)
Output voltage range:	110VAC; 220VAC; ±5% (inverter mode)	brand:	solar energy
Input voltage range:	85-138VAC; 170-275VAC	Packaging Preview:
Protect:	Over/under voltage, overload, short circuit protection	The output voltage:	110VAC/220VAC
Output waveform:	pure sine wave	port:	Shenzhen
Input voltage:	12V/24V/48V/96VDC	weight:	13kg
Inverter efficiency:	>85%	Output frequency:	50/60Hz±1%(automatic recognition),50/60Hz
model:	Tsolar/LFI-1KW	Output current:	9.1A
Packaging Details:	carton	Supply capacity:	8000 sets per month
output type:	single	product name:	low frequency inverter
Certificate:	IS0,CE,Rohs	payment terms:	L/C,Western Union,T/T
place of origin; place of origin:	Guangdong, China	Warranty:	1 year
rated power:	1KW/2KW/3KW/4KW/5KW	Battery rated voltage:	12VD/24VDC/48VDC

Product Description

Specification

● Dual CPU intelligent control technology, excellent performance; ● Power mode/energy saving mode/battery mode can be set, flexible application; ● Intelligent fan control, safe and reliable; ● Pure sine wave output, can adapt to various loads; ● Wide input voltage range , High-precision output automatic voltage function. ● LCD displays equipment parameters in real time, and the running status is clear at a glance; ● Output overload, short circuit protection, automatic protection and alarm; ● Intelligent MPPT solar controller, overcharge, overdischarge protection, current-limited charging, multiple protections;

type			0.3-1KW		2KW	1.5-6KW			4KW	5KW
Rated power (w)		rated power	300W	700W	1500W	3000W	5000W
Rated power (w)				500W	1000W	2000W	4000W	6000W
Battery	Rated voltage	12/24VDC			12/24/48VDC	24/48VDC	48VDC
		recharging current	10A max			30A max
		Battery Type	U0-U7 can be set
enter	voltage range	85-138VAC; 170-275VAC
enter		frequency	45-65Hz
output	voltage range	110VAC; 220VAC; ±5% (inverter mode)
		frequency	50/60Hz±1% (automatic recognition)
		output wave	pure sine wave
		Change time	<10ms (typical load)
		efficiency	>85% (80% resistive load)
		overcharge	110-120% power load 30S protection; >160%/300ms;
		Protect	Battery over/under voltage, overload, short circuit protection, over temperature protection, etc.
MPPT solar controller	MPPT voltage range	12VDC: 15V~150VDC; 24VDC: 30V~150VDC; 48VDC: 60V~150VDC
		Solar input power	12VDC-30A(400W); 24VDC-30A(800W)		12VDC-60A(800W); 24VDC-60A(1600W); 48VDC-60A(3200W)
		Rated charging current	30A (max)			60A (max)
		MPPT efficiency	≥99%
		Average charge voltage (lead acid battery) accepted	12V/14.2VDC; 24V/28.4VDC; 48V/56.8VDC
		float charge voltage	12V/13.75VDC; 24V/27.5VDC; 48V/55VDC
Working temperature		-15-+50℃					-20℃~+40℃
Storage ambient temperature			-25℃ - +50℃
Operating/Storage Environment			0-90% non-condensing

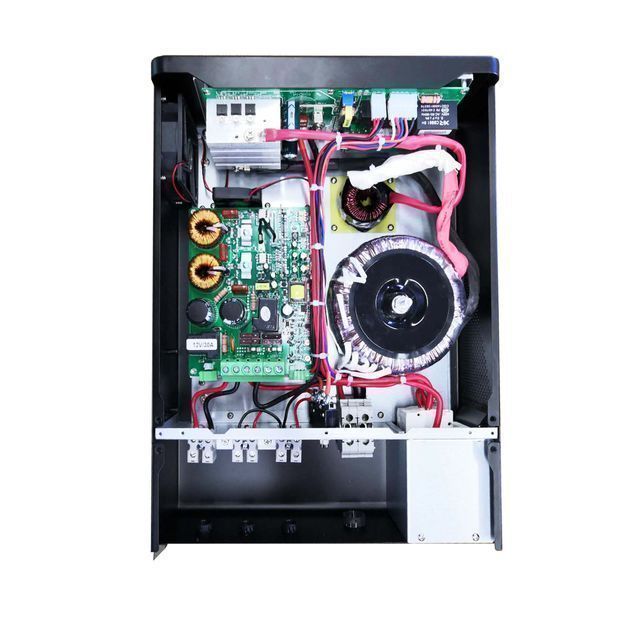

detailed picture

Features

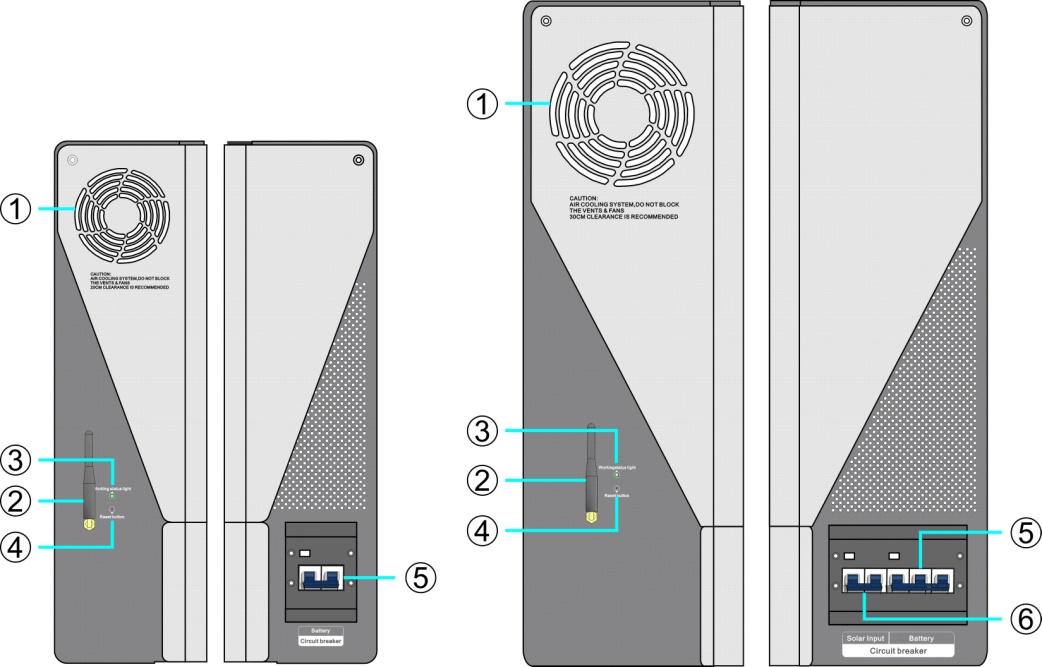

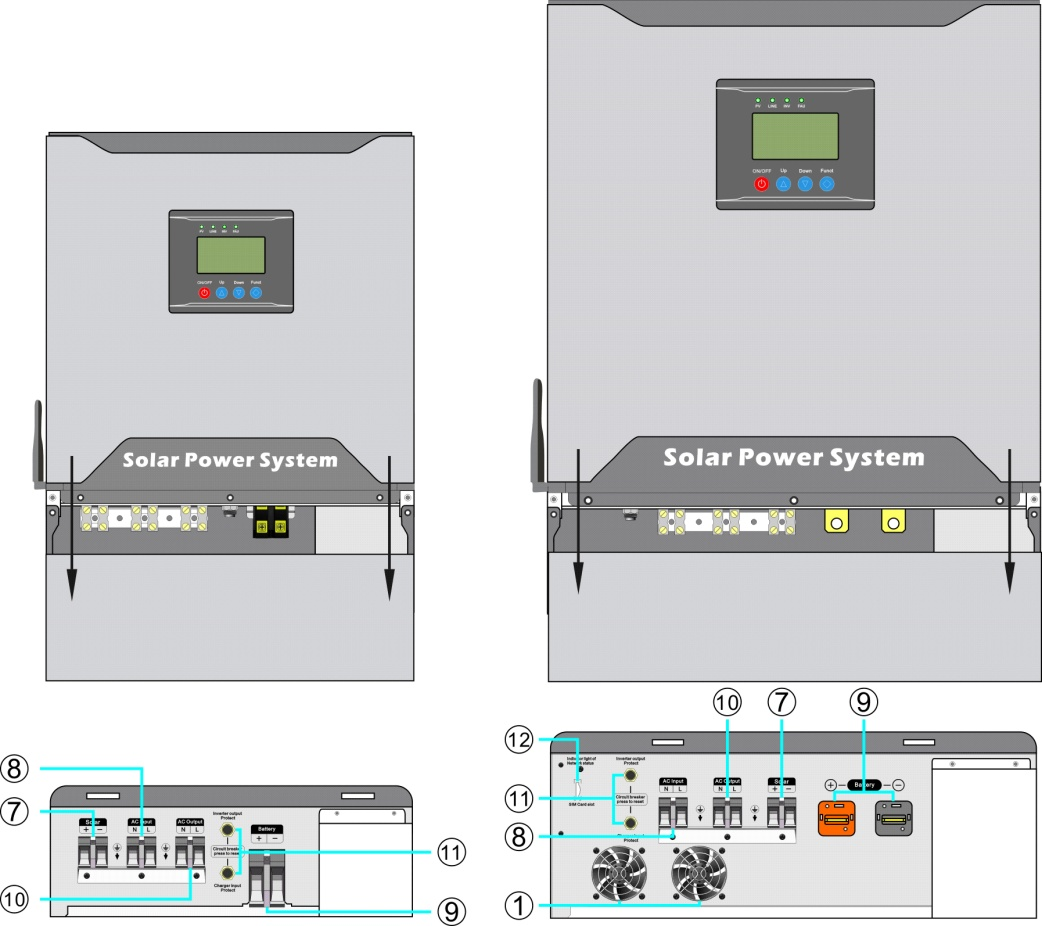

Direction: ①--Fan ②--Wi-fi communication instruction (optional function) ③--WIFI working status indicator ④--WIFI reset button⑤--Battery input circuit breaker⑥--Solar input circuit breaker (Note: Without this circuit breaker 0.3KW-1.5KW) ⑦--Solar input port ⑧--AC input port ⑨--Battery input port ⑩--AC output port ⑪--AC input/output fuse holder ⑫--SIM card slot ( Remarks: optional function, 0.3KW-1.5KW without card slot)
