KTA Crystal Titanium Titanium Potassium Arsenate KTiOAsO4 for OPO

Supplier: Hangzhou Brandnew Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr David Wang
Price: $99.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

type:	nonlinear optics	model:	KTA
Crystal structure:	Orthogonal, point group mm2	Operating Temperature Range (°C):	/
Transparency range:	350-5300nm	Load capacitance:	/
Frequency tolerance:	/	Melting point:	1130
Packaging Details:	One piece per box (according to your request)	frequency:	/
Supply capacity:	10000 pieces per month	place of origin; place of origin:	Zhejiang, China
brand:	BWD	payment terms:	Western Union, wire transfer
Moh's hardness:	nearly 5	Density (g/cm3):	3.454

Product Description

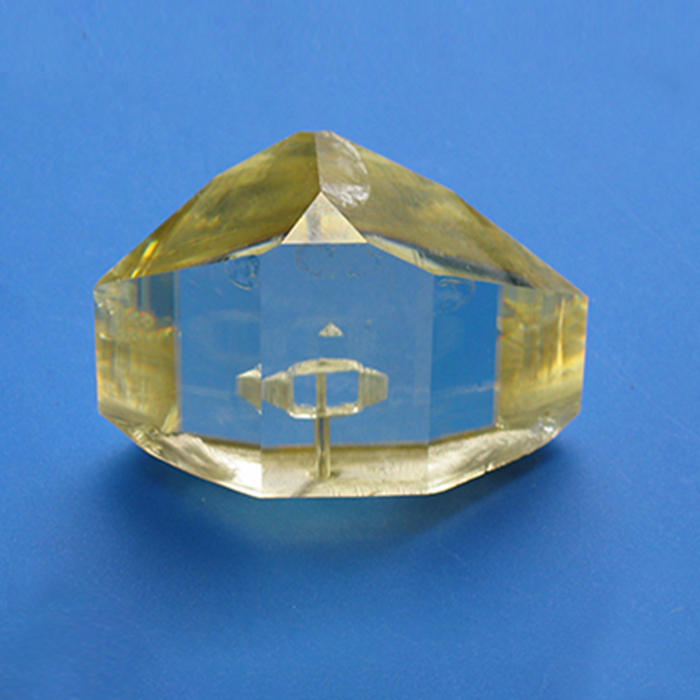

KTA Crystal Titanium Titanium Potassium Arsenate KTiOAsO4 for OPO

Titanium Titanium Potassium Arsenate (KTiOAsO4) or KTA crystal is an excellent nonlinear optical crystal for optical parameters
Oscillation (OPO) applications. It has better nonlinear optical and electro-optic coefficients, significantly reduced absorption in the 2.0-5.0 µm region, wide angle and temperature bandwidth, and low dielectric constant. Its low ionic conductivity results in a higher damage threshold compared to KTP.

• Crystal length from 0.1mm to 30mm, size up to 10x10x30mm3;
• AR coating from visible light to 3300nm;
• Repolishing and recoating services;

Specification

Basic properties
Crystal structure	Orthogonal, point group mm2
Lattice parameters	a=13.125Å, b=6.5716Å, c=10.786Å
melting point	1130℃
Moh's hardness	nearly 5
density	3.454g/cm3
Thermal Conductivity	K1: 1.8W/m/K; K2: 1.9W/m/K; K3: 2.1W/m/K

Optical and nonlinear optical properties
Transparency range	350-5300nm
absorption coefficient	@ 1064 nm<0.05%/cm @ 1533 nm<0.05%/cm @ 3475 nm<5%/cm
NLO Sensitivity (pm/V)	d31 = 2.76, d32 = 4.74, d33 = 18.5, d15 = 2.3, d24 = 3.2
Electro-optical constant (pm/V) (low frequency)	ρ33=37.5; ρ23=15.4; r13=11.5
SHG phase matching range	1083-3789nm
