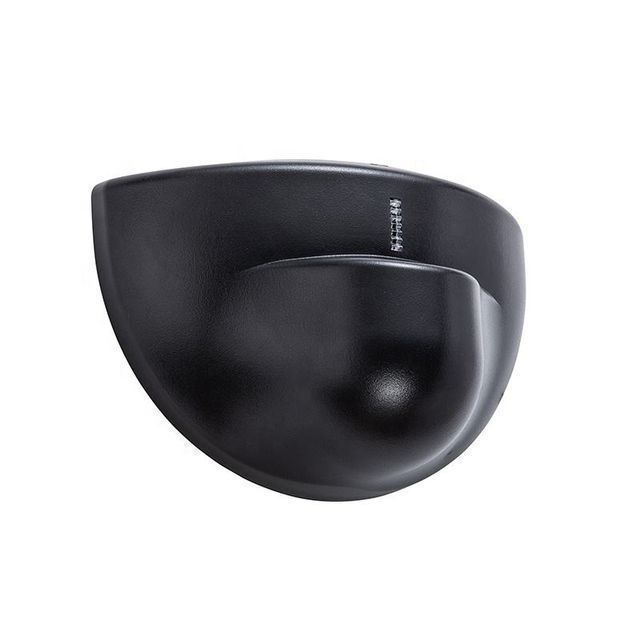

Doortec MS04 Microwave Motion Sensor Switch Door Open/Close Sensor Door Accessories Microwave Motion Sensor

Click here to contact

Product details

payment terms:	Western Union, wire transfer	model:	MS04
Packaging Details:	carton, bubble	Dimensions / Dimensions:	1208050mm(WHD)
describe:	Doortec MS04	Current Ratings - AC:	12V~24V
Supply capacity:	5000 pieces per month	type:	microwave sensor
Operating temperature:	-20°C~55°C	Maximum inspection range:	4*2 meters
Current - Supply (Max):	1A	brand:	Doortec
Power consumption:	<2W	Rated Current - DC:	12V~30V
port:	Ningbo & Shanghai	Cover color:	black, silver, gray
place of origin; place of origin:	Zhejiang, China	frequency:	50Hz~60Hz

Product Description

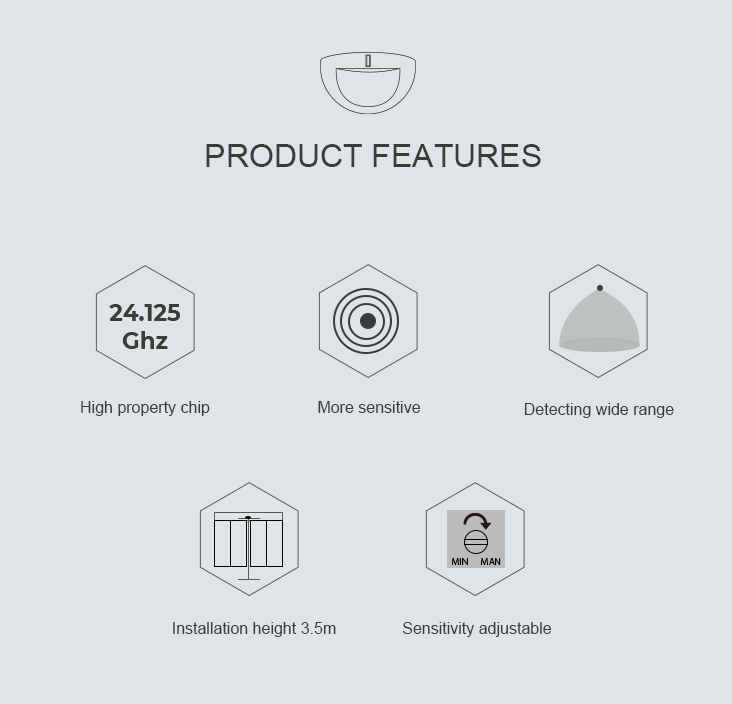

Basic Microwave Sensor

1. High-performance chips

2. More sensitive

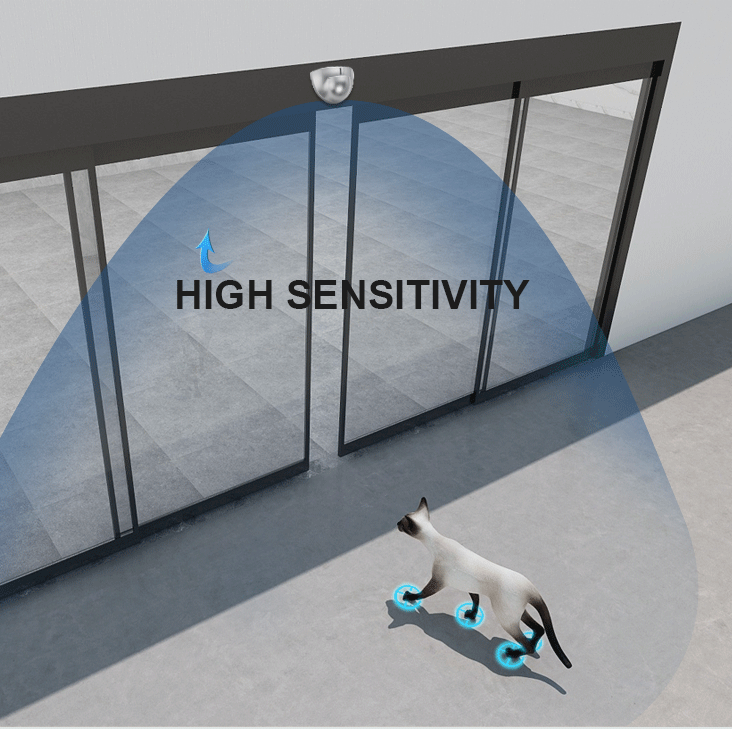

3. Wide detection range

4. Adjustable sensitivity

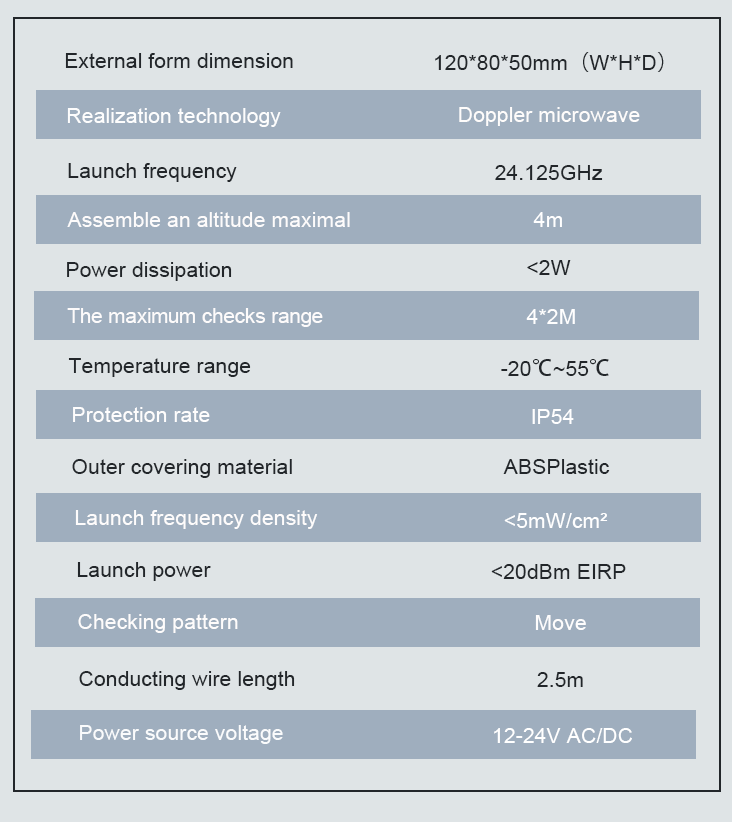

Dimensions	1208050mm(WHD)
Implementation technology	Doppler microwave
transmit frequency	24.125GHz
Gather the highest altitude	4M
Power consumption	<2W
Maximum inspection range	4*2M
temperature range	-20℃-55℃
Protection rate	IP54
outer cover material	ABS plastic
Transmission frequency density	<5mW/cm²
transmit power	<20dBm EIRP
check mode	move
wire length	2.5m
voltage	12v-24v AC/DC
