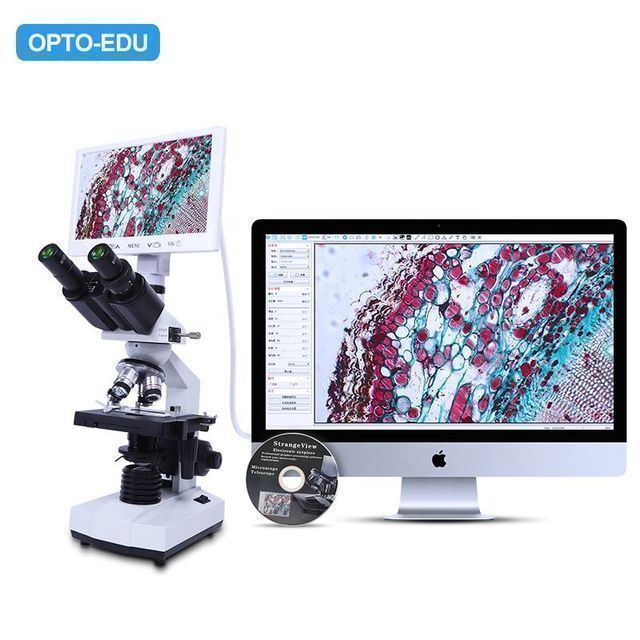

OPTO-EDU A33.5121-TH 7" LCD 2.0M Bio USB Portable Dual Lens Digital Microscope

Supplier: Opto-Edu (Beijing) Co., Ltd.
Region: Beijing, China
Contact: Mr Xin Huang
Price: $422.50 / 1 - 19 pieces
$385.70 / 20 - 49 pieces
$321.00 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

Supply capacity:	500 pieces per month	place of origin; place of origin:	Beijing China
Storage:	Micro SD card slot, support Class 10 Max 32G	Packaging Details:	Packed in plastic bags and bubbles, then sealed in a sturdy carton for long-distance shipping.
objective:	Achromatic 4x, 10x, 40x(s), 100x(s, oil)	Warranty:	3 years
sensor:	1/2.75" CMOS	port:	Chinese port
Frame rate:	30 frames per second	Pull the tube:	Three eyes
model:	A33.5121-TH	brand:	Photoelectric Education
LCD camera:	7" IPS LCD screen resolution 800x480	Custom Support:	OEM, ODM
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Pixel size:	2.8x2.8um
strength:	DC5V/2A, power port 3.5/1.35 DC	output:	USB 2.0, output to LCD, PC or mobile phone
Handheld:	USB Portable Digital Microscope 1.3M, 1.5x-25x	theory:	video microscope
Resolution:	2.0M 1920x1080p with 0.3x C interface

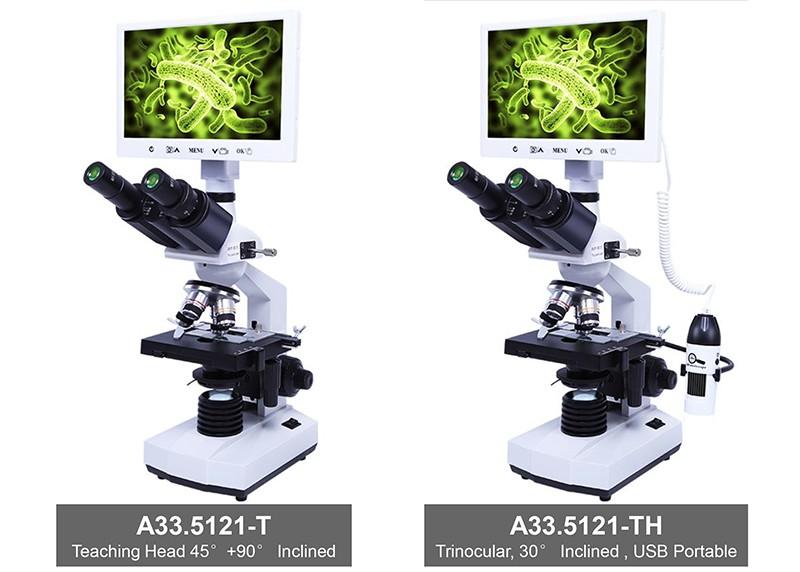

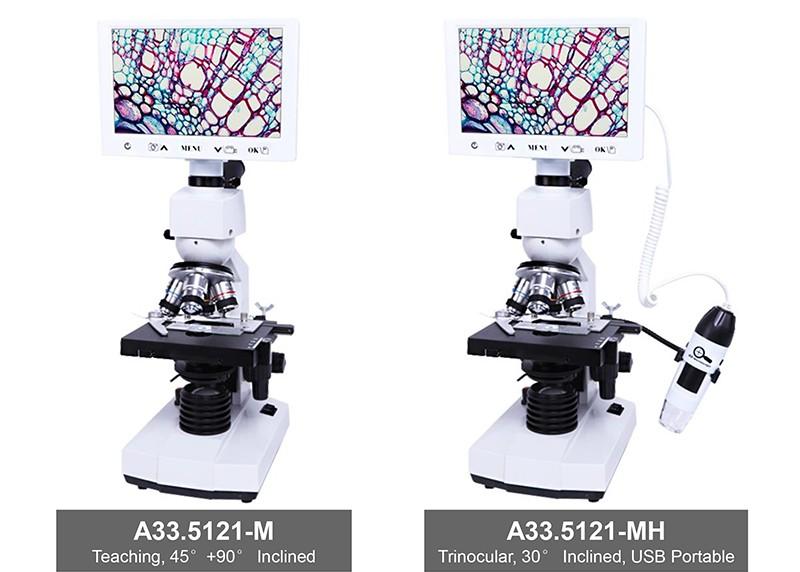

A33.5121 7" LCD Bio + USB Portable Dual Lens Digital Microscope, 5.0M			-M	-MH	-T	-TH
head	Teaching head, 45°+90° tilt, 360° rotatable	○	○
		Binocular head, 30° tilt, 360° rotatable

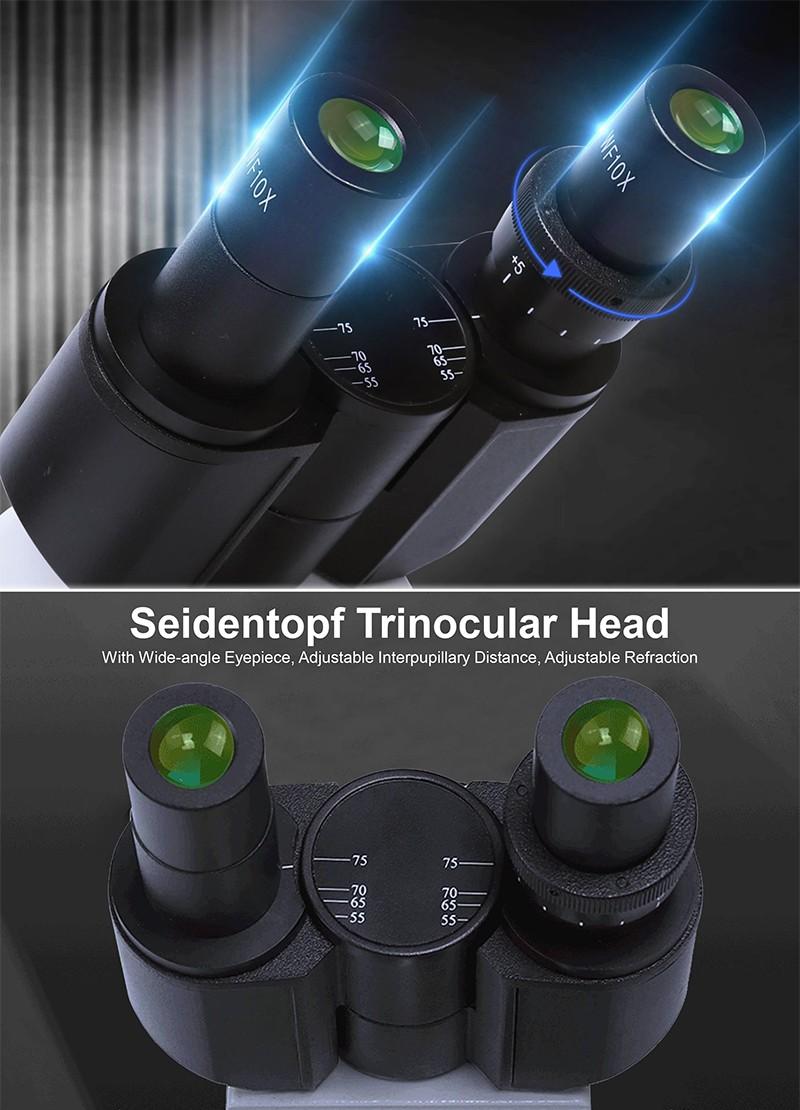

		Trinocular head, 30° tilt, 360° rotatable			○	○

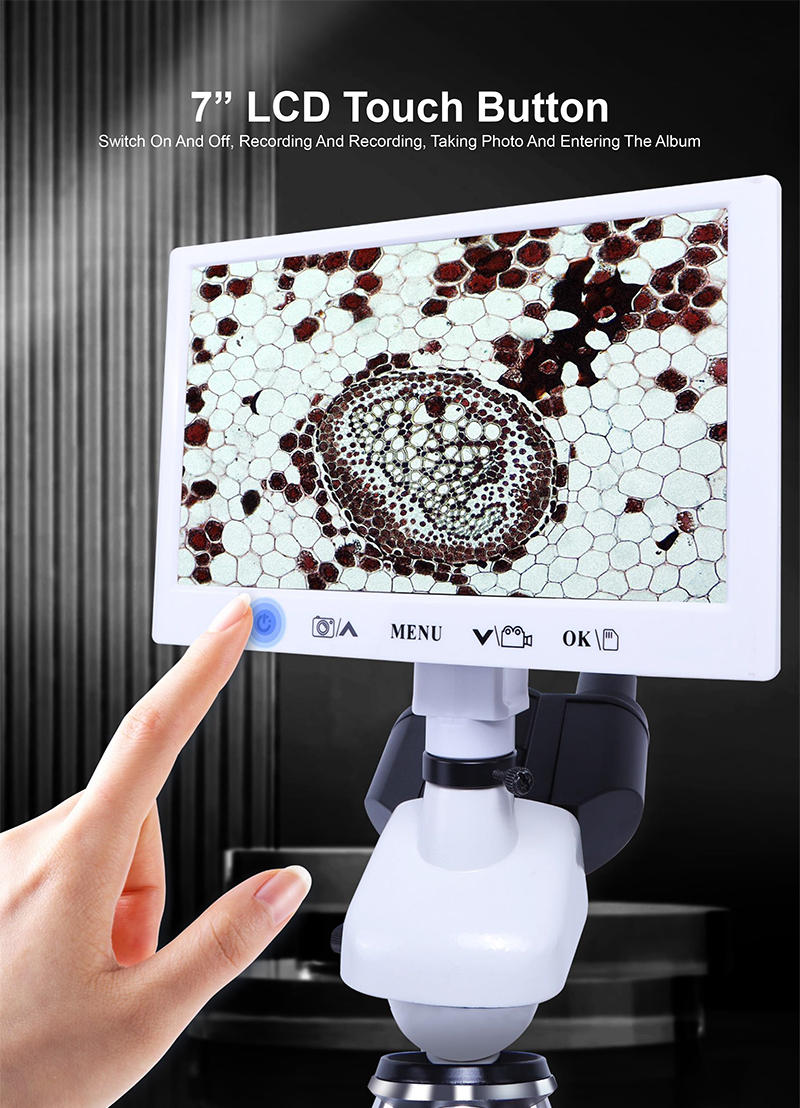

LCD camera	7" IPS LCD screen resolution 800x480
sensor	1/2.75" CMOS
Resolution	2.0M 1920x1080p with 0.3x C interface
pixel size	2.8x2.8um
frame rate	30 frames per second

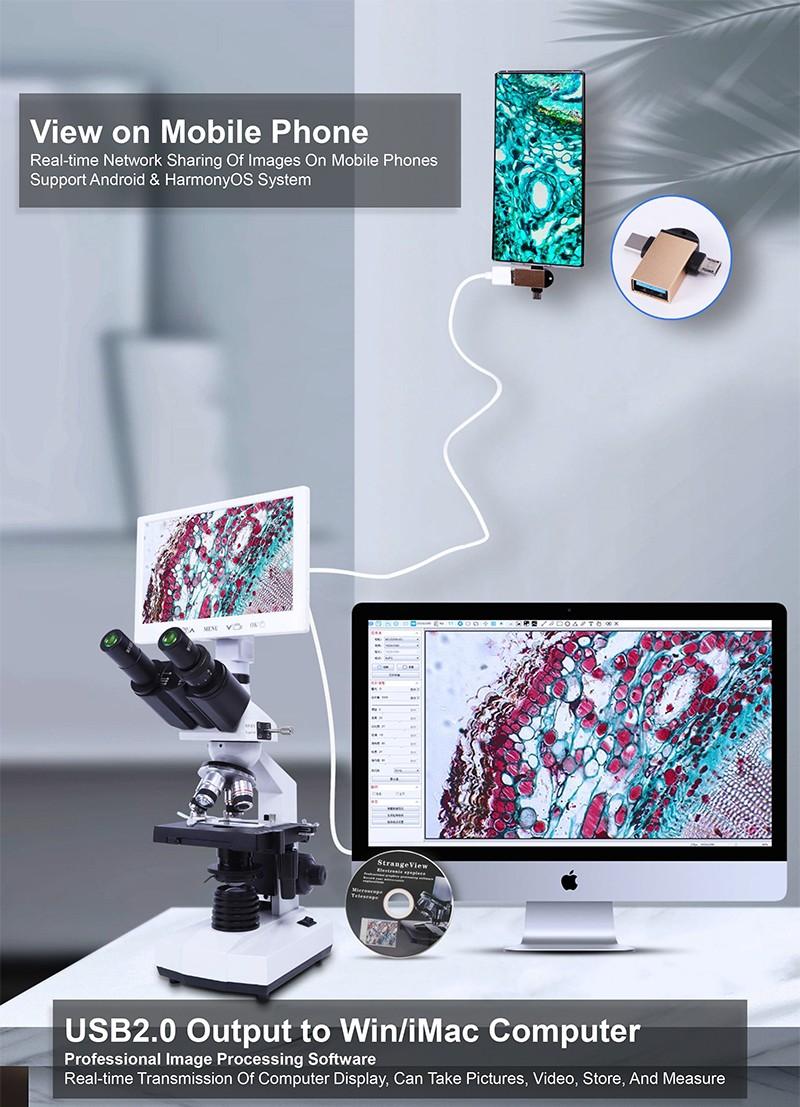

output	USB 2.0, output to LCD, PC or mobile phone
strength	DC5V/2A, power port 3.5/1.35 DC
storage	Micro SD card slot, support Class 10 Max 32G
LCD menu	Switch between main camera and handheld camera images with one click
		One-click photo, video, record, save to SD card
		Set color, contrast, white balance automatic/manual adjustment
		Set photo/video resolution adjustment, microphone on/off to record sound with video
		Set date and time
		Select language: Chinese, Traditional Chinese, English, Japanese, French, German, Korean, Russian, Italian, Portuguese, Spanish, Arab
		Play photos, videos
Computer Software	Comes with measurement software Wonder CD, supports Win/iMac computer, supports languages Chinese, English, Russian, Ukrainian

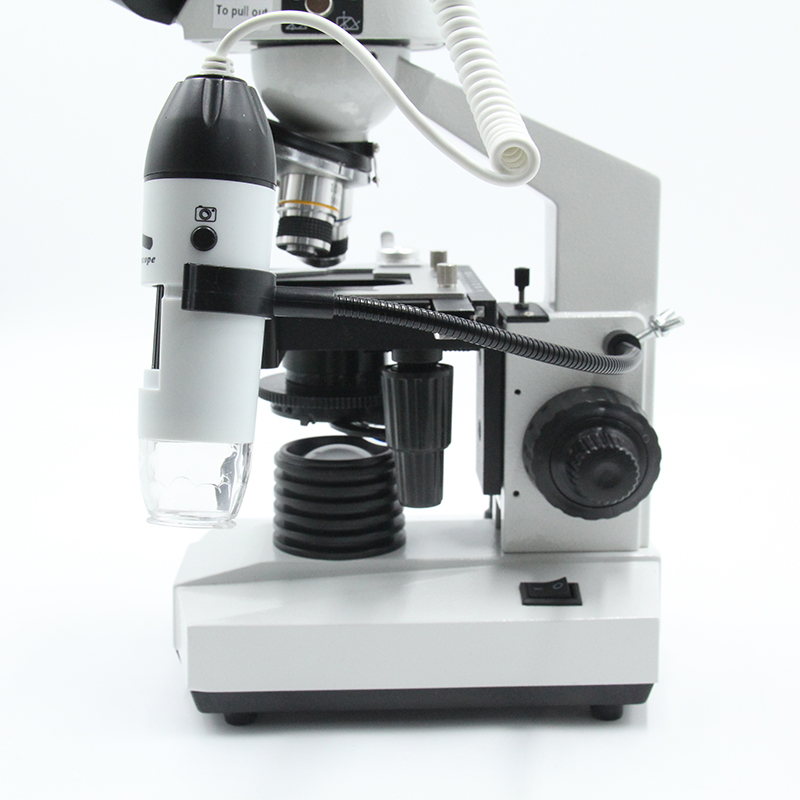

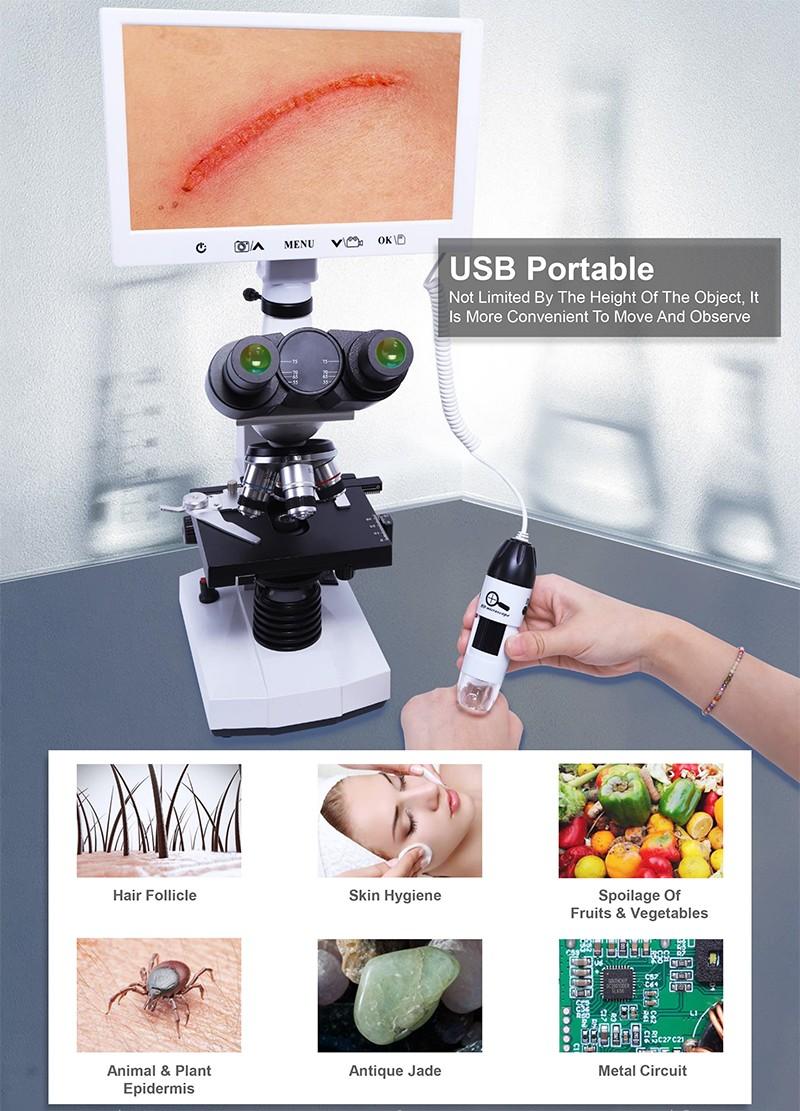

Handheld	USB Portable Digital Microscope 1.3M, 1.5x-25x	-	○	-	○
eyepiece	WF10x, WF16x
nose piece	Quadruple nosepiece, ball bearing internal positioning

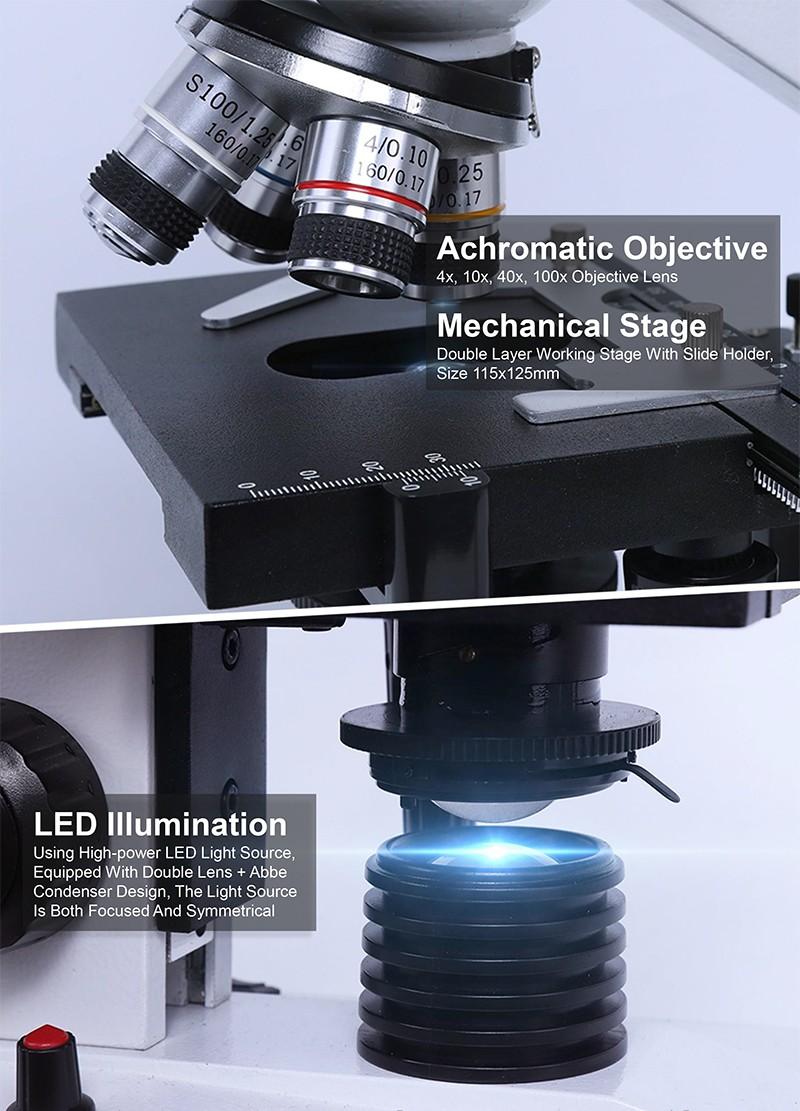

objective	Achromatic 4x, 10x, 40x(s), 100x(s, oil)
Work Phase	Double-layer mechanical stage 115*125mm
focus	Coaxial coarse and fine focusing knob, coarse focusing range 20mm
condenser	Abbe condenser NA1.25 with aperture diaphragm filter
light source	LED, brightness adjustable

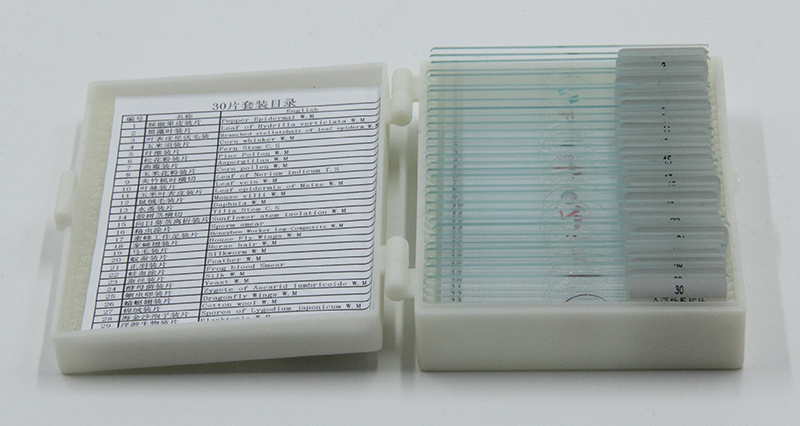

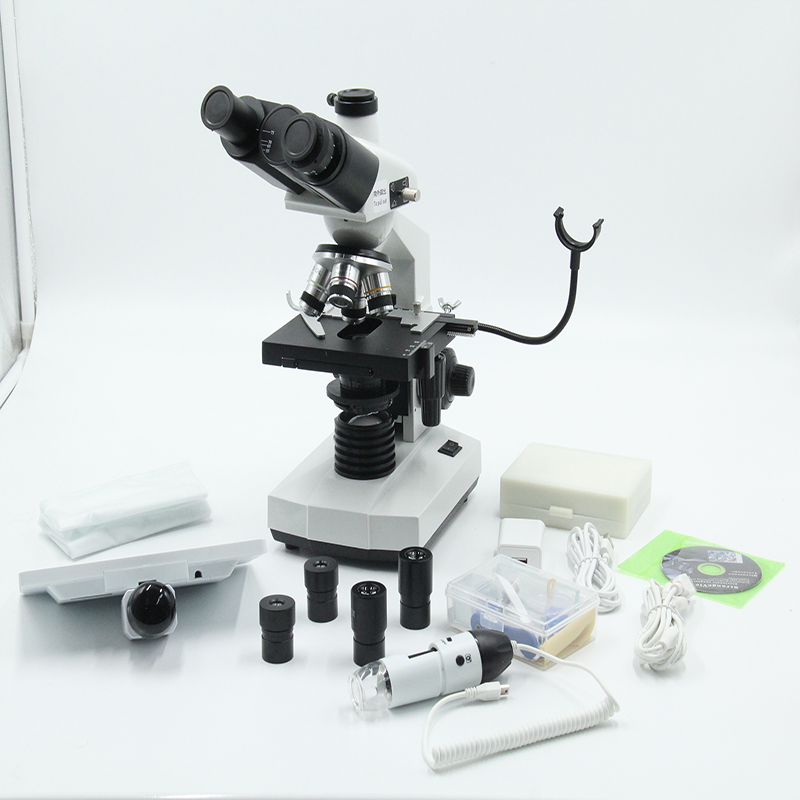

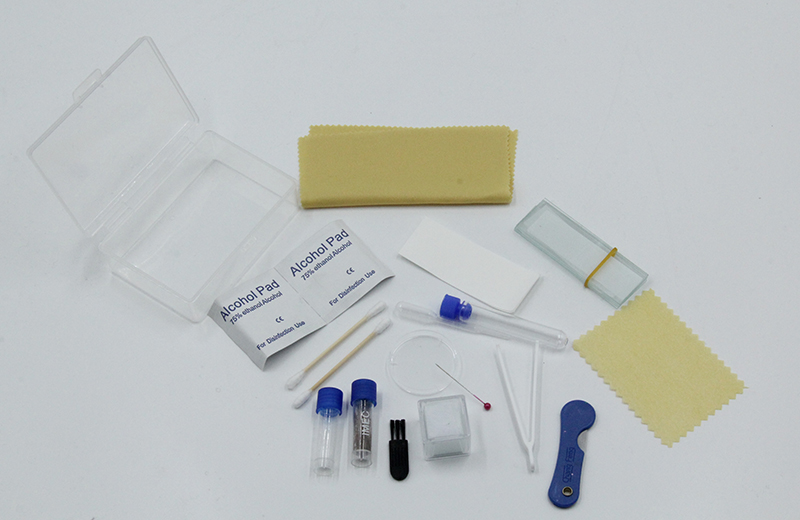

accessories	10 prepared slides in a box, experiment kit, mobile phone connector Power Adapter power cable USB cable Software CD

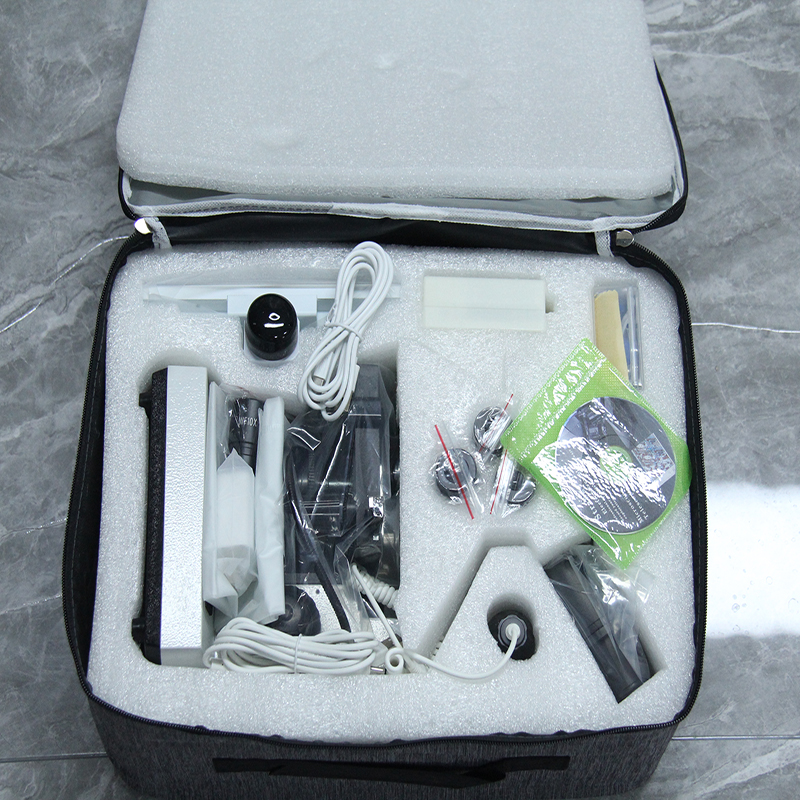

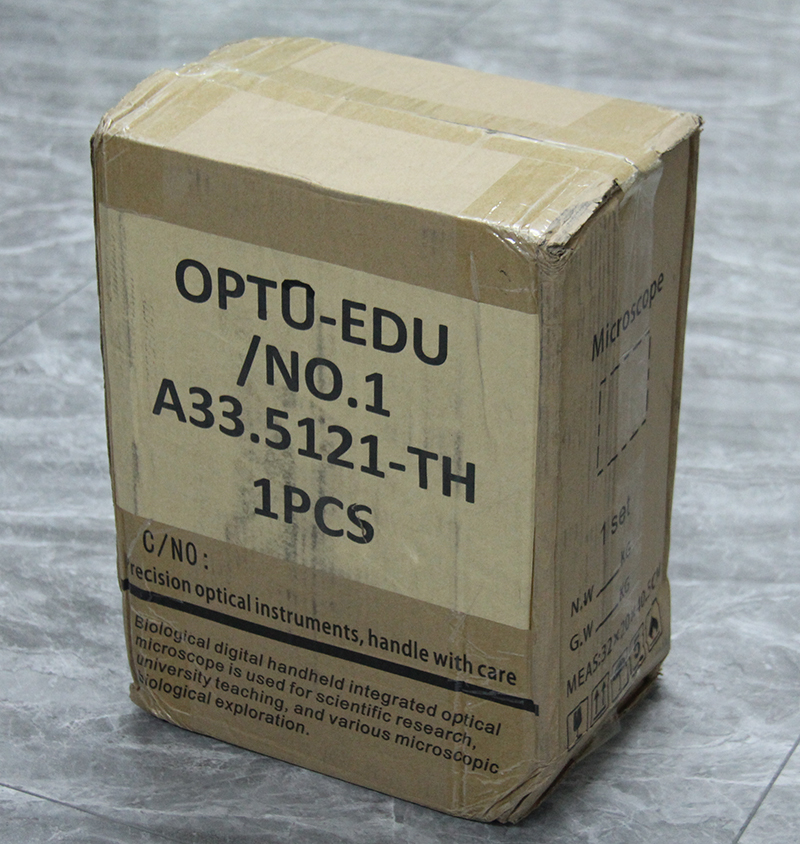

Package	Suitcase + main carton
