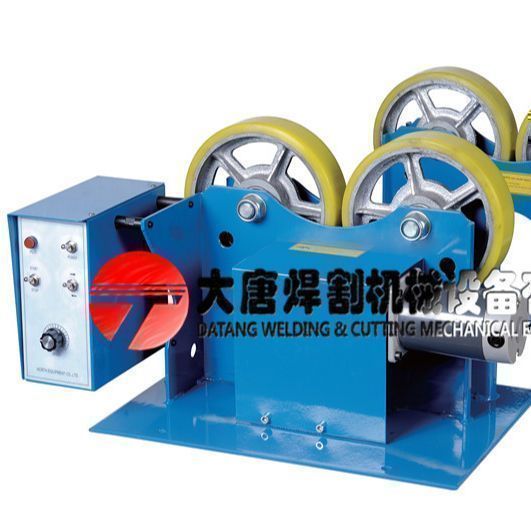

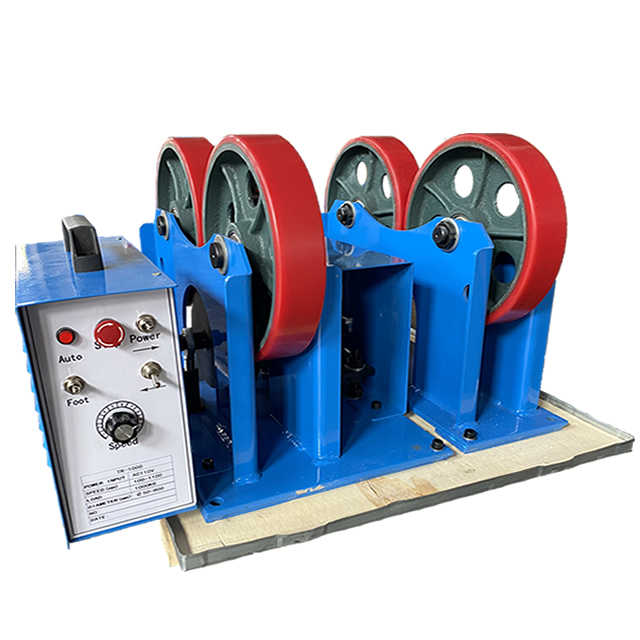

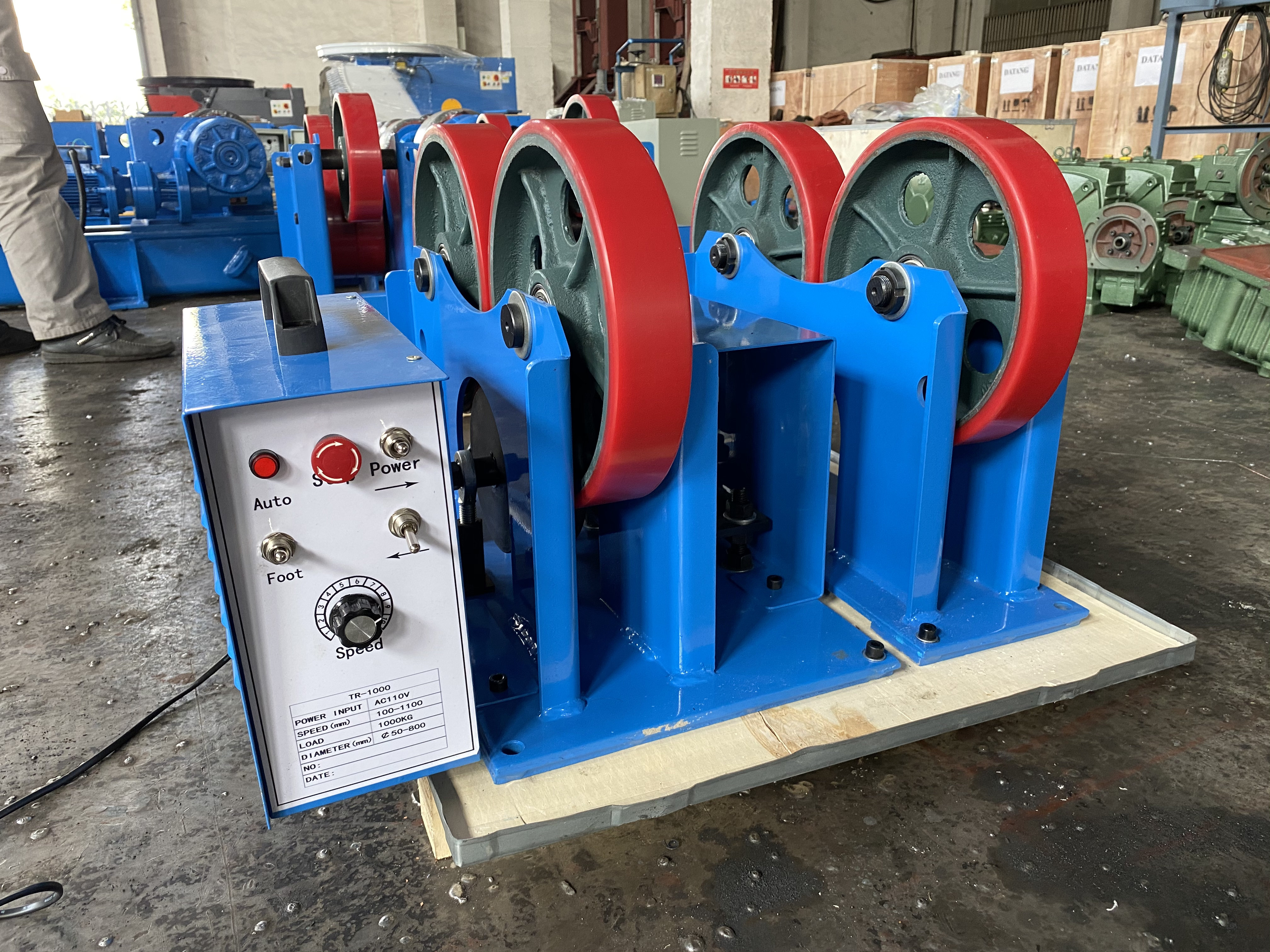

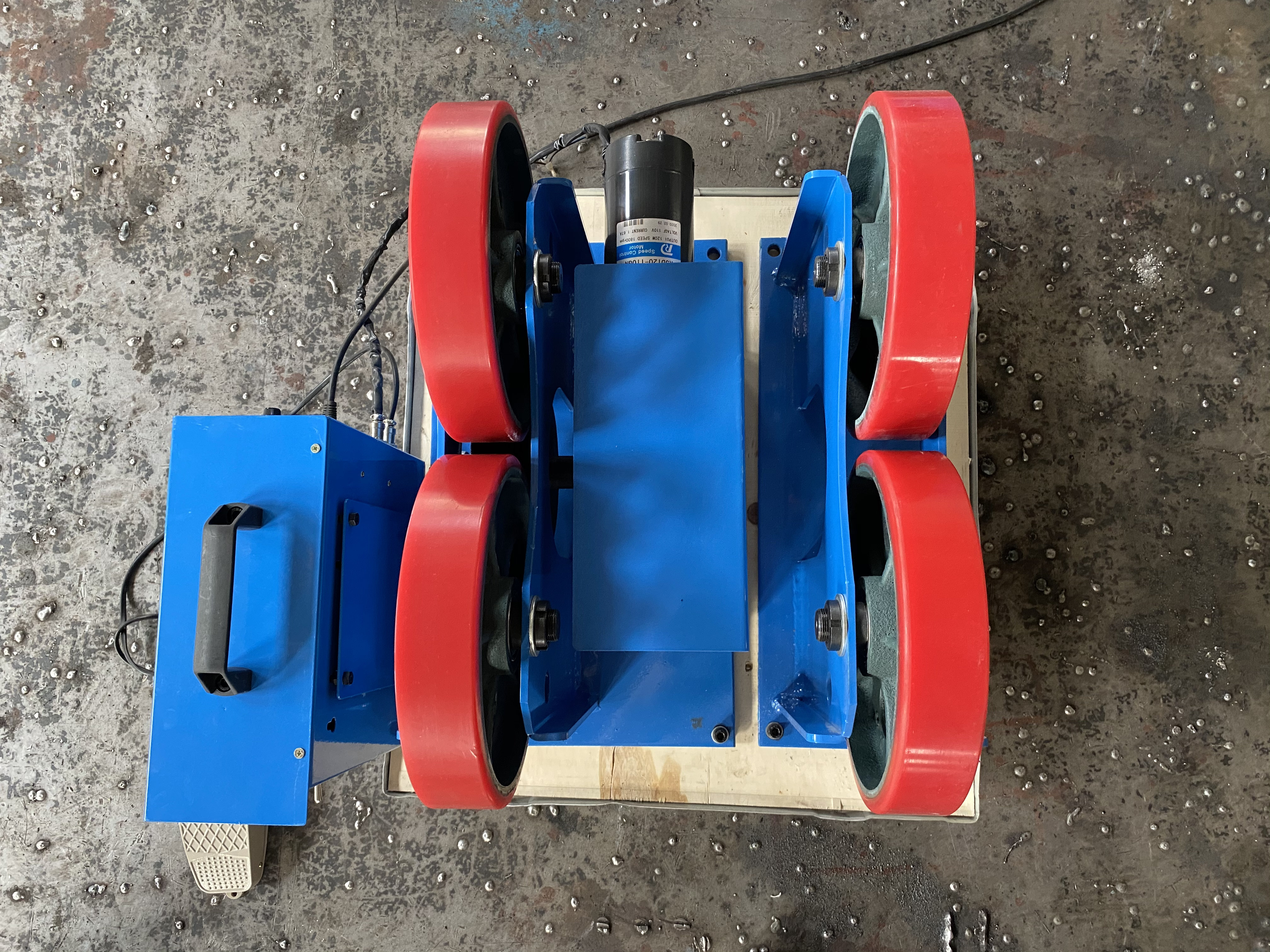

Datang Direct Manufacturing Turning Roll Groove Roll Tube Welding Rotator

Supplier: Wuxi Datang Welding & Cutting Mechanical Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Cherry zhou
Price: $230.00 / 1 - 4 sets
$200.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	Canada, Germany, United Arab Emirates	net weight:	Drive: 38Kg, Idler: 16kg
Video external inspection:	if	Main selling point:	automatic
Core Components Warranty:	1 year	Core components:	Gearbox, Motor
Packaging Preview:		Health status:	new
payment terms:	letter of credit, wire transfer	weight:	54 kg
Warranty:	1 year	Diameter range:	20~700mm
usage:	Welding Spinner	input power:	McGarry
color:	standard blue	Applicable industries:	Manufacturing plant, welded rotors
Drive dimensions (including control box):	580(L)360(W)350(H)mm	brand:	Datang
Speed range:	80~1600mm/min	aspect:	customer request
Mechanical test report:	if	Weight (kg):	100kg
type:	Welding Turning Rolls	Roller size:	450(L)120(W)350(H)mm
R:	1000kg	place of origin; place of origin:	Jiangsu, China
Marketing Type:	normal product	Packaging Details:	wooden box

Lightweight Welding Spinner

On the basis of drawing on the advantages at home and abroad, according to the requirements of the pressure vessel factory, the DZG and DKG welding rollers are developed and produced. This product is used in the handling and automatic welding of metal circular containers, and is an essential equipment for manufacturing. Pressure Vessels and Piping.

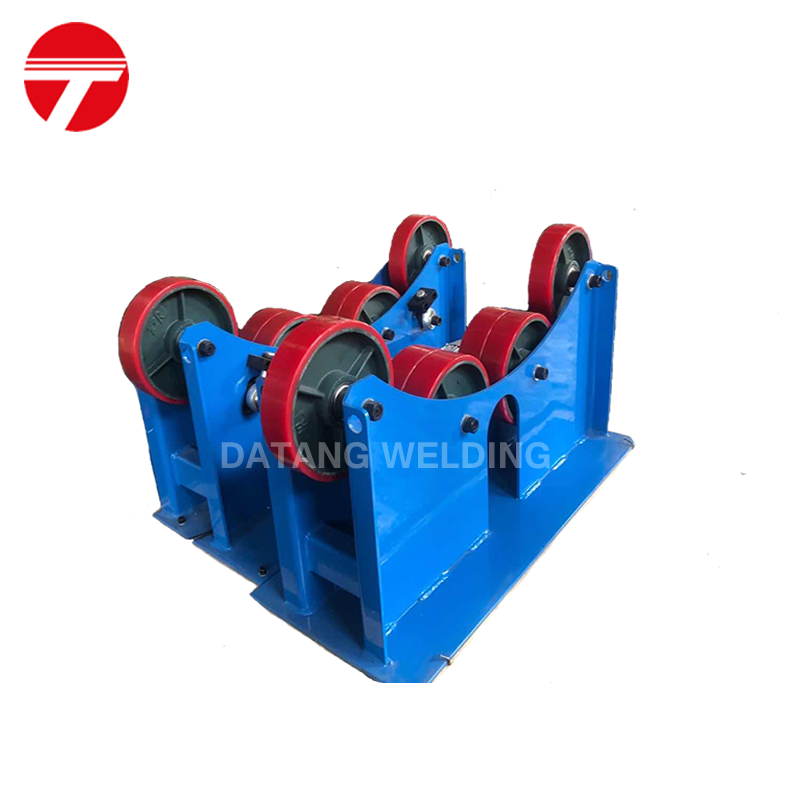

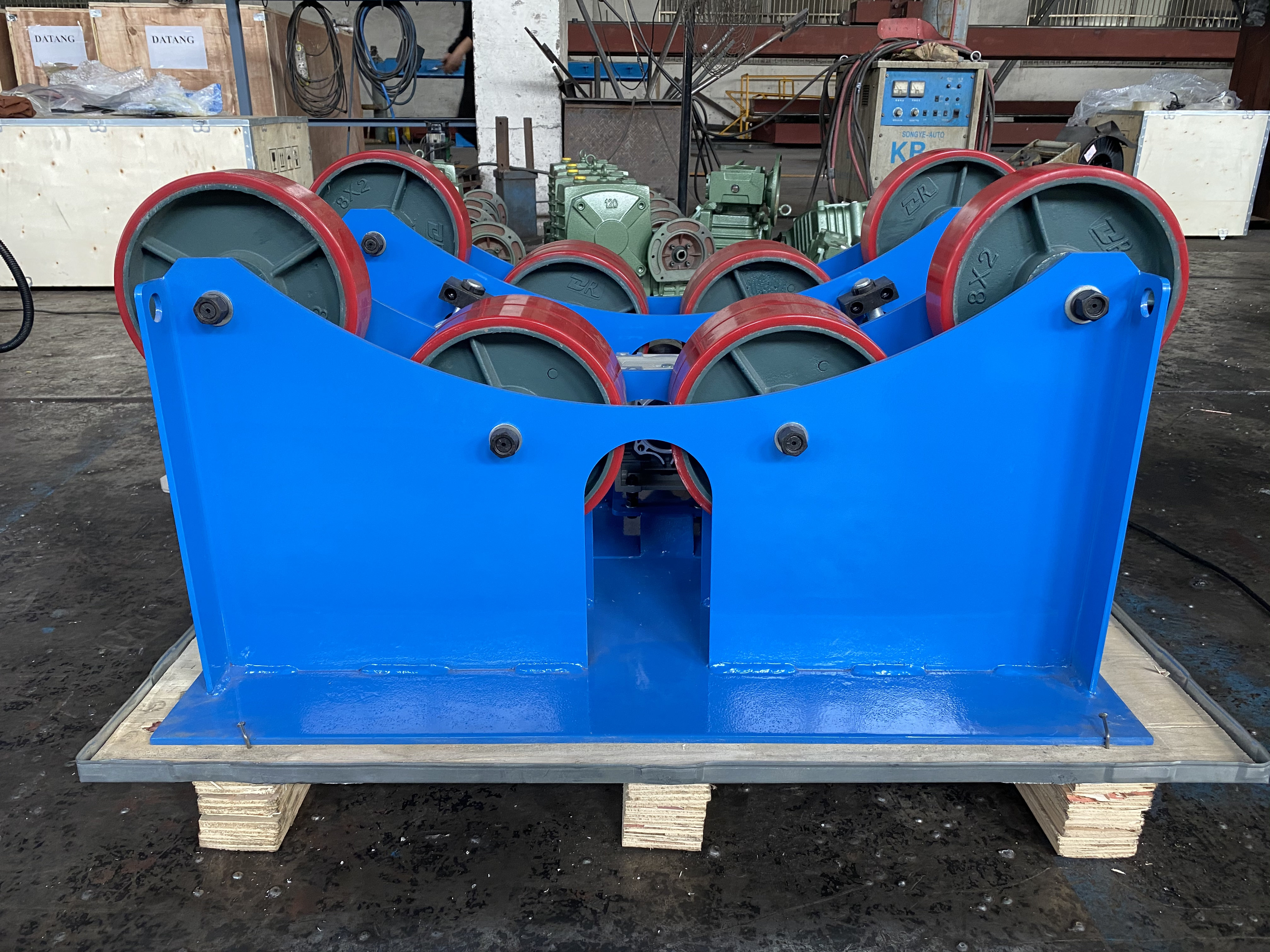

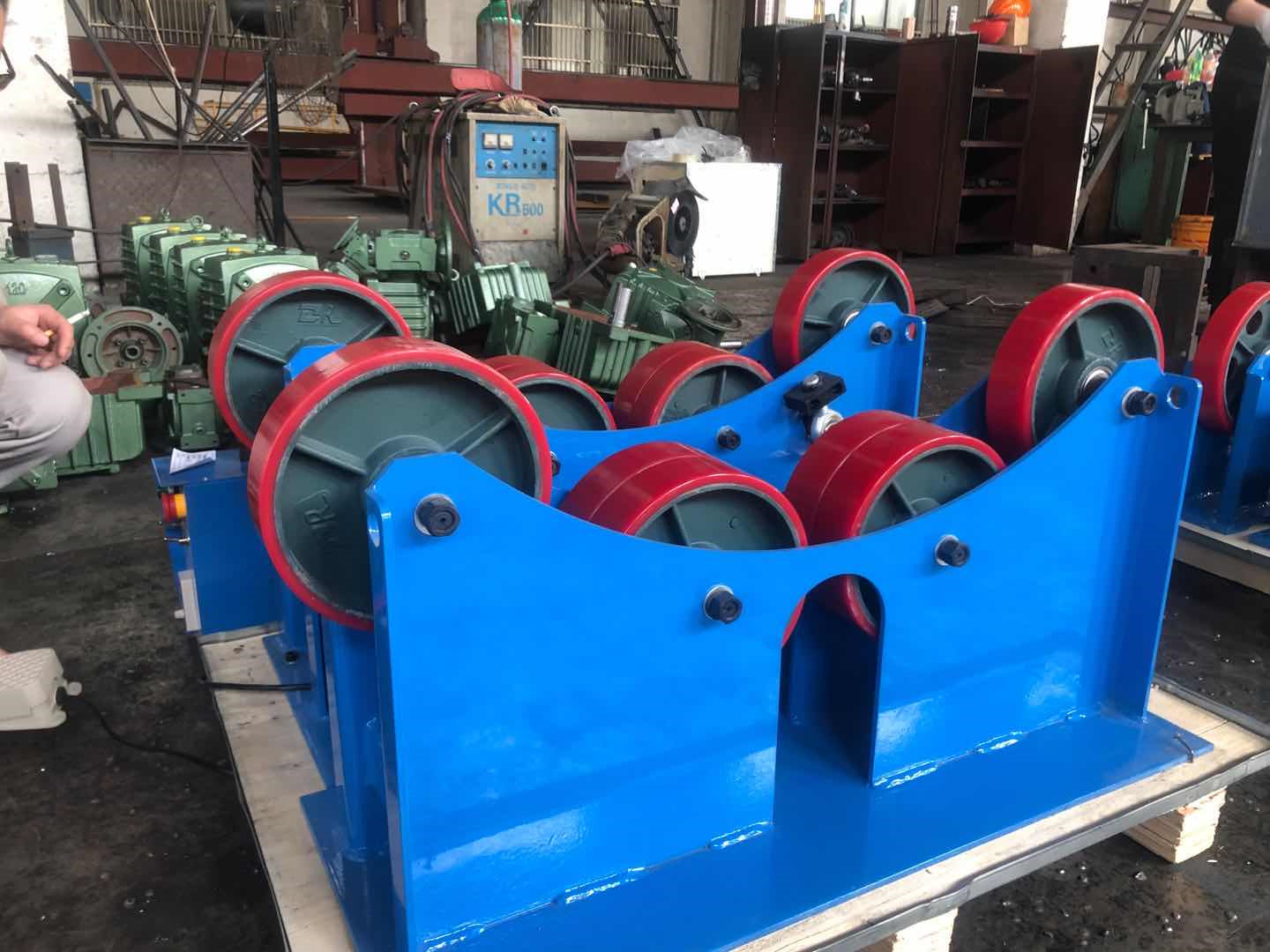

The self-adjusting roller can automatically adjust the angle of the roller according to the diameter of the workpiece. The four drive rollers are fully geared for four-wheel drive. In order to meet different diameters, it has a combination of rubber and steel wheels, which has large bearing capacity and strong driving ability. The speed regulation method adopts VFD, low noise and smooth turning.

Model	DZG1	DZG3
Voltage	AC220V, 50/60Hz
maximum load	1,000kg	3,000kg
Rotating speed	80～1100mm/min	100～1900mm/min
Workpiece diameter	Ф20～Ф800mm	Ф30～Ф1200mm
Motor Power	220V, 120W	220V, 370W
wheel size	50mm(W)×Ф250mm	50mm(W)×Ф200mm
Drive Roller Size	500300400mm	850330450mm
Roller size	500200400mm	850330450mm
