Precision and Powerful Bench Lathe DS6125

Click here to contact

Product details

model:	DS6125	Video external inspection:	if
color:	According to customer requirements	Applicable industries:	Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Retail, Printing Stores, Construction Works, Energy & Mining, Advertising Agencies
Center distance:	750mm	Spindle speed range (rpm):	80 - 1600 rpm
Packaging Details:	Bench lathe tool machine price export standard package	place of origin; place of origin:	China
Processing capacity:	relaxing work	Dimensions (LWH):	1320mmX650mmX610mm
type:	horizontal	accurate:	high precision machine
Supply capacity:	30 sets per month	payment terms:	letter of credit, wire transfer
port:	any port	Showroom location:	not any
Core components:	Bearings, Engines	maximum. Turning length (mm):	750 mm
brand:	DS machine	Spindle motor power (kW):	0.75
Spindle Bore (mm):	26	Mechanical test report:	if
Main selling point:	multifunctional	maximum. Workpiece length (mm):	750
After-sales service provided:	Online support	Name:	Precision and Powerful Bench Lathe DS6128
Marketing Type:	normal product	Warranty:	12 months, 1 year
Health status:	new	Core Components Warranty:	1 year
Function:	metal turning	Voltage:	According to customer requirements, customer requirements
Key words:	metal processing machine	Bed width (mm):	135
year:	2022	Weight (kg):	180kg
Spindle hole:	MT4

Product Description

The title is here.

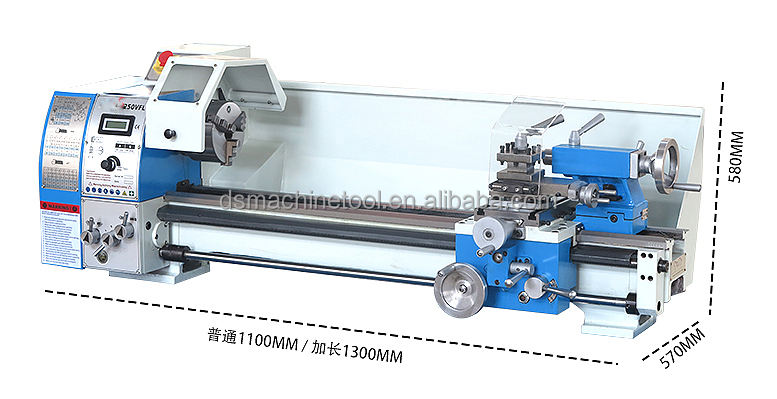

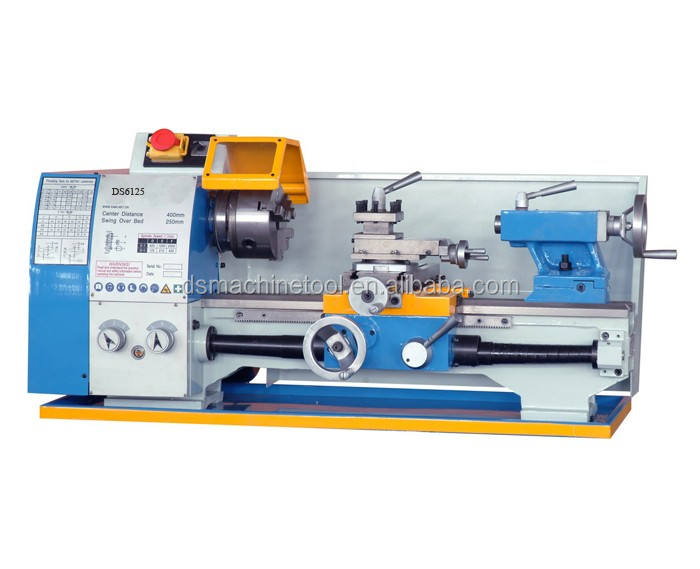

Precision and Powerful Bench Lathe DS6125

The most popular widely used hobby lathe

V-bed is hardened and precision ground

Powered longitudinal feed allows threading

Equipped with high quality belt and control panel

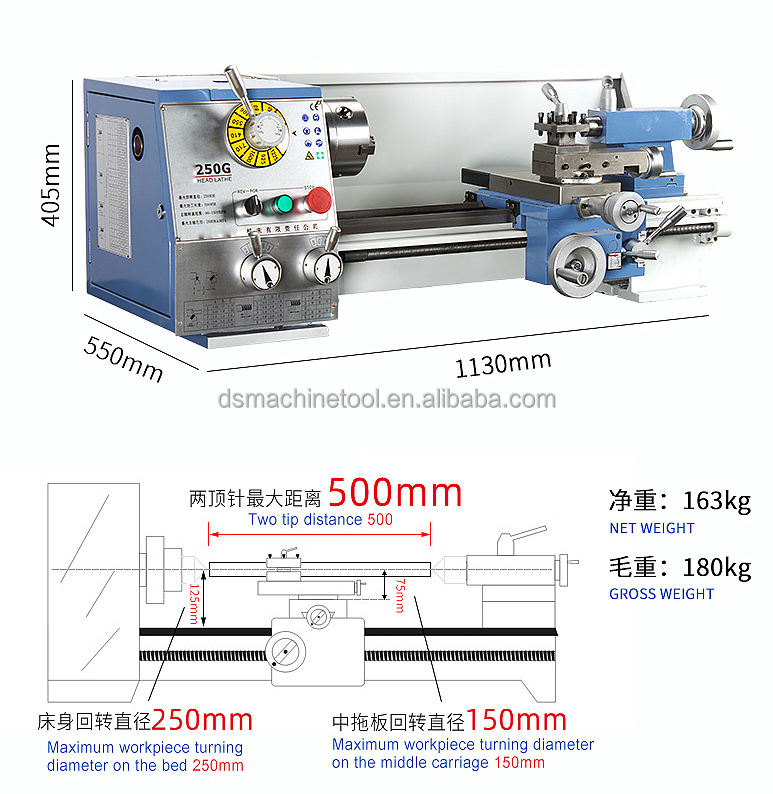

Model	DS6125(JY250G)	DS6125VF(JY250VF)
maximum. swinging on the bed	Φ250mm	Φ280mm
maximum. Swing on the cross slide	Φ150mm	Φ150mm
distance between centers	500MM	550/750MM
Metric threads can cut spindle holes	Φ26mm	Φ26mm
Spindle hole taper	MT#4	MT#4
Spindle speed range	80-1600rp (12 steps)	50-2500rpm (variable speed)
Tailstock sleeve taper	MT#3	MT#2
Can cut metric threads	0.25-2.5mm	0.2-3.5mm
Can cut inch threads	8-56TPI	8-56TPI
Longitudinal feed range	0.03-0.275mm/rev	0.05-0.32mm/rev
Cross feed range	0.015-0.137mm/r	0.034-0.105mm/r
maximum. Lateral slider stroke	130mm	115mm
Maximum stroke of tailstock sleeve	60mm	70mm
Motor Power	750w	750w
Packaging size (LWH)	1200mm×610mm×540mm	1320mm×570mm×610mm 1500mmx570mmx610mm
Net weight/GW	163kg/180kg	140kg/168kg 160kg/188
