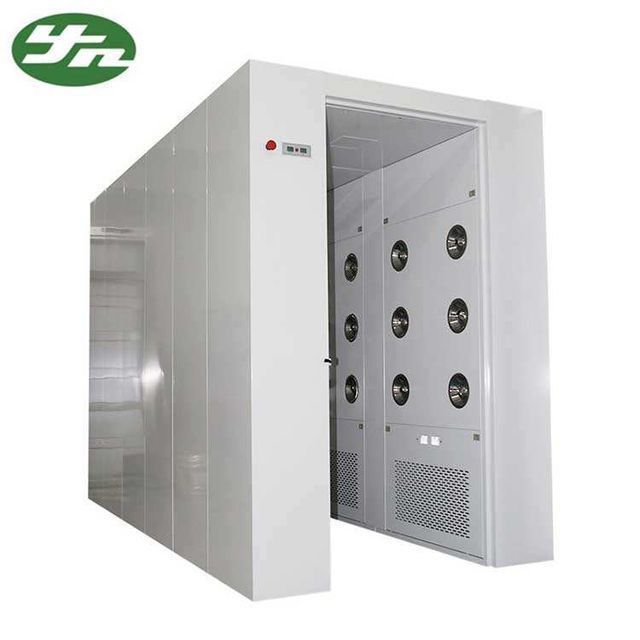

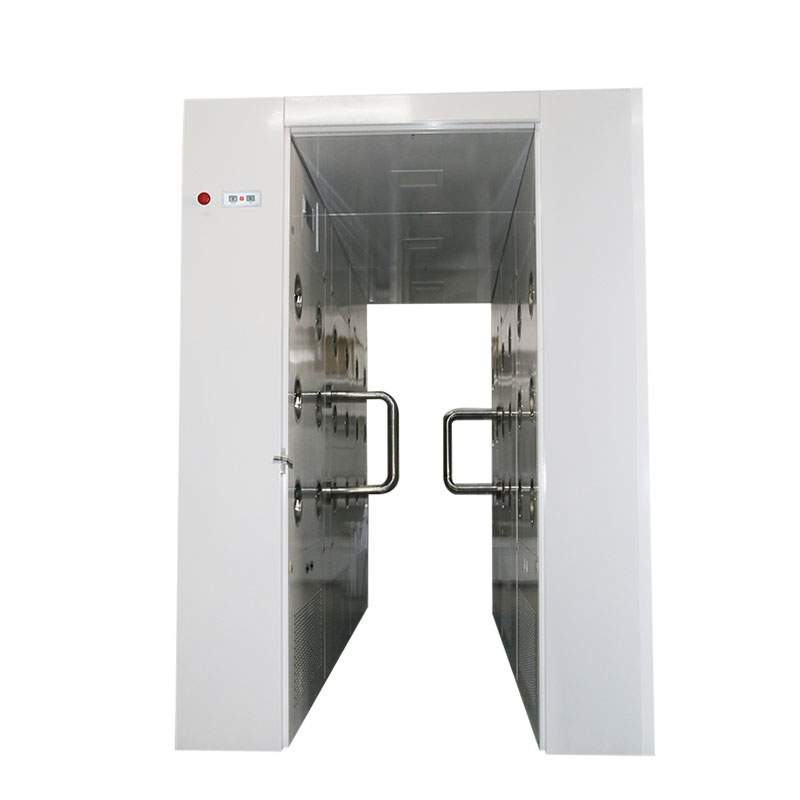

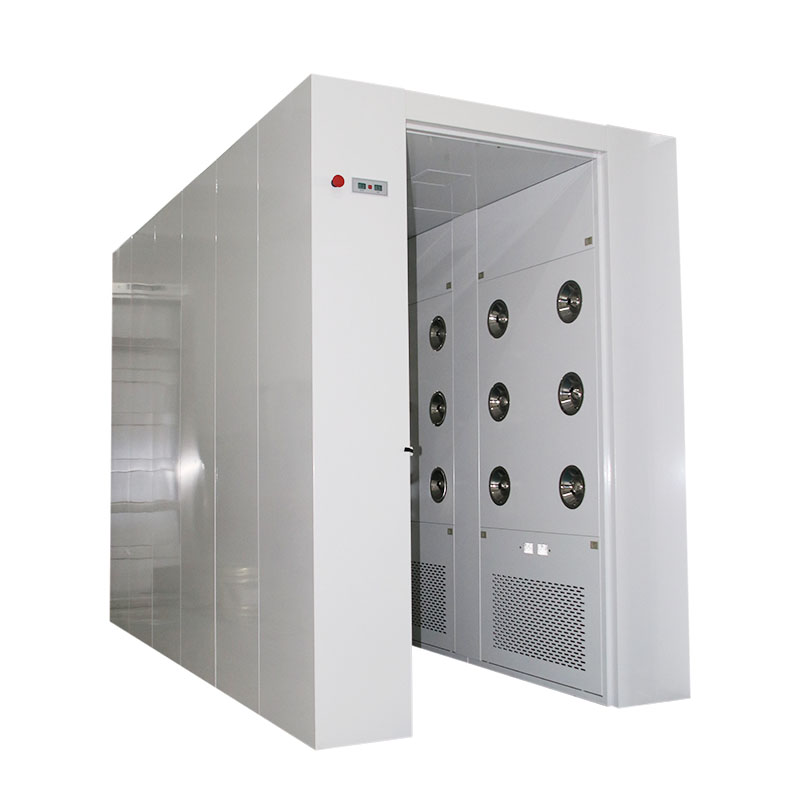

Custom Air Shower Duct Modular Fresh Air Shower Tunnel In Room

Supplier: Dongguan Yaning Purification Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Brad Su
Price: $1500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

weight:	500kg	Core components:	PLC, motor
Core Components Warranty:	1 year	Marketing Type:	New Products 2021
Applicable industries:	other, clean room	Packaging Details:	Wooden case or as your request
Dimensions (LWH):	1500x3000x2150mm	Voltage:	380V/50Hz
place of origin; place of origin:	Guangdong, China	change:	Wireless push switch
strength:	2.2KW	Showroom location:	not any
Door:	Double sliding door	Supply capacity:	100 cargo air showers per week are custom made
Packaging Preview:		Video external inspection:	if
Air blowing side:	three-way blow	noise:	<62dB
product name:	air shower tunnel	Health status:	new
Warranty:	1 year	Mechanical test report:	if
payment terms:	L/C,Western Union,D/A,T/T	brand:	Yanin
Material:	powder coated steel	size:	150030002150mm
port:	Shenzhen, China	Air shower time (s):	0-99s adjustable

Made in Yaning

Customized air shower channel Modular clean room air shower channel

Product Description

The channel air shower is an auxiliary equipment for the clean workshop and the supporting clean room. it's for blowing dust
Human surfaces and carry-on items entering the clean area.
At the same time, the airlock acts to prevent unpurified air from entering the clean area. It's an effective device for humans
Body and material purification to prevent outdoor air pollution in clean areas. It is versatile and works with everyone
Cleanrooms and cleanrooms. The air shower channel is suitable for large-scale purification enterprises.

Product parameters

Box frame material: A3 cold rolled stainless steel plate. The ground floor is made of sanded stainless steel plate. it comes withC4primary filter andH13non partitionHEPA filterto ensure the ideal level of air cleanliness. The shower is activated by infrared sensors. There are various angle and adjustable SS nozzles on the left and right sides. The wind speed generated by the outer rotor low noise fan is20-25m/sin a straight line direction. Shower time:0-99S, LCD time indicationadjustableAnd it is visible, and the system will give a voice reminder. Supply voltage: 110/220/380V, 50/60 Hz, automatic induction, friendly voice reminder system.

air shower belowfor you to choose: Voice Recognition Air Shower/Automatic Door Air Shower/Explosion-Proof Air Shower Air Shower Tunnel/Cargo Air Shower/Single Side Air Shower/Double Side Air Shower/Three Side Air Shower/Corner Air Shower...

Model			YN-AS1290/1	YN-AS1290/2	YN-AS1290/3	YN-AS1290/4
Dimensions			1290×1000×2050	1290×1000×2050	1290×2000×2050	1950×5000×2050
Internal work area			790×860×1910	790×860×1910	790×1860×1910	790×4860×1910
suitable number			1-2 people	1-2 people	2-4 people	Tunnel type
Noise level (dB)			<62	<62	<62	<62
stainless steel nozzle			6PCS	12PCS	24PCS	72PCS
wind speed			≥25m/s	≥25m/s	≥25m/s	≥25m/s
prefilter	size	775×380×17×1pcs	775×380×17×2pc	775×380×17×4pc	775×380×17×6pc
prefilter		efficiency	G4	G4	G4	G4
HEPA filter filter	size	610×610×120×1	610×610×120×2pc	610×610×120×4pc	610×610×120×8pc
HEPA filter filter		efficiency	99.99%@0.3µm	99.99%@0.3µm	99.99%@0.3µm	99.99%@0.3µm
fluorescent lamp			20W×1	20W×1	20W×2	40W×4
power supply			380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
total power			780W	780W	780W	780W

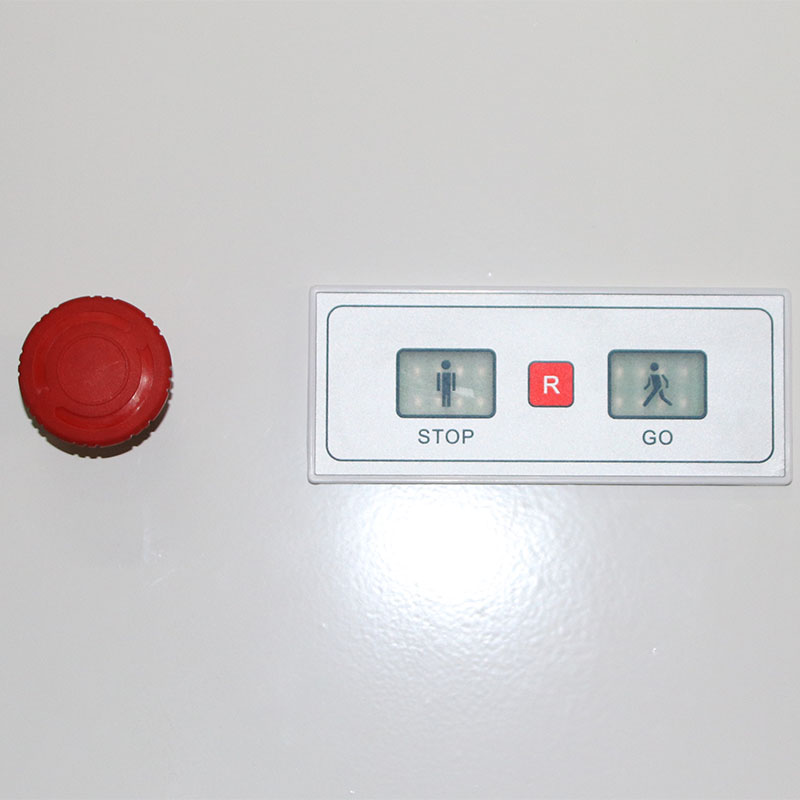

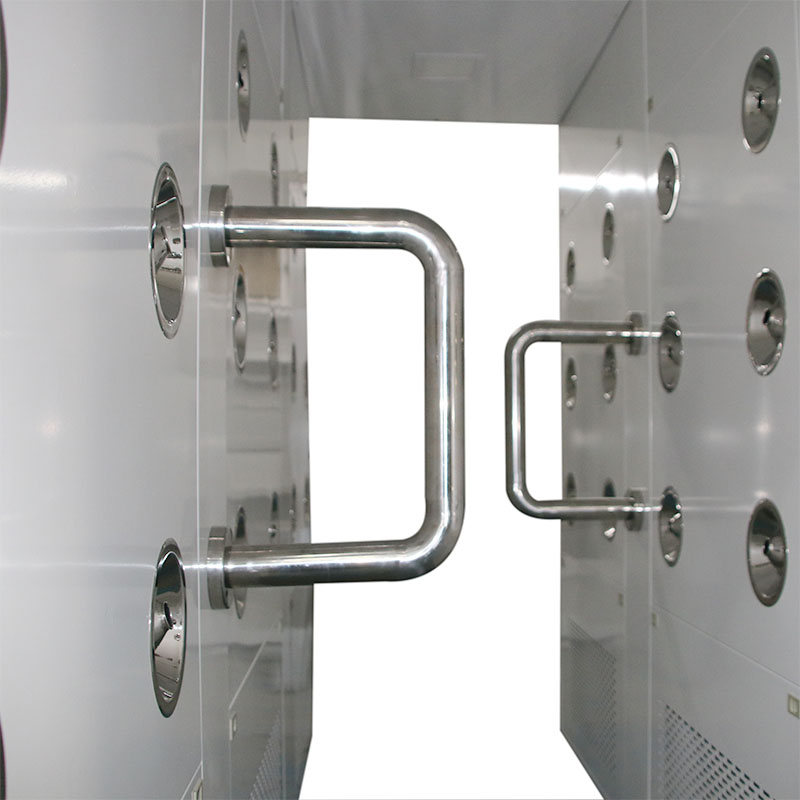

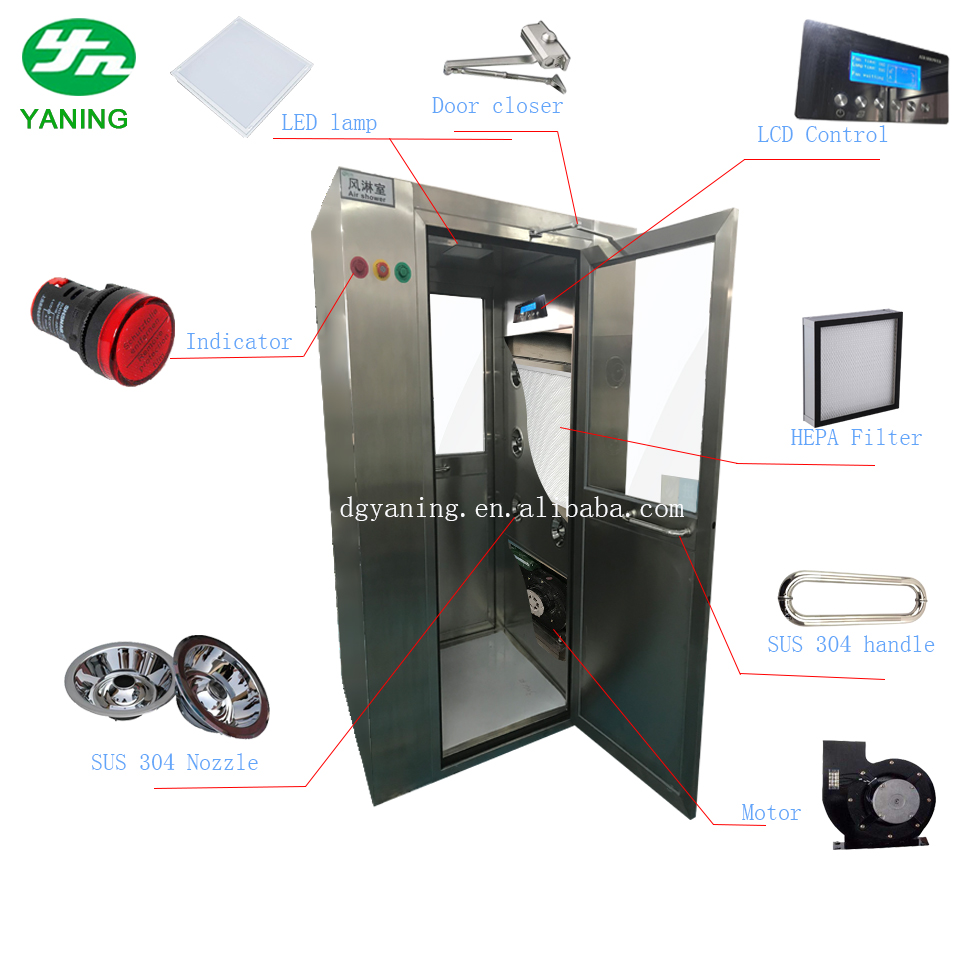

Details image

customer photo

Quality wins trust

Our air showers, clean rooms, transfer boxes, clean benches, fan filters, HEPA filter boxes, laminar flow ceilings, etc. have been exported to more than 50 countries. Our purification equipment has been widely used in biopharmaceutical, precision electronics, healthcare, food chemistry, laboratories, farms, aerospace, automobile manufacturing and other industries.
