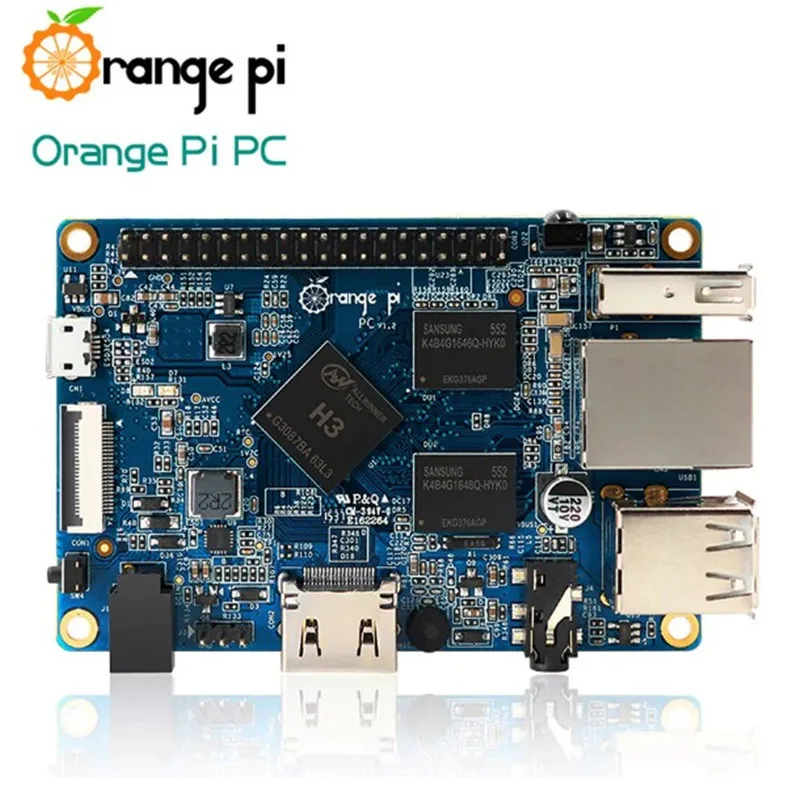

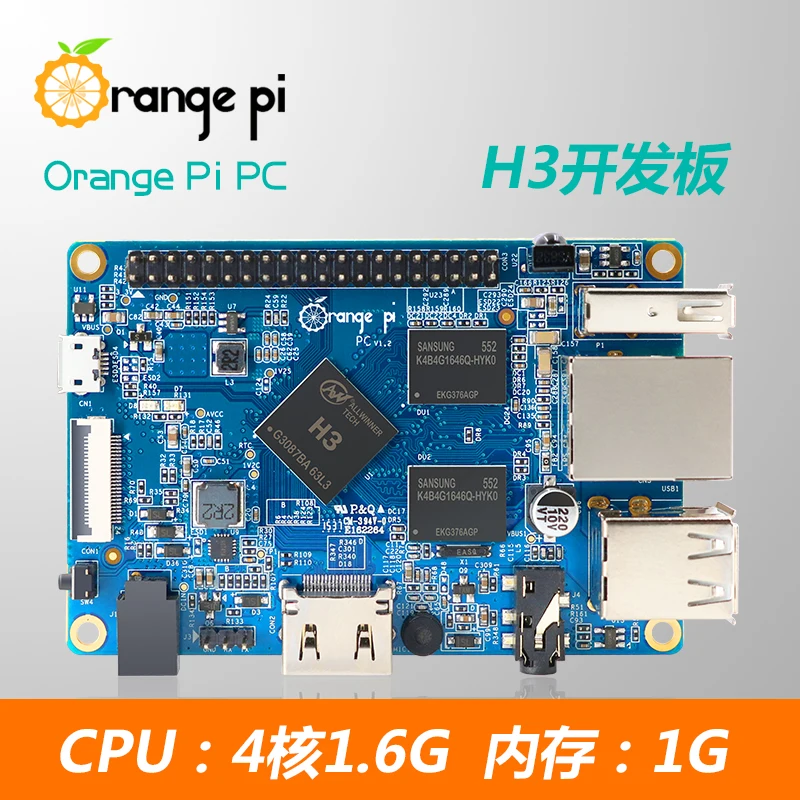

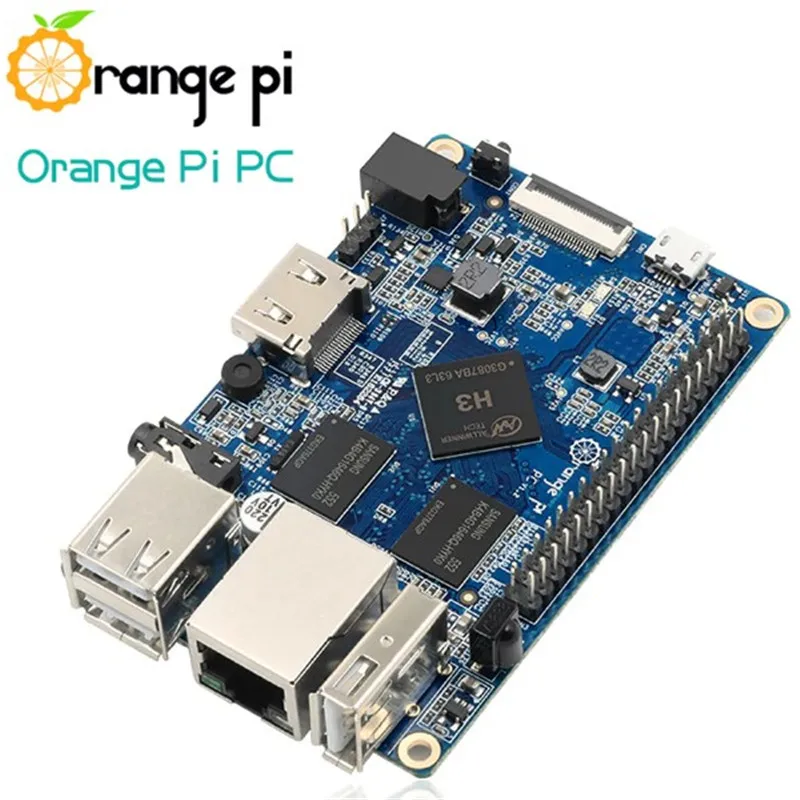

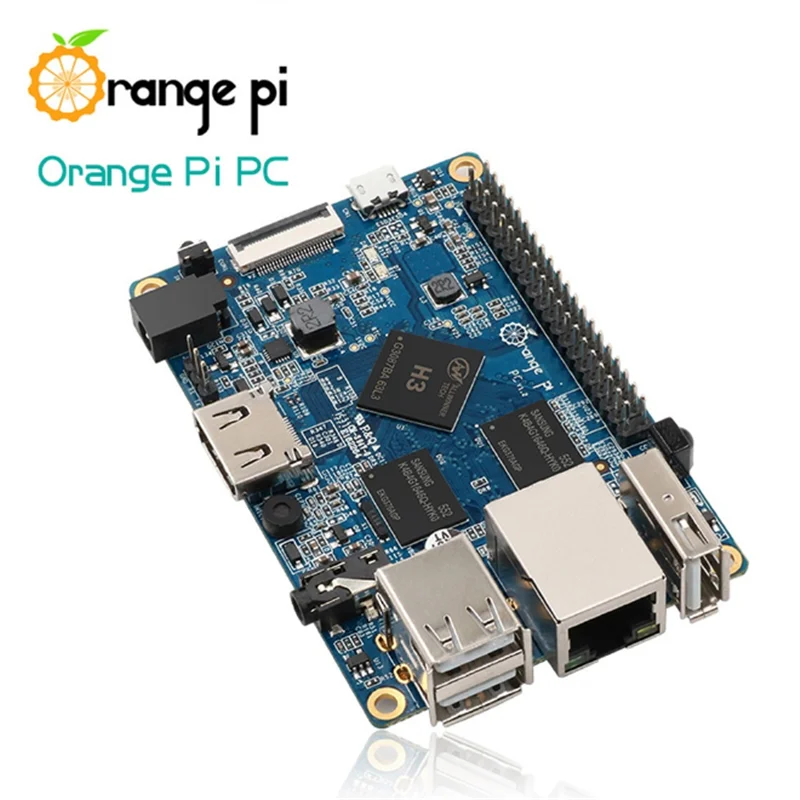

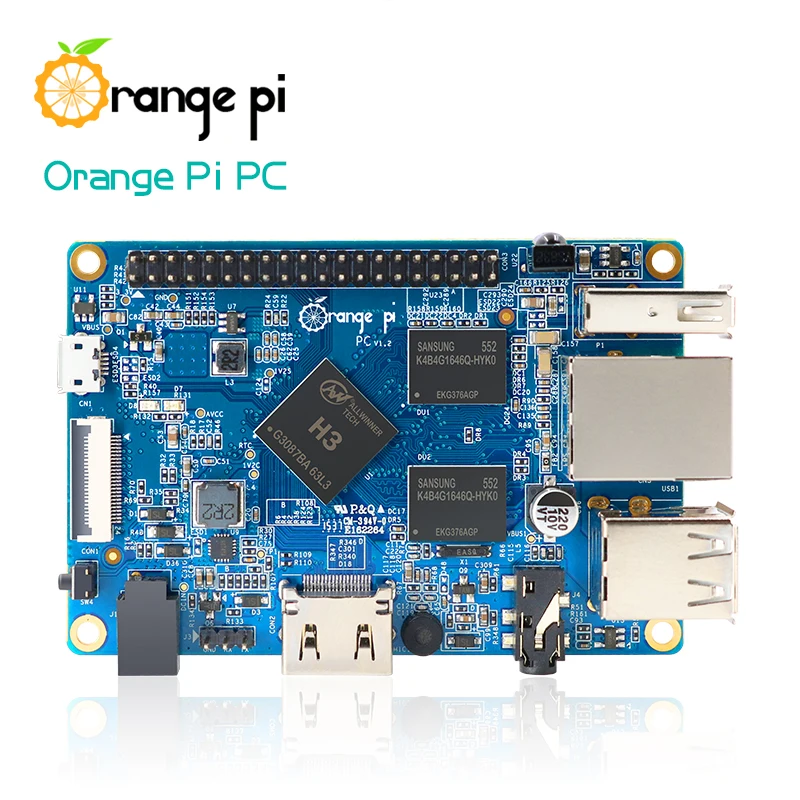

Orange Pi PC H3 Quad-core Learning Development Board Mali400MP2 GPU 1GB DDR3 Support 100M LAN

Supplier: Dongguan Hexie New Energy Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Manguo He
Price: $21.89 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Product weight:	58g;	GPU:	Mali400MP2;
Onboard storage:	TF card (Max. 64GB);	Memory (SDRAM):	1GB DDR3 (shared with GPU);
Payment Terms:	T/T,Western Union,MoneyGram,Paypal;	Place of Origin:	Guangdong China (Mainland);
Ports:	USB;	Supply Ability:	1000000 Piece/Pieces per Month;
Packaging Detail:	ESD bag and hard board cartons.;	Model Number:	HX-Orange Pi PC;
Port:	Shenzhen;	Product Name:	Orange Pi PC H3 Quad-core Learning Development Board;
Connectors:	USB;	Brand Name:	HXE;
Type:	Orange Pi PC;

Product Description

Orange Pi PC is an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image, as well as the Banana Pi Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM. Orange Pi PC is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.

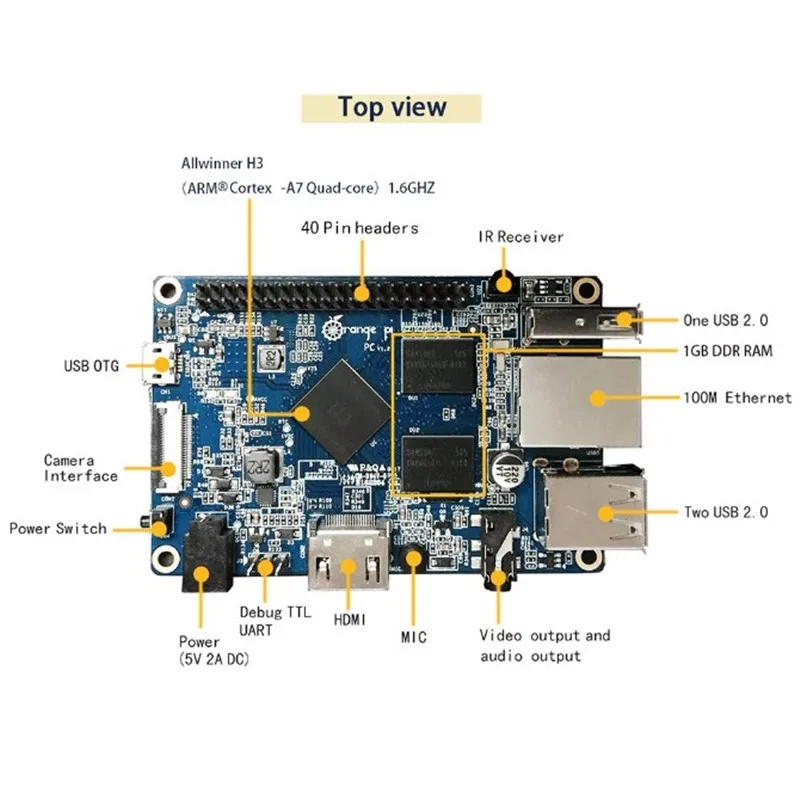

Main Features:

Memory (SDRAM): 1GB DDR3 (shared with GPU)
Onboard storage: TF card (Max. 64GB) / MMC card slot
Onboard network: 10 / 100M Ethernet LAN
Video input: A CSI input connector camera: Support 8-bit YUV422 CMOS sensor interface. Support CCIR656 protocol for NTSC and PAL. Support SM pixel camera sensor
Audio input: Mic
Video output: Support HDMI output with HDCP. Support HDMI CEC. Support HDMI 30 function. Integrated CVBS. Support simultaneous output of HDMI and CVBS
Low-level peripheral: 40 Pins header, which is compatible with Raspberry Pi B+
GPIO (1x3) pin: UART, ground
Compatible with Android Ubuntu, Debian and Rasberry Pi Image OS
