Factory direct cable RF cable TV tap 1 8 out satellite TV tap

Supplier: Jiangsu Chengming Win Optoelectronic Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr Dave Yi
Price: $0.30 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Model Name:	8-way CATV sub-dry splitter
brand:	Cheng Ming wins	Supply capacity:	100000 pieces/month
impedance:	75Ω	bandwidth:	5-1218MHz
Packaging Details:	Supply Ability: 100000pcs/pc per month Port: Shanghai/Ningbo Packing Details: 1pc into a plastic bag, then 250pcs/carton	model:	8-way CATV sub-dry splitter
place of origin; place of origin:	Jiangsu, China	Tap value:	10 Amp, 90VAC
port:	Shanghai/Ningbo	Request for Information:	110 dB
Packaging Preview:		Power Pass:	10A
Use environment:	outdoor

Product Description

Factory direct cable RF cable TV tap 1 8 out satellite TV tap

describe

8-way CATV sub-dry tap, 4dB, 8dB, 11dB, 14dB, 17dB, 20dB, 23dB, 26dB, 29dB, 32dB, 35dB, (optional), 5-1218Mhz, RFI>110dB, input and output port power through 10A, input and output UNEF 5/8" port, tap port F female port.

Response to all ports: ±0.5dB

Current capacity: 10Amps, 90VAC

Impedance: 75Ω

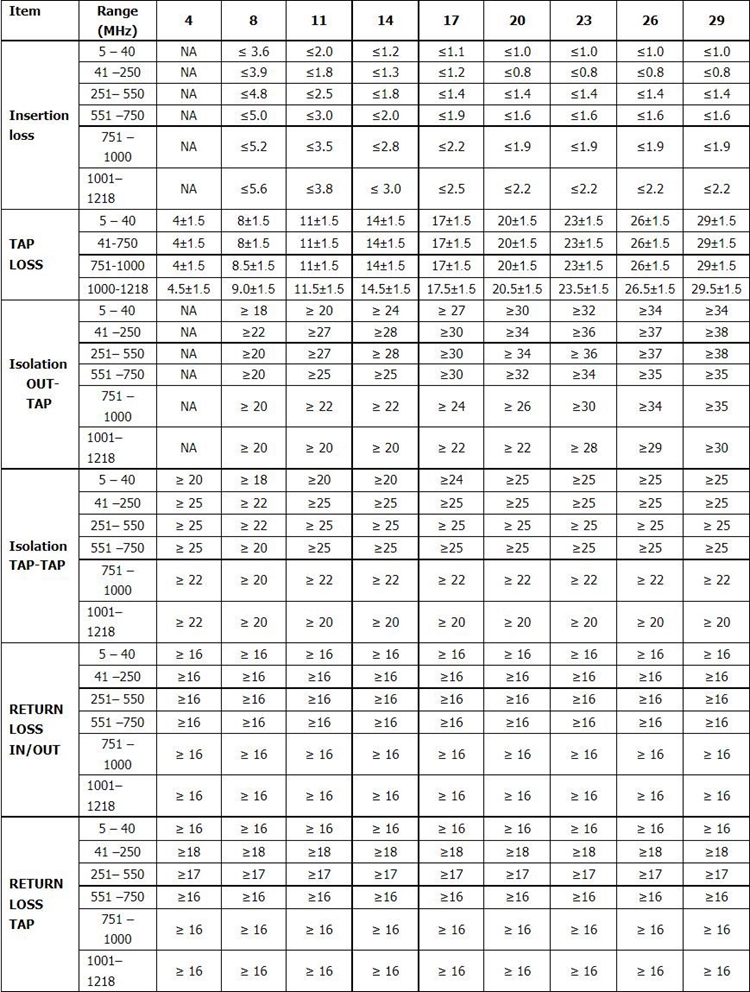

Electrical properties

brand	Cheng Ming wins
Model Name	8-way CATV sub-dry splitter
bandwidth	5-1218MHz
impedance	75Ω
power pass	10A
radio frequency interference	110 dB
Use environment	outdoor
Mining value	10 Amp, 90VAC
