Thin Wall Bearing Corner Four Point Contact Bearing Rubber Seal Thin Wall
- 380.00 1 - 9 pairs
- 360.00 >=10 pairs
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Material: | Chrome steel GCr15 vacuum degassed steel; 9Cr18 stainless steel; | Supply capacity: | 1000 pairs per month |
| accurate: | P0 P6 P5 | port: | Shanghai |
| Seals: | rubber | Packaging Details: | wooden box, |
| Packaging Preview: | payment terms: | letter of credit, wire transfer | |
| type: | special | Serve: | Online technical support |
| application: | communication; aerospace; medical equipment; high-precision instruments; | Applicable industries: | Building Materials Stores, Manufacturing Plants, Mechanical Repair Shops, Food and Beverage Plants, Printing Plants, Construction Works, Energy and Mining, Others |
| brand: | custom made | port: | Shanghai |
| Certificate: | ISO9001:2015 | Label: | custom made |
| Minimum order quantity: | 1 set | series: | HKA series |
| model: | custom made | Accuracy class: | P0, P5, P6 |
product description

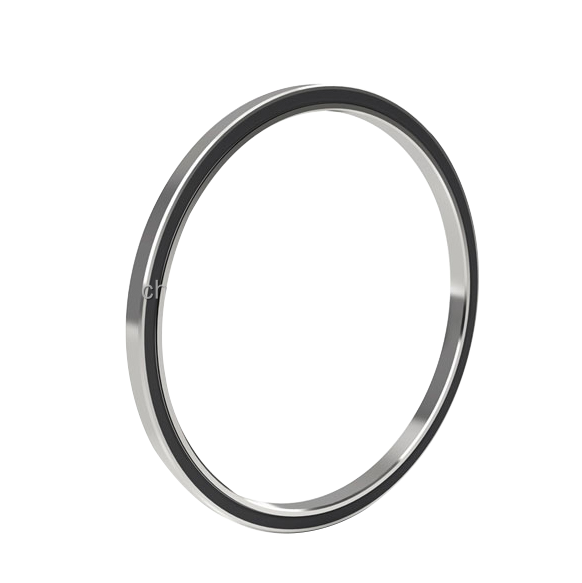

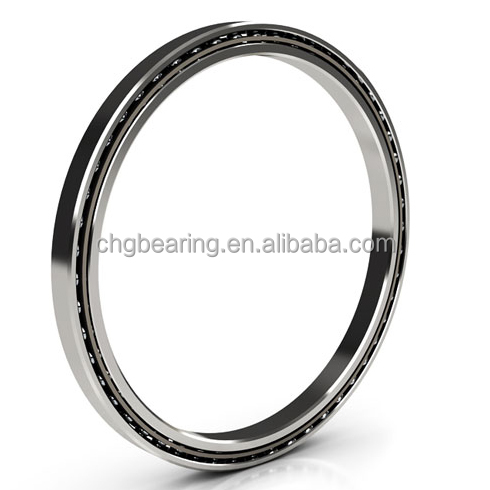

Thin Wall Bearings
CHG products include 7 open series (Fig. 1-1) and 5 sealed series (Fig. 1-2), with inner diameters ranging from 1.000" to 40.000" and cross-section sizes ranging from 0.1875" x 0.1875" to 1.000" x 1.000" and 3 main types (A, C, X) of open and sealed bearings.We can provide products with different internal clearances, contact angles, lubrication methods, cage structures and other properties to meet the needs of most customers. Where corrosion resistance is required, bearings made of stainless steel 9Cr18 should be preferred for convenient and fast delivery.
In the case of no serious pollution, open bearings should be preferred; where clean and good lubrication is required, sealed bearings should be preferred.

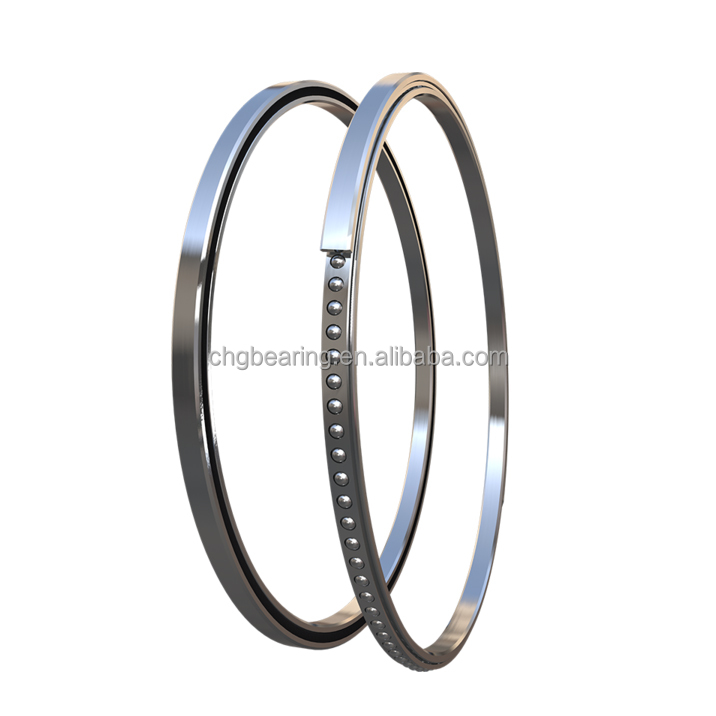

There are a variety of bearing cage structures to choose from, which are used to evenly space the rolling elements and prevent friction from mutual contact. Common cage structures include integral "Crown", integral circular pockets, wire loop forms, PTFE gaskets, isolation balls, etc.
Product parameters
CHG products include 7 open series (Fig. 1-1) and 5 sealed series (Fig. 1-2), with inner diameters ranging from 1.000" to 40.000" and cross-section sizes ranging from 0.1875" x 0.1875" to 1.000" x 1.000" and 3 main types (A, C, X) of open and sealed bearings.
Identity range | 1.000" to 40.000" | ball | 9Cr18 stainless steel |
Section size | 0.1875" x 0.1875" to 1.000" x 1.000" | Seals | Nitrile rubber, 70HS durometer |
Main Contact Type | A, C, X | Certificate | ISO9001:2015 |
ring | GCr15 vacuum degassed steel | Label | custom made |
Details image
