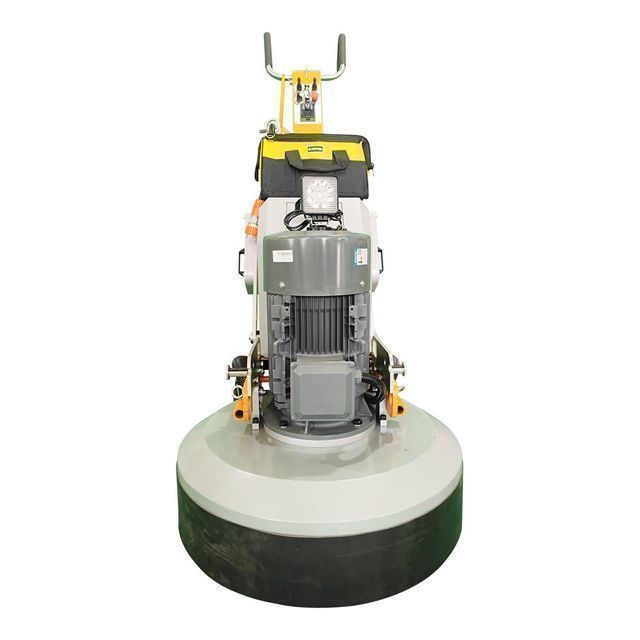

850mm 15KW Electric Remote Control Self-propelled Planetary Concrete Floor Polisher Grinder Grinder

Supplier: Dongguan Merrock Industry Co., Ltd.
Region: Guangdong, China
Contact: Ms Grace Chan
Price: $6686.00 /set
Min. Order: 1 set

Click here to contact

Product details

Rotating speed:	0-320 rpm	Gearbox:	Aluminum alloy gearbox
Rotating speed:	0-1500 rpm	Warranty:	1 year
Energy source:	electrical	Packaging Preview:
Function:	Concrete terrazzo marble floor grinding and polishing	grade:	industrial
Drive System:	Gearbox	Custom Support:	OEM, ODM, OBM
Grinding head:	12 pieces	Rotation speed:	0-1250 rpm
Packaging Details:	Export packing wooden box, iron frame carton	Voltage:	380V-440V
strength:	20HP/15KW	Supply capacity:	20 units per month
describe:	850mm remote control concrete grinder concrete grinder	port:	Masuda
place of origin; place of origin:	Guangdong, China	Working diameter:	Diameter 850mm2
Inverter:	15KW	Grinding disc:	4 pieces

Product Description

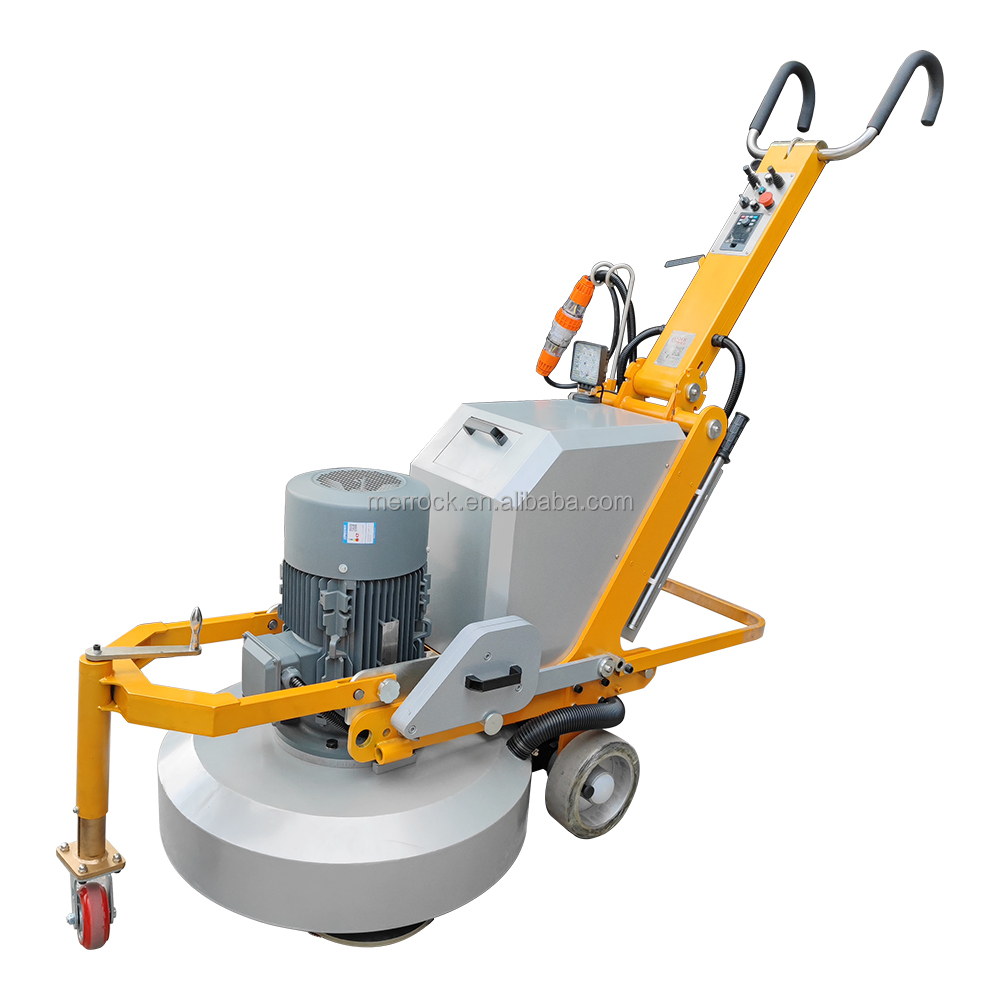

850mm 15KW Electric Remote Control Self-propelled Planetary Concrete Floor Polisher Grinder Grinder

feature:

1. 850mm 15KW electric remote control self-propelled planetary concrete floor polishing machine polishing machine saves labor, improves construction efficiency, and the planetary system achieves the best results.

2. Adopt casting gearbox, high precision and good stability.

3. Two types are available: A. One with battery drive B. Two without battery drive.

4. A remote control system can be added as required.

Model	Z12-X-850-One Drive	Z12-X-850-Two-wheel drive
stage	three phase
Voltage	380V-440V
strength	20HP/15KW
Inverter	20HP/15KW
rotation rate	0-1250 rpm
Rotating speed	0-320 rpm
working width	850*850mm
head	12 pieces
grinding disc	4 pieces
water tank	30L
Battery	24V, 25AH	No
Walking speed	0-3.7km/h	No
work efficiency	0-2775 square meters / hour	No
Net weight/GW(KG)	640/700
Packaging size (CM)	135x85x140 cm

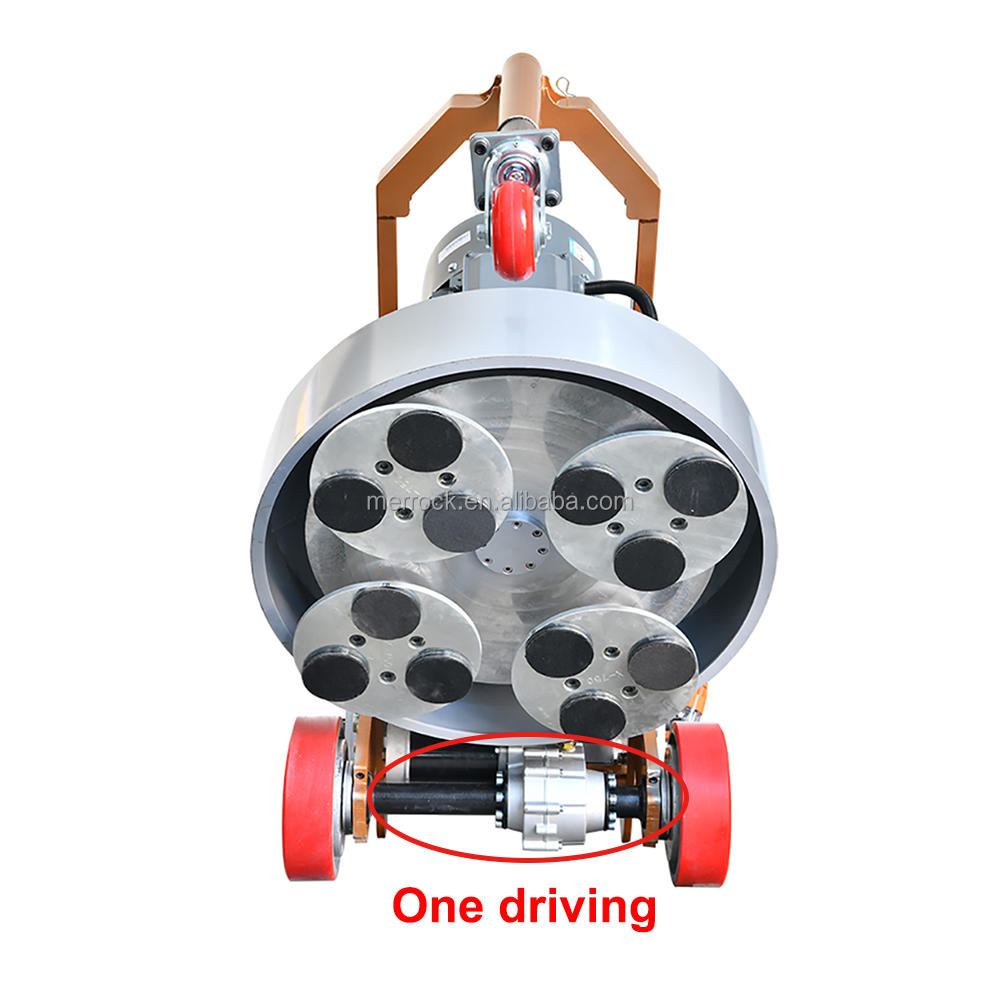

one drive

The single-drive machine can walk on its own, with a battery, it can walk without power, and it is easy to carry.

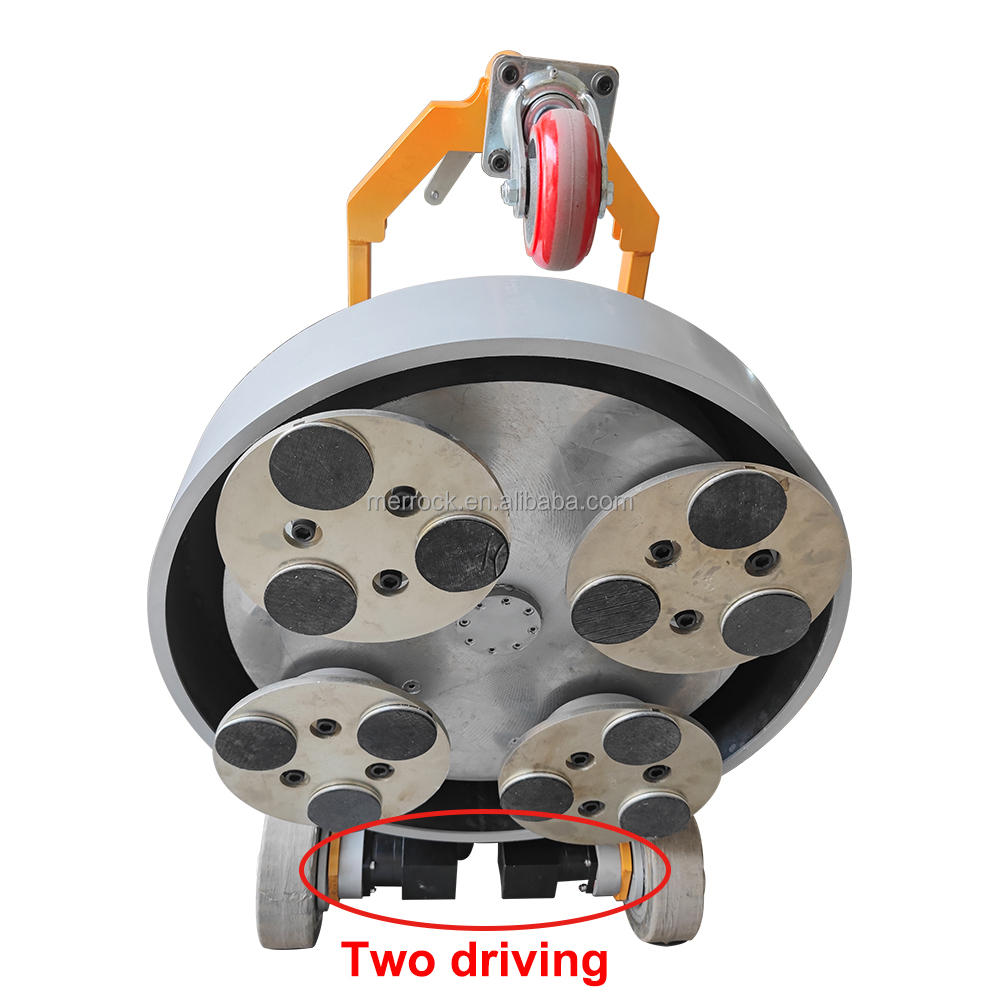

two drive

The two-wheel drive machine can grind by itself, freeing hands. More flexible and can also be controlled remotely. It has no battery and cannot walk on its own without power.

detailed picture

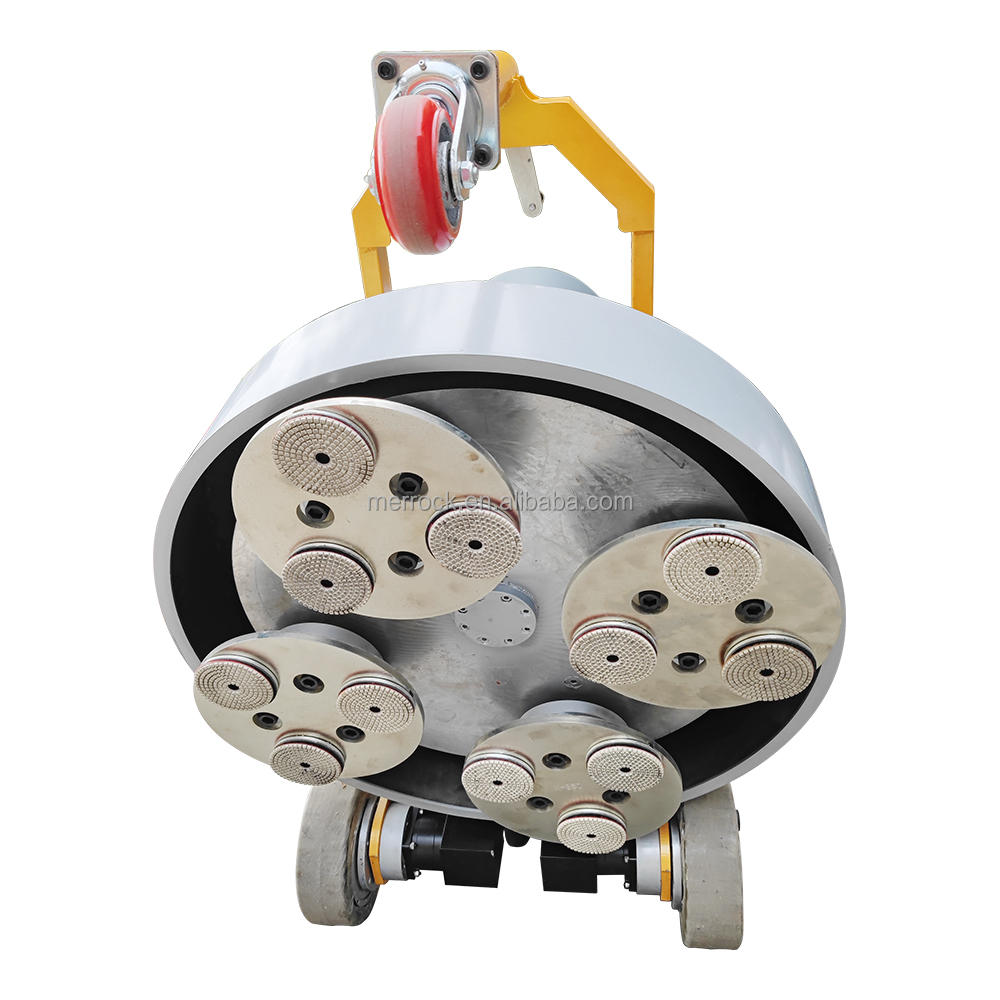

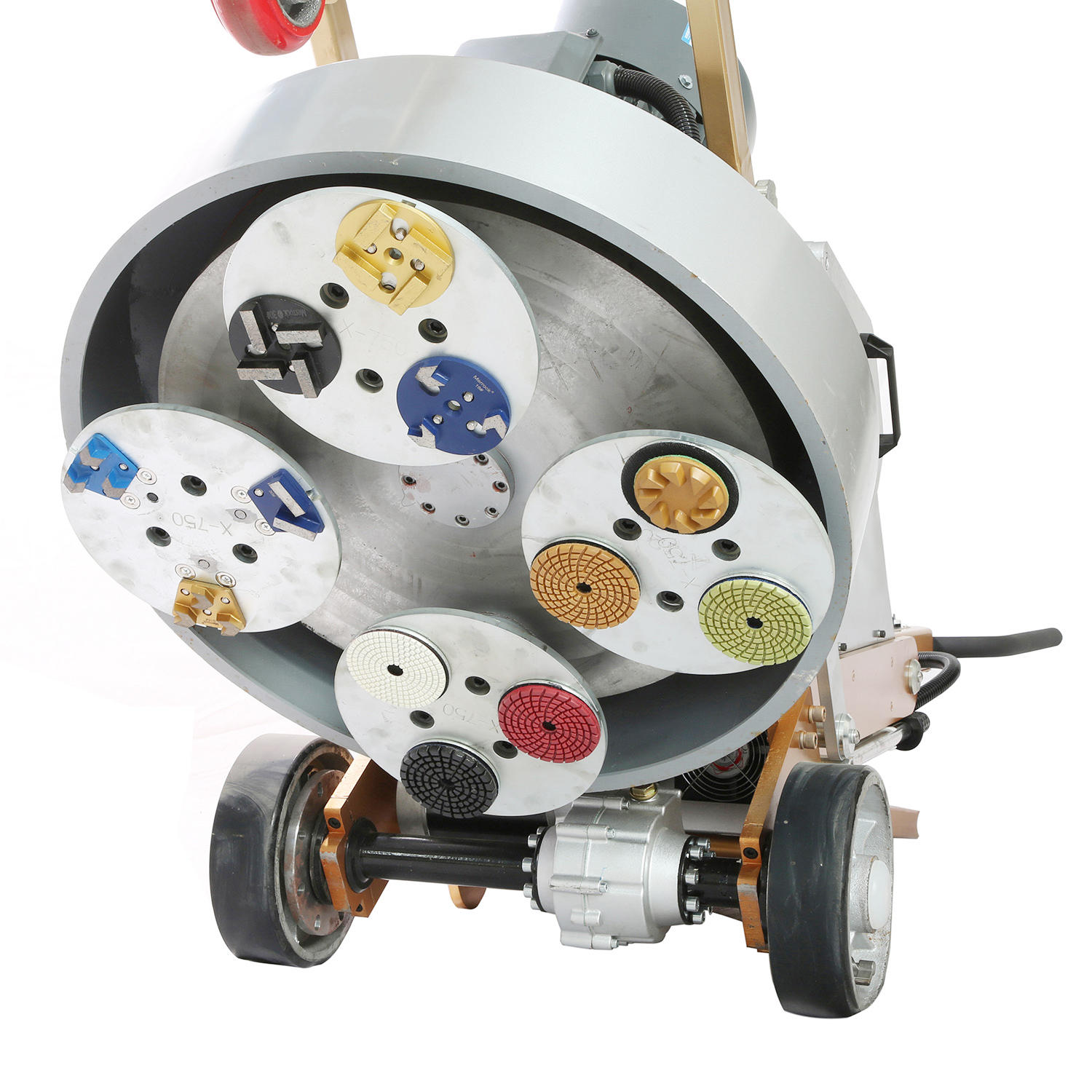

With 4 multi-purpose grinding discs

Can be used with a variety of pads and blades

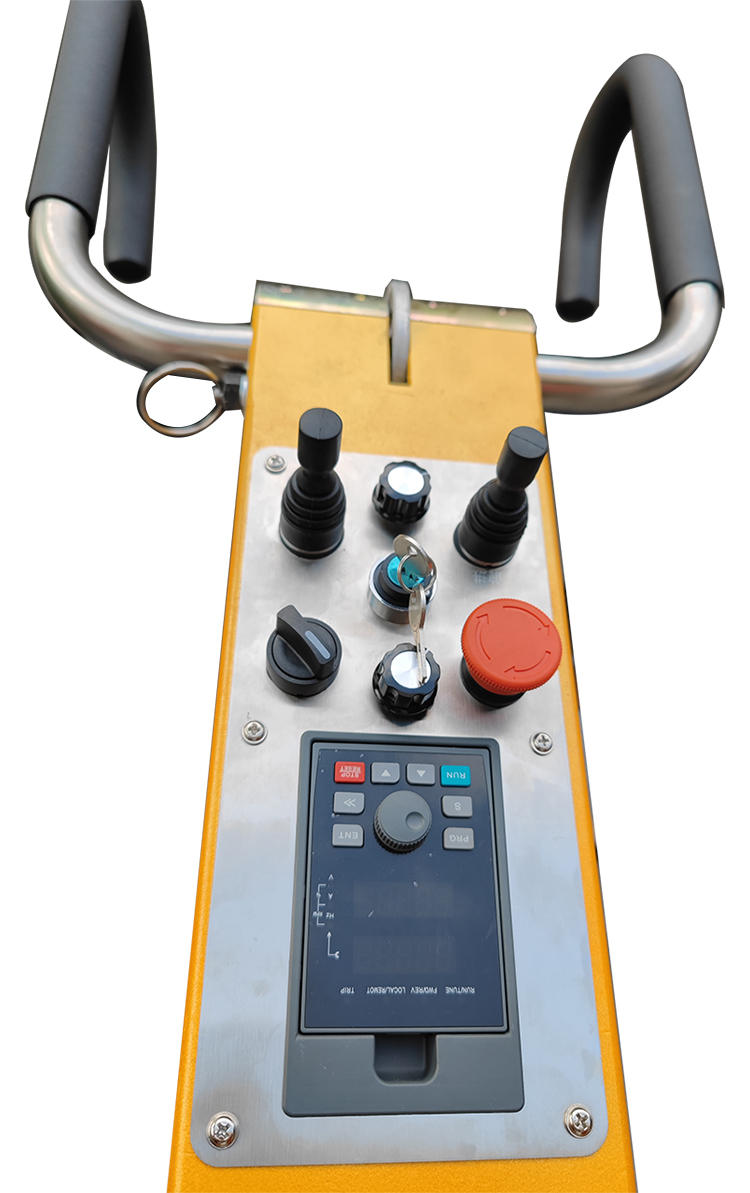

steel control panel

It is more durable.

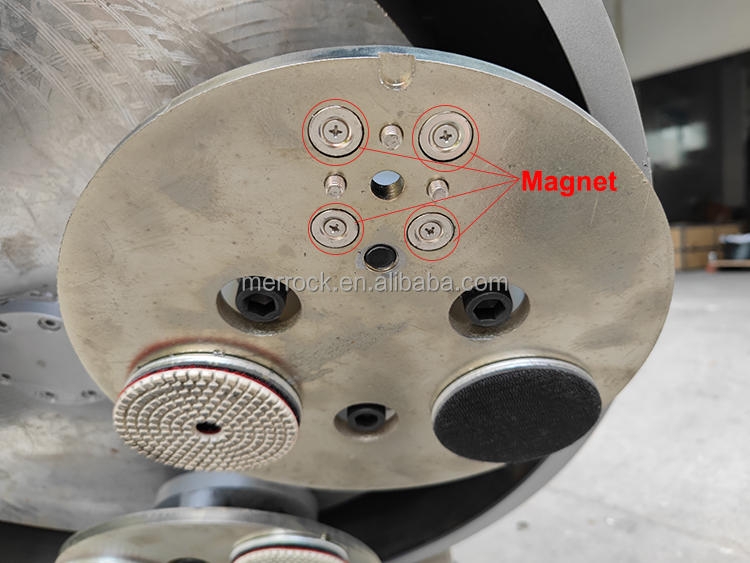

12 magnets per disc

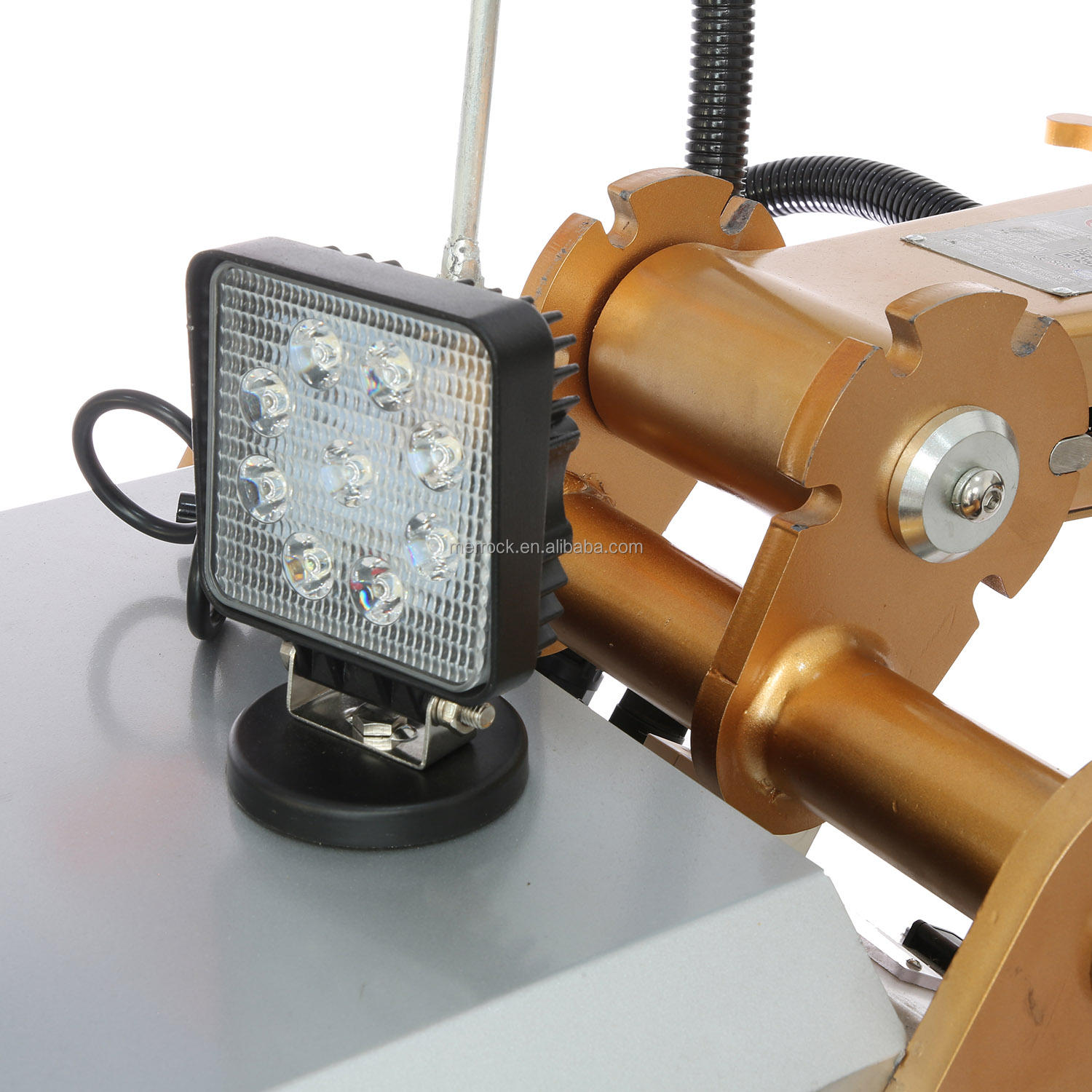

With led lights can work at night

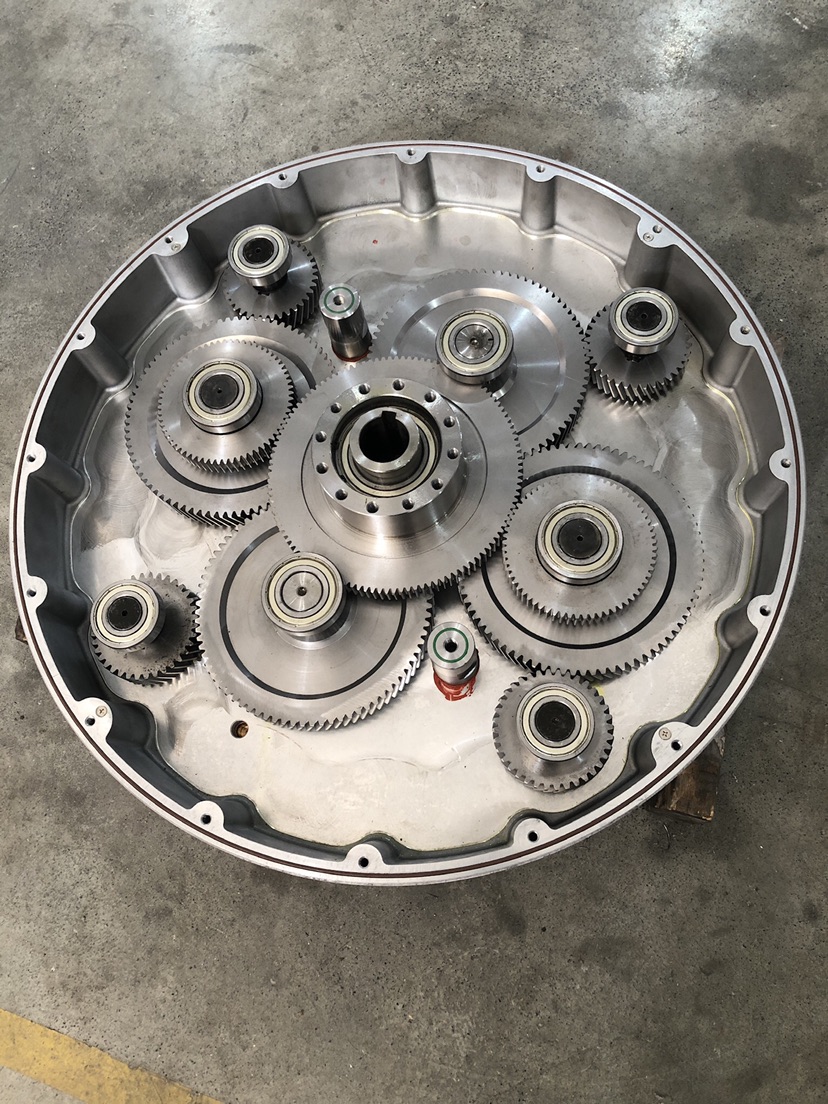

Full strength gear design

A helical gear in an oil bath is like a gearbox in a car, producing high torque on the floor without noise and wear. Reduce wear and extend life like your car's wheels

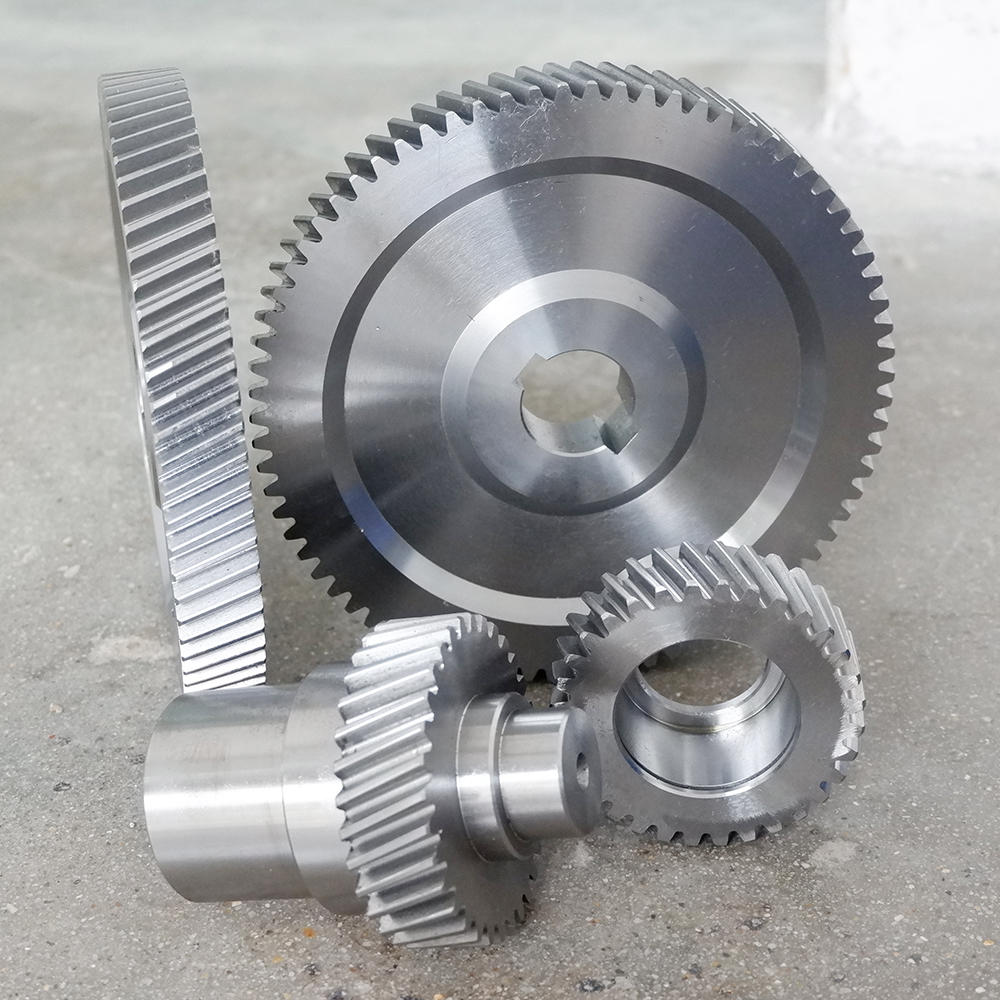

Finishing Gear

All gears are produced by CNC machine with high precision. High-quality gear alloy steel (same material as automobile gears) Imported roller bearings (automobile gearbox bearings)
