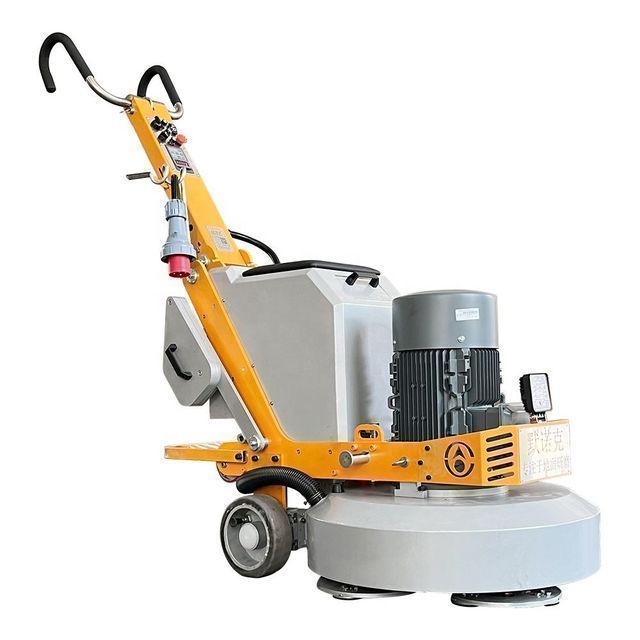

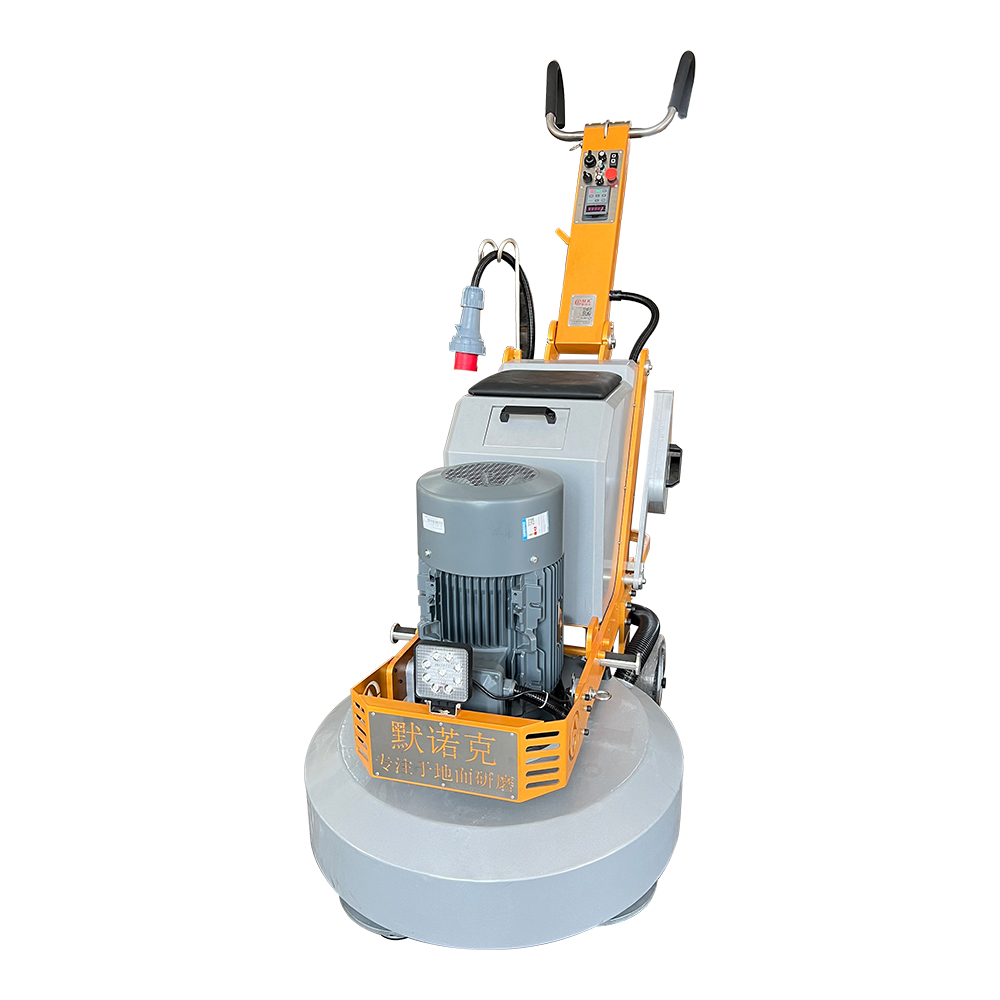

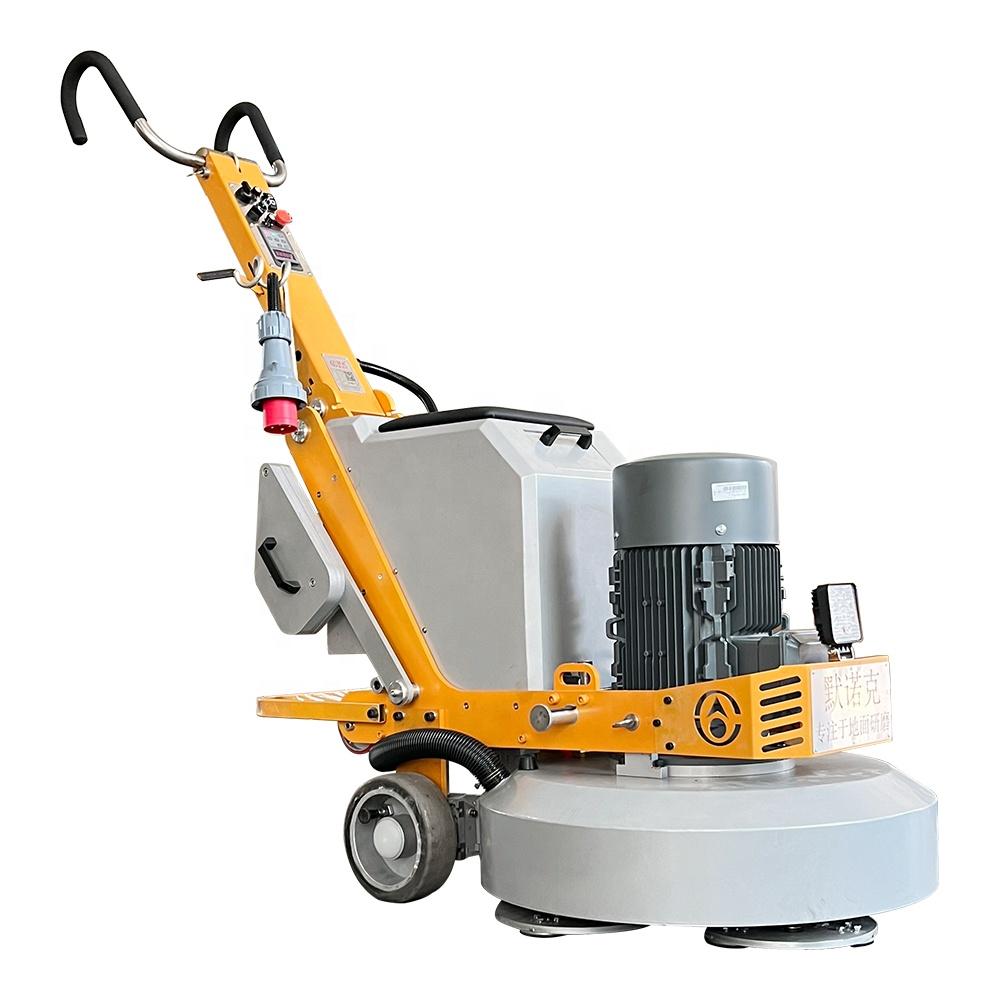

Ride-on 850mm remote control self-propelled planetary emery ground terrazzo concrete ground grinder

Supplier: Dongguan Merrock Industry Co., Ltd.
Region: Guangdong, China
Contact: Ms Grace Chan
Price: $6686.00 / 1 - 99 sets
$1688.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

Rotating speed:	0-1500 rpm	Packaging Preview:
grade:	industrial	port:	Masuda
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Custom Support:	OEM, ODM, OBM
Rotation speed:	0-1250 rpm	strength:	20HP/15KW
Warranty:	1 year	Voltage:	380V-420V
Working diameter:	Diameter 850mm2	Drive System:	gear
Gearbox:	Aluminum alloy gearbox	Rotating speed:	0-320 rpm
Supply capacity:	20 units per month	Grinding disc:	4 pieces
Energy source:	electrical	describe:	850mm remote control terrazzo concrete floor grinder
Grinding head:	12 pieces	Packaging Details:	Export packing wooden box, iron frame carton
place of origin; place of origin:	Guangdong, China	Function:	Concrete terrazzo marble floor grinding and polishing
Inverter:	20 hp

Product Description

Ride-on 850mm remote control self-propelled planetary emery ground terrazzo concrete ground grinder

feature:

1.Ride 850mm remote control self-propelled planetary emery ground terrazzo concrete ground grinderSave labor, improve construction efficiency, and the planetary system has the best effect.

2. Adopt casting gearbox, high precision and good stability.

3. Two types are available: A. One with battery drive B. Two without battery drive.

4. A remote control system can be added as required.

Model	Z12-X-850-Twp driving
stage	three phase
motor	380V-420V
strength	20HP/15KW
Inverter	20HP/15KW
rotation rate	0-1250 rpm
Rotating speed	0-320 rpm
Work area	850*850mm
grinding head	12 pieces
grinding disc	4 pieces
water tank	30L
Net weight/GW(KG)	640/700
Packaging size (CM)	135x85x140 cm

one drive

The single-drive machine can walk on its own, with a battery, it can walk without power, and it is easy to carry.

two drive

The two-wheel drive machine can grind by itself, freeing hands. More flexible and can also be controlled remotely. It has no battery and cannot walk on its own without power.

detailed picture

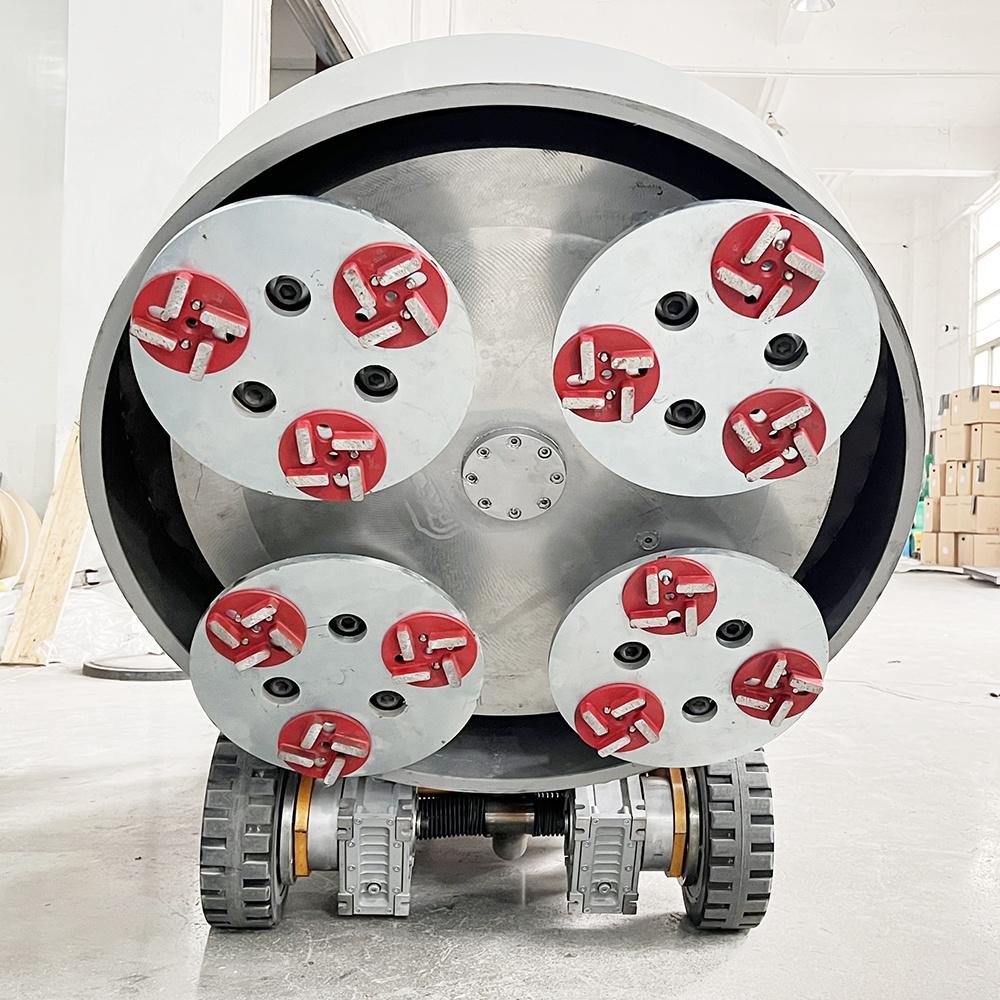

With 4 multi-purpose grinding discs

Can be used with a variety of pads and blades

steel control panel

It is more durable.

12 magnets per disc

With led lights can work at night

Full strength gear design

A helical gear in an oil bath is like a gearbox in a car, producing high torque on the floor without noise and wear. Reduce wear and extend life like your car's wheels

Finishing Gear

All gears are produced by CNC machine with high precision. High-quality gear alloy steel (same material as automobile gears) Imported roller bearings (automobile gearbox bearings)
