Belt Motor Tube Slotters and Tube Slotters with Metal Deburring Sander
- 1052.00 1 - 35 sets
- 926.00 36 - 199 sets
- 868.00 200 - 599 sets
- 758.00 >=600 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Motor power (kW): | 3.3kW | Core Components Warranty: | 1 year |
| Warranty: | 1 year | product name: | Pipe Grooving Machines and Pipe Grooving Machines |
| Packaging Preview: | Showroom location: | Germany | |
| Applicable industries: | Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Household, Retail, Energy & Mining, Others | Type of machine: | Metal Pipe Grooving Machine |
| Mechanical test report: | Not available | Roller size: | 20-76.1mm |
| Marketing Type: | Hot Products of 2020 | Cutting Thickness (mm): | 5 mm |
| weight: | 147kg | Certification: | EU standard |
| Dimensions (L*W*H): | 1330*730*640MM | Voltage: | On request, 400V |
| Health status: | new | Core components: | motor |
| strength: | 2.5./3.3kw | color: | Require |
| Supply capacity: | 1000 sets per month | Weight (kg): | 107kg |
| port: | Qingdao | brand: | new moon |
| Video external inspection: | if | payment terms: | letter of credit, wire transfer |
| Model: | MH100 | Main selling point: | multifunctional |
| Cutting width (mm): | 15 mm | pack: | Plywood case |
| place of origin; place of origin: | Shandong China | Packaging Details: | Plywood Packaging |
Product Description

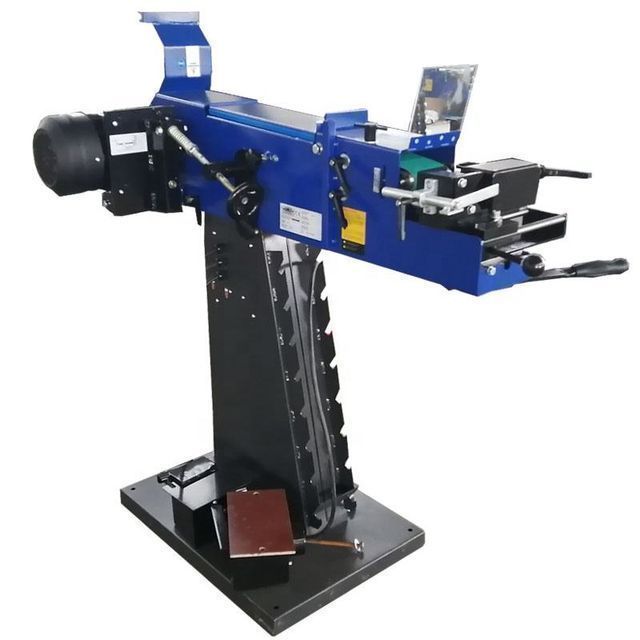

Belt Motor Tube Slotters and Tube Slotters with Metal Deburring Sander
1. Compound action rotating vice to achieve angles between 30°- 90° 2. Belt sander on back table 3. Deburring stand 4. Easy roll change system 5. 1 grinding roll 42.4 mm standard, 20-76.1 mm available upon order 6. 1 zirconium corundum abrasive belt, corn 40 standard, 100 x 2000 mm 7. roller holder (space for 8 rollers) 8. 2 dust bins 9. 1 for operation/adjustment Allen key for machine
detailed image
Size Information
Model | MH100 |
power supply | 400V |
belt | 100*2000mm |
Roller size | 20-76.1mm |
motor | 2.5/3.3KW |
Motor speed | 1400/2800 rpm |
Belt speed (high speed, low speed) | 23.5, 47 m/s |
Grinding Options | pipe groover |
Belt Sander | |
Deburring | |
Pipe Slot Angle | 30°-90°(0-60°) |
dust | additional |
Standard Roller | 42.4mm |
Machine size | 1250*750*1140mm |
Package dimensions | 1330*730*640mm |
Weight (NW/GW) | 147/176 kg |
