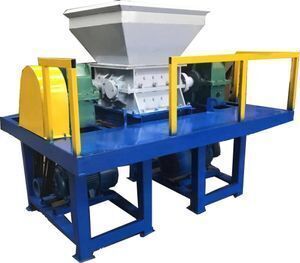

industrial cardboard double shaft shredder/waste wood pallet double shaft shredder

Supplier: Henan Mingxin Machinery Co., Ltd.
Region: Henan, China
Contact: Ms rigell Li
Price: $3900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	Mingxin;	Plastic Type:	PET;
Package Type:	Inner packing of waste wood pallet double shaft shredder: plastic packing Outer packing of waste wood pallet double shaft shredder: wooden case;	Keyword:	plastic crusher machine;
Weight:	2-36t;	Usage:	Waste Plastic Cusher;
Product name:	industrial paper shredders;	Blades material:	H13;
Name:	waste wood pallet double shaft shredder;	Key Selling Points:	Competitive Price;
Condition:	New;	Type:	Environment-friendly;
Other name:	Durable Plastic Crusher;	Power:	152-1602 kw;
Use:	Bottle Crusher;	Shaft Design:	Double;
Package Preview:	https://sc01.alicdn.com/kf/HTB16kqmcUGF3KVjSZFvq6z_nXXaS.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1gAGmcUGF3KVjSZFvq6z_nXXau.jpg_640x640.jpg;	Applicable Industries:	Manufacturing Plant,Retail,Construction works ,Energy & Mining;
Certification:	CE ISO;	Warranty:	1 Year;
Capacity:	2-60t;	After-sales Service Provided:	Video technical support,Online support;
Delivery Detail:	0 days after payment;	Single package size:	150X100X150 cm;
Application:	Recycled Industry;	Color:	Customers' Demand;
Dimension(LWH):	Variable;	Final product:	1-10 cm;
Single gross weight:	1,400 KG;	Place of Origin:	Henan China (Mainland);
Voltage:	380V;	Power(W):	152-1602 kw;
Selling Units:	Single item;

Product Description

Introduction of waste wood pallet double shaft shredder

industrial paper shredders also named shearing machine, by cutting, tearing and extruding to reduce the materials' size, widely used in area of waste plastic, waste rubber, wood, crop straw, automobile recycling...etc, this is a quality and reliable equipment in recycling business.

Working principle of waste wood pallet double shaft shredder

industrial paper shredders is to cut and shred the materials through the relative rotating of the two sets of cutter shaft, the mutual shearing among the blades of moving knives & the cutter heads and the distance sleeves. The outlet-material control of double-shaft shredder is adopted the network design, the width and length of outlet-material is determined on the width of the cutter, and the distance of cutter heads. Two groups of cutter shaft is rotating on different speed which lead to the shearing and shredding materials simultaneously, it improves the efficiency of shredding.

Application of waste wood pallet double shaft shredder

Computer circuit boards, aluminum scrap, steel scrap, cans, PCV pipe, lumps and etc.

1. A variety of hollow containers: Plastic beverage cans, plastic buckets, iron cans,packing boxes.

2. Waste household appliances: TV, washing machine, refrigerator shell

3. Pipe: Large pipes, pipe fittings, PE pipe

4. Waste template: wooden pallets, plastic pallets,truck pallet

5. waste tires: car tires, truck tires

6. scrap metal: car shell,Aluminum die casting scraps, engine shell, gear boxes ,lead as well as the steel plate with less than 5mm thickness.

7.The food waste, garbage, animal carcasses, RDF derivatives, medical waste, biological straw, garden garbage.

Specifications

Model	Spindle power(kw)	Spindle speed(r/min)	Capacity (t/h)	Diameter of blade(mm)	Crushing size(cm)
400	4-7.5*2	9-12	0.8	210	3-10
600	4-15*2		2-3	210
800	4-18.5*2		3-5	300
1000	6-30*2		5-8	360
1200	6-37*2		6-10	400
1400	6-55*2		8-12	500
1600	6-75*2		12-18	550
1900	6-90*2		16-22	600
2200	6-110*2		20-26	650
2600	6-160*2		25-60	800

Detailed Image

1.Shredder main body

waste wood pallet double shaft shredder uses high quality steel welding to eliminate stress treatment,overall machining,to confirm the machine stability in a long time.

2. Blades

Blades use special alloy steel,forging blank, precision machining, heat treatment and multiple freezing heat treatment technology,the toughness and hardness can be can be used repeatedly ,to confirm cutting performance and service life.

3.Shafts

Use the high strength and heavy special steel,to provide a powerful driving force for cutting.

Packing & Delivery

Our Service

1. 24 hours all day service.

2. Can be customized according to customer needs.

3. Check again before we send the goods.

4. Send the goods on time.

5. One year warranty from the date of receiving.

6. We can test the machine before we send it if the client needs.

7. The more you need, the cheaper the unit price is.

8. Help the client with shipment

Our Company

During the past few years, Mingxin LTD has established a network of agents and distribution centers throughout China. As an Import and Export trading company, we also provide supply chain solutions as well as purchasing execution for local and overseas projects which come from all over the world.

We offer 5 different main varieties products which include charcoal machine, garbage disposal equipment, mineral processing equipment, wood processing equipment, grain and oil equipment to numerous overseas customers. In the meanwhile, favorable and complete service is our obvious advantage which compare with other companies in our industry. We support site inspect our products, and Engineers are available at any time as well. As a result of our high quality products ans outstanding customer service, Mingxin has gained a global sales network reaching to South Africa, Pakistan, Vietnam and other countries.

Customer Site
