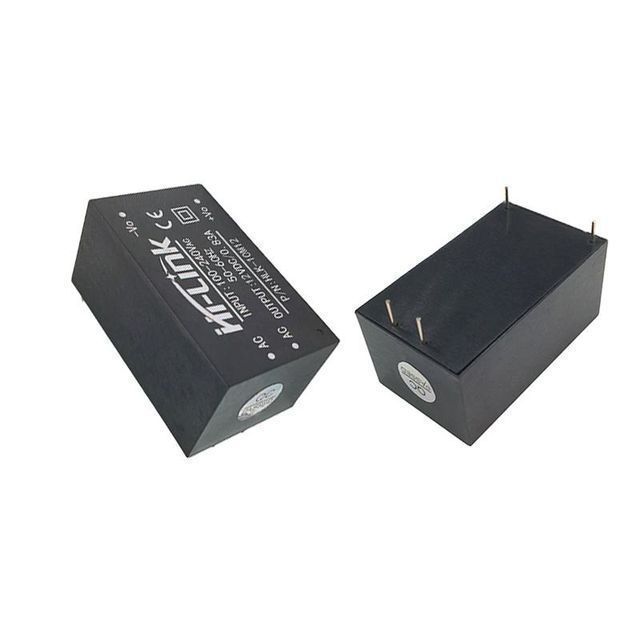

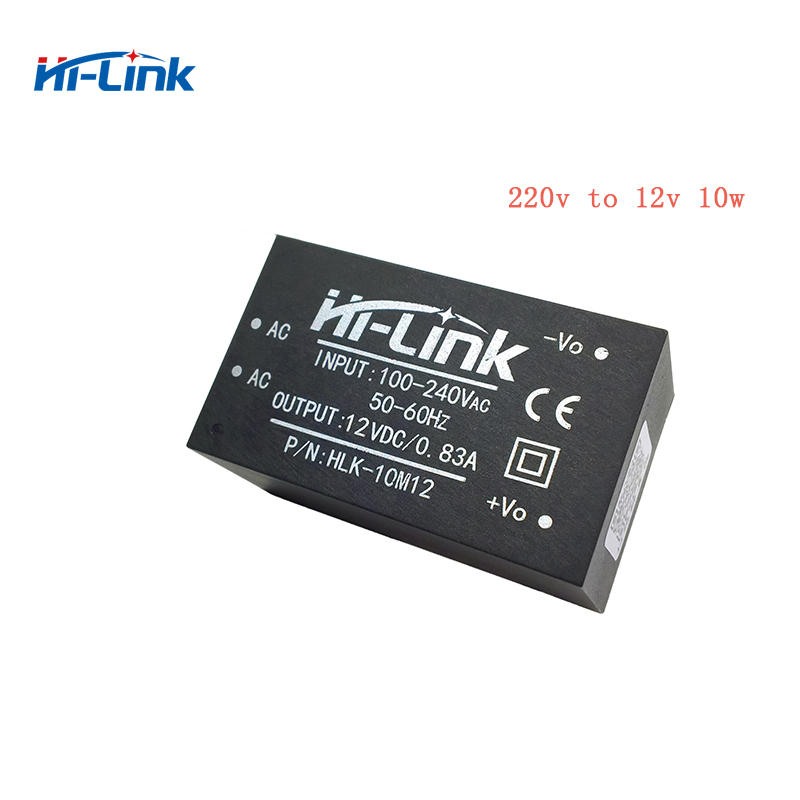

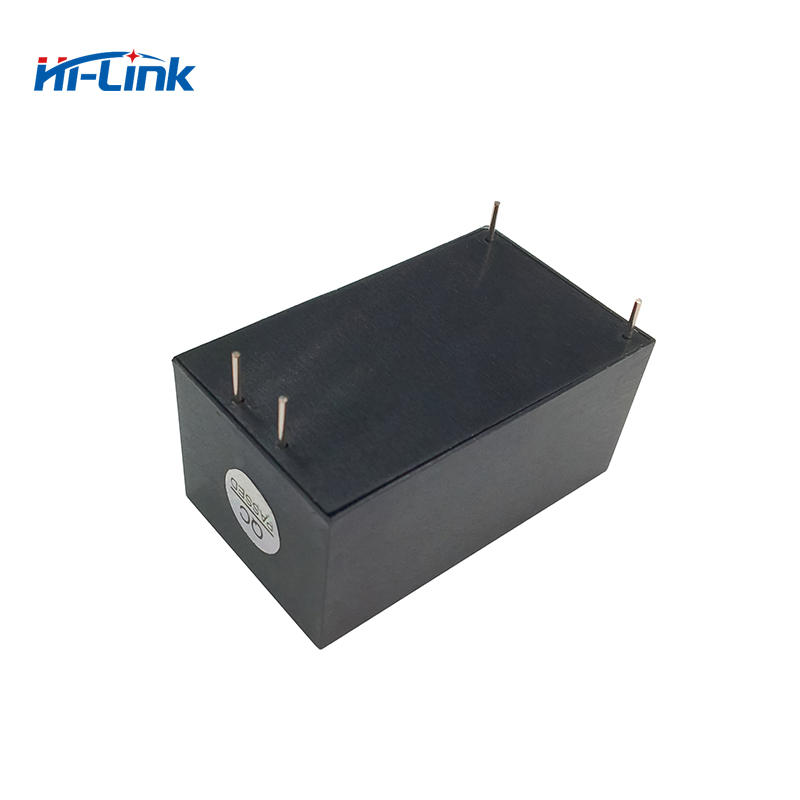

110V 220V Input/Output 12V 10W AC DC Power Module HLK-10M12 Buck Isolated Paypal Accept CE/ROHS

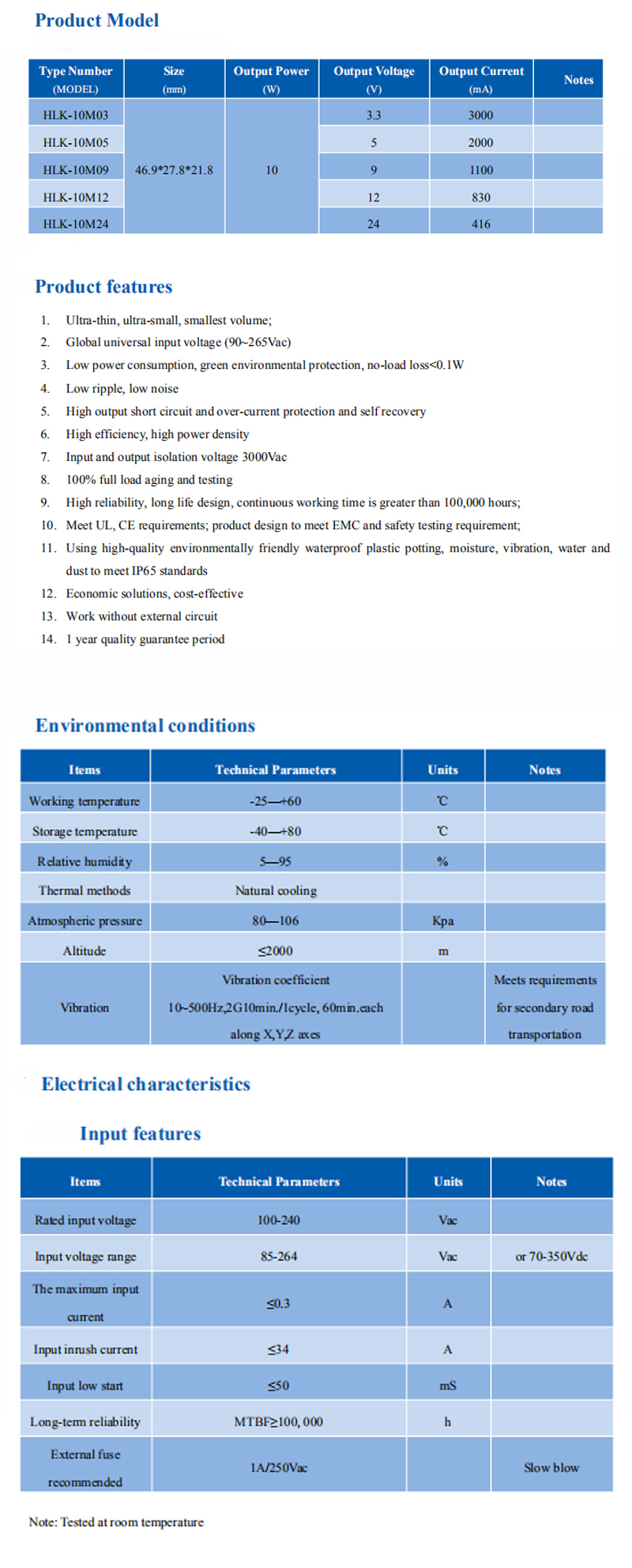

1. Product Features:

1). Meet UL, CE requirements
2). Ultra-thin and ultra-small
3). Full voltage input (AC: 90～264V)
4). Low ripple and low noise
5). Output overload and short circuit protection
6). High Efficiency, High Power Density
7). This product is designed to meet EMC and safety testing requirements
8). Low power consumption, environmental protection, no-load loss <0.1W
9). 100% load aging and testing
10).1 year warranty

2. Environmental conditions

Project Name Technical Standard Unit
Working temperature -20—+60 ℃
Storage temperature -40—+80 ℃
Relative humidity 5-95%
Radiation cooling
Atmospheric pressure 80—106 Kpa
Sea level elevation ≤ 2000 meters
Vibration Vibration coefficient 10~500Hz, 2G10min./1cycle, 60min.each along X, Y, Z axis

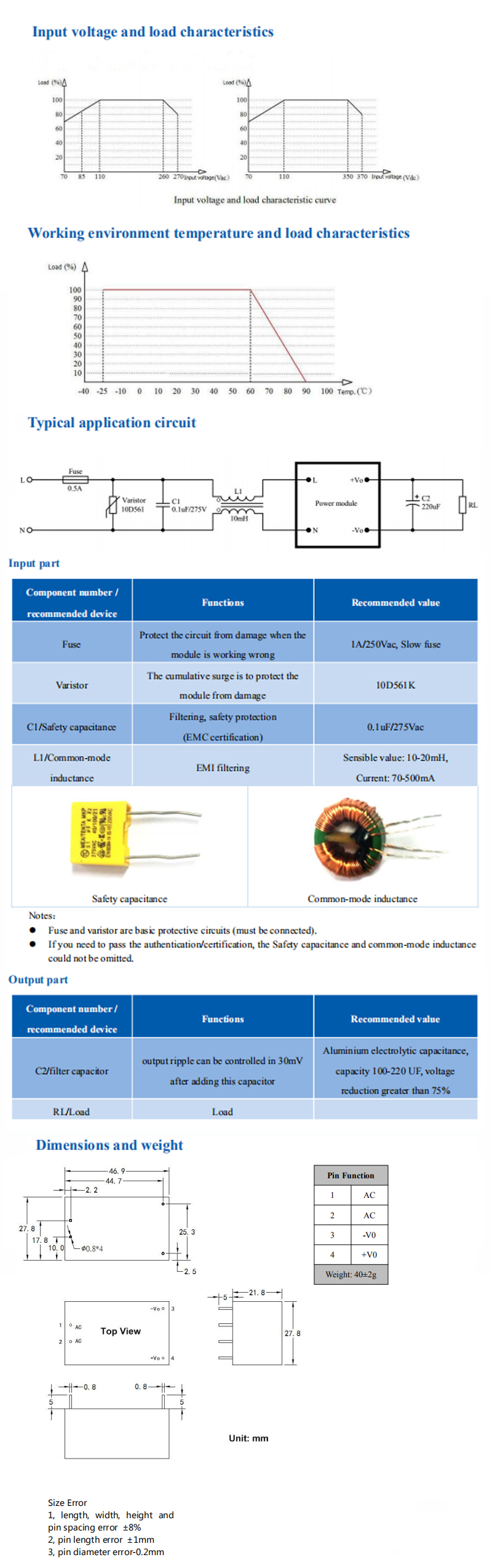

3. Electrical Characteristics

1. Input characteristics (test at room temperature 20℃).

Project Name Technical Standard Unit
Rated input voltage 100-240 VAc
Input voltage range 90-264 VAc
Maximum input current≤0.2 A
Input current surge; ≤10A
Maximum input voltage≤270 VAc
Enter slow start ≤ 50 mS
Input low voltage efficiency Vin=110VAc, output full load ≥69 %
Input high voltage efficiency Vin=220VAc, output full load ≥70%
Long-term reliability MTBF≥100,000 h
Load rated output voltage +5±0.1 VDC
Full rated output voltage +5±0.2 VDC
Short-term maximum output current ≥ 1000 mA
Long time maximum output current ≥ 600mA
Voltage regulation ±0.2 %
Load regulation ±0.5 %
Output Ripple and Noise
(mVp-p) ≤50
Rated input voltage, full load. Using a bandwidth of 20MHz,
Load side 10uF and 0.1uF capacitors are tested. millivolt
Switch overshoot amplitude (rated input voltage and output load plus 10%) ≤ 5%VO
Output overcurrent protection 150-200% of output maximum load A
Output short-circuit protection Normal output is directly short-circuited, and it will automatically resume normal operation after short-circuiting
circuit removal

4. Safety features:

4.1 The product design meets the requirements of UL and CE safety certification.
4.2 Safety and Electromagnetic Compatibility
Designed with 0.5A UL certified insurance input;
The PCB board is made of double-sided copper clad laminate, and the material is 94-V0 fireproof grade;
Safety standard: in line with UL1012, EN60950, UL60950
Insulation voltage: I/PO/P: 2500VAC
Insulation resistance: I/PO/P>100M Ohms/500VDC 25℃ 70% RH
Conducted and radiated: Complies with EN55011, EN55022 (CISPR22)
Electrostatic discharge: IEC / EN 61000-4-2 level 4 8kV / 15kV
RF Radiated Immunity: IEC/EN 61000-4-3 See Application Note
4.3 Temperature Safety Design
Under normal temperature, the maximum temperature of the capacitors of this power supply and the inner surface of the main converter should not exceed 90
°C;
The maximum surface temperature of the shell does not exceed 60 ℃


5. Marking, packaging, transportation, storage

5.1 Logo
5.1.1 Product marking
Where there is a mark on the product, its content conforms to national standards and industry standards.
5.1.2 Packaging Marks
The product is marked on the box with the manufacturer's name, address, zip code, product type, year, month, and day of manufacture;
Transport signs such as "upward", "moisture-proof" and "handle with care" are marked, and all signs comply with the provisions of GB 191.
5.2 Packaging
The products are separated by special plastic box packaging, with shockproof function, and comply with relevant regulations
GB 3873.
5.3 Transportation
Packaged products can be shipped by any shipping service with an awning and without excessive vibration,
influence etc.
5.4 Storage
Products should be stored in accordance with the provisions of GB 3873.
