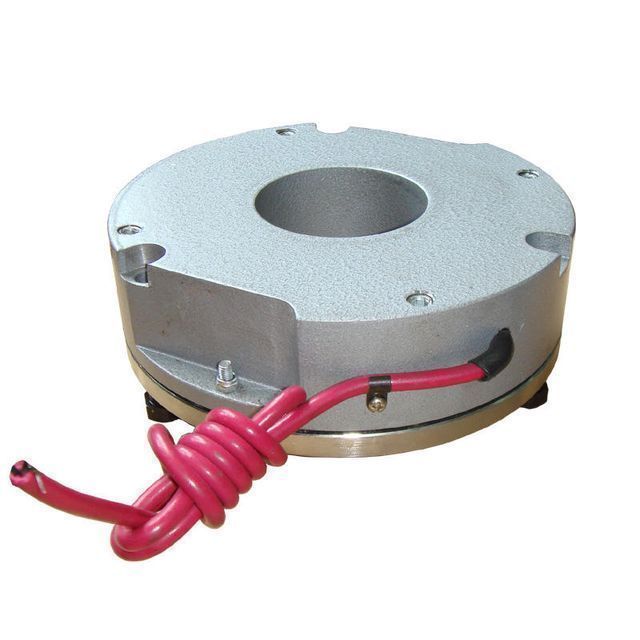

DZS3 Series Electromagnetic Power Loss Brake

DZS3 brakes are friction brakes, which are automatically set to work when the AC power is lost. They are mainly used with Y
Series motors create YEJ series three-phase motors, which are widely used in machine tools and metallurgical machinery.
Building, chemistry, food cues and accurate braking effects.
Widely accepted as ideal automation equipment due to its small size, light weight, low noise and high reliability
equipment.

working environment

Brakes work reliably under the following terms and conditions:
1. The altitude is 2000m, the relative humidity of the air is not more than 85%; the ambient temperature is 15～+40℃
2. There is no explosion hazard around the medium, which is not enough to corrode metals and destroy the insulation of gas and dust.
3. The brake adopts Class B insulation, and the protection level is IP23 (if you want to reach IP55, you can add a protection ring); the voltage fluctuation does not exceed 15% to +5% of the rated voltage,
4. The installation method is axial horizontal, and the working method is continuous working system.
5. Ensure the normal working air gap, not exceeding the maximum working air gap value;
The friction lining surface must be under oil-free service conditions.
