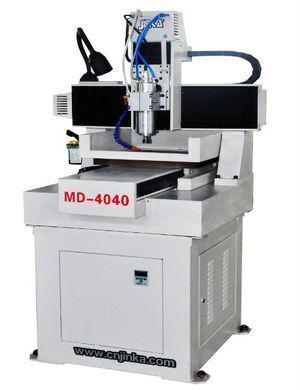

Hot-sale high Precision Mini Cnc Router MD-4040 for mould cutting and engraving/jade/stone/wood/pvc and so on
-
Supplier: Hefei Kaxing Digital Control Equipment Co., Ltd. -
Region: Anhui, China -
Contact: Ms Lily Xu -
Price: $3000.00 /set -
Min. Order: 1 set
| Condition: | New; | Warranty: | 1year after shipping; |
| Port: | Shainghai port or China main port; | Brand Name: | JINKA; |
| Main Axle Rotational Speed: | 6000~24000rpm/min; | Control system: | Ncstudio Control System; |
| Application: | kind of small moulds; | Rated Power: | 800W~2.2KW; |
| Certification: | CE/ROHS/BV/ISO; | Packaging Detail: | export wooden package; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Feeding Height: | 120mm; |
| Motor: | Stepper Motor& AC Servo driver; | Engraving Speed: | 5M/min; |
| Place of Origin: | Anhui China (Mainland); | Supply Ability: | 300 Set/Sets per Month; |
| Payment Terms: | L/C,T/T; | Working Area: | 400x400mm; |
| Milling Cutter Diameter: | 3.175/4/6mm; |
Specifications
High precision square rail, block
Screw transmission
CE, BV, ROHS certified
Guarantee available
Technical data
Model | MD-4040 |
Working Area(mm) | 400*400 |
Feeding height(mm) | 120mm |
Moter | Stepper driver |
Idle speed | 10m/min |
Processing speed | 5m/min |
Spindle power | 800W~2.2KW Variable frequency water cooling spindle |
Rotary rate | 6000 ~ 24000 rpm/min |
Working voltage | AC220V/50Hz |
Engraving tool | Φ 3.175/4/6mm |
Control System | NC Studio |
File format | G code/ HPGL |
Positioning precision | ± 0.02mm |
Repeat positioning precision | ± 0.01mm |
Application
Mould for small and medium vehicle parts,Pressing mould,High-frequency mould ,Carbon steel, stainless steel, Red copper electrode, aluminum and other metal materials; Woodiness material, aluminous model board, plastic board, PVC, acrylic, double color boards, density board, crystal and etc..
Carving type: Relief, graven images, valuable.such handiwork, carving, cutting, milling bottom, etc.
Features
1,Integrated casting body
2,Gear rack transmission
3,High precision ball screw and linear square rail
4,Large power, high precision water cooling spindle motor
5,Movement of table ensures highly accurate processing
6,Compatible with any advanced software such as Type3 /Artcam /CAXA /UG /Pro-E /Mastercam /Ucancam and so on.
7, All the mount surfaces for screw rails are well polished before installation.
8,Adopting imported servo system featuring high precision and long time working posesses malposition detecting and alarm function.
Standard
Control system: NC Studio motion control system
Driver: Stepping motor
Transmission type: Rolling ball screw transmission
Spindle: Variable frequency constant power water cooling spindle
Guide rail and motion slides: Linear square rail and motion slides imported from Taiwan
Body: Casting body
Gantry: Cast aluminum
Dust cover for X axis
Optional
-NC Studio PCIMC-6B motion control system
-DSP control system
-Panasonic, Yaskawa AC servo system
-High performance air cooling spindle
-Full cover
-Dust collector
-Industrial cooling system
-
