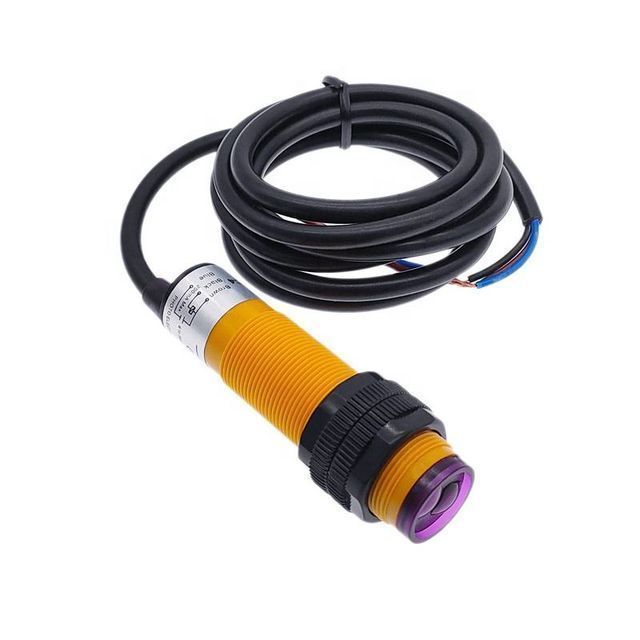

E3F-DS30C2 M18 Long Distance Optical Infrared Proximity Switch Electronic Sensor NPN NC Photoelectric Switch
-
Supplier: Yueqing Manhua Electric Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Yixi Li -
Price: $1.43 /piece -
Min. Order: 1 piece
Product details
| model: | E3F-DS30C2 | brand: | cnmaway |
| Sales unit: | single product | usage: | Proximity sensor |
| Gross weight per piece: | 0.080 kg | Single package size: | 8X8X4 cm |
| place of origin; place of origin: | Zhejiang, China | theory: | Proximity sensor |
| output: | Proximity sensor | describe: | proximity switch |
| type: | Inductive proximity sensor |
Product Description
【Product name】: Photoelectric switch
【Size】: 18mm
【Detection method】: Diffuse reflection
[Detection range]: 30cm
【Working voltage】: 6-36V DC
[Output form]: three-wire type
【Size】: 18mm
【Detection method】: Diffuse reflection
[Detection range]: 30cm
【Working voltage】: 6-36V DC
[Output form]: three-wire type
[Line length]: 1.2m
The diffuse reflection photoelectric switch consists of a light emitter and a light receiver, which is one of the standard configurations. When the beam comes from the projector, the target produces diffuse reflection; when enough combined light returns to the receiver, the switch state changes; the effective operating distance depends on the reflective ability of the target, as well as the surface characteristics and color. The variable capacity with sensitivity adjuster can assume a compensatory role; the device has low consumption. When the optical sensor consists of a single element, a rough localization is usually possible; The measurement distance is adjusted with a background suppression function; It is sensitive to dust on the target and to changes in the reflection performance of the target.
The diffuse reflection photoelectric switch consists of a light emitter and a light receiver, which is one of the standard configurations. When the beam comes from the projector, the target produces diffuse reflection; when enough combined light returns to the receiver, the switch state changes; the effective operating distance depends on the reflective ability of the target, as well as the surface characteristics and color. The variable capacity with sensitivity adjuster can assume a compensatory role; the device has low consumption. When the optical sensor consists of a single element, a rough localization is usually possible; The measurement distance is adjusted with a background suppression function; It is sensitive to dust on the target and to changes in the reflection performance of the target.
This link isE3F-DS30C2
If you need other models, pleaseClick on the model in the tablebuy it
type | DC | NPN | Do not | E3F-DS30C4 |
CNC | E3F-DS30C2 | |||
Plug and Play | Do not | E3F-DS30P1 | ||
CNC | E3F-DS30P2 |
detailed picture
Specification
thing | value |
place of origin; place of origin | China |
Zhejiang | |
brand | cnmaway |
usage | position sensor |
microscope theory | Optical sensor |
output | switch sensor |
Product name | proximity switch |
Amplifier type | standard |
Voltage - Power | DC6-36V |
output type | switch sensor |
powered by | 200 mA |
