Lanbao 40khz Gear Speed Test Sensor M12 Housing 2mm Distance Sensor Inductive Proximity Sensor Switch
- 23.64 1 - 99 pieces
- 20.26 100 - 499 pieces
- 18.57 500 - 999 pieces
- 16.88 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| output: | NPN PNP | Packaging Details: | Packing: 100pcs/carton, gross weight: 9kg/carton, volume: 0.01CBM/carton. |
| Installation type: | rinse | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Visa, Paypal |
| describe: | Gear speed detection sensor, inductive sensor | model: | FY2012FY2018 |
| Package preview: | output method: | NPN/PNP normally open/normally closed | |
| Supply capacity: | 5000 pieces per month | Load current: | ≤200mA |
| theory: | Inductive sensor | Origin: | China Shanghai |
| frequency: | 25000 Hz | brand: | Lambo |
| usage: | position sensor, position | Sensing distance: | 2 mm |
| Current consumption: | ≤10mA | port: | Shanghai |
| application: | automated industry | Residual voltage: | ≤2.5V |
| type: | Inductive Proximity Sensors |

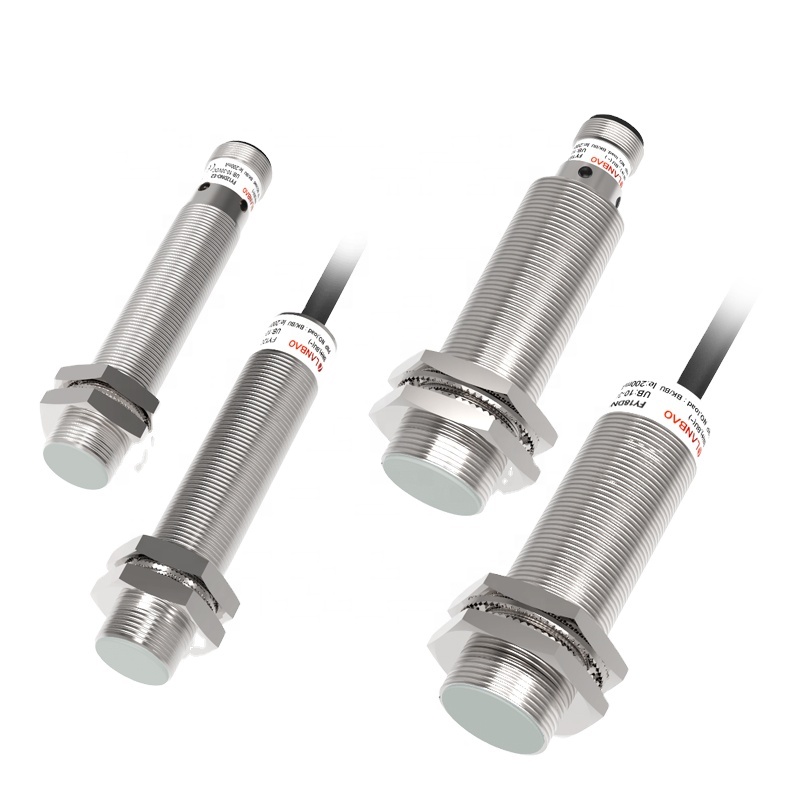

Lanbao 40khz Gear Speed Test Sensor M12 Housing 2mm Distance Sensor Inductive Proximity Sensor Switch
Reliable detection of high-speed gear teeth, stable performance and high response frequency
Product parameters
FY12 Series | ||
NPN number | FY12DNO | FY12DNO-E2 |
NPN CNC | FY 2012 Democratic National Committee | FY12DNC-E2 |
PNP number | FY2012 DPO | FY12DPO-E2 |
PNP CNC | FY2012 DPC | FY12DPC-E2 |
Fiscal Year 2018 Series | ||
NPN number | FY2018 DNOs | FY18DNO-E2 |
NPN CNC | FY 2018 Democratic National Committee | FY18DNC-E2 |
PNP number | FY2018 DPO | FY18DPO-E2 |
PNP CNC | FY2018 DPC | FY18DPC-E2 |
installation type | rinse |
Nominal distance (Sn) | 2 mm |
Guaranteed distance (Sa) | 0...1.6 mm |
aspect | M12*61mm M18*61.5mm |
output | NO/NC (depending on part number above) |
voltage | 10...30 VDC |
standard target | Iron 12*12*1t Iron 18*18*1t |
Switch point drift (%/Sr) | ≤±10% |
Hysteresis range (%/Sr) | 1...15% |
Repeatability (R) | ≤3% |
load current | ≤200mA |
residual voltage | ≤2.5V |
current consumption | ≤10mA |
protect the circuit | Short circuit, overload, reverse polarity |
index | yellow LED |
ambient temperature | -25°C...70°C |
environment humidity | 35-95%RH |
Switching frequency (F) | 25000 Hz |
withstand voltage | 1000V/AC 50/60Hz 60s0 |
Insulation resistance | ≥500MΩ(500VDC) |
Vibration resistance | 10...50Hz(1.5mm) |
protection level | IP67 level |
Connection Type | 2m PVC cable or M12 connector |
building materials | nickel copper alloy |
aspect

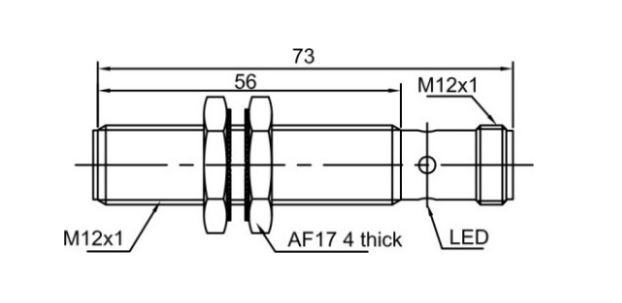

Fiscal Year 2012

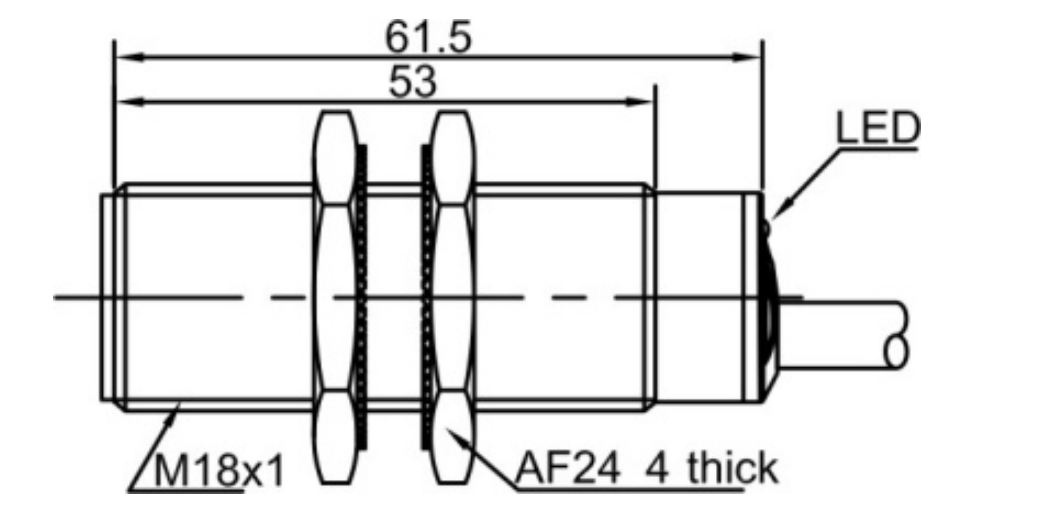

Fiscal Year 2018
wiring diagram

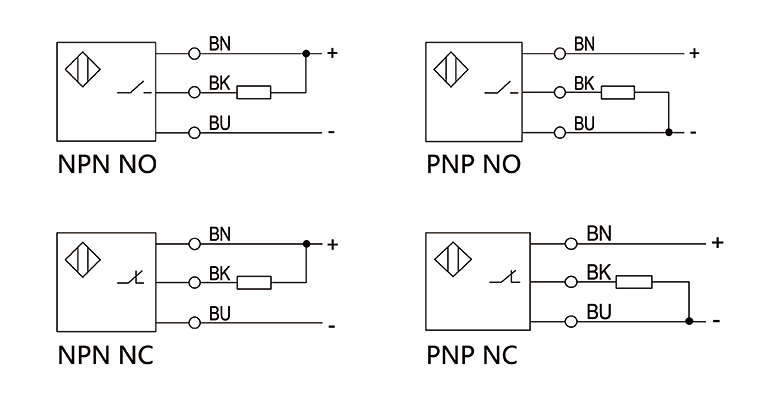

2m PVC cable

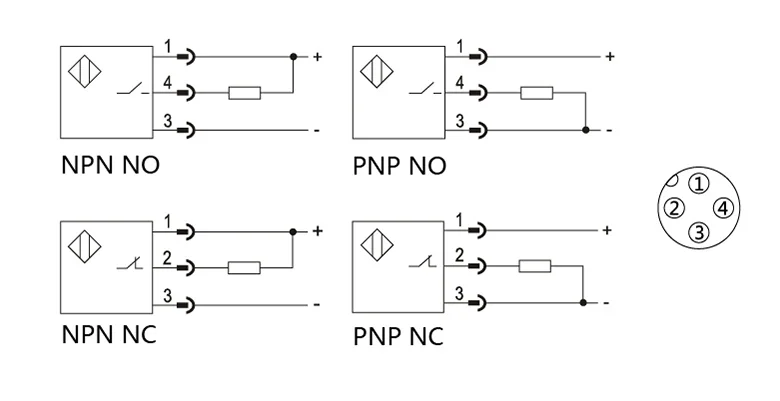

M12 connector
