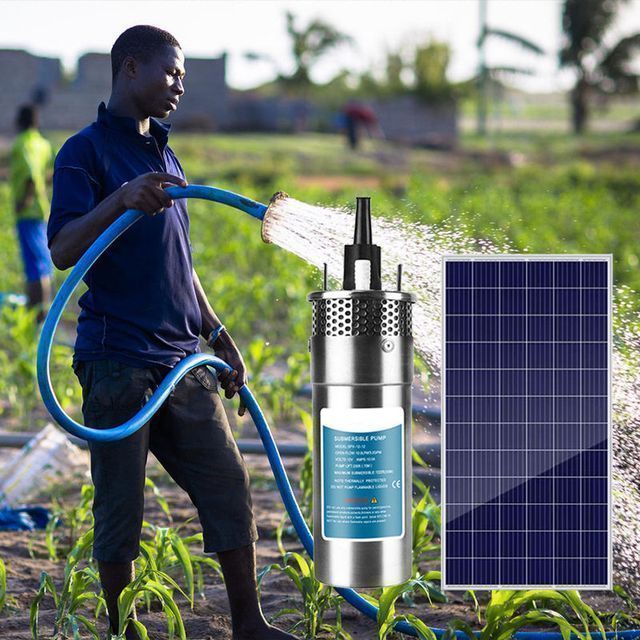

DEMUDA high quality complete solar panel with pump system pressurized surface for agricultural irrigation wells

Supplier: Guangzhou Demuda Optoelectronics Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Daisy Long
Price: $45.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Maximum Immersion:	Up to 100 feet (30m)	Packaging Preview:
application:	Outdoor garden agriculture irrigation deep well	usage:	field irrigation
Packaging Details:	1. Standard carton 2. Customer design 3. Box + bubble bag	motor:	Permanent magnet, thermally protected
brand:	Demuda	payment terms:	L/C, Western Union, T/T, MoneyGram, Paypal
strength:	electrical	Outlet port material:	Barb Fitting/1'' Stainless Steel Threaded Connector
port:	Guangzhou, Shenzhen, Hong Kong	model:	SWP-01, SWP-03
Warranty:	3 months - 1 year	product name:	solar water pump
place of origin; place of origin:	Guangdong, China	Voltage:	12V 24V DC
ampere:	5A/10A	structure:	Diaphragm pump
Supply capacity:	100000 pieces/month	pressure:	low pressure
horsepower:	100psi / 7.0 bar	Material:	Stainless steel

Product Description

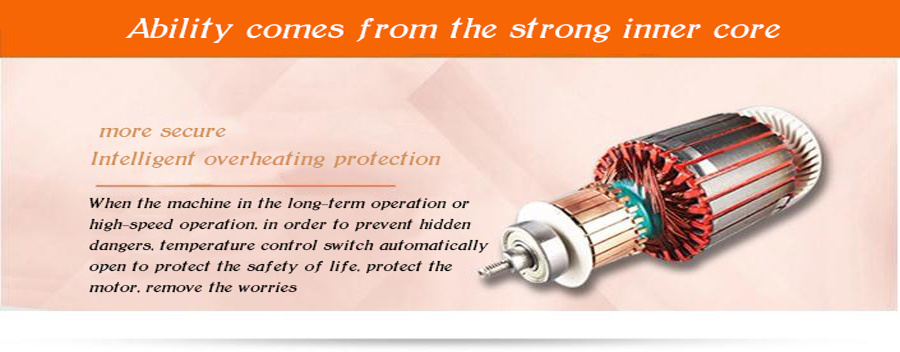

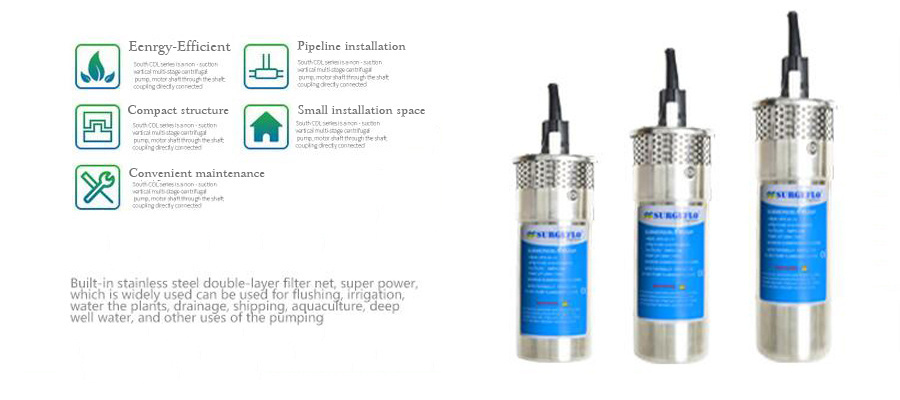

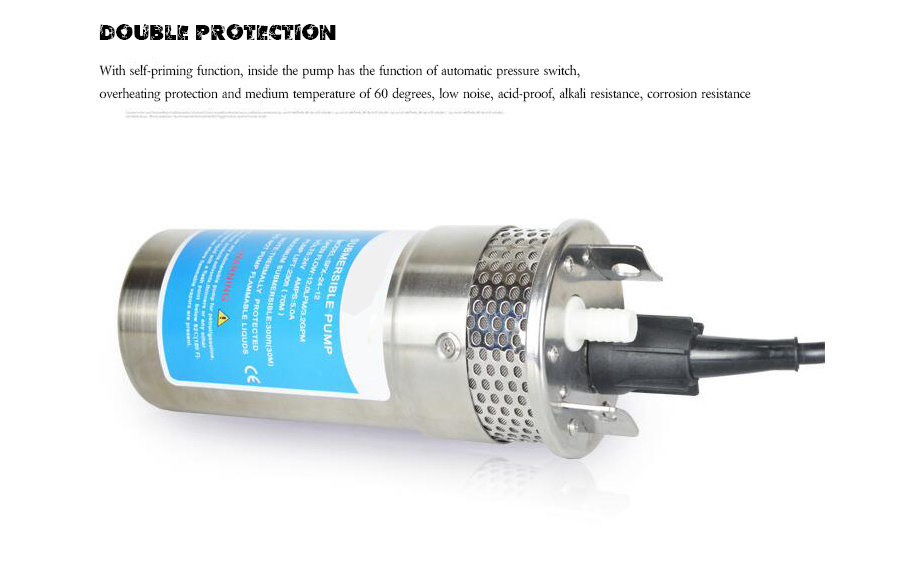

feature:● Stainless steel submersible pump ● Built-in thermal protector ● Low power, high efficiency ● Small size, versatile ● High flow, high head ● Suitable for wells 4" or larger ● Quick disconnect with "waterproof gland" design ● Corrosion Resistant Housing with Stainless Steel Fasteners Dry Running Won't Damage State-of-the-Art Solid Diaphragm Stainless Steel Pump Housing Pump Design: Positive Displacement 3 Chamber Diaphragm Pump Motor: Permanent Magnet Thermal Protection Cord Length: 3M

Specifications: The pump includes:
A high-efficiency positive displacement diaphragm submersible solar water pump. The system is designed for off-grid homes
A near zero recurring cost alternative to diesel. The maximum flow of the pump can be 720LPH (189GPH), and the maximum head can be 100M.
Its unique waterproof power connector blocks water wicking and prevents potential condensation issues.
Great for watering livestock. Irrigation, Irrigation, Remote Homes and Cabins

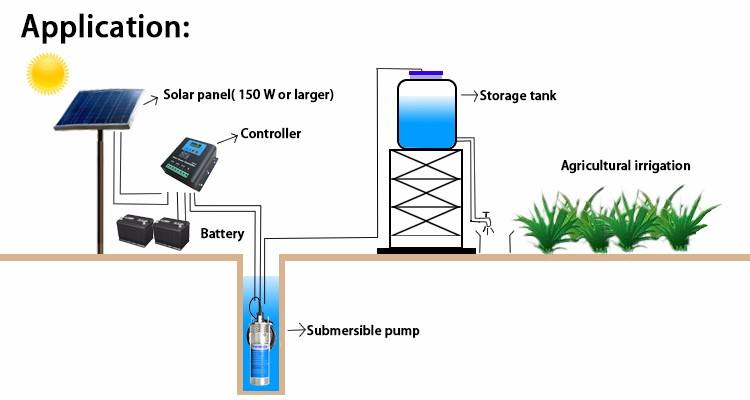

application:
solar water intake
High-altitude water intake
Food & Beverage Filling and Liquid Transfer
any other pressurized system

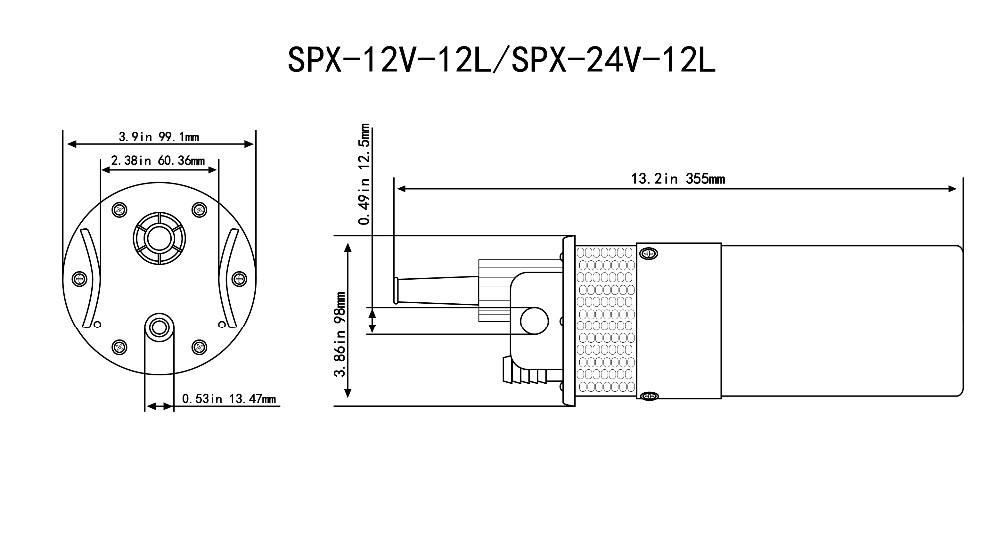

Specification

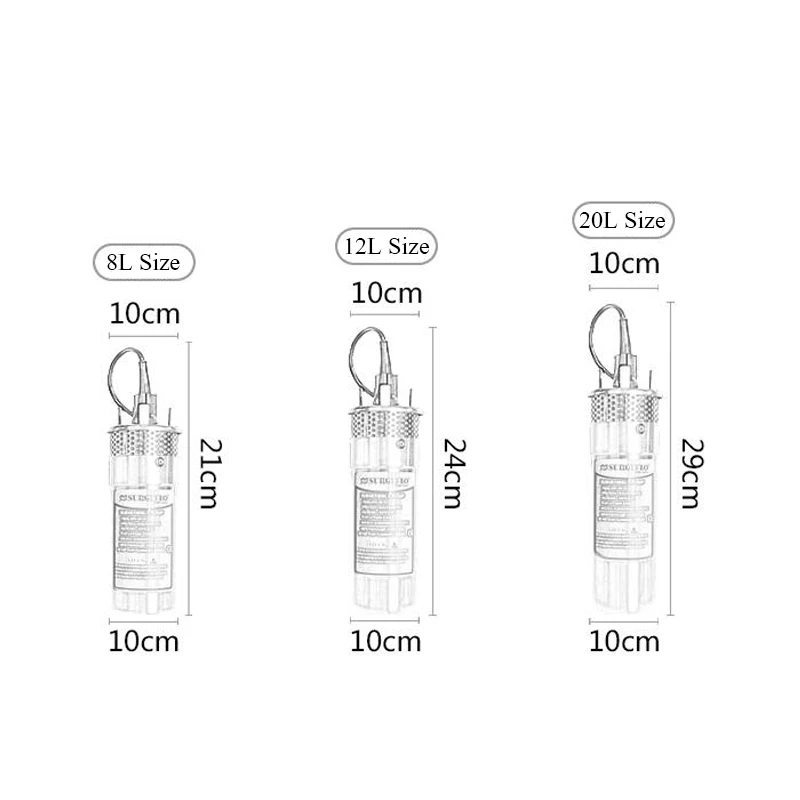

type	vodka	flow	current	Max head	strength	Connector outer diameter
SWP8-12V	12V	8L	8A	70M	96W	12.7mm
SWP8-24V	24V	8L	4A	70M	96W	12.7mm
SWP12-12V	12V	12L	10A	70M	120W	12.7mm
SWP12-24V	24V	12L	5A	70M	120W	12.7mm
SWP20-12V	12V	20L	12A	70M	144W	12.7mm
SWP20-24V	24V	20L	6A	70M	144W	12.7mm

Pump Design	Positive Displacement 3 Chamber Diaphragm Pump

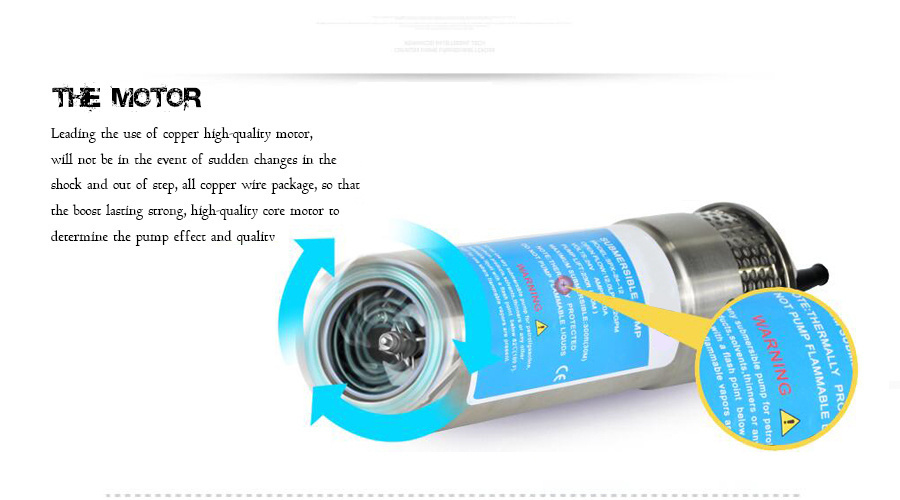

motor	Permanent magnet, thermally protected
Voltage	12/24VDC nominal
ampere	5.0A maximum
Maximum flow	12.0LPM / 3.2GPM
maximum lift	Up to 328 feet (100 meters)
maximum immersion	Up to 100 feet (30 meters)
egress port	1/2'' (12.7mm) Barb Fitting

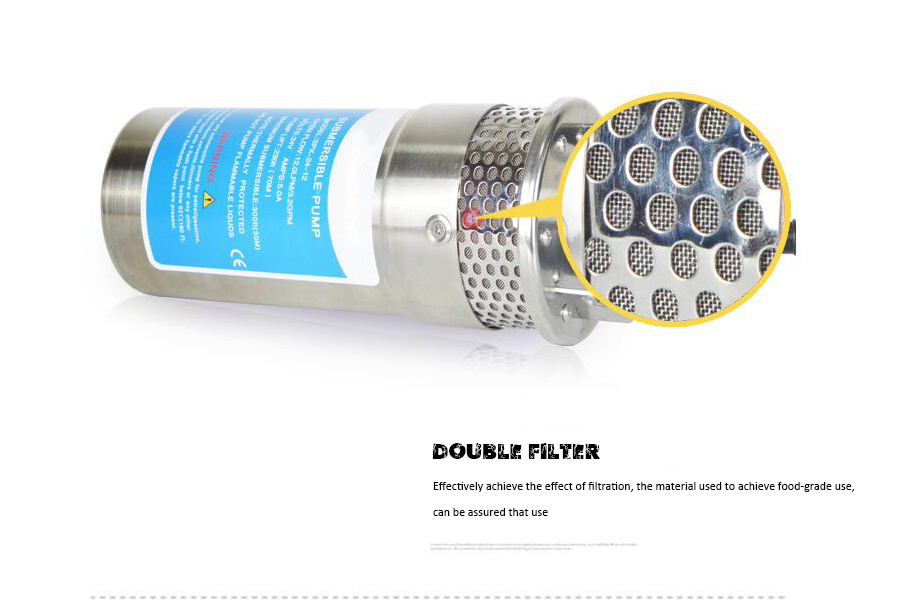

import	50 mesh stainless steel wire mesh
Material	High-strength engineering plastics, stainless steel fasteners
typical application	drinking water well pump
