Solar pump 110V 1.5HP jilu dc with MPPT controller for agricultural irrigation

Supplier: Ningbo Jilu Leader Drive Technologies Co., Ltd.
Region: Zhejiang, China
Contact: Ms Kelly Shao
Price: $238.00 / 1 - 9 sets
$216.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

brand:	Giroud/Ome	motor:	Brushless DC Motor
horsepower:	1.5HP	application:	clean water
Voltage:	72V	Certification:	CE, ROHS
Packaging Preview:		model:	4SSC5.2/101-D110/1100
place of origin; place of origin:	Zhejiang, China	theory:	deep
Material:	304 Stainless Steel, SS304	Sales unit:	single product
Single package size:	65X24X14 cm	Warranty:	2 years
Gross weight per piece:	14.000 kg	strength:	1100W
Packaging Details:	Plywood case	liquid:	clean water
Controller:	32bit MCU / FOC / Sine wave current / MPPT

Model selection

Do not.	outline	maximum. head	maximum. flow	Model	Export	Voltage	Pump power
Do not.		inch	subway	Model	m3/hour		inch	DC voltage	watt	life value
01	4	45	5.2	4SSC5.2/45-D48/500	1.25	48	500	0.7
02	4	67	5.2	4SSC5.2/67-D48/750	1.25	48	750	1.0
03	4	67	5.2	4SSC5.2/67-D72/750	1.25	72	750	1.0
04	4	101	5.2	4SSC5.2/101-D72/1100	1.25	72	1100	1.5
05	4	101	5.2	4SSC5.2/101-D110/1100	1.25	110	1100	1.5
06	4	146	5.2	4SSC5.2/146-D110/1300	1.25	110	1300	1.7
07	4	203	4.8	4SSC4.8/203-D110/1500	1.25	110	1500	2.0
08	4	80	7.5	4SSC7.5/80-D110/1300	1.25	110	1300	1.7
09	4	100	7.5	4SSC7.5/100-D110/1500	1.25	110	1500	2.0
10	4	60	11.0	4SSC11/60-D110/1500	2	110	1500	2.0
12	4	35	16.0	4SSC19/35-D110/1500	2	110	1500	2.0
13	4	26	25.0	4SSC25/26-D110/1500	2	110	1500	2.0
14	4	19	30.0	4/6SSC30/19-D72/1100	2	72	1100	1.5
15	4	twenty two	34.0	4/6SSC34/22-D110/1500	2	110	1500	2.0

We want to know from you—

1) What is the water source? How is the water quality?
2)flowDaily or hourly?
3) what isvertical head?

4) What is the horizontal distance between the water source and the application?

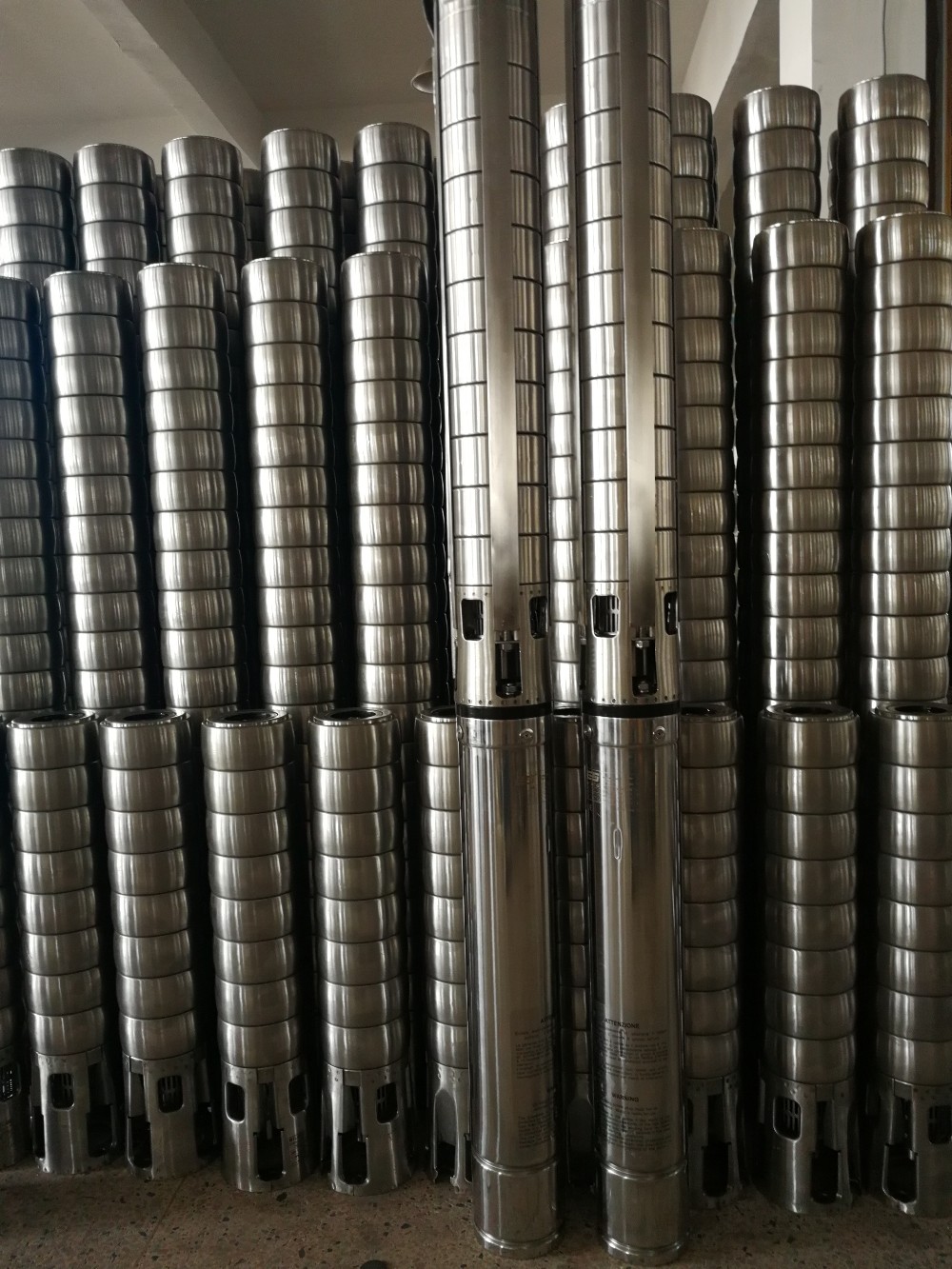

Pump Details

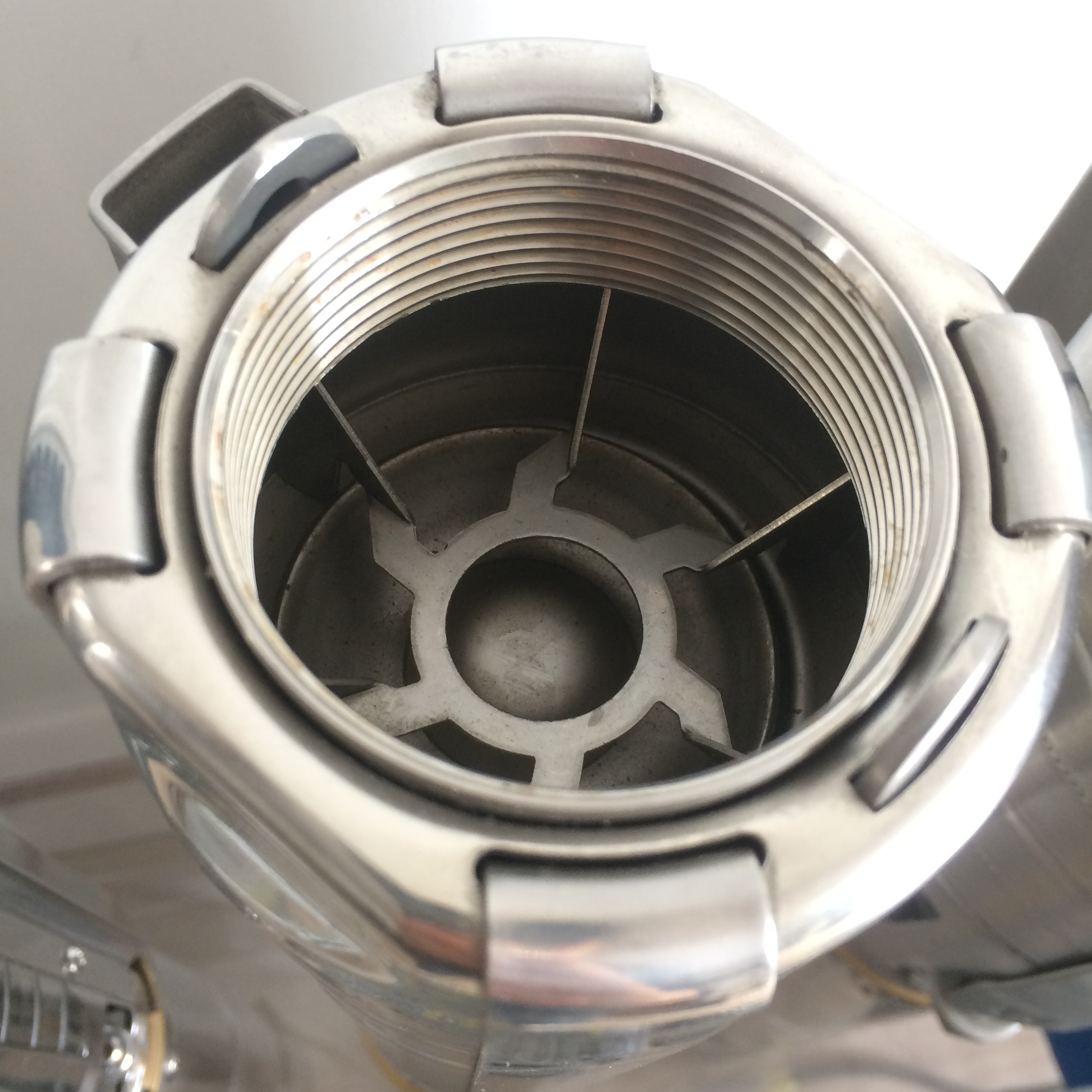

discharge (export)

Material: 304 stainless steel

impeller

Material:304 stainless steel

pump body&filter

AISI 304 stainless steel

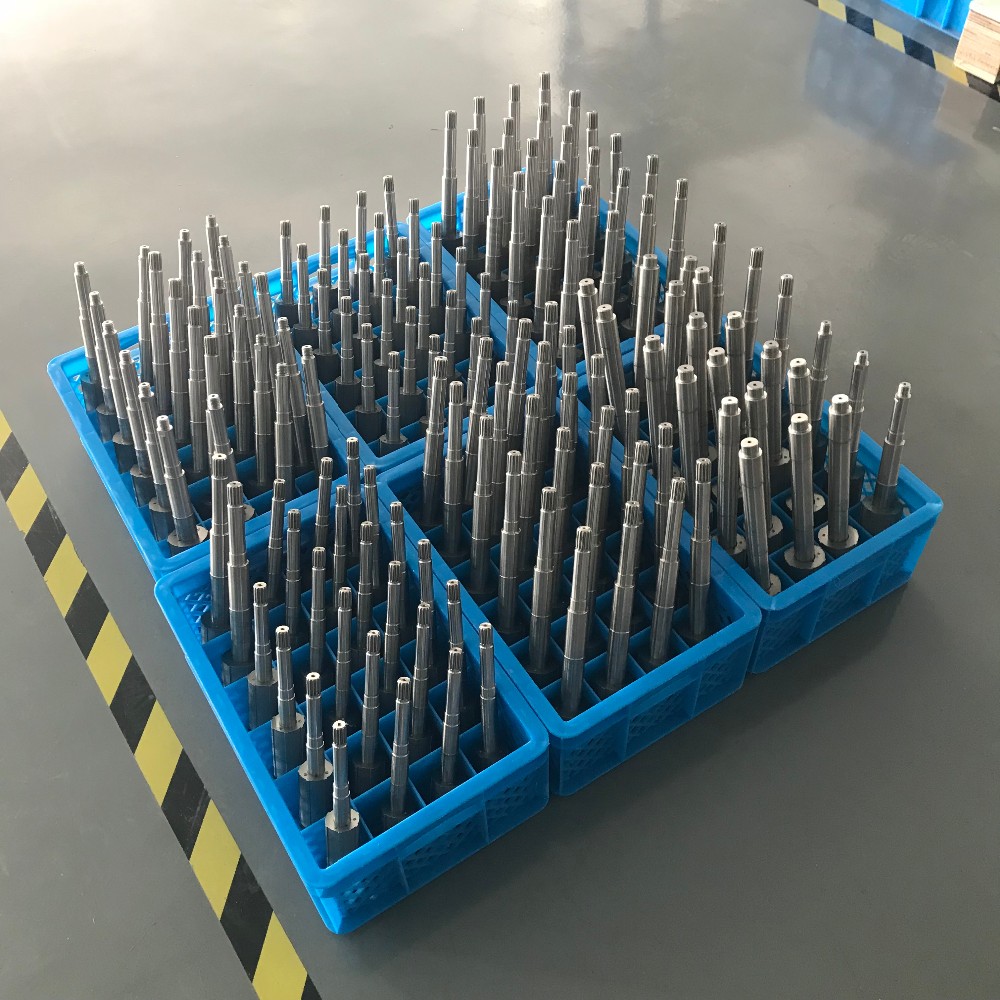

motor rotor

Shaft - AISI 304 SS

Rotor Lamination-The quantity is fully enough to correspond to the motor power

magnet -N35UH NdFeB Magnet

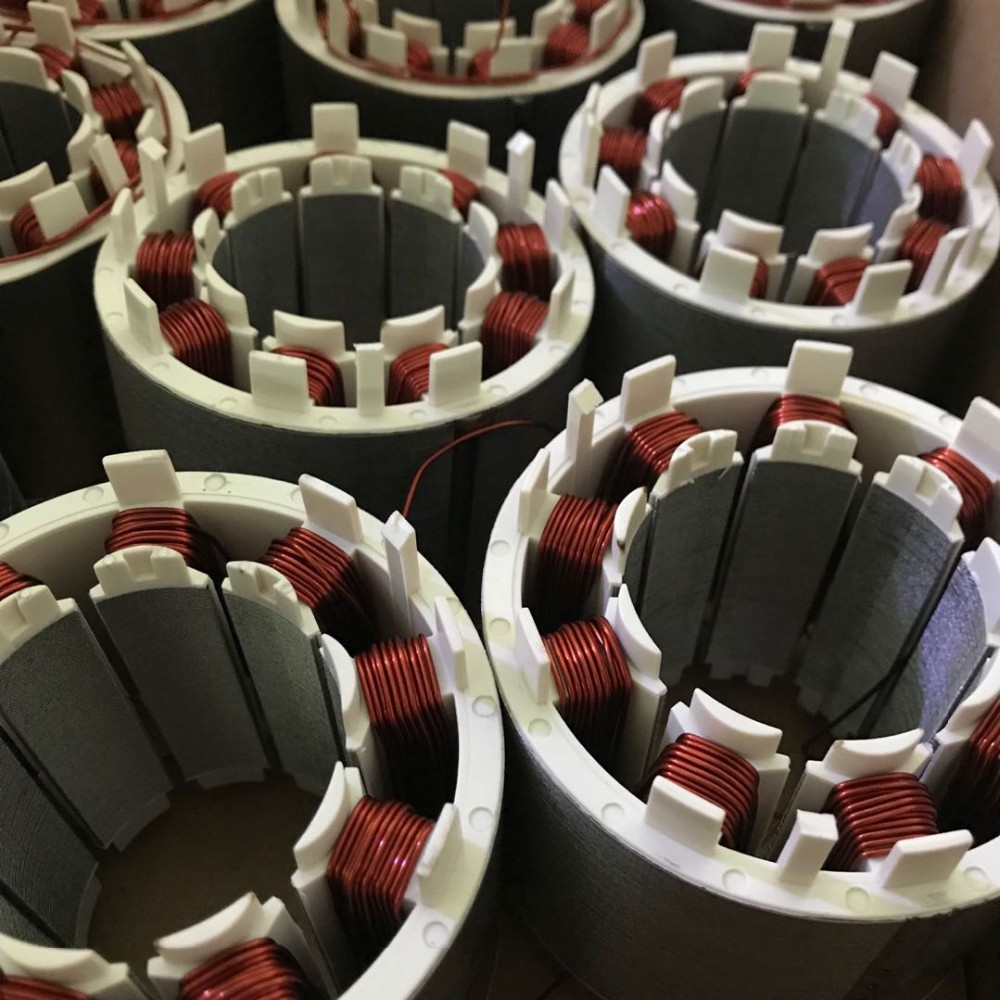

Motor stator

Reinforced plastic spool

100% Enameled Copper Wire

Stator laminations - the number is fully enough to correspond to the motor power

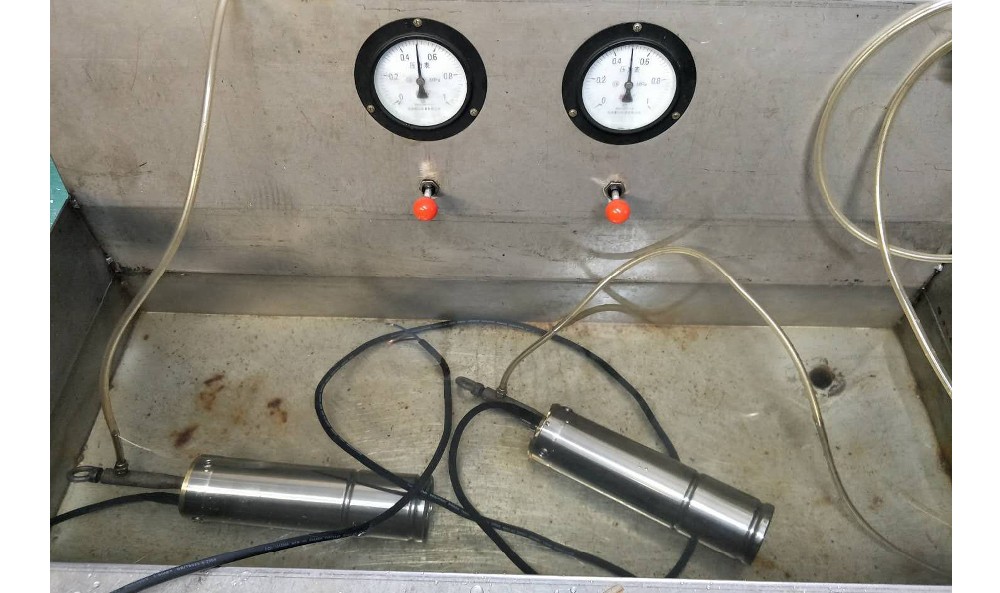

Motor Pressure Test

Motor oil leak test

5KGS pressure

90 seconds

twice

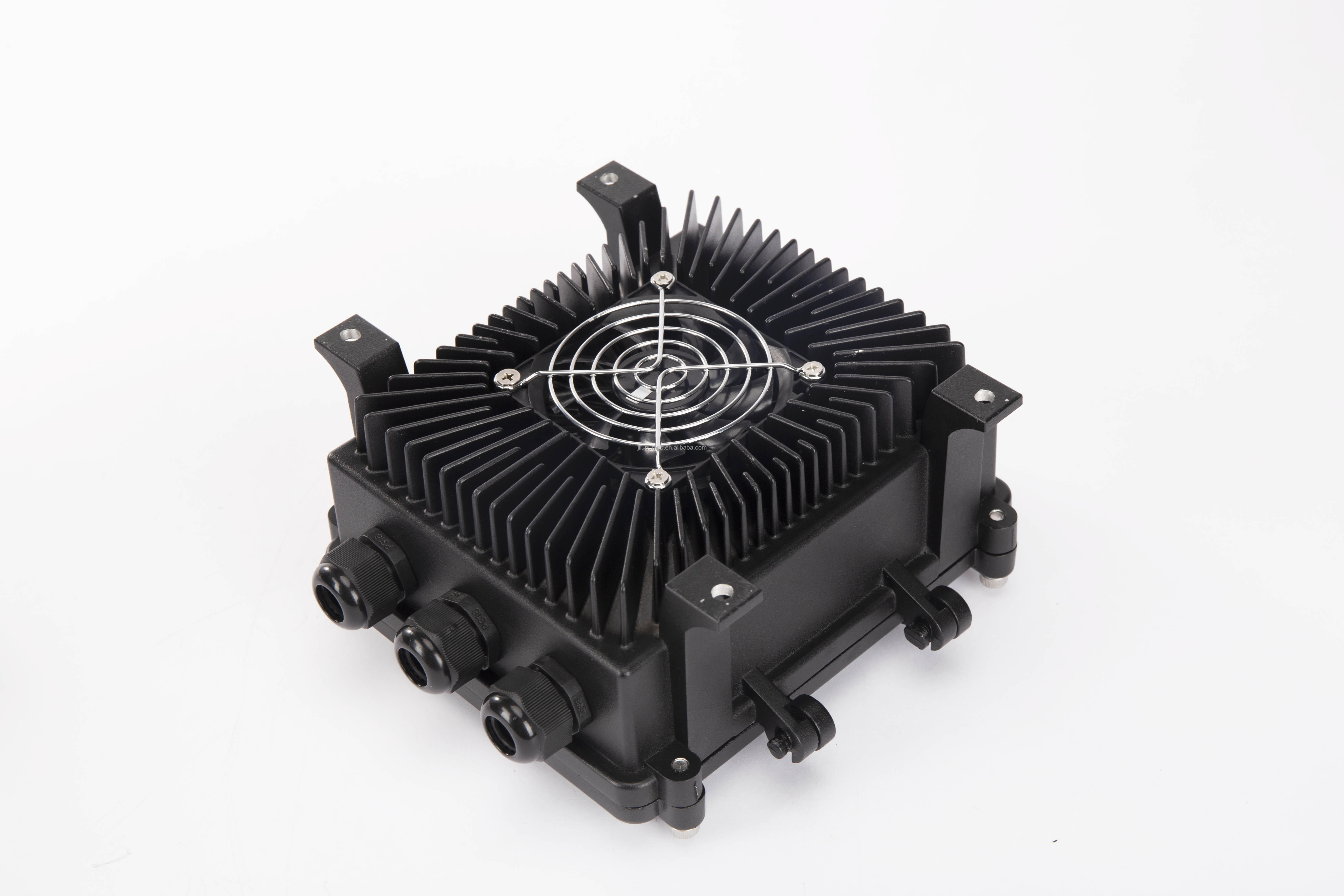

Controller Details

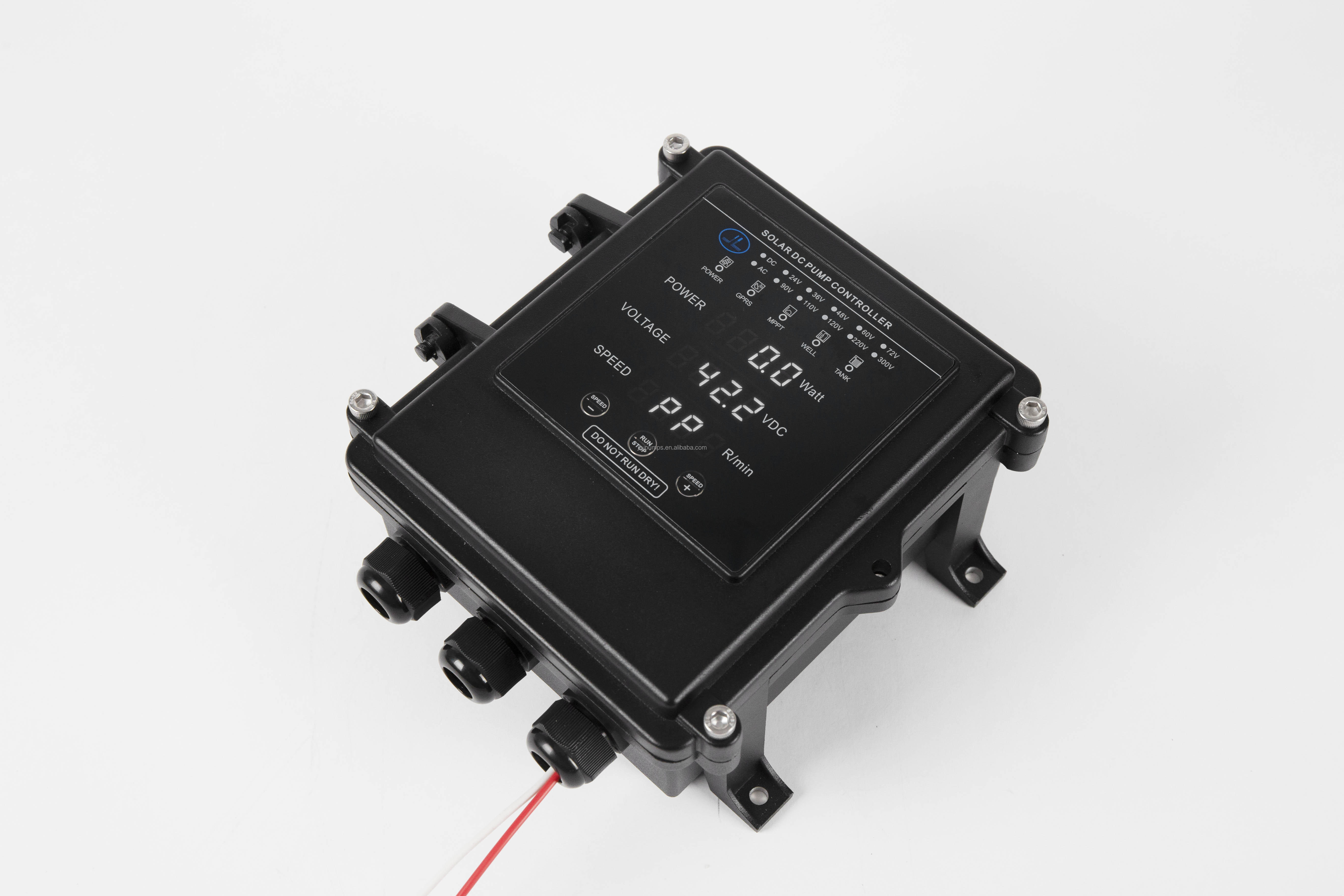

New touchscreen controller

*Unique shell with design patent
* Fully automatic operation
*time setting
*30% extra capacitor
*Error code display
*Soft start system

* MPPT&DSP chip technology
*Anti-reverse protection
*Overvoltage protection/undervoltage protection
*Overcurrent Protection/Overload Protection
*72 hours factory acceptance test
* Smart cloud platform - optional

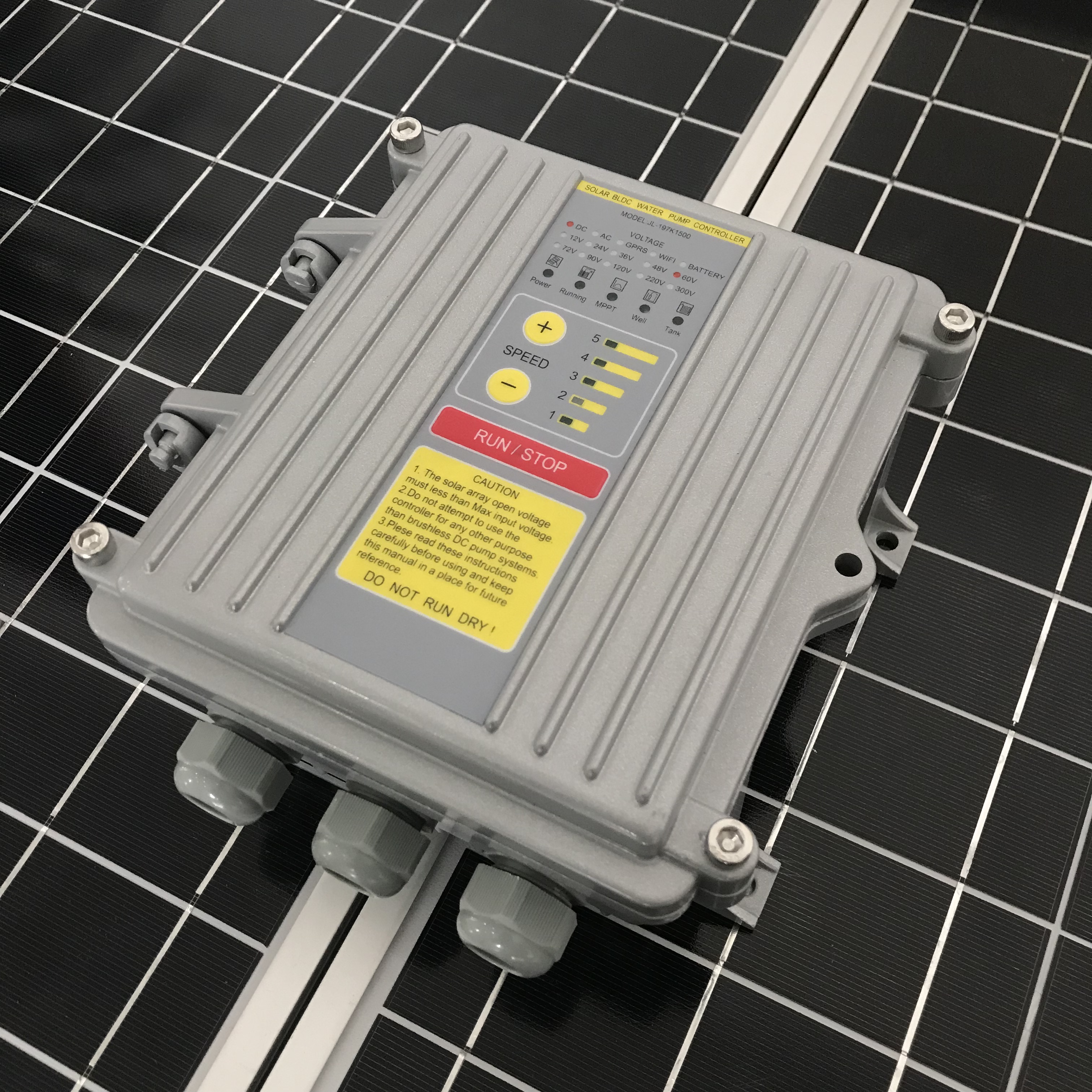

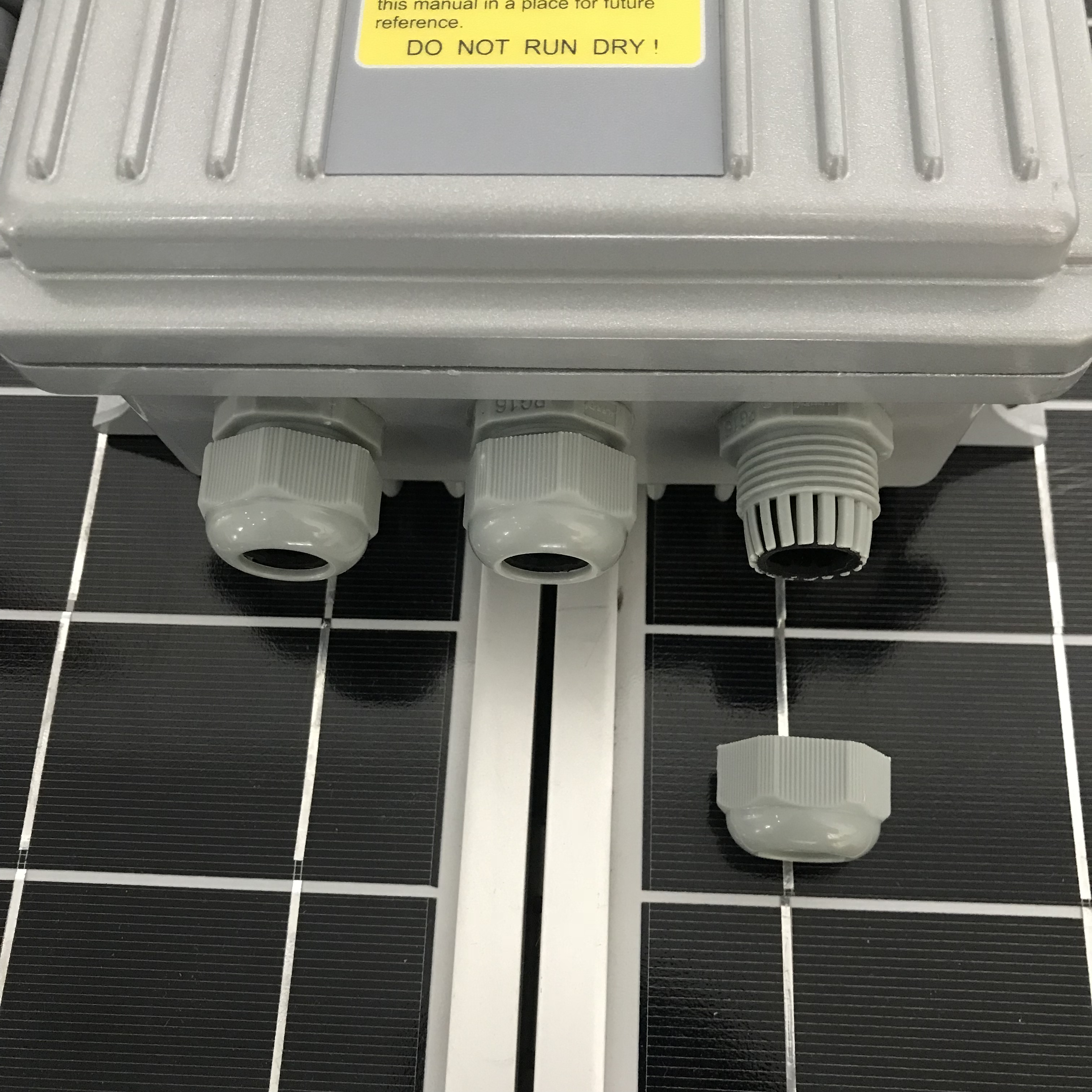

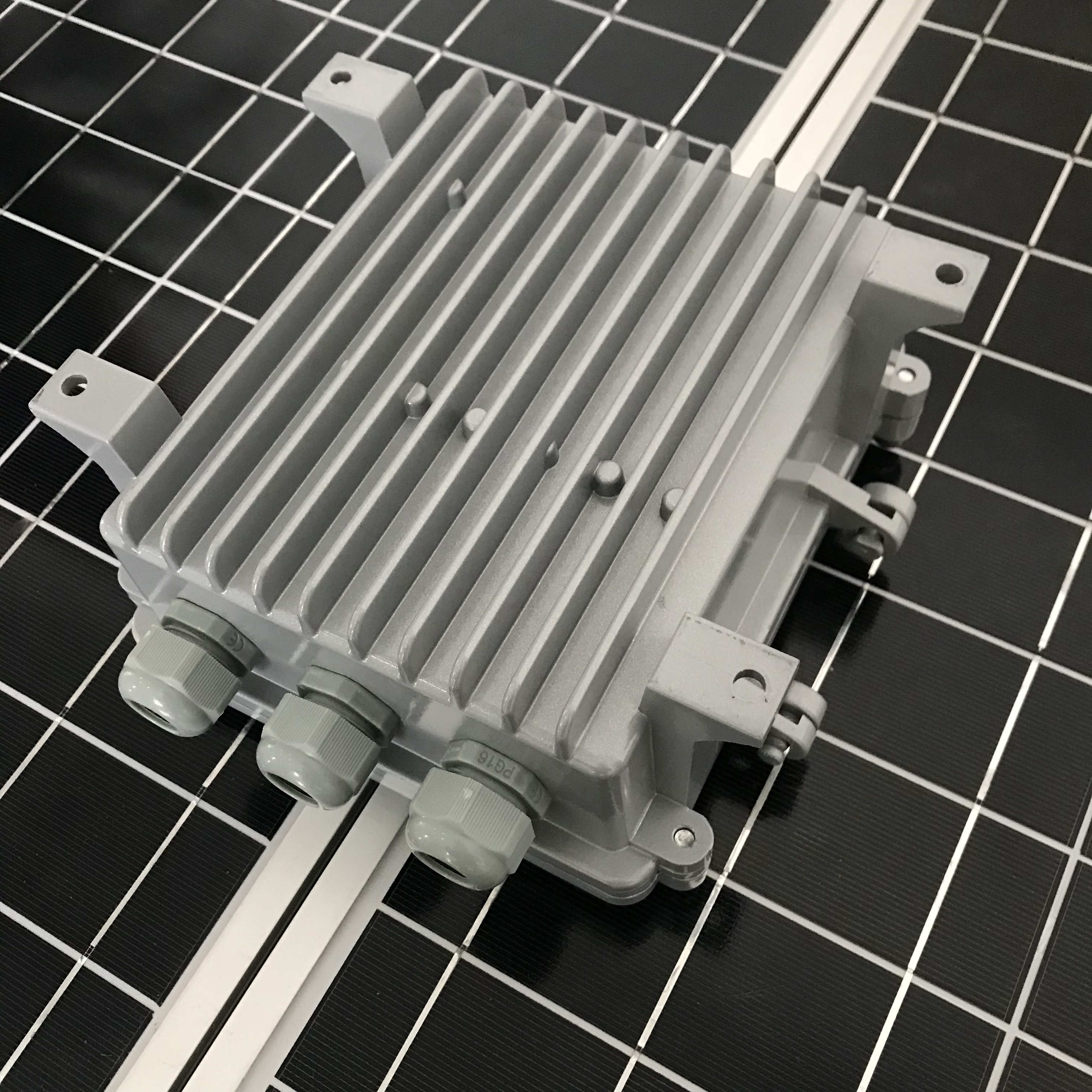

Classic Button Controller

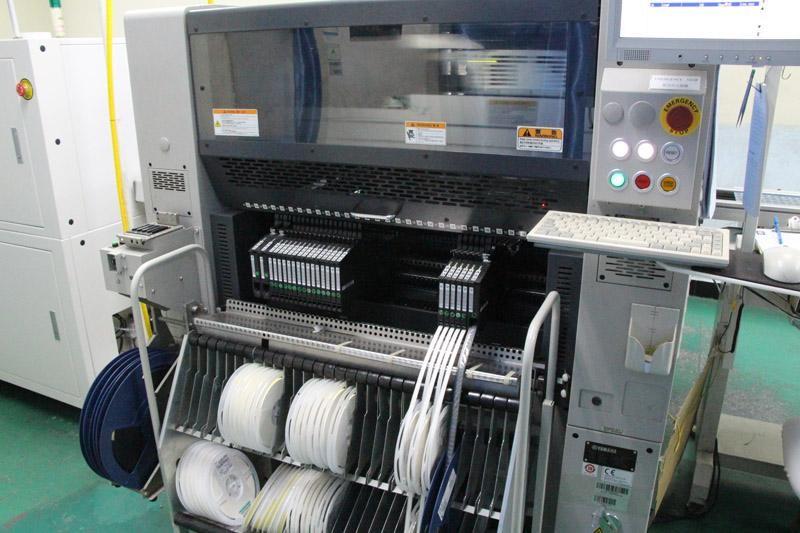

Automatic placement line

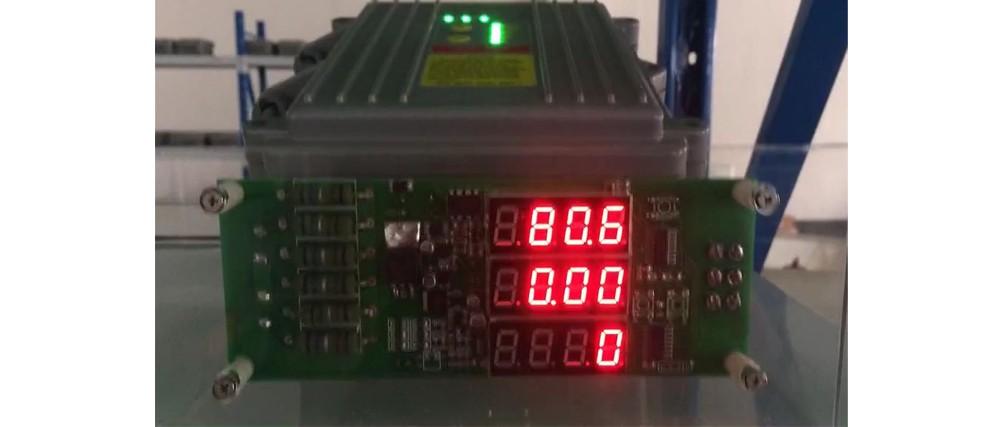

72 hours aging test

free parts

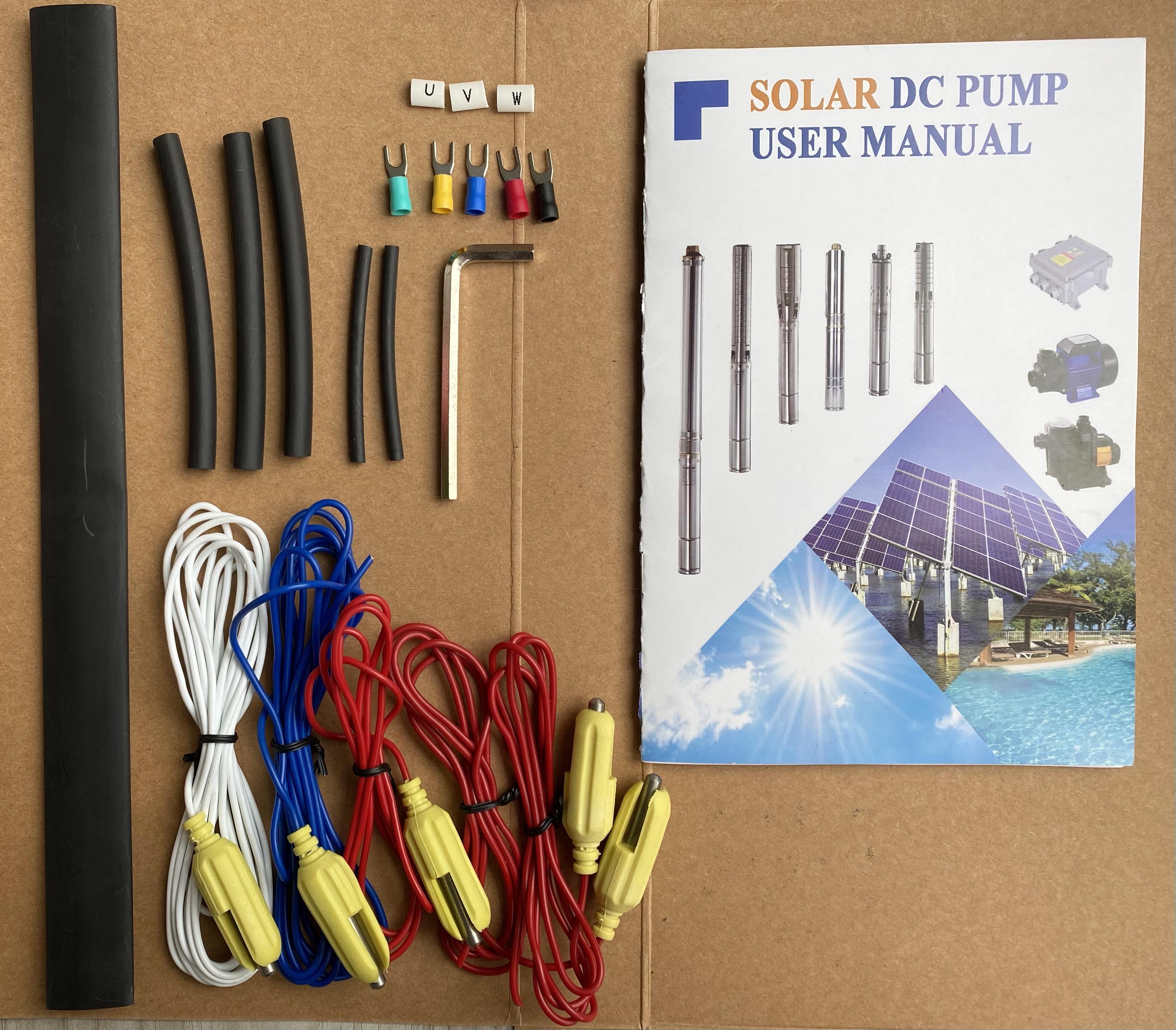

package includes	quantity
Well/Borehole Level Sensors	1 set
fuel tank level sensor	1 set
heat shrink tube	1 set
Allen screw wrench	1
terminal	1 set
User Manual	1

application

Solar water pumping systems are used to provide water in remote applications where grid power is unreliable or unavailable. The BLDC solar water pump controller can directly use the DC power from the photovoltaic array to drive the brushless DC water pump. On sunny days, the pumping system can pump continuously. No batteries or other energy storage devices are required. It is recommended that the water be pumped to a reservoir for storage.

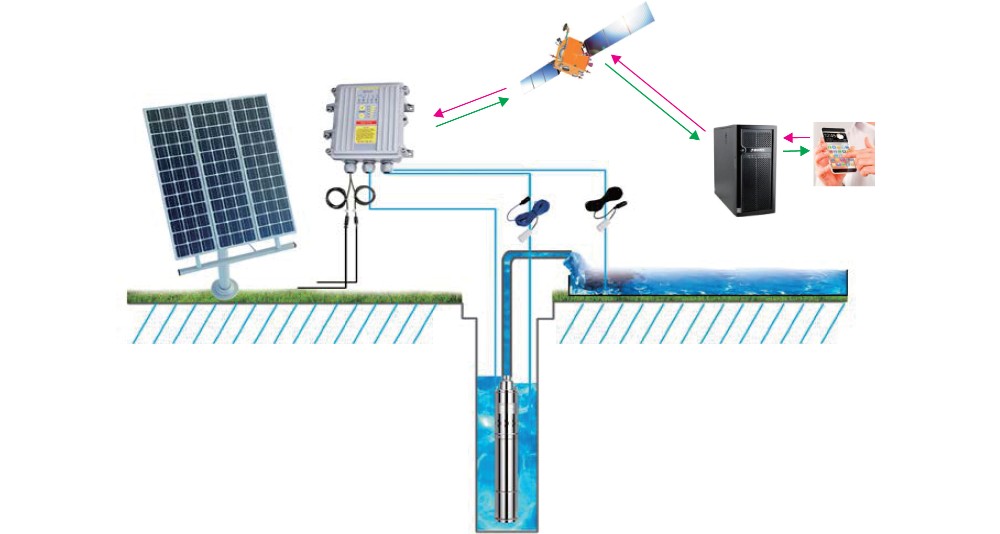

A float switch can be installed in the water tower to control the operation of the pump. And install a low-level probe in the well to detect the well water, so that the pump stops when there is no water. The figure below is a typical schematic diagram of a solar water pump system, including the main components.

◆ Drinking water, livestock water, village or household water
◆ Agricultural irrigation/greenhouse irrigation
◆ Garden/yard irrigation
◆ Pool cycle
◆ Desertification/Wasteland Management
◆ Water tank/tank filling
◆ Camping or camper water supply
◆ Fountain
◆ Watering systems for large commercial establishments
