Plastic Material Vacuum Hopper Loader XTL-300GE

Supplier: Shanghai Guangsu Machinery Manufacture Co., Ltd.
Region: Shanghai, China
Contact: Mr Zhang Philip
Price: $260.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package Type:	wooden box;	Weight:	17kg;
Machine:	Auto Feeding Machine;	Place of Origin:	Shanghai China (Mainland);
Delivery Detail:	0 days after payment;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Online support,Video technical support;
Single package size:	50X40X60 cm;	Usage:	Material Conveying;
After-sales Service Provided:	Engineers available to service machinery overseas;	Dimension(LWH):	500400600;
Warranty:	1 Year;	Power(W):	1.1kw;
Selling Units:	Single item;	Single gross weight:	17 KG;
Certification:	CE/ISO9001;	Keywords:	Industrial Vacuum Loader;
Conveying capacity:	350KG/H;	Brand Name:	GS;
Voltage:	380V;	Application:	Plastic Industry;
Condition:	New;

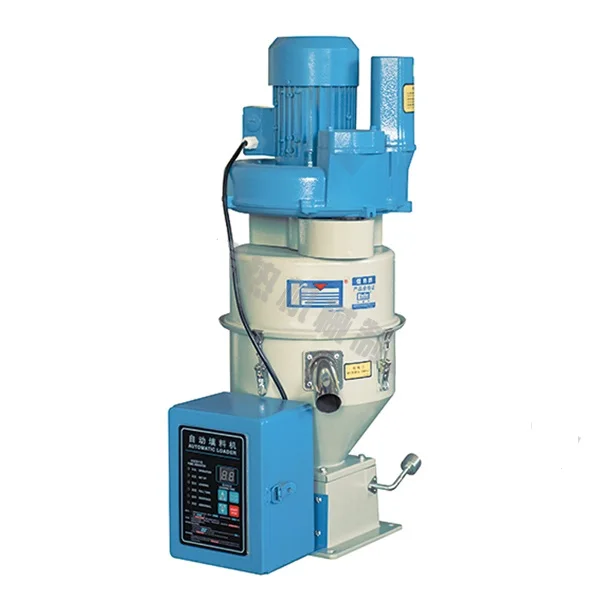

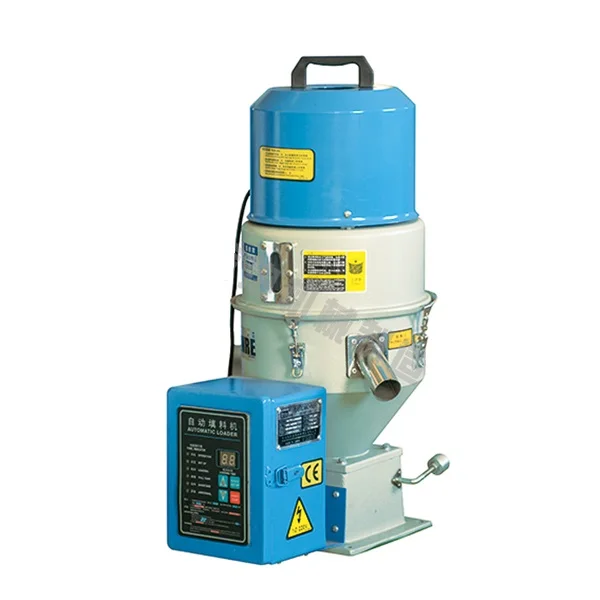

plastic material hopper loader XTL-300GE

Product Description

Features:
•The main engine and the material hopper are designed separately,and thus it is safe,easy and convenient to be opperated.
•The whole operation is controlled by MicroTrip computer.
•Equipped with an independent filter,which is very convenient to clean up dust.
•The equipped muffler reduces the noise in operation.
•Stainless steel material hopper is light in weight,durable and very convenient for cleaning the device.
•The control box,being designed separately,is easy to be well maintained.
•Auto-buzzer will give alarm while lacking material.
•Auto-protective device protects motor against overloading.
The bunker with electronic eye can be installed on the charging inlet of molding machine directly.
The air revolving dust arrester reduce the clean times of filter is suitable for the grinded material conveying.
Can select two-material proportional valve ,used for new material mixed grinded material using or instant receiving of grinded material.

Model			XTL-300GE
Motor	Type		Carbon Brush
	Specification		1.1kw, 1Ø
Conveying Capacity(kg/hr)			350
Static wind pressure(MAX)			1500mmAq
Filter			Ø185×90H
Volume of Material Hopper(L)			6
Inside Diameter of Conveying Pipe(mm)			Ø38
External size(mm)		Main Body L W H	500×400×600
		Material Hopper L W H	500×400×600
Weight(KG)		Main Body	17

We welcome foreign businessmen to visit to visit the guide, we will spare no effort to provide customers with more comprehensive, more

professional, more detailed services to win new customers trust and support.

PRODUCT SHOW

Main Features

1. After preform injection, the heat is used for bottle blowing, no need of preform packaging, storage, reh- eating and other working procedures.

2. Less land occupation, simple management, high degree of automation, less labor intensify (1 person can control more than 3 machines).

3. With a temperature adjustable station, suitable for complicated shape, difficult forming products (such as PP IV-solution bottles).

4.The compact structure greatly shortens the production cycle and enhances productivity.

5.Adopt variable pump and servo motor, maximally reduce energy consumption.

6.The replacement of the mold cost is far lower than similar foreign equipment.

Shanghai-Plastic Machinery Manufacturing Co., Ltd. is located in Shanghai's Songjiang Science and Technology Park, with a total area of

238 acres. Its transportation is very c- onvenient, located in the Shanghai-Hangzhou Expressway and the same three motorway- at the exit

port, and is adjacent to the city of Shanghai University and Shanghai Metro Li- ne 9 Terminal --- Songjiang Xincheng Station.
