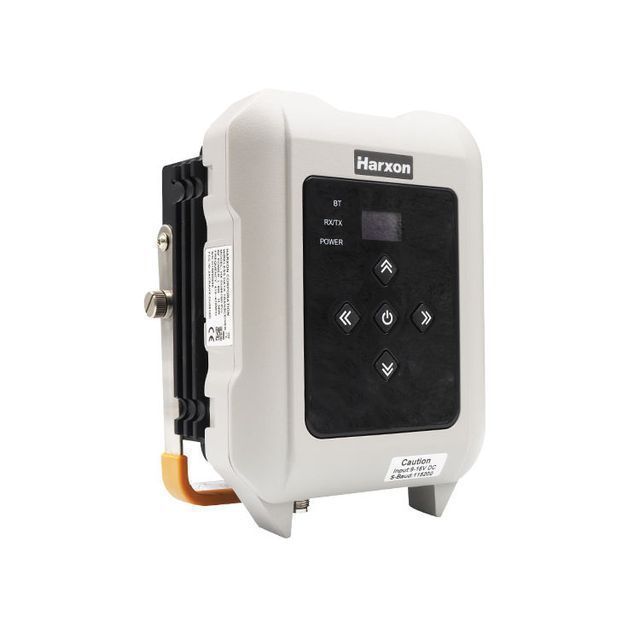

Wholesale Harxon RTK GNSS UHF Radio Outdoor HX-DU8616D Frequency Range 410MHz~470MHz
-
Supplier: Harxon Corporation -
Region: Guangdong, China -
Contact: Mr Tilen zhou -
Price: $870.00 /piece -
Min. Order: 1 piece
Product details
| Protocol: | ETALK, TRIMTALK, TRIMMARK 3, Clear-EOT, SATEL | Country of Birth: | China |
| weight: | 2KG | Packaging Details: | The product will be packed in a 260*230*155mm box and 8 products will be packed in a 530*470*315mm carton. |
| Frequency Stability: | <±1ppm | Serial Baud Rate: | 115200bps/57600bps/38400bps/19200bps/9600bps |
| Single package size: | 26X23X15.5 cm | Gross weight per piece: | 2.000 kg |
| channel: | 32 programmable channels | Operation Mode: | transmitter |
| model: | HX-DU8616D SE | Packaging Preview: | |
| frequency: | 410MHz~470MHz | size: | 175*130*86.5 |
| Card: | Hackson | type: | Global Navigation Satellite System Module |
| Sales unit: | single product |
Product Description
Specification
general | |
frequency | 410MHz~470MHz |
operating mode | Transceivers, Transmitters, Radio Repeaters, Network Repeaters |
Channel width | 12.5KHz/25KHz |
channel | Up to 200 programmable channels (user selectable) |
Operating Voltage | 9V~16V |
Power consumption (typ.) | Transmitting output power H:(35W) 85W@12V DC Transmitting output power: (22W) 60W@12V DC Transmitting output power L: (5W) 35W@12V DC Sleep state 2W@12V DC |
Frequency Stability | <±1ppm |

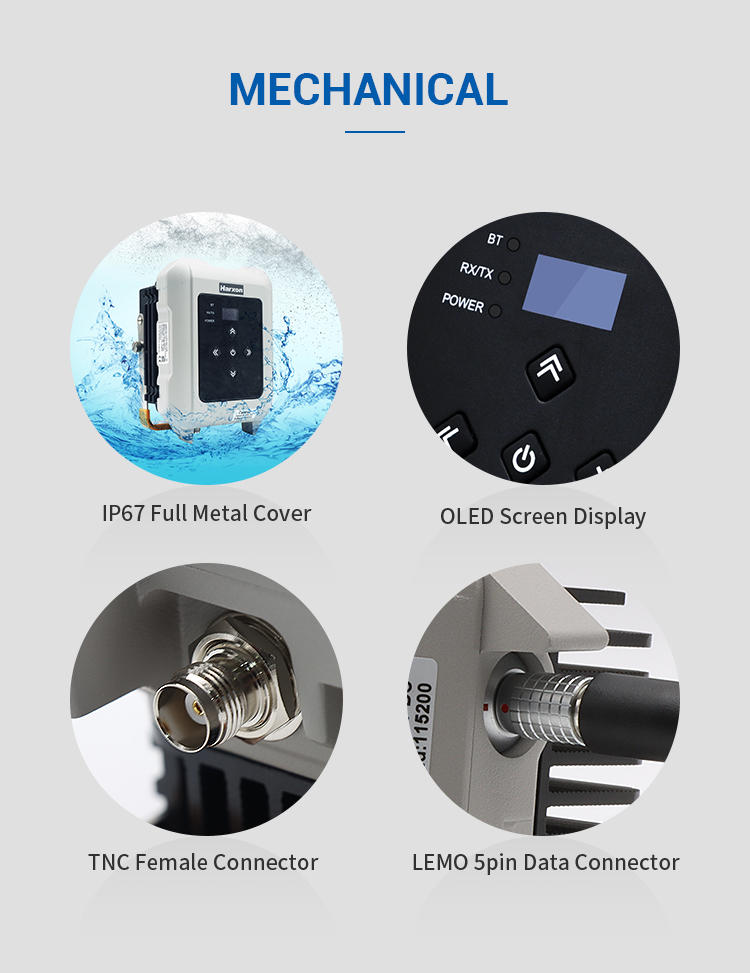

Protection class | IP67 |

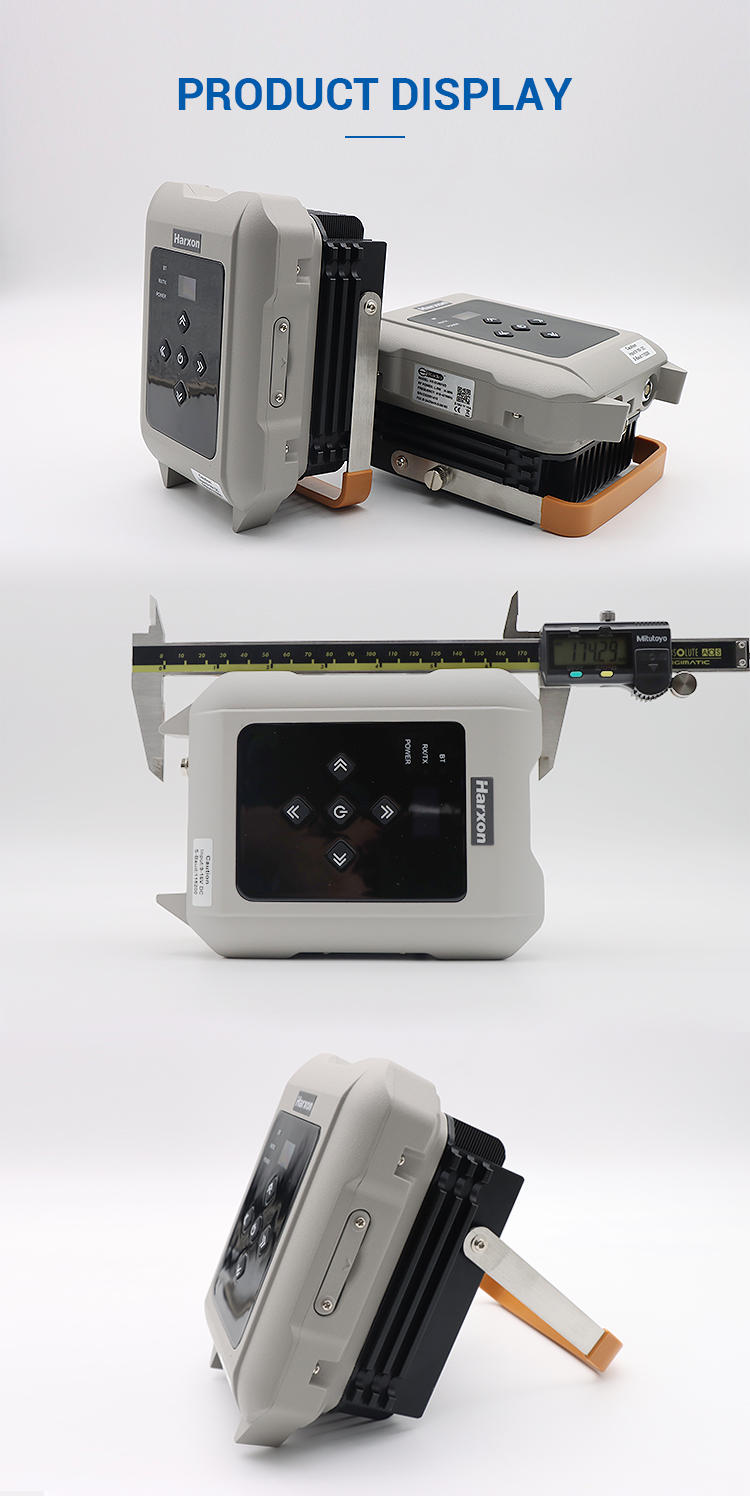

aspect | 175(H)×130(W)×86.5(D)mm |
weight | 2KG |
Operating temperature | -40°C to +65°C |
Storage temperature | -50°C to +85°C |
Connector | TNC female |
data connector | Remo 5pin |
transmitter | |
RF output power | High: 35W 45.4±0.5dBm @DC 12V M: 22W 43.4±0.5dBm @DC 12V L:5W 37±1dBm @DC12V |
RF Power Stability | ±1dB |
recipient | |
Sensitivity | <-114dBm@BER 10-3, 9600bps |
data modem | |
data rate | 4800bps/9600bps/19200bps |
Data speed of serial interface | 9600, 19200, 38400, 57600, 115200bps |
modulation | GMSK/4FSK |
Bluetooth | |
Bluetooth version | 2.0/4.0 |
bluetooth antenna | built-in |
4G | |
bluetooth antenna | 4G frequency band [MHz]: B1(2100), B3(1800), B7(2600), B8(900), B20(800) 3G frequency band [MHz]: B2(2100), B8(900) 2G frequency band [MHz]: B3(1800), B8(900) |
Optional electronic radio series | |
transmitter | √ |
recipient | |
radio repeater | |
network repeater | |
OLED | √ |
32 channels | √ |
200 channels | |
Bluetooth | |
4G | |
GPS module | |
CSMA | |
call sign |
