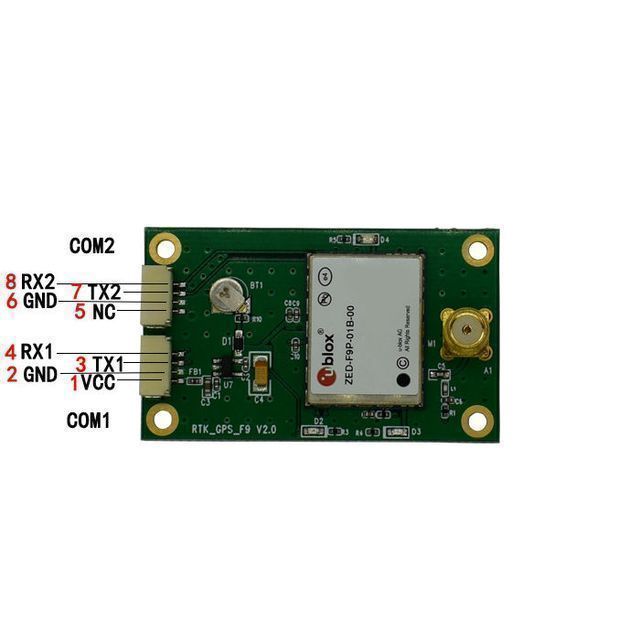

High-precision GNSS multi-frequency centimeter-level low-power UBLOX ZED-F9P RTK differential GPS module

product description

The company's AK314 Beidou/GPS/Galileo/Glonass/QZSS four-mode dual-frequency RTK board (hereinafter referred to as the board) is an ultra-low-cost, low-power, high-performance real-time dynamic differential positioning board. The highly reliable carrier phase difference technology of the board can provide real-time centimeter-level positioning accuracy for drones, automobiles, and surveying and mapping users. The board can be configured for "rover" or "reference station" operation. Through the joint observation of the "mobile station" and the "reference station", the carrier phase difference technology is used to eliminate various measurement errors such as ephemeris error, ionospheric error, tropospheric error, inter-satellite clock error, etc., and finally obtain high-precision positioning results. The board is configured as a "reference station", and the differential interface outputs RTCM 2.x/3.x standard data streams, which are compatible with most commercial mobile stations on the market. At the same time, a reference design of network RTK is provided, which can distribute the differential data stream to all mobile stations through the network. The board is configured as a "mobile station", and the differential interface supports RTCM 2.x/3.x differential data format, which can be connected to the user's existing reference stations of other brands or access to the national Beidou ground-based enhancement system. The static relative positioning accuracy of the board is less than 1cm, the medium dynamic relative positioning accuracy is less than 5cm, and the output rate is 1~10Hz. It can be used in a variety of scenarios and has a very high cost performance.

Product Features

1. Based on the design of U-blox F9P series products, the board can obtain stable and high-precision positioning results even in harsh environments. 2. Support Beidou/GPS/Galileo/Glonass four-mode joint RTK ambiguity analysis, with fast and reliable ambiguity initialization capability. 3. Support data output up to 10Hz to meet general dynamic applications. 4. The board can be flexibly configured as a reference station or a mobile station. 5. It supports two modes of differential positioning and vector measurement, and can output high-precision positioning and orientation results at the same time. 6. Fully compatible with other automatic flight control systems such as Pixhawk and APM. 7. Small size and low power consumption. 8. Support secondary development and provide reference design for various application scenarios.
