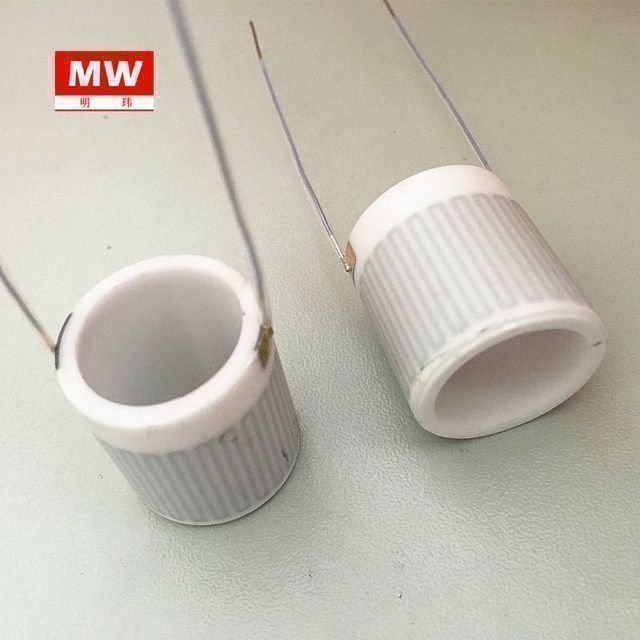

MCH 96 Alumina High Temperature Ceramic Tube Heater

Supplier: Zhuhai MW Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Rita Yang
Price: $20.00 / 1 - 999 pieces
$10.00 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Certificate:	ROHS, ISO9001	Voltage:	110V / 120V / 220V / 230V / 240V
Resist:	300~500Ω	usage:	heating
place of origin; place of origin:	China	shape:	tube
Energy power:	electrical	Sales unit:	single product
size:	H23mmOD21mmID16.5mm	model:	G023210165
type:	Insulating Ceramics	Packaging Preview:
Packaging Details:	Carton	product name:	High Temperature Heating Element MCH 96 Alumina Ceramic Tube Heater
Gross weight per piece:	0.230 kg	Material:	Alumina
Single package size:	18X10X12 cm	brand:	Zhuhai MW
model. :	G023210165	feature:	Long service life, environmental protection and high efficiency

Product Description

High Temperature Heating Element MCH 96 Alumina Ceramic Tube Heater			5,000 hours 20,000 hours 50,000 hours (depending on the conditions of use)	Voltage	DC 3.7V/5V DC 12V/24V AC 110V/220V AC 230V/240V/360V
model.	Customized (mm)	G023210165		widely used
	shape			square plate	Certification	SGS, RoHS
	strength			1-300W / 600-3500W	Warranty	2 years
	title			Ceramic heating element	Function	heating/heating
	Resistance range			4-6Ω / 9-11Ω / 18-22Ω 90-110Ω / 450-550Ω	Minimum order quantity	Sample 1 piece Order 1000 pieces
	model			404020	price	FYI $5.00-15.00
	96% alumina			white	port	Zhuhai/Guangdong
shape		tube
size		H23OD21ID16.5mm
resist		300~500Ω
Voltage		110V / 120V / 220V / 230V / 240V
energy power		electrical
Function		heating
Certificate		RoHS, ISO9001
MCH ceramic heating element characteristics
Thermal Conductivity		(20℃) 18W / (m·K)
specific heat		(20℃) 0.78×103 J /(kg·K)
Vickers hardness		(Load 500g) 12.3 GPa
Three-point bending strength		340 MPa
advantage		Environmental protection, energy saving, compact design and high efficiency
custom made		support

The high temperature heating element MCH 96 alumina ceramic tube heater is produced by implementing a unique ceramic lamination process. MCH prints resistors on alumina sheets, which are laminated and sintered into one. Our ceramic heaters can work in both atmospheric and vacuum environments. MCH technology offers significant advantages over metal-based jacketed heaters, but the latter has limitations in thermal performance and material compatibility. Compared to PTC, MCH is more energy efficient, safer and more efficient. At present, MCH as an innovative heater is widely used in machinery, medical, semiconductor, electrical and electronic industries.

superior property

1) High power density and good thermal efficiency; 2) Multiple heating elements can be laid on a single unit; 3) Superior thermal performance, rapid temperature rise and efficient heat exchange; 4) High level of insulation allows direct contact with water, kerosene and metal ; 5) Superior dielectric strength and electrical insulation; 6) The resistivity material is designed with anti-oxidation and has a longer service life; 7) High reliability: superior chemical resistance, high temperature durability and excellent mechanical properties; 8 ) custom designed temperature profiles are available.

production technology
