Winding Machine CL-2C Sewing Thread Cone Winding Machine
- 1580.00 1 - 4 sets
- 1560.00 >=5 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Health status: | new | Voltage: | 220V/380V |
| port: | Ningbo Port | Core Components Warranty: | 1 year |
| Auto grade: | semi-automatic | payment terms: | L/C,Western Union,D/P,T/T |
| Certification: | Chief Executive | Mechanical test report: | Not available |
| Production capacity: | 12/time | Material Capability: | Wire |
| strength: | 1.08KW | weight: | 500KG,500KG |
| Certification: | Chief Executive | Video external inspection: | if |
| Applicable industries: | Clothing store, household goods, textile thread | Packaging Details: | Wooden case suitable for shipping. 14 sets in a 20ft container. |
| Spindle: | 6 heads | Dimensions (L*W*H): | 2.15m*0.8m*1.15m |
| place of origin; place of origin: | Zhejiang, China | After-sales service provided: | Provide overseas service center |
| Supply capacity: | 500 sets per month | brand: | Ding Ming |
| Type of machine: | Winding machine | Marketing Type: | New Products 2020 |
| speed: | 150 m/min | Showroom location: | United Kingdom, United States, Germany, Vietnam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Thailand, United Arab Emirates, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Nigeria, Australia |
| type: | Trumpet | Warranty: | 1 year |
| application: | Textile machinery | product: | Winding machine |
| Core components: | PLC, bearing, motor |
Product Description

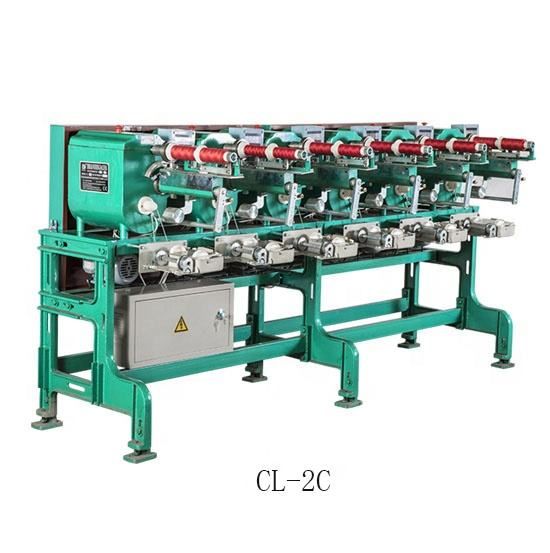

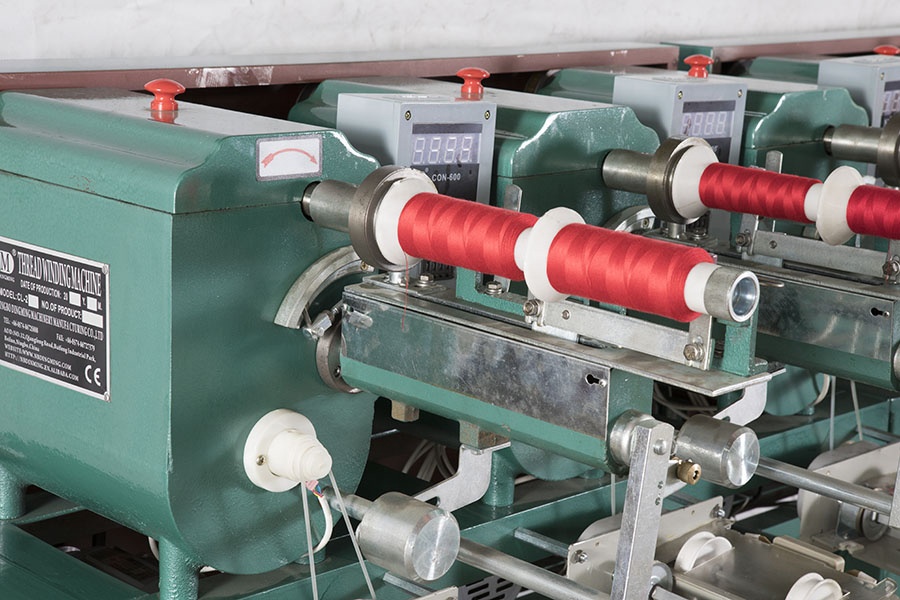

Kingspool CL-2C winding machine, one head has 2 or 3 bobbins, one machine has 6 heads, one motor drives one head
Respectively.
Equipped with a new generation of computer measuring instruments.
Equipped with disconnection automatic stop device.
Equipped with electronic tension and silicone oil applicator
Equipped with automatic disconnection memory function
Equipped with hopper, belt shell and wire rack (need to be specially ordered by the user).
Your inquiry will be greatly appreciated and we are sure we will get attention as soon as possible.
For more information, please feel free to contact us.
Respectively.
Equipped with a new generation of computer measuring instruments.
Equipped with disconnection automatic stop device.
Equipped with electronic tension and silicone oil applicator
Equipped with automatic disconnection memory function
Equipped with hopper, belt shell and wire rack (need to be specially ordered by the user).
Your inquiry will be greatly appreciated and we are sure we will get attention as soon as possible.
For more information, please feel free to contact us.
Size Information
CL-2C Horn Winding Machine | ||||||
The main technical parameters | 4 inches | 5 inches | 6 inches | |||
Do not. Number of spindles | 6 Spindles | 6 Spindles | 6 Spindles | |||
cones for each spindle | 2 | 2 | 1 | |||
thread length | 0-10000M | 0-15000M | 1000 grams | |||
thread length | 0-10000M | |||||
motor | 0.18kw , 220v/380v/440v , 50HZ/60HZ , | |||||
machine value | 2.1*0.68*0.9 | |||||
weight | 300KGS | |||||
Package dimensions | 2.2*0.76*1.1 | |||||
GW | 400KGS | |||||
