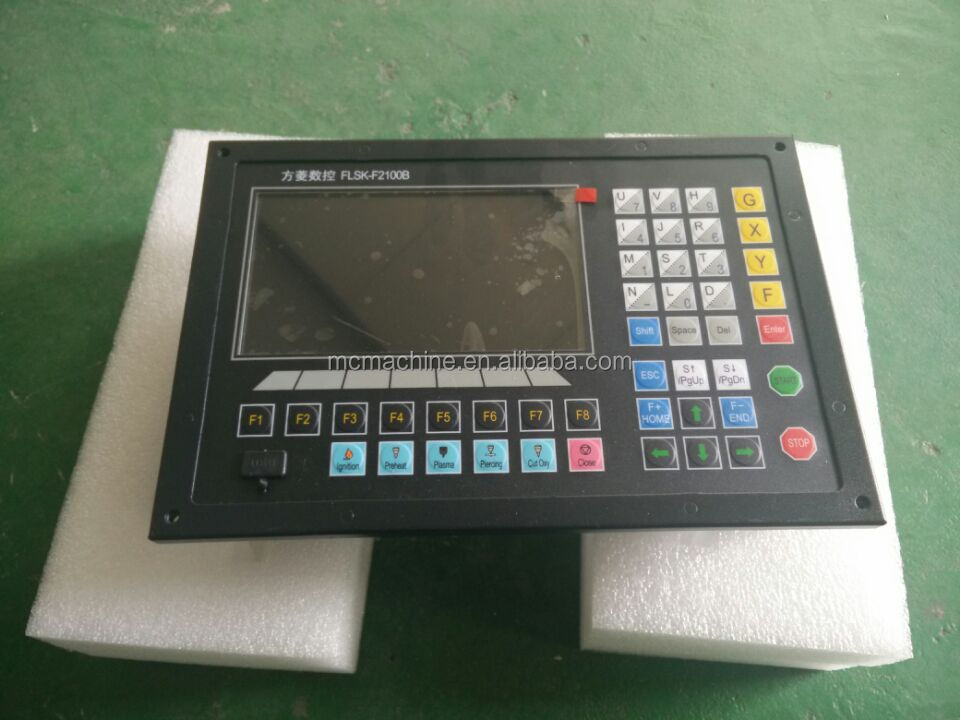

F2100B Portable CNC Flame/Plasma Cutting Controller System

Portable CNC Flame/Plasma Cutting Controller System F2100B

illustrate:

• 45 types of different graphics (including grid pattern), chip part and hole part are available.
• Graphics have operations such as scale, rotation, and mirroring.
• Graphics can be arranged in matrix, interactive, stacked modes
• According to the thickness of the plate, the cutting speed is automatically limited at the corners, which can effectively prevent over-burning.
• Metric/Imperial System Switch
• The steel plate can be adjusted to any steel edge.
• The coordinate system is customizable and supports all eight 2D coordinates.
• All input and output port types and quantities can be customized (normally open or normally closed)
• System and parameter backup, online update system
• One-key switch between Chinese/English (including Japanese, Russian, French and other languages) file system and menu.
• Manually select rows and columns.
• Edge cutting and offset cutting are supported.
• Automatically memorize the working condition and the last cutting point when the power is cut off.
• Process dynamic/static diagram, graph zoom in/out, dynamic tracking cutoff point in zoom state.
• Support artgrave, TYPEIII, PM2000 cam software
• Set up different administrative rights and corresponding passwords to safeguard the interests of managers.
