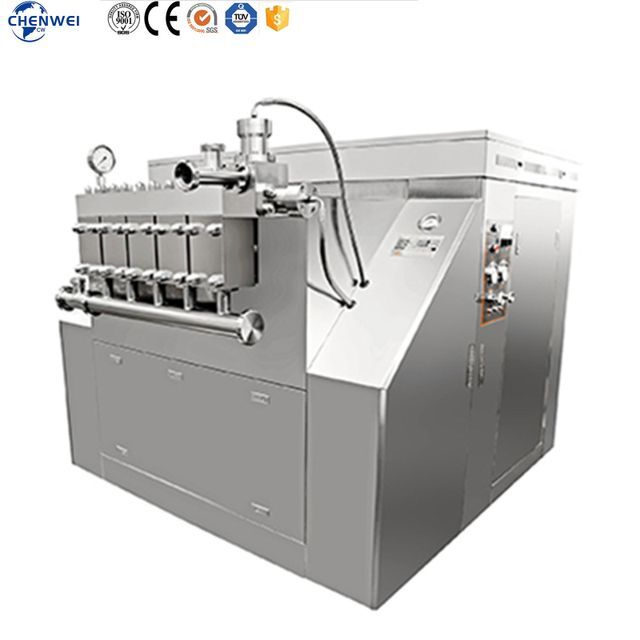

High pressure food grade milk homogenizer for yogurt ice cream

Supplier: Chenwei Packaging Machinery (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr LEE LI
Price: $2200.00 / 1 - 4 sets
$2000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Marketing Type:	New Products 2020
Mechanical test report:	if	Processing:	Homogenizer
Core components:	PLC, Gearbox, Motor, Pump	Processing Type:	juice
Packaging Details:	wooden box	flow:	500-6000 l/h
Dimensions (LWH):	12509501200mm	weight:	650kg
Packaging Preview:		greatest pressure:	120Mpa
Supply capacity:	55 sets per year	motor:	3~30KW
Applicable industries:	Building materials stores, mechanical repair shops, manufacturing plants, farms, restaurants, food and beverage stores	Video external inspection:	if
Core Components Warranty:	1 year	model:	JJZ-1-25
Voltage:	380/220	Name:	High pressure homogenizer
Showroom location:	Morocco, Romania, Kazakhstan, Ukraine, Tajikistan	feature:	easy to use
Health status:	new	Material:	Stainless Steel 304
place of origin; place of origin:	China Shanghai	Advantage:	high efficiency
strength:	5kW	Function:	Homogenize
brand:	continuous wave	Warranty:	1 year
port:	Shanghai Port	Raw materials:	food liquid

Homogenizer introduction:

High-pressure fluid nano-homogenizer, also known as "high-pressure fluid nano-homogenizer", can make suspended materials flow through a container with a special internal structure (high-pressure homogenization chamber) at high speed under the action of ultra-high pressure. Pressure (up to 60,000 psi), so that a series of physical, chemical and structural quality changes occur in the material, and finally the effect of homogenization is achieved.

Product Usage:

1.For dairy products, homogenizing milk beverages such as milk and soy milk under high pressure can significantly refine the fat globules in the emulsion, making the product easy to digest and absorb after eating, and improving the use value.

2. For the production of ice cream and other products, it can improve the fineness and looseness of the material liquid, and significantly improve its internal texture.

3.It is used in the production of latex glue to prevent or reduce the stratification of the material liquid, improve the appearance of the material liquid, make it brighter in color, stronger in aroma and more mellow in taste. Used as a high pressure transfer pump.

Model	Capacity (L/H)	Total power (kw)	preset pressure (MPa)	greatest pressure (MPa)	weight (Kilogram)
JJ-0.5-25	500	5.5	20	25	450
JJ-1-25	1000	7.5	20	25	480
JJ-2-25	2000	15	20	25	680
JJ-3-25	3000	twenty two	20	25	1200
JJ-5-25	5000	37	20	25	2000
JJ-10-25	10000	75	20	25	3500
JJ-1-40	1000	15	32	40	680
JJ-2-40	2000	30	32	40	1300
JJ-3-40	3000	37	32	40	2000
JJ-1-60	1000	twenty two	48	60	1200
JJ-3-60	3000	55	48	60	2700

power supply

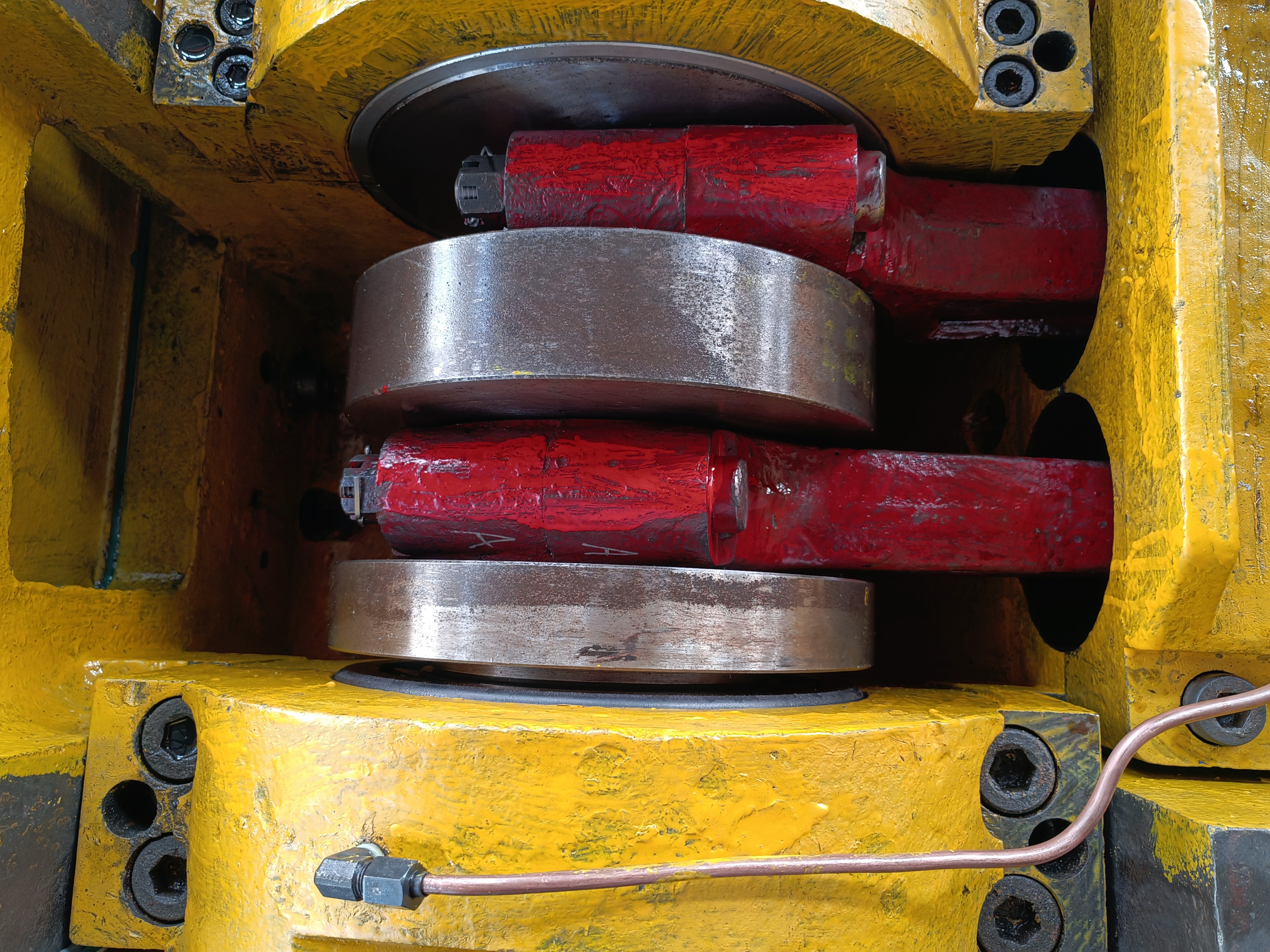

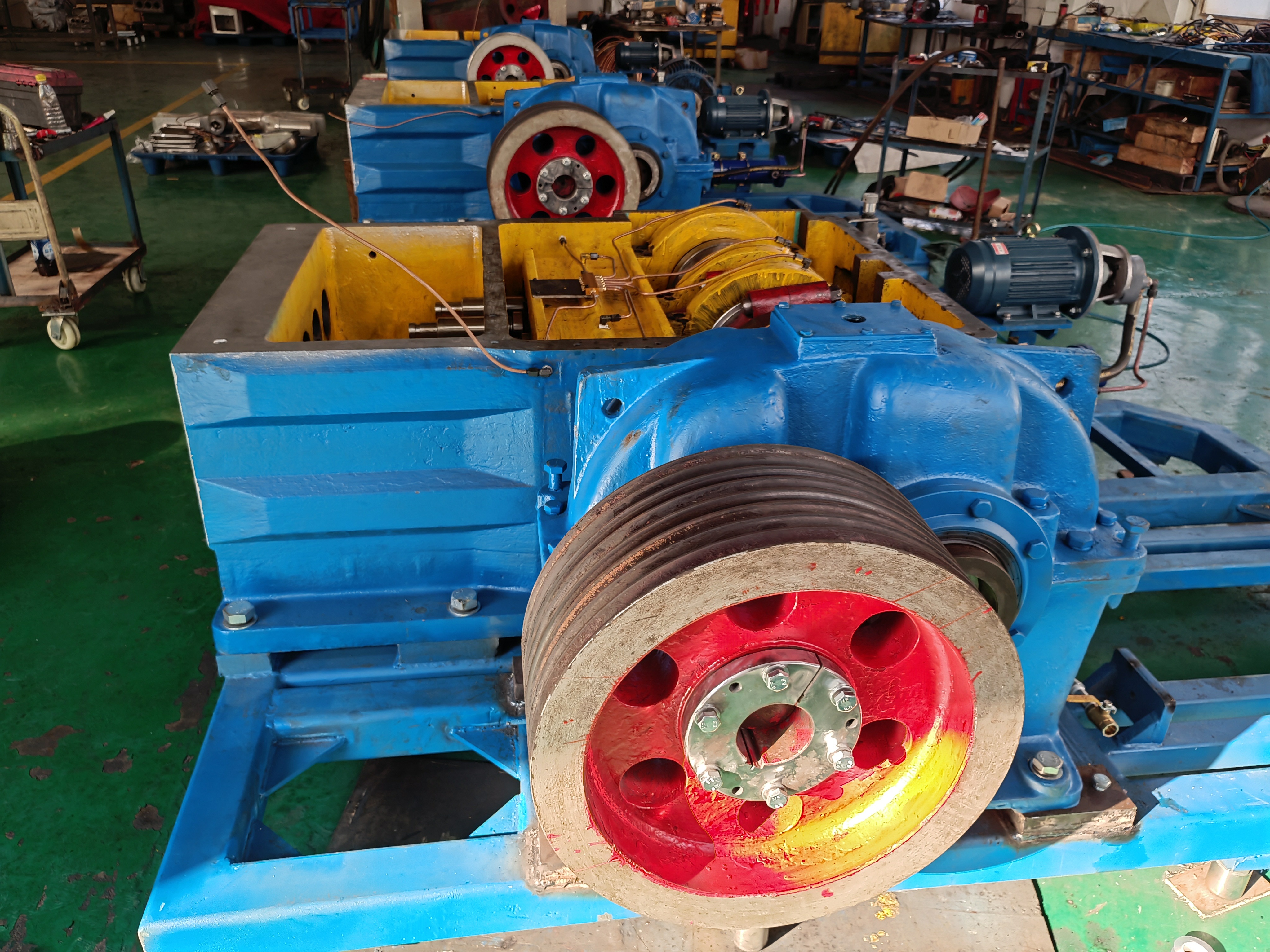

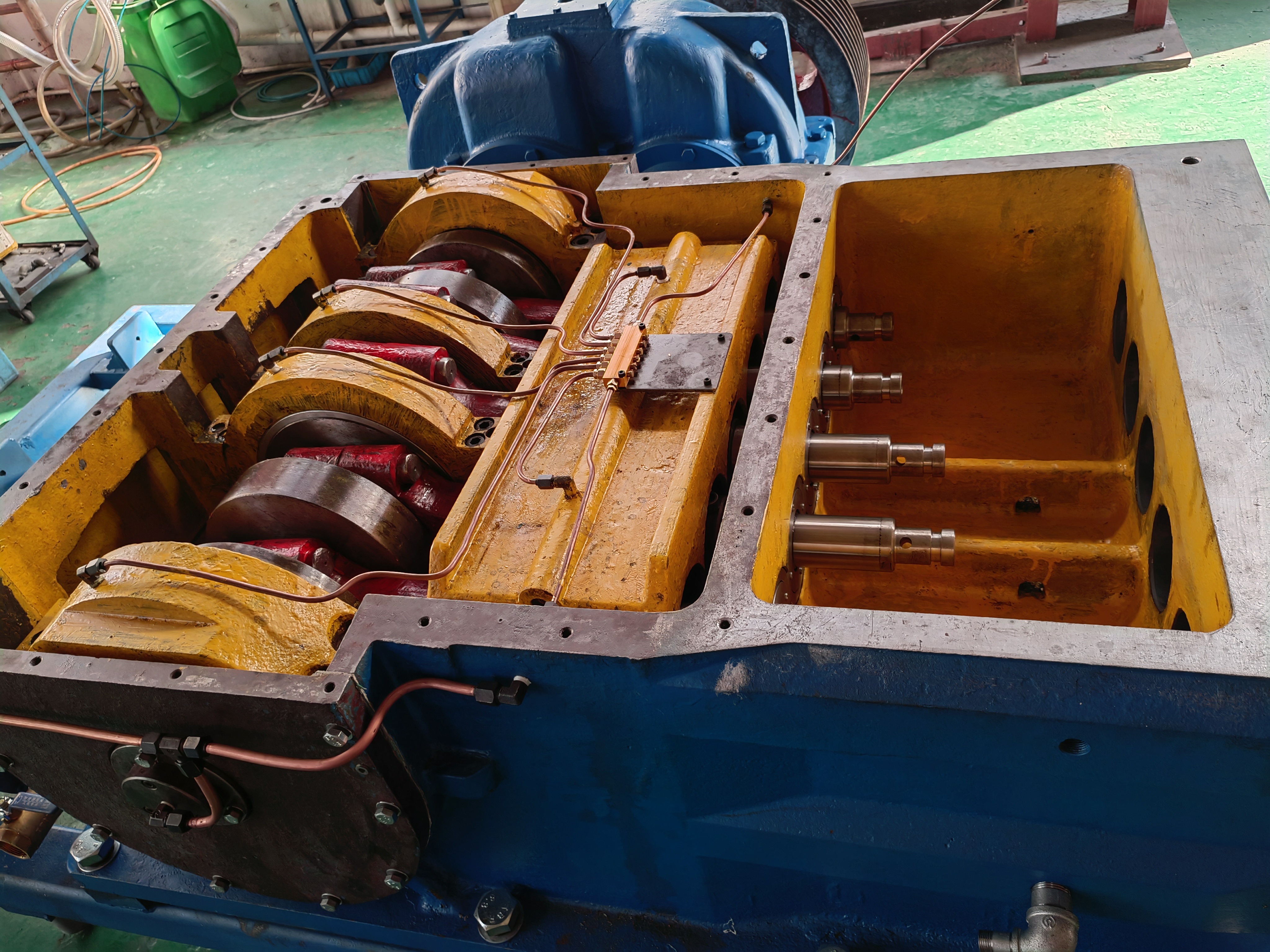

Drive: Two-stage speed change; Symmetrical drive of primary pulley and secondary crank arm gear; Special alloy bearing bush, bilateral rolling bearing, stable level, low noise, and the average mechanical efficiency is increased by about 10%. Lubrication: splash automatic lubrication and oil pump forced lubrication, safe and reliable.

hydraulic end

Main pump body: three-way type, the gland adopts radial self-aligning seal, which is durable and leak-free. Plunger: Special alloy plunger, durable, safe and easy to disassemble. Square plunger seal assembly, code x4310. (There is no need to remove the pump body to replace the seal) Check valve: durable and reliable, ensuring flow ≥ rated flow value. Homogenizing valve: install a three-piece flat valve (high-pressure valve core, valve seat and collision ring) on the first stage of high pressure, and install a two-piece flat valve on the second stage of low pressure.
