Ex-factory price of toothbrush production line
- 10000.00 set
| Marketing Type: | normal product | weight: | 2000 |
| Packaging Details: | Toothbrush production line is packed in wooden case | Applicable industries: | factory, other |
| Screw diameter: | 35mm | brand: | vibration ring |
| Nozzle Contact Force: | 2.5 tons | Video external inspection: | if |
| Core components: | motor | Warranty: | one year |
| Dimensions (L*W*H): | 1.7 x 1.1 x 2.3m | Voltage: | 380V |
| maximum. Shot Weight (PS): | 125 grams | Auto grade: | semi-automatic |
| Injection pressure: | 2180, 1950, 1680kg/cm | Maximum screw speed: | 0-205 rpm |
| Showroom location: | not any | Core Components Warranty: | 1 year |
| Health status: | new | Platen size: | 580*370 |
| place of origin; place of origin: | China | port: | Ningbo |
| strength: | 15000 | Screw stroke: | 120mm |
| Mechanical test report: | if | Supply capacity: | 100 sets per month |
| Production capacity: | 20/min | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Opening stroke: | 180mm | Certification: | International Organization for Standardization |
| Clamping force: | 45 | application: | toothbrush |
Toothbrush production line
1. Description of toothbrush production line

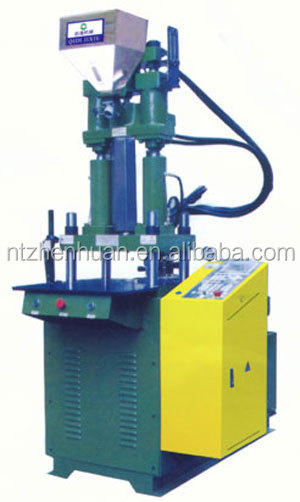

Vertical injection molding machine
I describe:
This machine is used to make one color toothbrush handle.
2. Main technical data
|
Model |
unit |
ZHQD-400 |
|
|
injection system
|
Screw diameter |
mm |
35 |
|
injection pressure |
kg/cm |
1209 |
|
|
maximum. Shot weight (PS) |
G |
112 |
|
|
maximum. Shot weight (PS) |
ounce |
3.9 |
|
|
Injection speed |
cubic centimeters per second |
173 |
|
|
Temperature control quantity |
- |
4 |
|
|
Hopper capacity |
large |
15 |
|
|
clamping system |
clamping force |
Ton |
40 |
|
Mold opening force |
Ton |
8.3 |
|
|
Upper board size |
mm |
530x380 |
|
|
Bottom plate size |
|
580×430 |
|
|
Distance between mold bases |
mm |
400x250 |
|
|
minute. Mold height |
mm |
160/220 |
|
|
Open itinerary |
mm |
180 |
|
|
maximum. open day |
mm |
320/380 |
|
|
ejection force |
Ton |
1.1 |
|
|
Ejection stroke |
mm |
39 |
|
|
Hydraulic power system |
maximum. hydraulic |
kg/cm2 |
140 |
|
Reservoir capacity |
large |
130 |
|
|
cooling water consumption |
l/h |
400-600 |
|
|
Pump motor power |
kilowatt |
5.5 |
|
|
Barrel heating power |
kilowatt |
3.5 |
|
|
total power |
kilowatt |
9 |
|
|
other |
machine weight |
Ton |
1.2 |
|
Machine size (length × width × height) |
Meter |
1.7×1.1×2.3 |
|

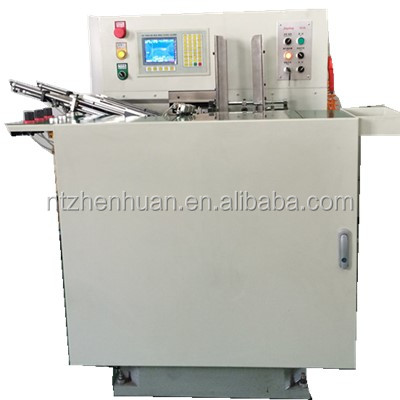

High-speed toothbrush tufting machine
I describe:
This machine is used for tufting toothbrush bristles.
2. Main technical data
|
Name |
data |
|
Voltage |
220V, single phage, 50Hz. |
|
brake motor |
0.37kW |
|
sensor |
750W |
|
Rotating speed |
750-800 rpm |
|
Applicable color number |
2 colors |
|
Servo motor power |
0.4kW×4 |
|
Machine size |
1150×1050×1350mm |
|
machine weight |
610kg |
Toothbrush bristles grinder
I describe:
This machine is used to grind toothbrush bristles into an arc.
2. Main technical data
|
Part name |
Voltage |
strength |
quantity |
|
Cleaner |
380V, three-phase, 50Hz. |
3kW |
1 |
|
rotary motor |
380V, three-phase, 50Hz. |
0.75kW |
1 |
|
turn the motor |
380V, three-phase, 50Hz. |
0.75kW |
1 |
|
shearing motor |
220V, single phase, 50Hz. |
0.25kW |
2 |
|
Disc motor |
220V, single phase, 50Hz. |
0.09kW |
6 |
|
Grinding speed |
32/min |
|
|

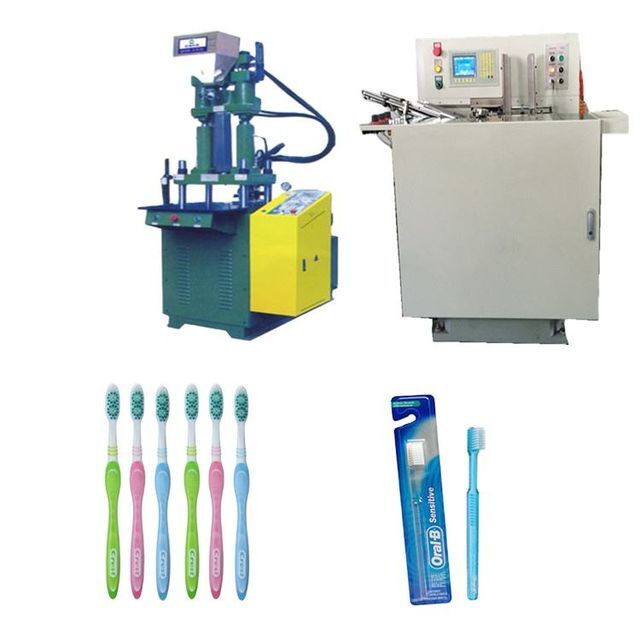

2. Photos of toothbrush production line
