Professional BBQ coal briquette machine olive shell charcoal forming machine

Supplier: Tianjin Mikim Technique Co., Ltd.
Region: Tianjin, China
Contact: Ms Fiona Mikim
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	Packaging Details:	Cow Grain Pellet Machine Household Wet Salt Pellet Machine Loaded in Wooden Export Package or Container
Showroom location:	Australia, Brazil, Canada, Chile, Colombia, France, Germany, India, Indonesia, Italy, Malaysia, Mexico, Morocco, Nigeria, Peru, Philippines, Romania, Russia, South Africa, Spain, Thailand, USA, Vietnam	Health status:	new
Marketing Type:	normal product	application:	Making sawdust briquettes logs
Production capacity:	300KG/H	Ball diameter:	50~80mm customized
Name:	Charcoal making machine	Core Components Warranty:	1 year

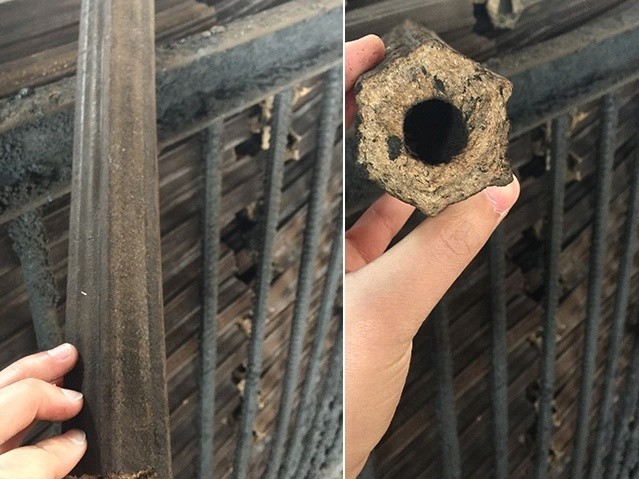

Raw material moisture:	8%-12%	briquettes shape:	Hexagonal hollow cylinder
Core components:	Gears, Motors, Pressure Vessels	Key words:	Sawdust biomass molding machine
Video external inspection:	if	Warranty:	1 year
Raw materials:	sawdust	application:	BBQ (BBQ), heated
place of origin; place of origin:	Henan, China	weight:	300kg
Mould:	Quadrilateral or hexagonal, circular (variable)	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Dimensions (LWH):	18006001600mm	spare parts:	Auger, Die Cylinder
brand:	Mikin	manufactures:	Hexagonal biomass wood blocks
Voltage:	380V50hz	Applicable industries:	Advertising Agency, Energy & Mining, Farm, Food Store, Home, Manufacturing, Retail

Product Description

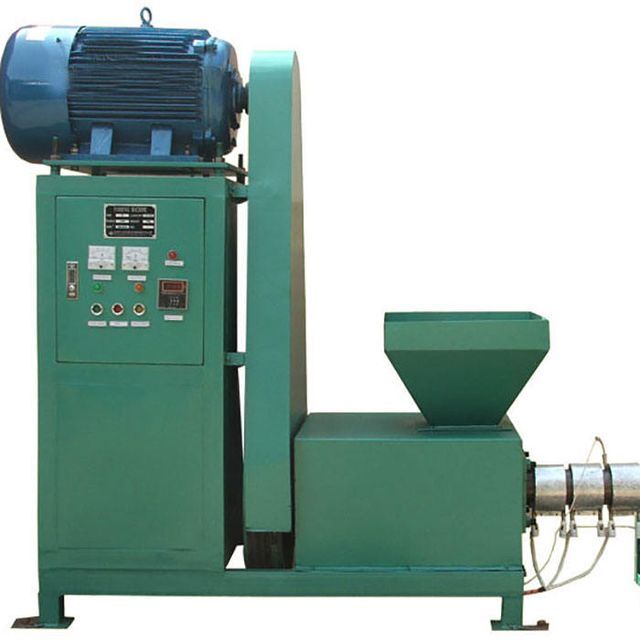

Professional BBQ coal briquette machine olive shell charcoal forming machine

The biomass briquetting machine has the characteristics of large capacity, low energy consumption, compact structure and durability. A number of performance indicators such as capacity, wood block density, power consumption, and wear resistance have reached advanced levels. The charcoal briquetting machine can be used as a charcoal powder briquetting machine by replacing some spare parts. The outer diameter of the finished briquettes is 50mm/80mm.

Features of briquette machine:

No adhesives or toxic chemicals are required.
The raw material humidity is controlled at 8-12%.
Using advanced hot air drying system, the performance is perfect.
After high temperature, purification and smoke removal treatment, the carbonization equipment converts semi-finished biofuel briquette into smokeless, odorless and non-toxic clean charcoal.

Specification

Model	BJ-50	BJ-80
diameter	50mm	80mm
capacity	200-250 kg/h	250-300 kg/h
strength	18.5kW	22kW
weight	550 kg	700kg
External dimensions	18006001600mm	18007001600mm
moisture	5%-12%	5%-12%

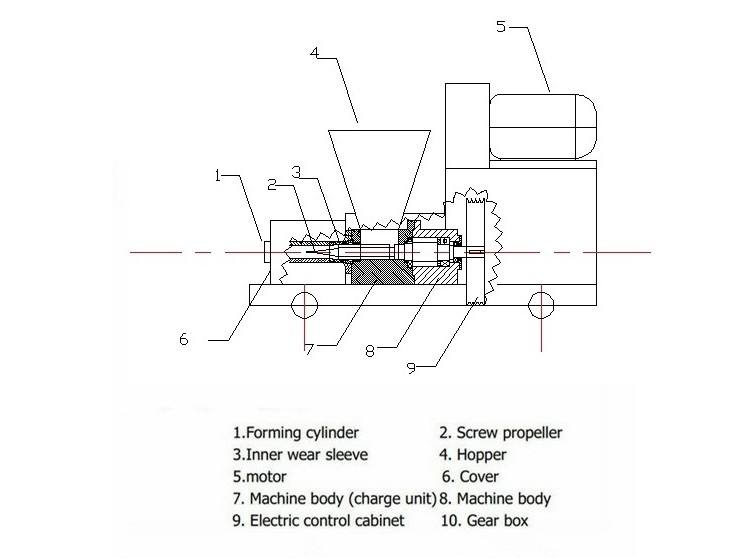

working principle

Briquetting is the process of compressing biomass under high pressure and temperature. The machine uses large screws to pulverize, compress and extrude biomass into briquettes.
Self-binding of biomass to form agglomerates involves thermoplastic flow of biomass. The natural lining components in biomass are released under high pressure and high temperature. Lignin acts as the glue during the briquetting process, binding the wood particles together, thereby binding and compressing the biomass to form a high-density briquette.
During this process, no adhesive is required. As a result, export briquette is a clean, green fuel ideal for furnaces, boilers and open fires.
