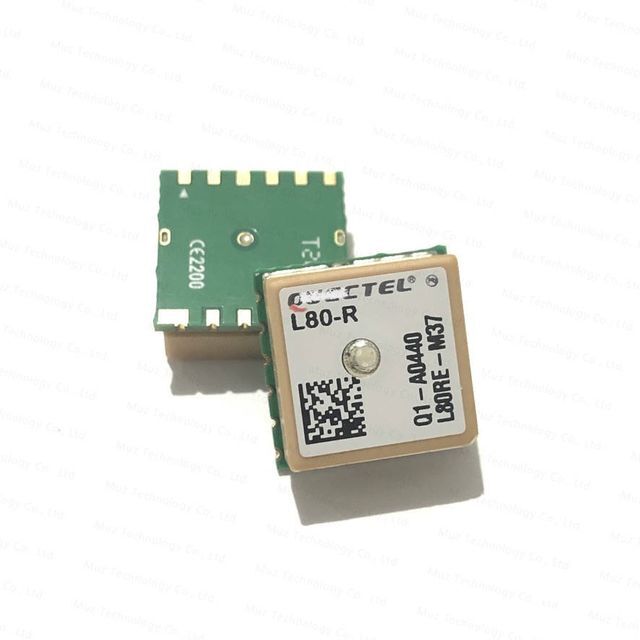

GPS Module with Built-in LNA L80-R Ultra Compact GPS POT (Top Patch) Module with Embedded Patch Antenna

The L80-R is an ultra-compact GPS POT (Top Patch) module with an embedded 15.0mm × 15.0mm × 4.0mm patch antenna. This space-saving design makes the L80-R the perfect module for tiny devices. The L80-R is housed in an LCC package with an integrated patch antenna for superior performance in both capture and tracking.

The L80-R incorporates advanced AGPS technology called EASY™ (Embedded Assistance System) for maximum performance and full compliance with industry standards. EASY™ technology ensures that the L80-R can automatically calculate and predict orbits using ephemeris data (up to 3 days) stored in internal RAM memory, so the L80-R can locate quickly even at indoor signal levels and consume less power Low.

With its compact design, high accuracy and sensitivity, the L80-R is ideal for a wide range of M2M applications such as portable devices, automotive, personal tracking, security and industrial PDAs, especially for special applications such as GPS mice and OBDs.

main advantage
1> Embedded patch antenna: 15.0mm x 15.0mm x 4.0mm
2> Extremely compact size: 16.0mm x 16.0mm x 6.45mm
3> ROM based version is cost effective
4> Built-in LNA, higher sensitivity
5> EASY™, advanced AGPS technology, no external memory required
6> Ultra-low power consumption in tracking mode, 20mA
7> High sensitivity: 165dBm@Tracking, -148dBm@Acquisition
8> 66 acquisition channels, 22 tracking channels
9> Support QZSS
10> Balloon mode, the highest altitude is 80 kilometers
11> PPS vs. NMEA can be used for time services
12> Anti-jamming, multi-tone active interference canceller
