Injection molding machine accessories, manipulator, scissors, take out secondary injection molding, robotic arm, robot industry, P customization

Click here to contact
Product details
place of origin; place of origin:Chinaapplication:factory, manufacturing machine parts
strength:AC220V 50/60HZProduction capacity:custom made
Core components:programmable logic controllerVoltage:AC220V
Showroom location:United States, Vietnam, Philippines, India, Thailand, Malaysiapayment terms:letter of credit, wire transfer
Core Components Warranty:1 yearAfter Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair services
feature:Efficient, safe and labor-savingAfter-sales service provided:Engineers can repair machinery overseas
port:XiamenApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Farms, Restaurants, Retail, Printing Stores, Construction Works, Energy & Mining, Advertising Agencies
Health status:newPackaging Details:Wooden case and plastic stretch film
Video external inspection:ifMechanical test report:if
Local service location:United States, Vietnam, Philippines, India, Thailand, MalaysiaMarketing Type:normal product
Dimensions (L*W*H):2295*900*1240mmWarranty:1 year warranty
Packaging Preview:Supply capacity:500 sets per month
brand:KeborCertification:CE, SGS, TUV, ISO9001:2008

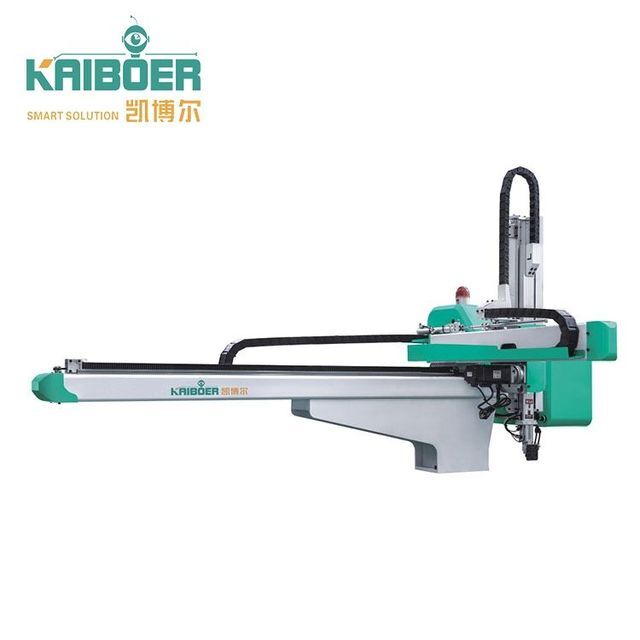

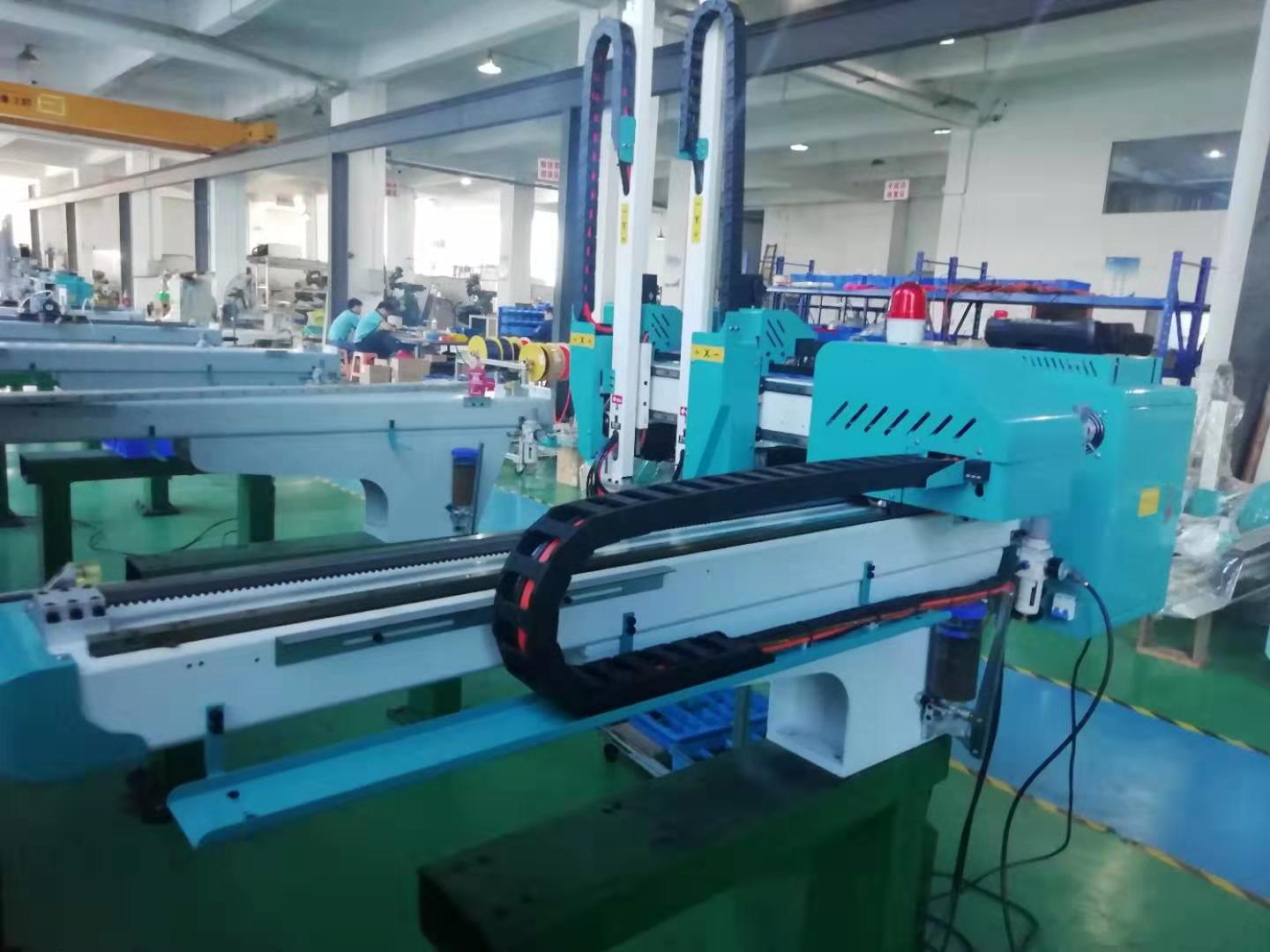

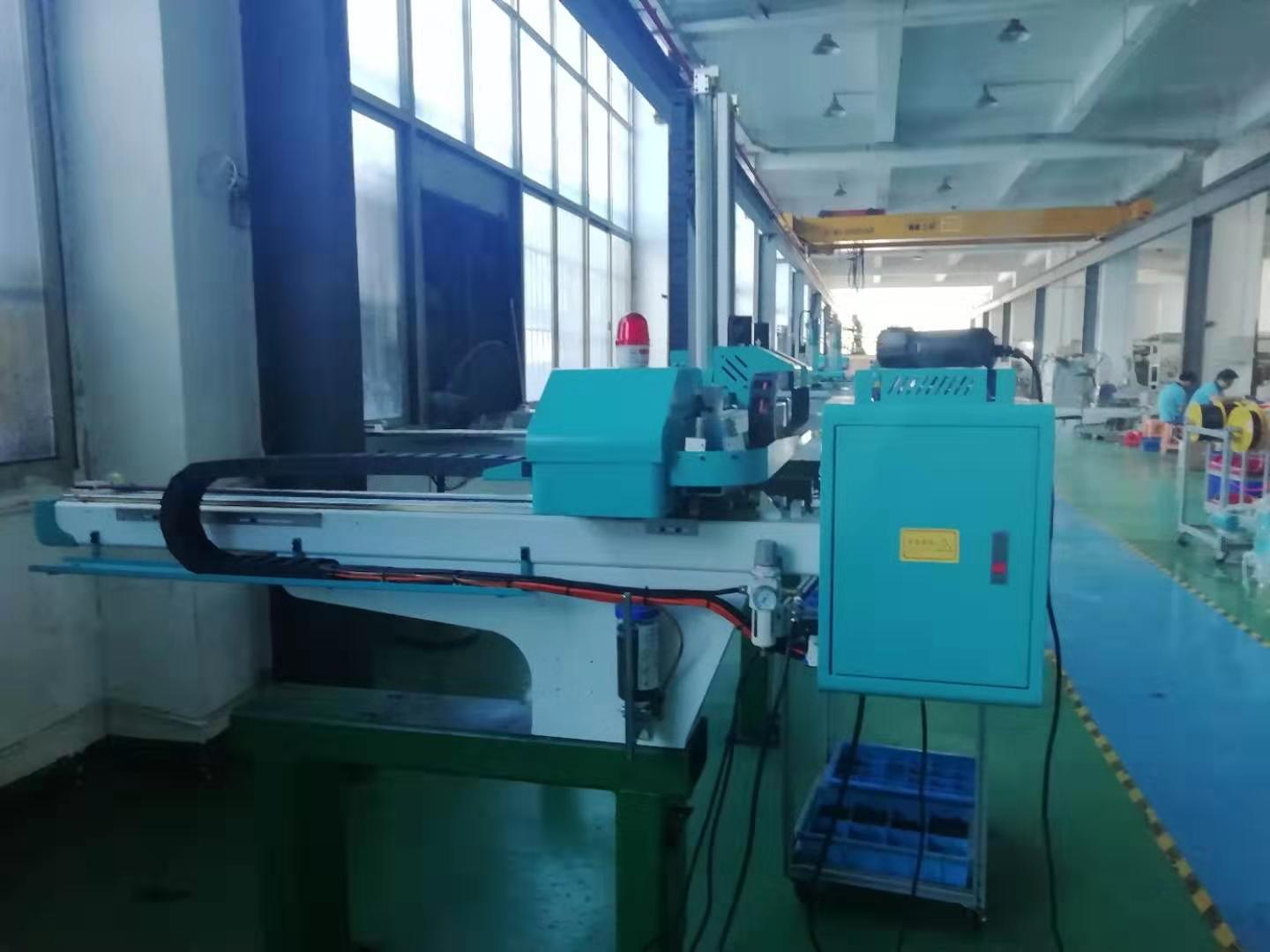

High-end intelligent automatic 3-axis industrial plastic supporting robot arm

Product Description
General Specifications
strength work pressure Drive System Posture (cylinder) posture angle maximum load
(including metallurgy)
AC220V
50/60Hz		 4-7kgf/cm2 AC Servo Motor Double 90° stable 8kg



General Specifications
Model vertical stroke
(mm)		 Lateral stroke
(mm)		 Lateral stroke
(mm)		 Dry take out time
(second)		 Empty cycle time
(second)		 Air consumption
(NL/loop)		 energy consumption
(kVA)		 net weight
(Kilogram)
KM-850S2 Polypropylene: 800 Price: 250 1400 0.5 3.2 12 1.65 310
KM-950S3 Phone: 900 Price: 300 1400 0.6 3.8 12 1.65 340





Features
accurate Traverse motion is driven by heavy duty servo motors with precision linear guides and high power V-belts; fast, silent and precise. The wrist mechanism adopts a pneumatic transmission rack and pinion system to achieve smooth, stable and precise turning movement. The vertical arm with telescopic design effectively reduces the cycle time and height of the robot.
Safety High-efficiency shock absorbers allow for fast and precise pneumatically actuated movements. Anti-drop locking mechanism prevents accidents due to air supply failure. Limit sensors and blocks effectively prevent mechanical and electrical failures. The control board is designed for CE EMC testing with short circuit and noise immunity.
convenient Vertical displacement and kick displacement can be adjusted by simply changing the stopper in the direction. The control board fixture adopts flywheel structure design, which is convenient for maintenance. Cable drag chains help with cable management and easy maintenance.
