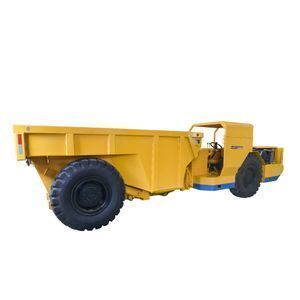

12T centrally articulated 4wd underground mining truck with DEUTZ diesel engine
- 100000.00 set
| Port: | QINGDAO; | Condition: | New; |
| Certificate: | ISO9001:2008/CE; | Supply Ability: | 25 Set/Sets per Month; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | weight: | 11t; |
| Brand Name: | DALI; | Payment Terms: | L/C,D/A,D/P,T/T; |
| Place of Origin: | Shandong China (Mainland); | Color: | Customer's Request; |
| Packaging Detail: | standard seaworthy packing,spare parts in wooden case; | engine: | DEUTZ BF4M1013EC; |
| payload: | 10t; | after-sales service: | the whole use life; |
| Warranty: | One Year; | power: | 115kw; |
| Application: | underground mining; | dimension: | 7970*1920*2180mm; |
12T centrally articulated 4wd underground mining truck with DEUTZ diesel engine
12T centrally articulated 4wd underground mining truck with DEUTZ diesel engine underground mining dump trucks underground mining dumper truck deutz engine underground mining truck
| Euro III 4X4 Underground mining dumper truck UK-12 with CE and ISO certificates for sale | ||||
| DEUTZ Engine | BF4M1013EC | 115kw | 2300rpm | Air-cooling&Turbocharging |
| 4 Cylinders | Bore 108mm | Stroke130mm | Displacement 4.764L | |
| Bucket | Volume | 6m³(7.85 yeards) | Max lift height | 3913mm |
| Payload | 12T | Max discharge angle | 70° | |
| Dimension | L | 7970mm | Wheelbase | 4270mm |
| W | 1920mm | Loading height | 1895mm | |
| H | 2180mm | Max steering angle | 45° | |
| Min ground clearance | 265mm | |||
| Min turing radias | Outer | 6265mm | Inner | 3575mm |
| Max traction | 128KN | Gradability(fully loaded) | 20° | |
| Speed(fully loaded) | Gear 1 | 0-5km/h | ||
| Gear 2 | 0-10.3km/h | |||
| Gear 3 | 0-17.9km/h | |||
| Gear 4 | 0-23.7km/h | |||
| Operation time | Bucket lift time | ≤9s | Tyre | 14.00*24-24 |
| Down time | ≤8.5s | Weight | 11T | |
12T centrally articulated 4wd underground mining truck with DEUTZ diesel engine underground mining dump trucks underground mining dumper truck deutz engine underground mining truck
12T centrally articulated 4wd underground mining truck with DEUTZ diesel engine underground mining dump trucks underground mining dumper truck deutz engine underground mining truck
Euro III 4X4 Underground mining dumper truck UK-12 with CE and ISO certificates for sale 4x4 rc trucks for sale mining dump truck for sale underground mining dump trucks
12t Underground Mining Truck 4wd Truck Underground Mine Truck Rc Dump Truck
1.How is the quality of your products?
Our products are manufactured strictly according to national and international
standards, and we do strict inspection in production.all the products we sell are under warranty.
2.How about price?
We are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
3.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% advance payment, the balance before delivery;
C. We take pictures of finished products before delivery.
4.What is the order lead time?
20-25 days.
