Slide switch SS-13D01(1P3T)
- 0.0066 >=100000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| model: | SS-13D01(1P3T) | maximum. Voltage: | 50V DC |
| maximum. current: | 300 mA | Mechanical life: | 10,000 times |
| port: | China's main ports | brand: | Preventive Medicine Center |
| Packaging Details: | Standard package | payment terms: | L/C,D/P,T/T |
| place of origin; place of origin: | China | Supply capacity: | 500,000 pieces per week |

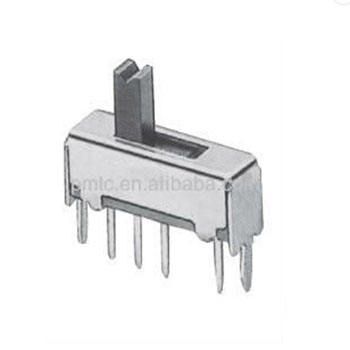

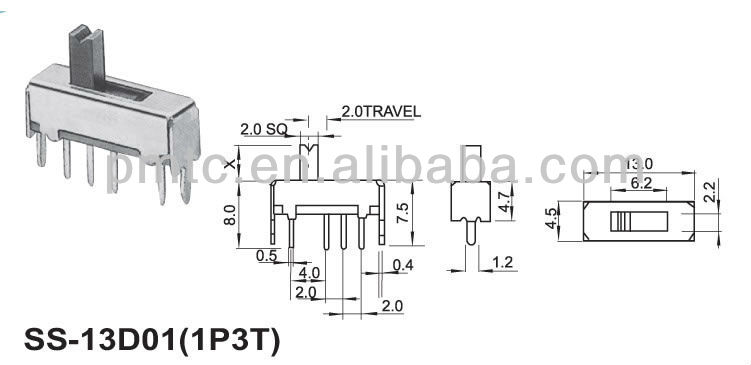

Slide Switch SS-13D01(1P3T)
Product Description
Specification:
| score | 300mA DC50V |
| Contact resistance | 50mΩ max (initial) |
| Insulation resistance | 100MΩ min(DC500V) |
| Dielectric strength | AC500V (50-60Hz 1 minute) |
| Electrical life | 10000 cycles |
| range of working temperature | -20~+85 |
| Operating force | 180±80gf |
| Operation mode | non-locking/self-locking |
Micro switch series application:
Widely applicable to:
1. Audio products: MP3, MP4, DVD. sound;
2. Digital products: digital cameras, digital video recorders, etc.;
3. Remote control: remote control of automotive home security products;
4. Communication products: mobile phones, car phones, telephones, building equipment, PDAs, etc.;
Serve:
1. Size, color, material and plating can be changed according to customer definition.
2. The consultation price of alitalk must be replied as soon as possible within working days.
3. We can provide a small amount of samples, high quality, moderate price, good customer service, if you have any help, please contact us.
