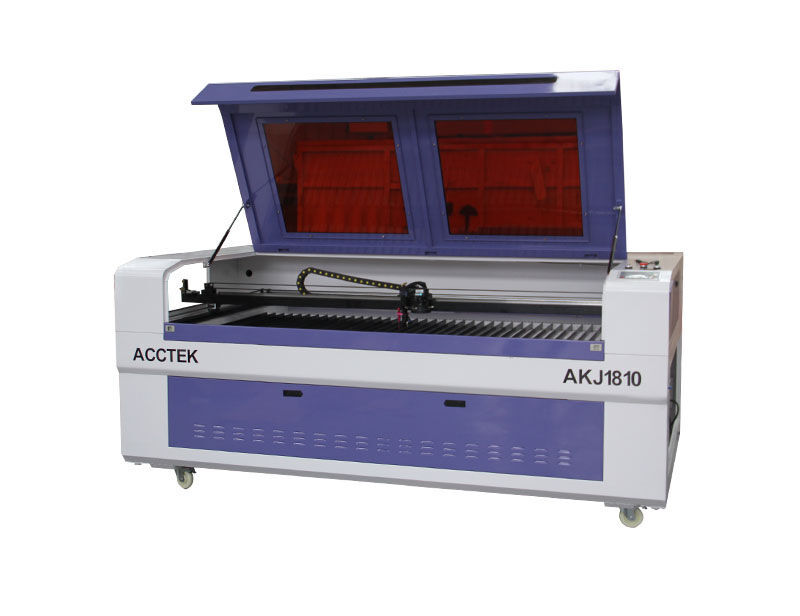

Full enclosed type laser engraving&cutting machine
- 2700.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
The CO2 laser cutting machine has many advantages, such as high engraving accuracy, no burrs, and can process any shape. It is widely used in clothing industry, shoe industry and wood pattern engraving industry. The quality is stable and the price is cheap.
| NO | Description | Parameter | |||
| 1 | Model | AKJ-1390 | AKJ-1610 | AKJ-6040 | AKJ-6090 |
| 2 | Laser medium | CO2 | |||
| 3 | Working area | 1300*900mm | 1600*1000mm | 600(L)*400mm(W) | 600mm*900mm |
| 4 | Working table | Knife table/honeycomb table | |||
| 5 | Laser power | 80W/90w/100w/130w/180w | |||
| 6 | Power Supply | 220v/50HZ,110V/60HZ | |||
| 7 | Min line width | ≤0.15mm | |||
| 8 | Position accuracy | 0.01mm | |||
| 9 | Repetition accuracy | 0.02mm | |||
| 10 | Cutting speed | 150mm/s | |||
| 11 | Guide rail | Hiwin from Taiwan | |||
| 12 | Transmission method | Belt Transmission | |||
| 13 | Drive system | 3phase Stepper motor and driver | |||
| 14 | Cooling system | Water-cooling | |||
| 15 | Control system | Ruida(USB interface) | |||
| 16 | Control software | RDCAM, Coreldraw, Photoshop, AutoCAD, Tajima | |||
| 17 | Graphic format support | PLT,DXF,BMP,JPG,AI,ect | |||
| 18 | Working environment | 0-45℃ | |||
| 19 | Operating Humidity | 5-95% | |||
| 20 | Net weight | 450kg | 470KG | 120KG | 300KG |
| 21 | Gross weight | 550kg | 580KG | 180KG | 350KG |
| 22 | Package Dimension | 1940*1430*1290mm | 2350*1650*1320mm | 1420mm*720mm*1070mm | 1730mm*1210mm*1560mm |
| 23 | Cutting speed | 0 - 20000mm/min | |||
| 24 | Engraving Speed | 0 - 40000mm/min | |||
