Best Sale 200L Stainless Steel Beer Maker Craft Beer Brewing Equipment Restaurant Micro Brewing System

Supplier: Shandong Innovative & Craft Brewing Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Micet Brewing
Price: $5100.00 /set
Min. Order: 1 set

Click here to contact

Product details

place of origin; place of origin:	Shandong China	Accessories:	Pump
welding:	100% TIG welding	Tank Thickness:	Inner 3mm/outer 2mm
Packaging Details:	wooden box, container	brand:	mouse
product name:	Best Sale 200L Craft Beer Micro Beer Brewing System	Applicable industries:	Hotel, Food and Beverage Factory, Farm, Restaurant, Home Use
Main selling point:	easy to operate	Warranty:	3 years
Material:	Stainless Steel 304/316	Core Components Warranty:	3 years
Core components:	Gearboxes, Motors, Pumps, Pressure Vessels, PLCs, Others, Bearings	Supply capacity:	5 sets per month
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Mechanical test report:	if
capacity:	100L-20000L	strength:	15-70KW depends on the situation
Processing Type:	Alcohol	heating method:	electro-thermal
Control System:	programmable logic controller	Mechanical Capability:	100L, 200L, 300L, 400L, 500L, 600L, 700L, 800L, 1000L, 1200L, 1500L, 1800L, 2000L, 2500L, 3000L, 3500L, 4000L, 5000L, 10000L, 20000L, 50000L
usage:	beer bar hotel	weight:	3000kg
Showroom location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile , UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia	application:	Dining room
Video external inspection:	if	Dimensions (LWH):	based on
port:	Qingdao	Processing:	Fermentation equipment
Health status:	new	Voltage:	Three-phase 380v--220v
Marketing Type:	New Products 2020	Packaging Preview:

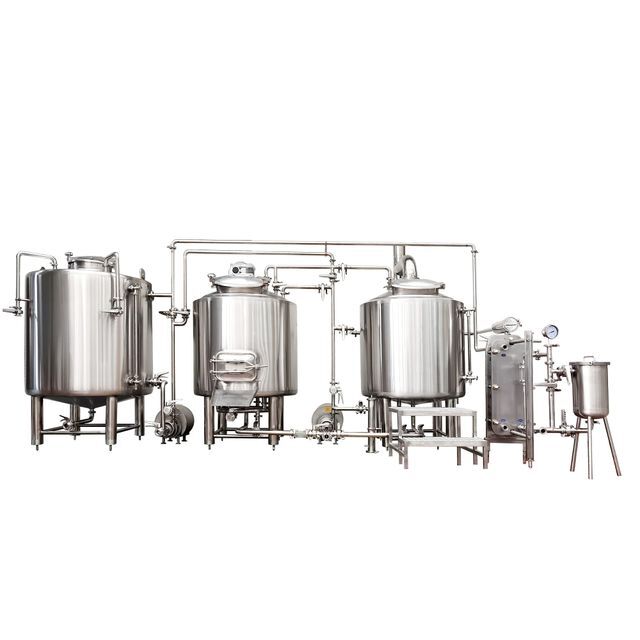

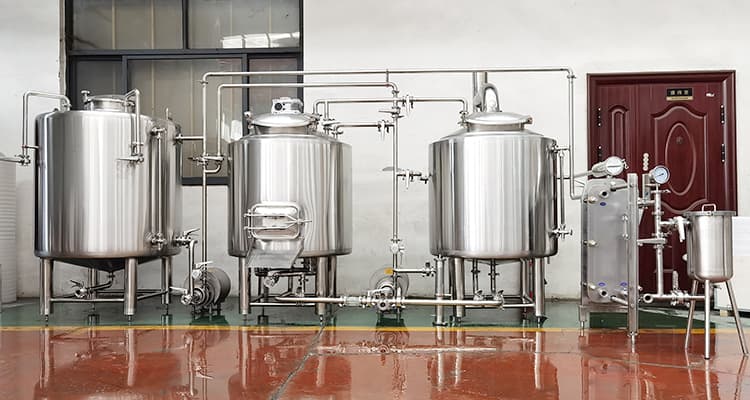

Best Sale 200L Craft Beer Micro Beer Brewing System

Most brewery facilities in restaurants, bars and hotels use microbreweries. The MICET microbrewery is installing the customer company's turnkey solution. Missett has partnered with a number of breweries around the world. We can design and manufacture specialized vessels and systems for breweries, cellar equipment and other complex breweries. Micet has decades of experience in beer brewing, manufacturing sanitary stainless steel systems, and integrating automation and control systems.

Product advantages

1. We can customize the equipment design according to the customer's brewing method, the type of brewed beer can make the beer up to 33 Plato.

2. All structures are made of high quality SUS 304 food grade stainless steel, all pipes are SUS304, perfect 3mm inner shell and 2mm outer shell.

3. All tanks are equipped with specially designed jackets to ensure heating and cooling efficiency. There are jackets on the top and bottom of the cone, and the exchange area is large enough.

4. Our tank headspace is much larger, the total volume does not include the headspace.

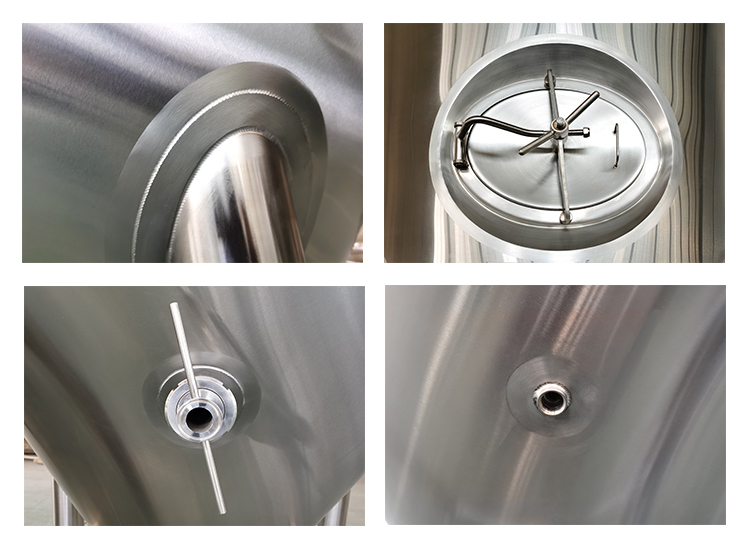

5. The tank body is welded by 100% TIG welding process, the jacket welding is all water welding, and the cooling jacket is evenly recessed to ensure no leakage, long service life, and passivation of the weld!

6. Our polishing is the overall mirror polishing, polishing 6 times to reach the mirror finish of Ra 0.4um, which can be cleaned 360° without dead angle.

7. The jacket is tested with air and water for 12 hours, the jacket test pressure is 5Bar, the inner shell test pressure is 4Bar, and we will also conduct a 48-hour water test before packing.

8. Strict quality control and in-process inspection and testing system, all test records will be displayed on our data, as the tank is shipped, the inspection list and serial number are tracked.

9. We insist on the high-end product line to produce our tanks. All components such as chillers, heat exchangers, steam boilers, Schneider/ABB electronic control systems, etc. are of international brands to ensure quality and after-sales convenience.

Product parameters

output/brew

5HL

8HL

10HL

15HL

20HL

25HL

30HL

35HL

50HL

brew/week

2~6

output/week

10~30HL

16~48HL

20~60HL

30~90HL

40~120HL

150~300HL

180~360HL

210~420HL

240~360HL

area request

＜45㎡

＜60㎡

＜70㎡

＜90㎡

＜120㎡

＜140㎡

＜150㎡

＜180㎡

＜150㎡

Brewmaster

1-2

2-3

3-5

Material

Inner case: SUS304; TH=3mm; Outer case: SUS304; TH=2mm/copper

heating

Electric/steam/direct fire optional

Voltage

3 Phase/380(220, 415,440...)v/50 (60)Hz

Beer equipment configuration

milling system	Malt Miller	100-200 kg/h	1
		Auger (optional)	Capacity 100-150 kg/h	1
		Hopper (optional)	Volume 0.5m³, SUS 304 with pre-masher	1

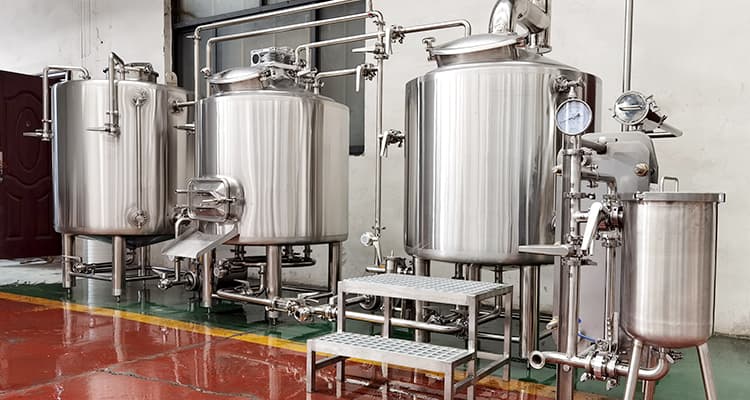

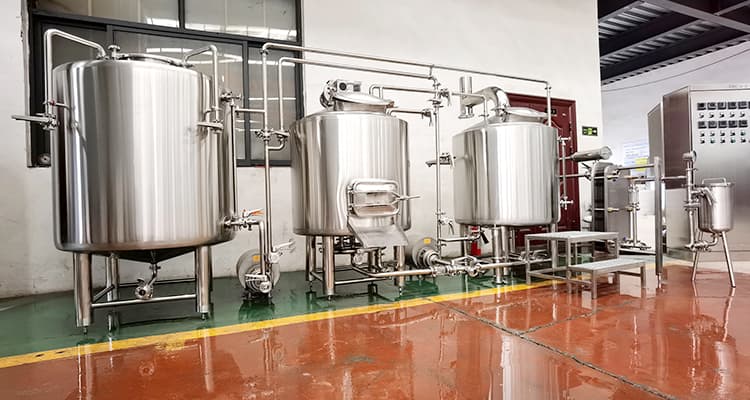

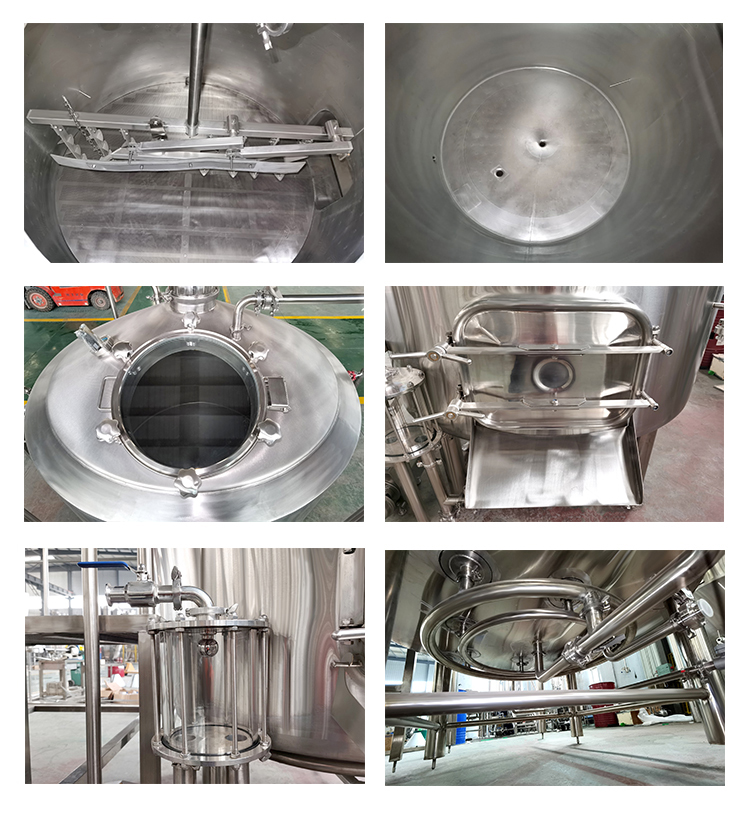

Brewery Systems	Mash Tun/Lauter Jar	200L volume with false bottom, Grant, rake with motor	1
		Kettle/Whirlpool	Volume 200L, electric heating	1
		HLT water tank	Volume 400L, electric heating	1
		Includes plate heat exchanger, wort pump, motor, hop filter, yeast addition tank, oxygen unit and piping

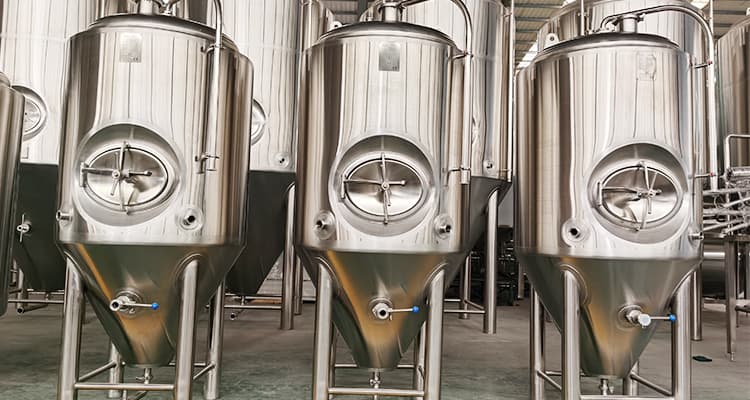

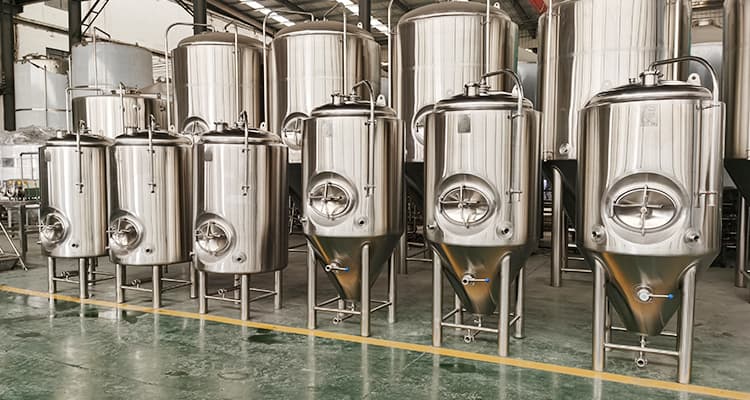

Fermentation system	Fermenter	Volume is 200L or 400L (double batch)	6
		BBT (option)	Volume is 200L or 400L (double batch)	2
		Rocker arm, rotary valve, pressure gauge, carbonate rock, sampling valve
cooling system	Glycol Tank	Volume 200L or 400L	1
		Cold water tank (optional)	Volume 4000L, glycol tank cooling	1
		chiller	2HP, Copeland	1
cleaning system	CIP	50L two cylinder, electric heating, with pump and trolley	1
Control System	Control cabinet	PLC touch screen or PID controller	1
