RH102 sensor, accelerometer, measuring range 50g, 100mV/g
- 80.00 unit
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Details: | Selected by customer | Entrance: | side |
| Certification: | Chief Executive | brand: | Rhodes |
| payment terms: | Western Union, wire transfer | place of origin; place of origin: | Anhui, China |
| model: | RH102 | Supply capacity: | 500 sets per week |

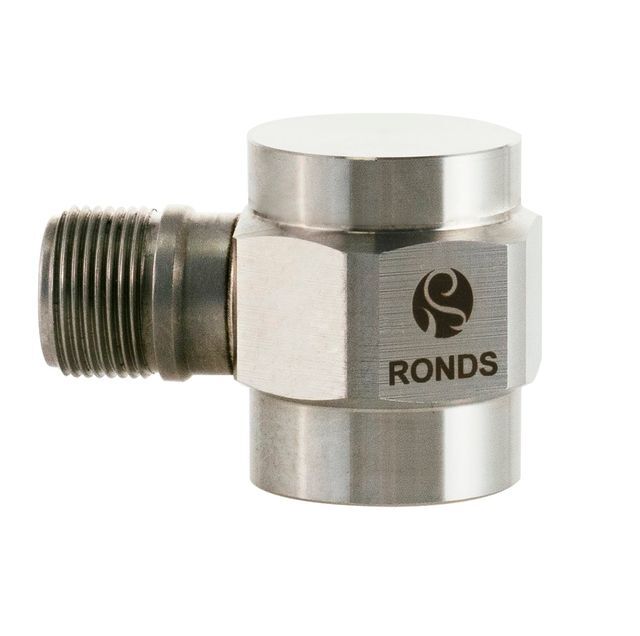

RH102 sensor
The RH102 sensor is equipped with an ICP accelerometer. It builds a high-precision measurement system, making it an ideal choice for detecting faults in rotating machinery such as steam turbines, compressors, motors, fans, and pumps, and for detecting hidden dangers.
feature
- Measures vibration signals (acceleration, velocity, displacement) and temperature
- with integrated cable
- Durable, easy to install and maintain
Specification
|
scope |
index |
|
Sensitivity |
100mv/g |
|
Acceleration range |
50 grams |
|
Amplitude linearity |
1% |
|
Frequency Range |
0.5~10KHz |
|
Resonance frequency |
Installed, nominal 22KHz |
|
Lateral sensitivity |
≤5% |
|
bias |
10-12VDC |
|
constant current |
2-20mA, typical value: 4mA |
|
Voltage excitation |
18-30VDC Typical: 24VDC |
|
output impedance |
<150Ω |
|
maximum shock level |
5000 grams |
|
temperature range |
-40~+120°C |
|
Mounting torque |
About 20-30Kgf.cm (M6) |
|
Install |
stud |
