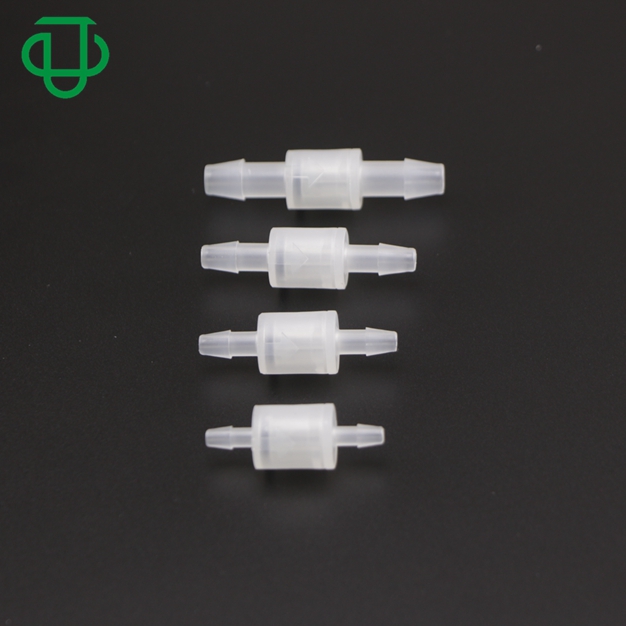

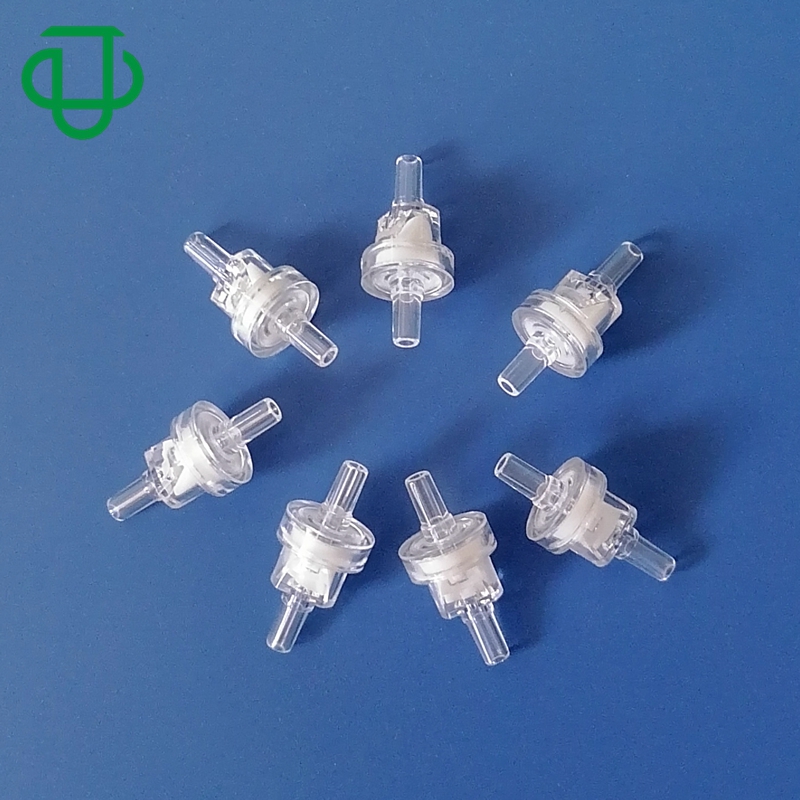

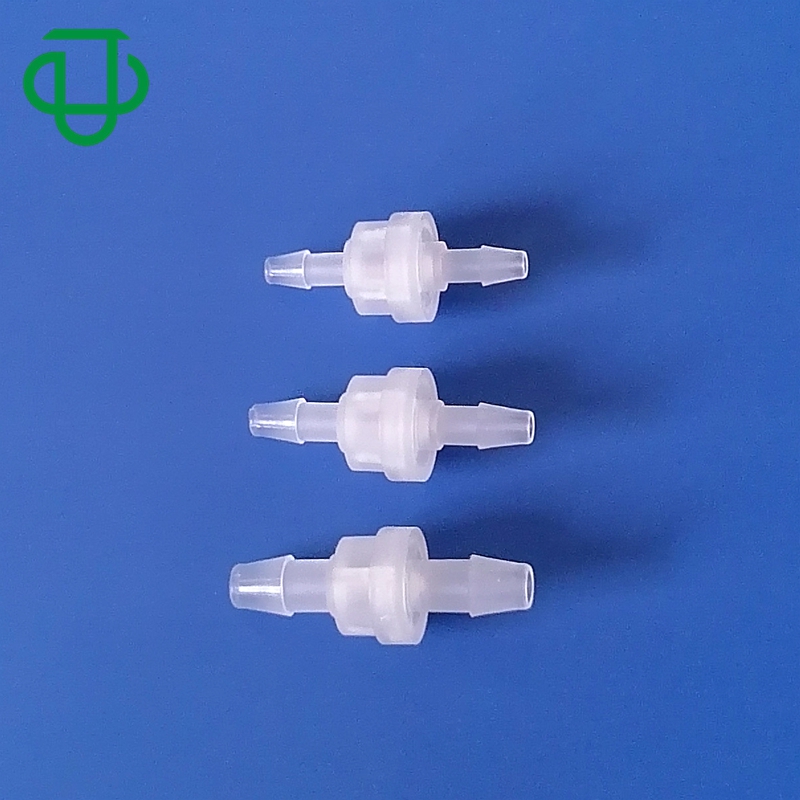

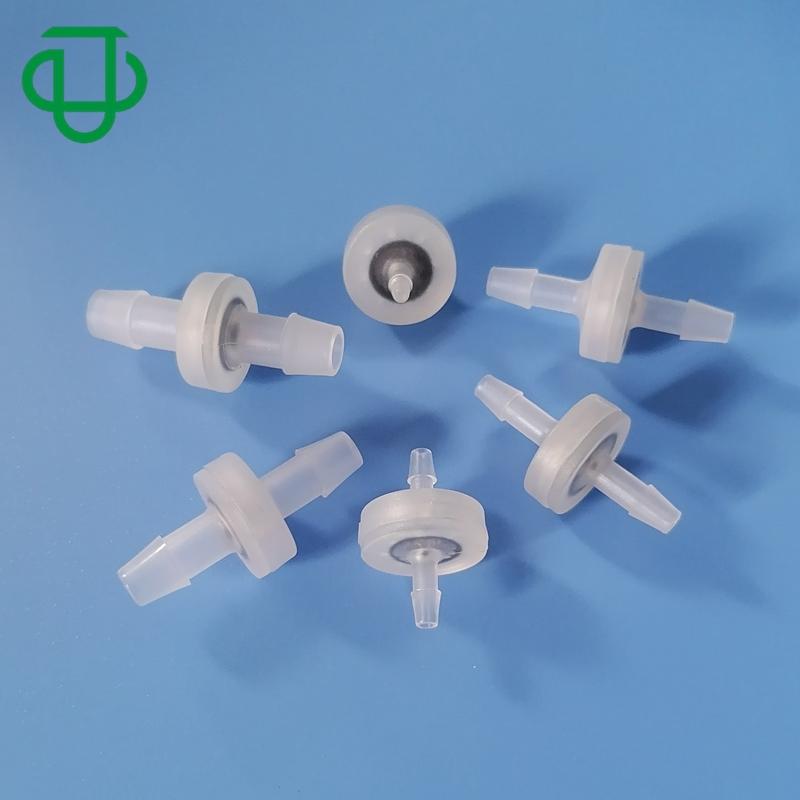

JU PP/EPDM Plastic Pipe Barbed One-way Check Diaphragm Check Valve

Click here to contact
Product details
Sales unit:Multiples of 100Back pressure:More than 300Kpa
size:2.4mm~9.6mm tubing barbmodel:CV103~CV112
Certification:ROHSbrand:chrysanthemum
Packaging Details:Polyethylene bag inner packaging and carton outer packagingPackage size per batch:25X20X8 cm
Body material:Polypropylene or customizedMedium temperature:normal temperature
structure:Checkproduct name:PP/EPDM plastic pipe barbed one-way check diaphragm check valve
application:Analytical, medical, industrial, laboratory, etc., generalstrength:hydraulic
Operating temperature:100 degrees maxplace of origin; place of origin:Guangdong, China
Moderate:Gas/LiquidCustom Support:OEM, ODM
Packaging Preview:type:Plastic check valve
Port size:2.4~9.6mmID tubeWorking pressure:2Kpa
media:waterSealing material:Silicone/FKM/EPDM rubber, depending on your usage
Gross weight per batch:0.500 kgCertificate:ROHS certification
Product Description
JU PP/EPDM Plastic Pipe Barbed One-way Check Diaphragm Check Valve
product name
JU PP/EPDM Plastic Pipe Barbed One-way Check Diaphragm Check Valve
Advantage
1. Prevent damage to equipment, pumps and flow systems by preventing backflow;
2. Tubing barbed check valve is used for inert high-purity smooth and clear flow path;
3. Use with liquids and gases for pressure or vacuum applications;
4. The pressure drop of the check valve is small, which can be
A variety of opening pressures are specified;
main material
Natural polypropylene or customized
Sealing material
EPDM/FKM/Silicone, depending on your usage

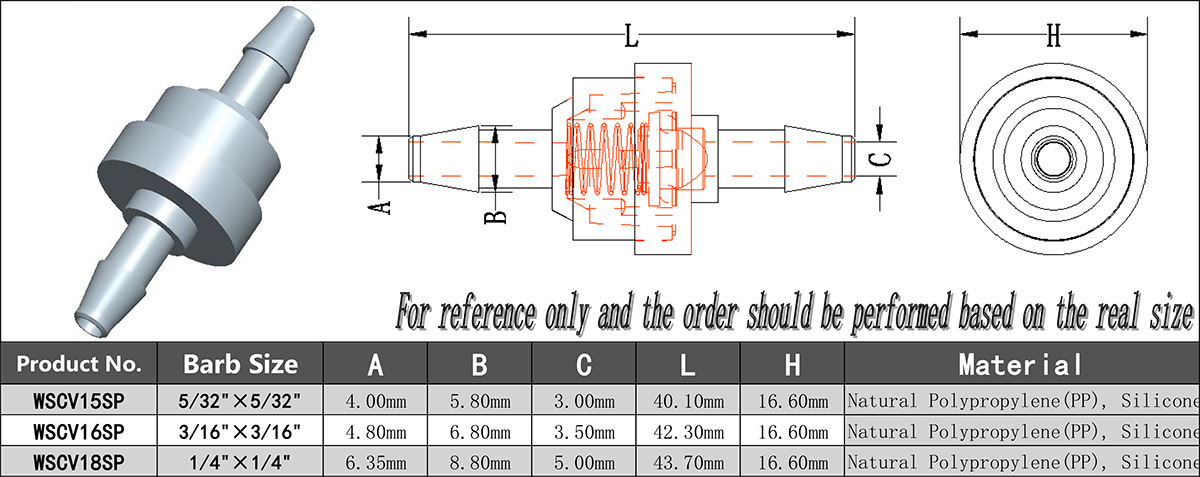

spring material
316 stainless steel spring
open pressure
About 2kpa
back pressure
>300kpa

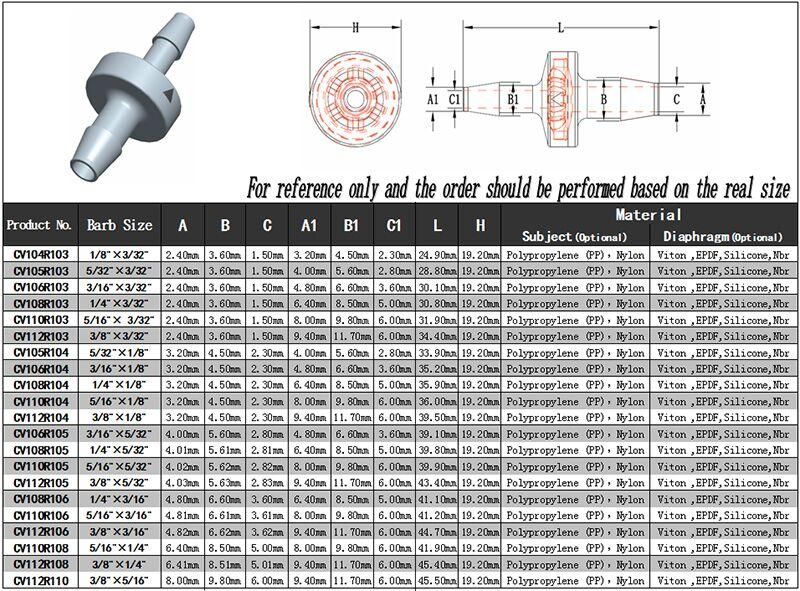

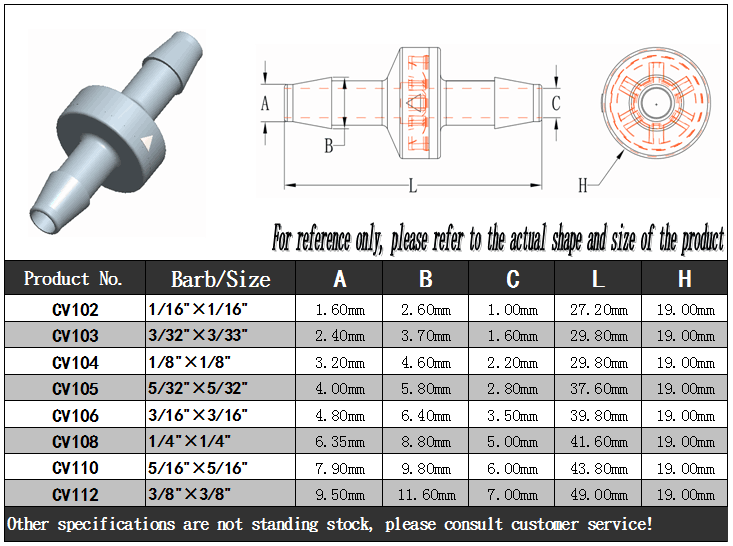

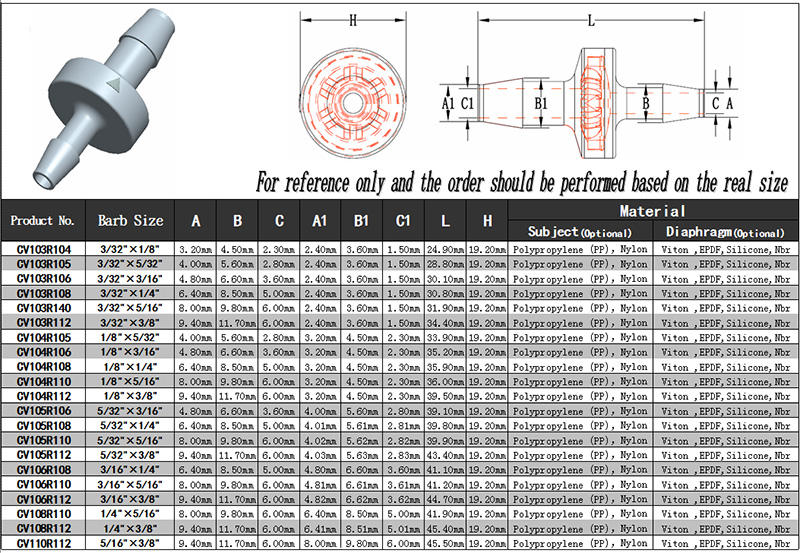

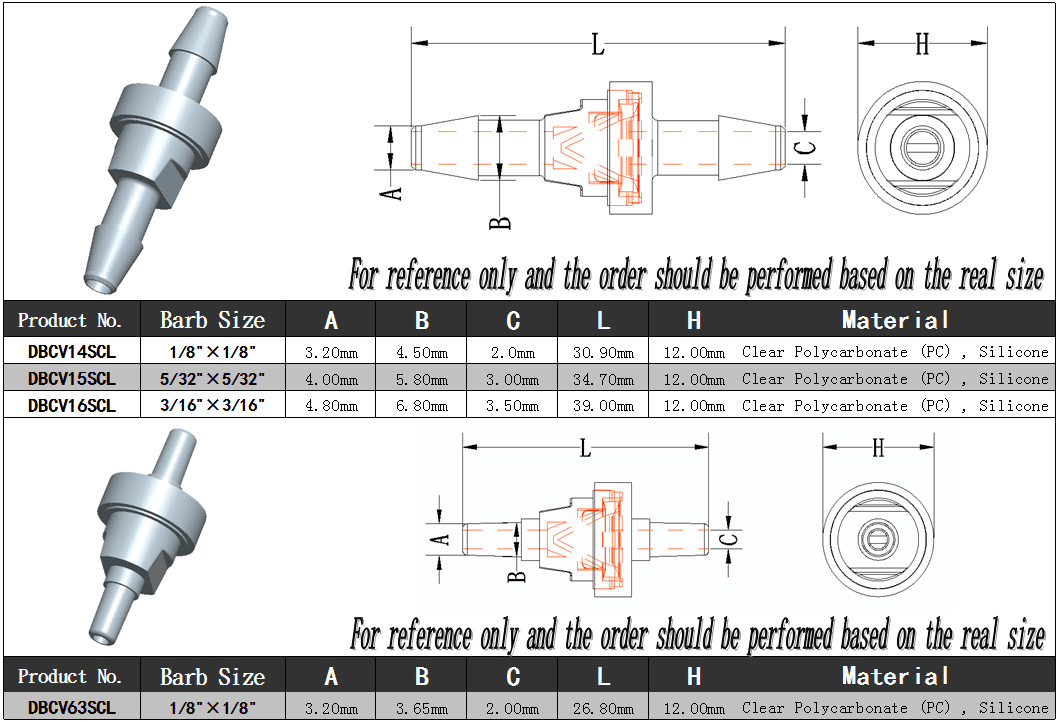

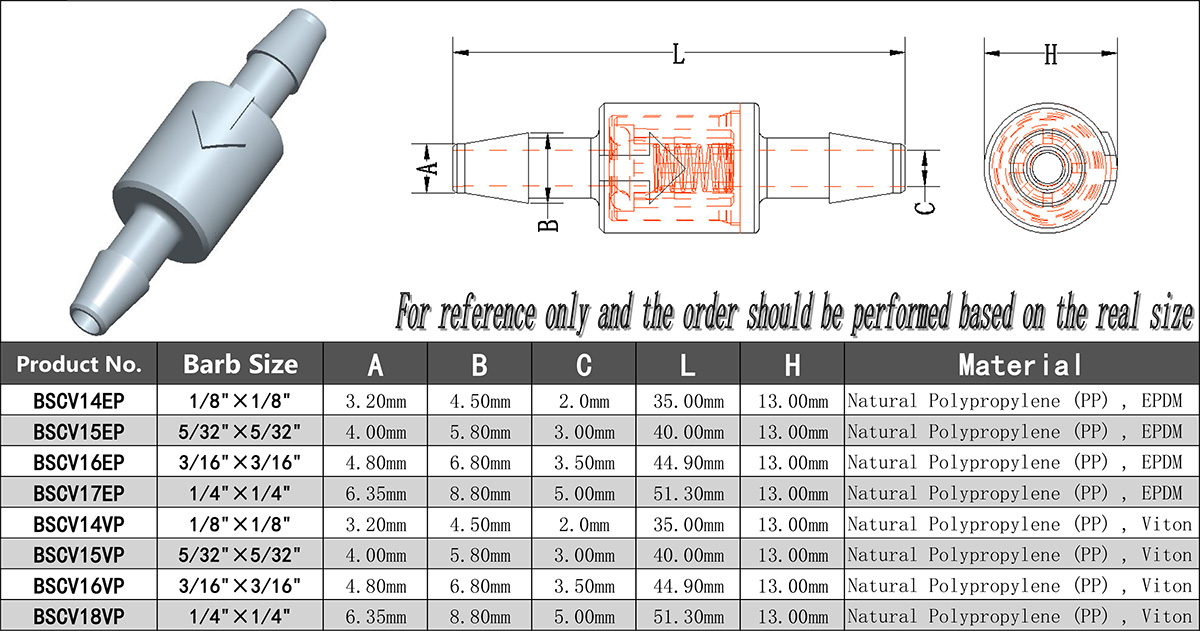

size
3/32" (2.4mm), 1/8" (3.2mm), 5/32" (4.0mm), 3/16" (4.8mm),
1/4"(6.4mm), 5/16"(7.9mm), 3/8"(9.5mm) ID tube
Notice about packages
Considering that smaller packages have more favorable shipping rates, we will pack them individually or together in a reasonable manner according to the order quantity, the size of the ordered items, the bags and cartons available, to save space. If you have other ideas, welcome to contact us.
NOTICE OF SHIPPING
International shipping charges should be calculated based on package size and gross weight, please provide us with the required items, quantity and full address including postal code before placing an order, so that we can check before placing an order, thanks in advance.
