High Efficiency Chocolate Coating Tablet Sugar Coating Machine Peanut Sugar Pan Coating Machine Hot Sale

Click here to contact
Product details
product name:icing machineCoating Type:Heating and coating
Health status:newfeature:easy to operate
Motor Power:660wShowroom location:the Philippines
Sales unit:single productGross weight per piece:50.000 kg
Marketing Type:Popular productsCore Components Warranty:1 year
Weight (kg):33Single package size:58X46X88 cm
brand:XingdianAfter-sales service provided:1 year
Voltage:custom madeMechanical test report:if
Material:SSTDimensions (L*W*H):560*400*850mm
Pot shape:roundplace of origin; place of origin:Henan, China
Main selling point:easy to operateApplicable industries:Manufacturing Plants, Food and Beverage Plants, Restaurant, Home, Retail, Grocery Stores, Food and Beverage Stores
Warranty:1 yearheating power:electrical
speed:46 rpmCoating roller diameter (mm):300 mm
Packaging Details:wooden boxusage:food
Core components:motorPackaging Preview:
Coating temperature (℃):1 - 100 ℃Video external inspection:if
Power (kW):0.66size:560*300*850mm
capacity:2-4 times/each time
product description

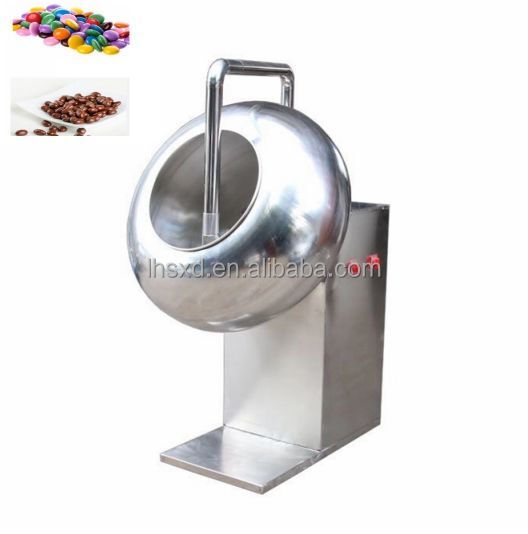

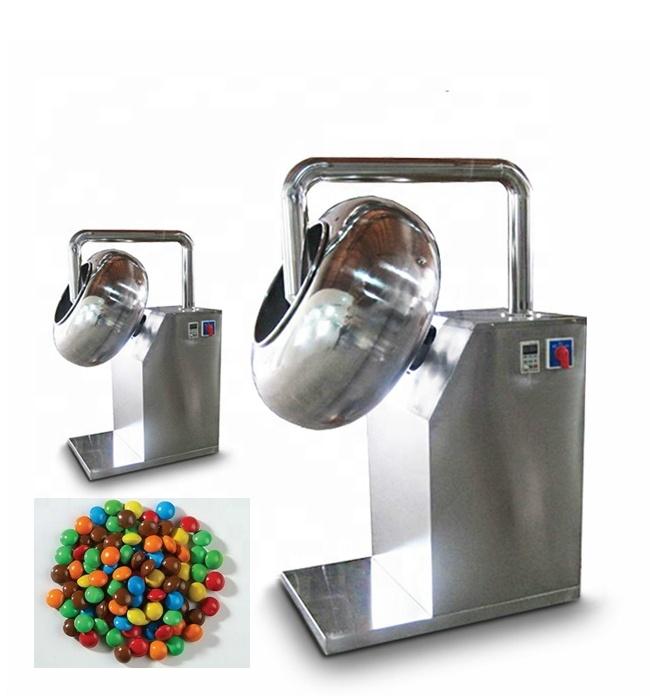

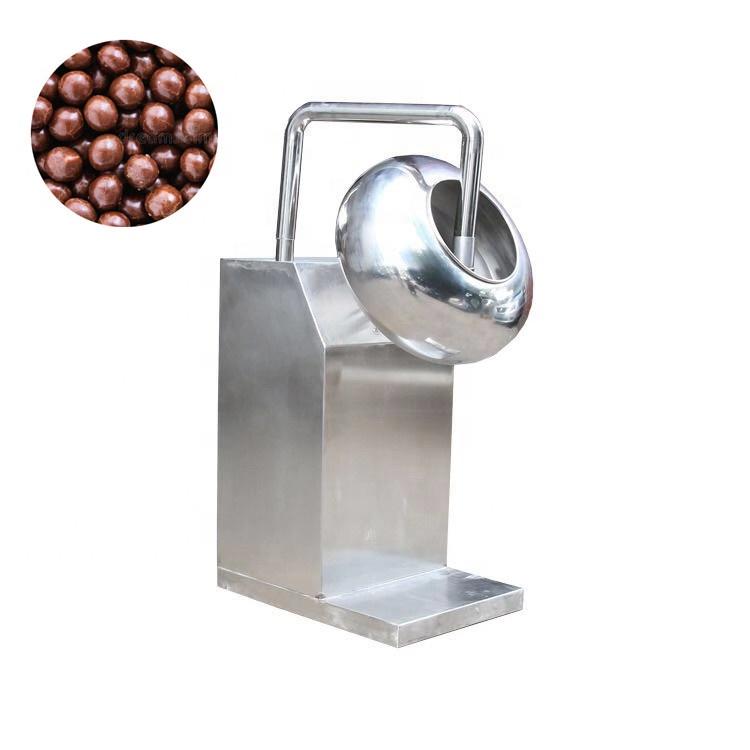

Chocolate/Peanut/Icing Machine
This machine is suitable for pharmaceutical, chemical, food, scientific research institutes and hospitals to make Chinese and Western pills, water pills, dripping pills and other foods such as sugar-coated, polished, rolled pills, etc. It can also be used for trial production of new drugs in scientific research units.
Function list
Working principle: When the pot is running smoothly, roll the sugar-coated tablets in the pot, so that the sugar-coated powder is evenly distributed on all the medicines. Comes with an electric heater. The air outlet pipe extends into the ball for heating. At the same time, a blower blows hot air into the inner layer of the pot to remove the moisture on the surface of the tablet, thereby obtaining a hard sugar-coated tablet.
right façade
left facade
Front view
Product Specifications
Do not
thing
XD-300
XD-400
XD-600
XD-800
XD-1000
1
capacity
2-4 kg/time
4-6kg/time
8-15kg/time
30-50kg/time
50-80kg/time
2
Rotating speed
46 rpm
46 rpm
40 rpm
32 rpm
32 rpm
3
Motor Power
120w
120w
750w
1100w
1100w
4
fan power
40w
60w
100w
200w
200w
5
heating power
500w
500w
850w
900w
1000w
6
total power
660w
680w
1700w
2200w
2300w
7
aspect
560×300×850mm
560*400*850mm
780*600*1160mm
1100*800*1500mm
1150*1100*1550mm
8
weight
30kg
35kg
115kg
240kg
250kg

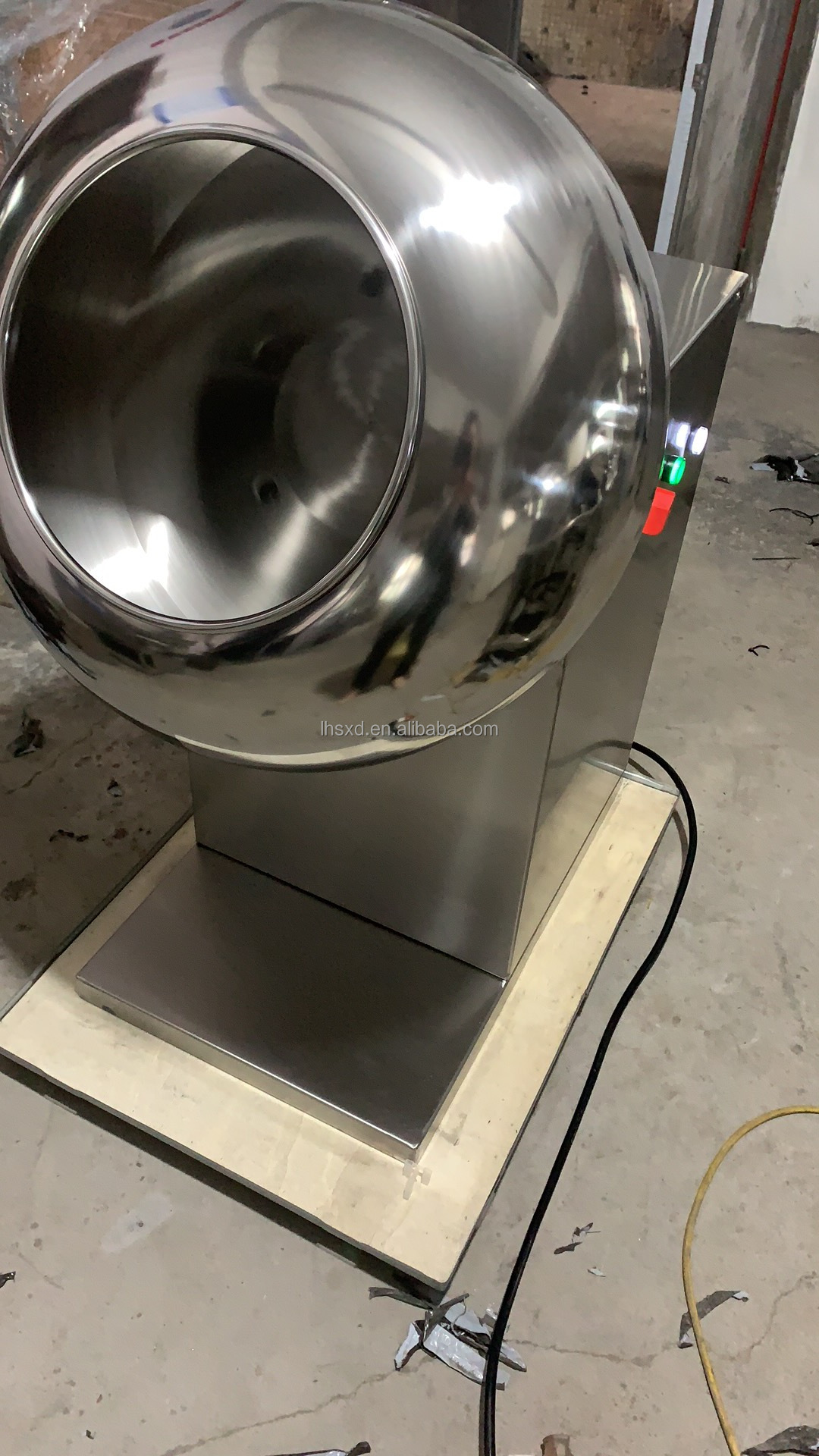

detailed picture
Machine can be customizedFor various functions, please see the customer-made physical map below:

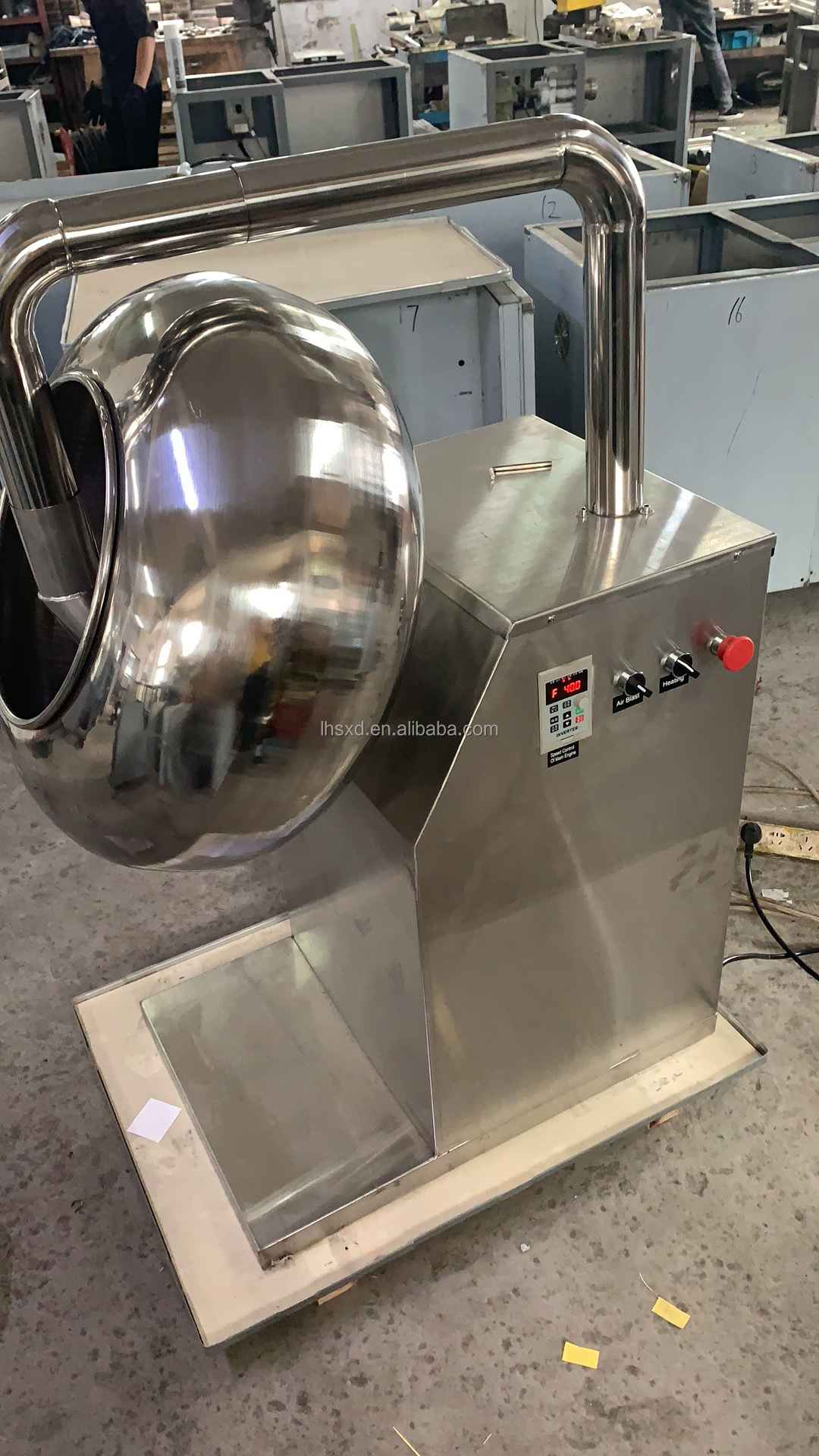

Model: XD-300

Machine size: 560*300*850mm

Weight: 30kg

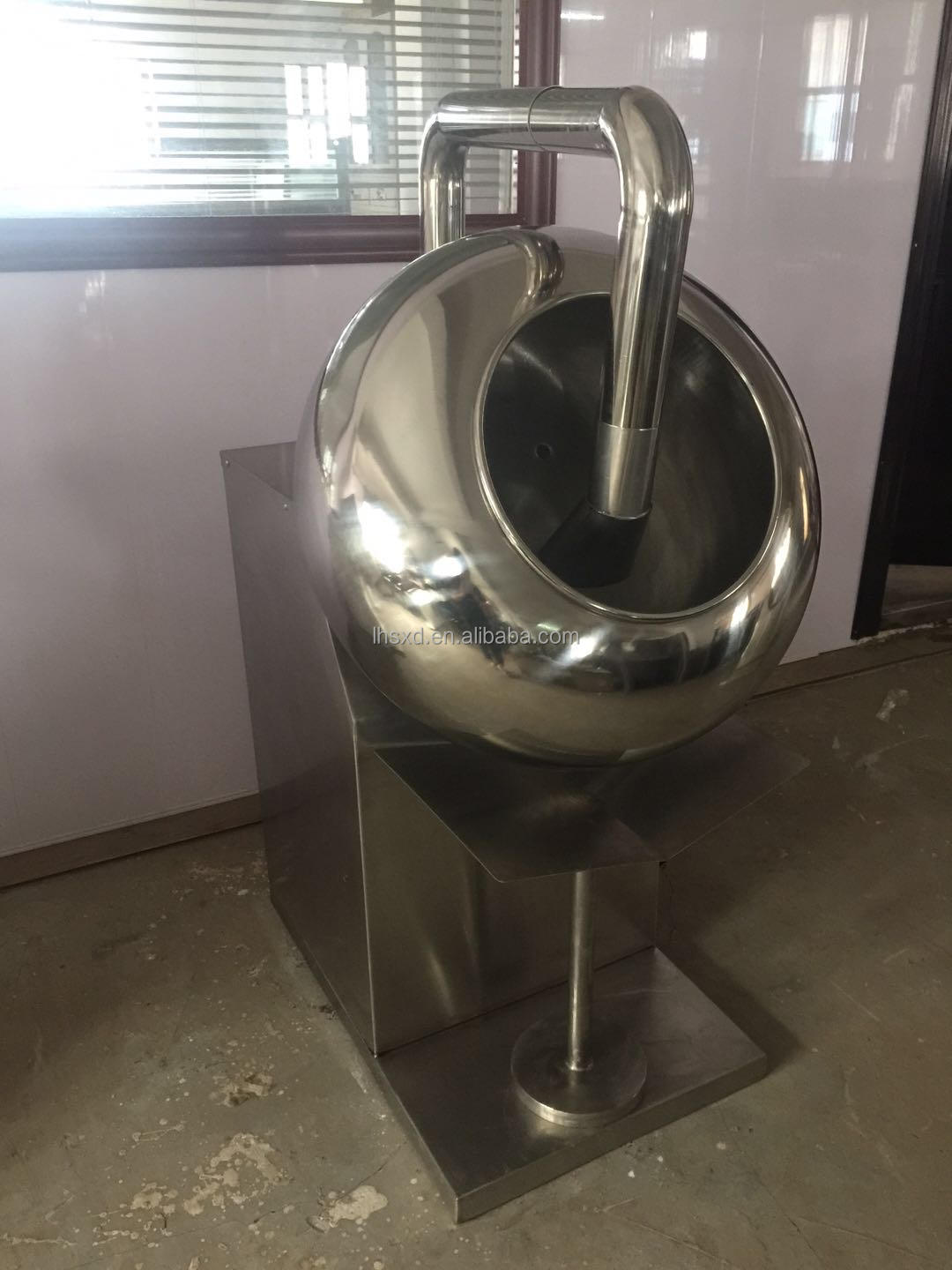

Model: XD-400

Machine size: 560*400*850mm

Weight: 35kg

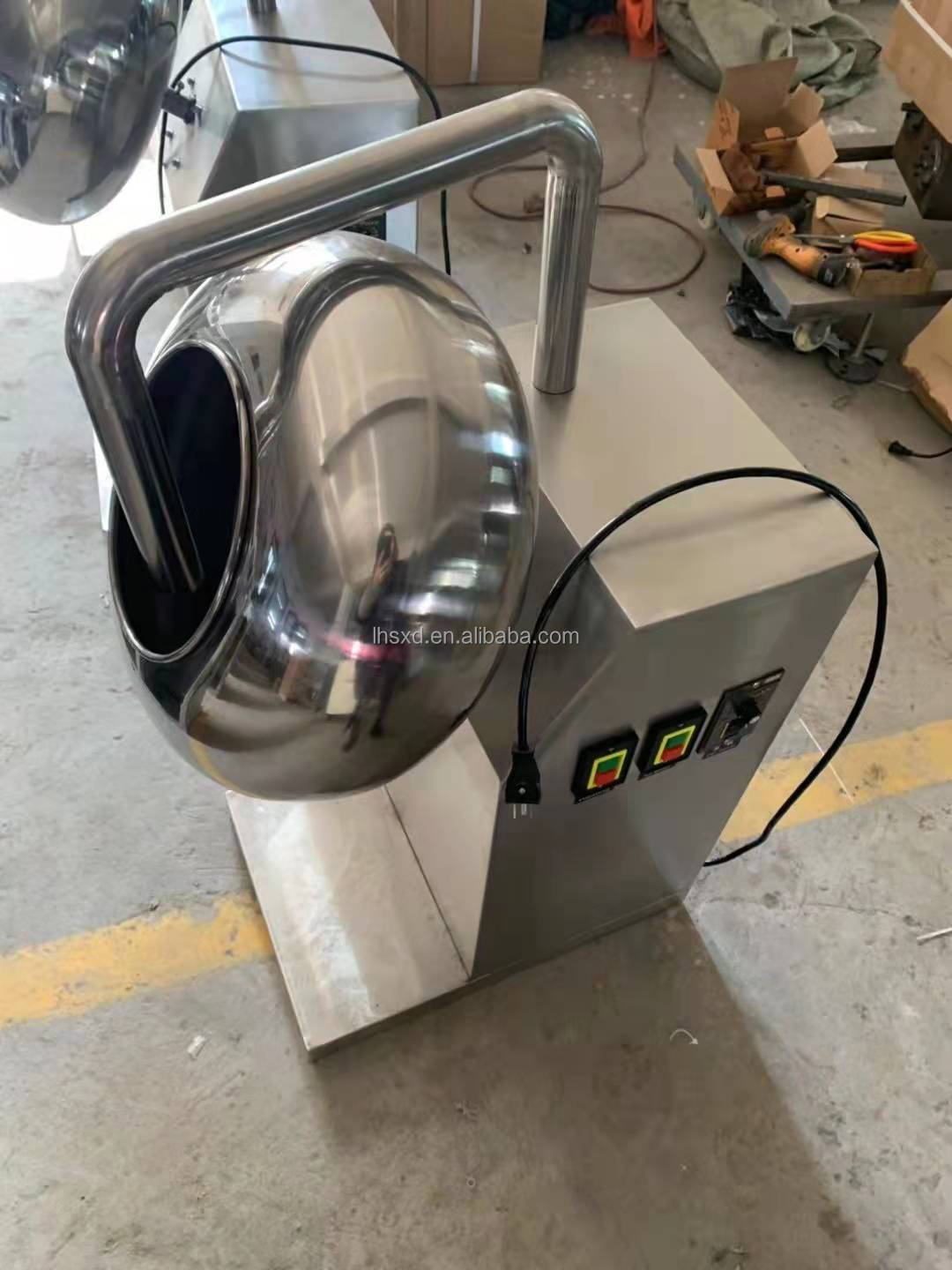

Model: XD-600

Machine size: 700*600*1160mm

Weight: 115kg

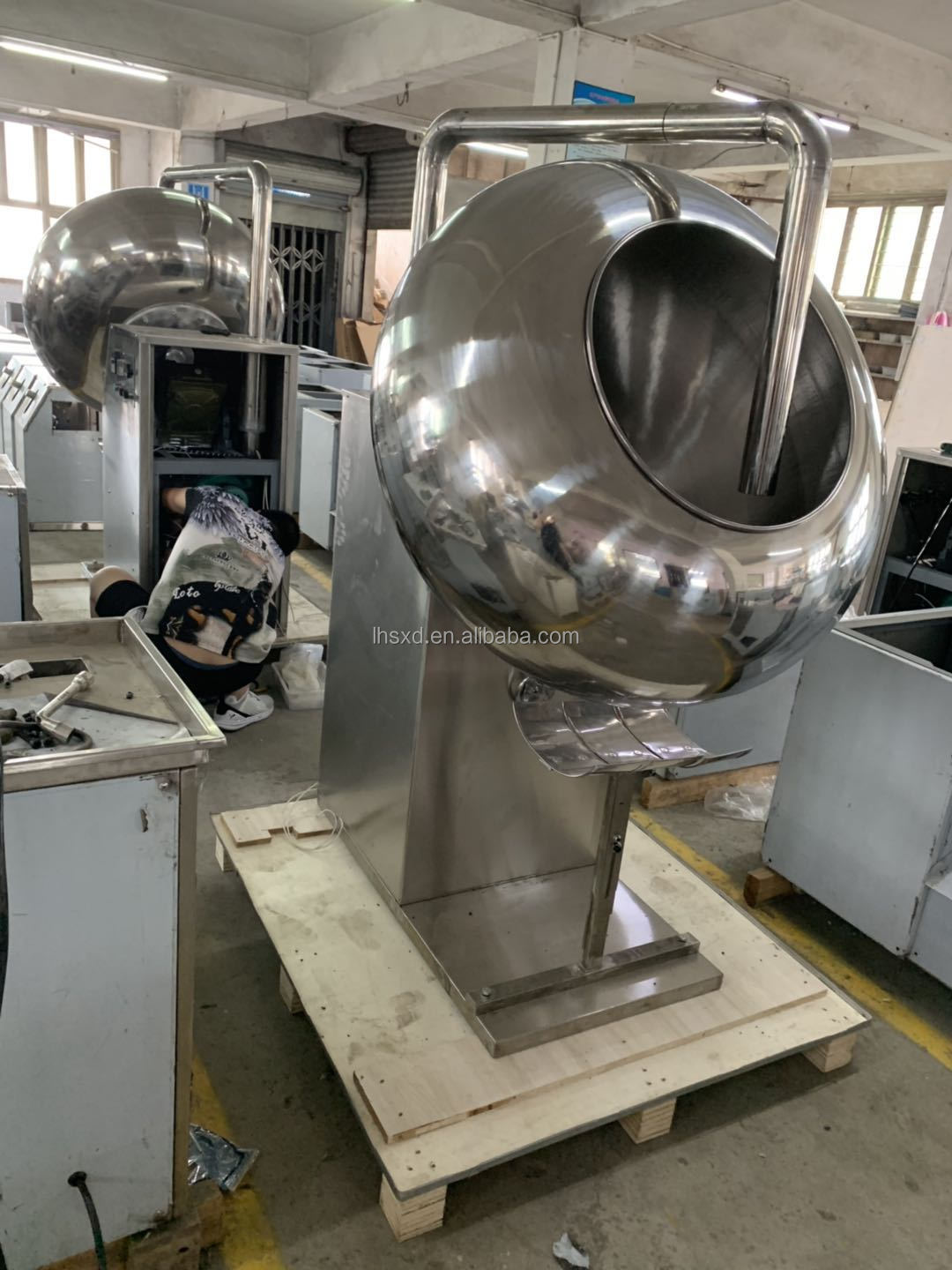

Model: XD-1000

Machine size: 1150*1100*1550mm

WEight: 250kg

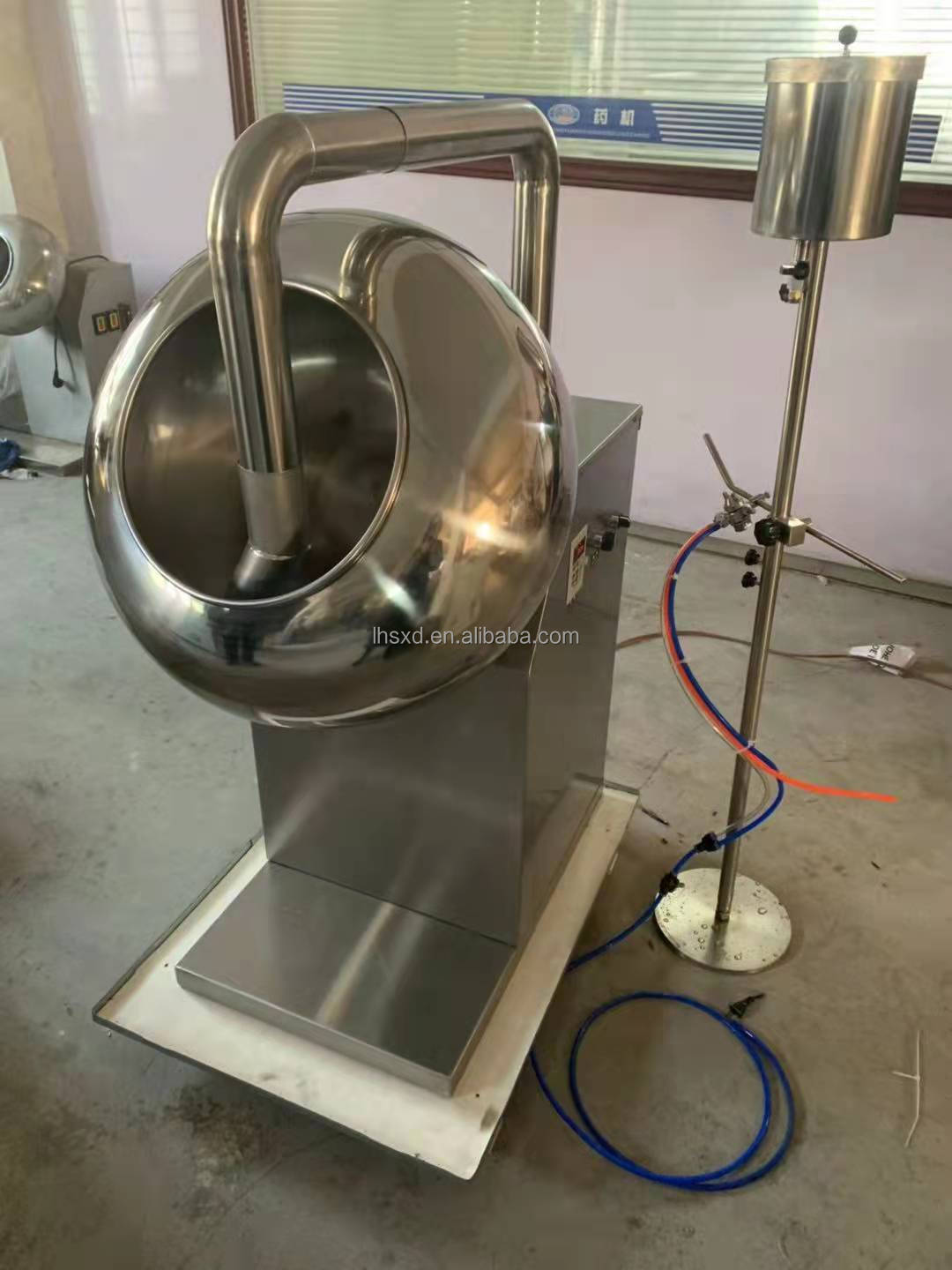

Coating machine with spray gun

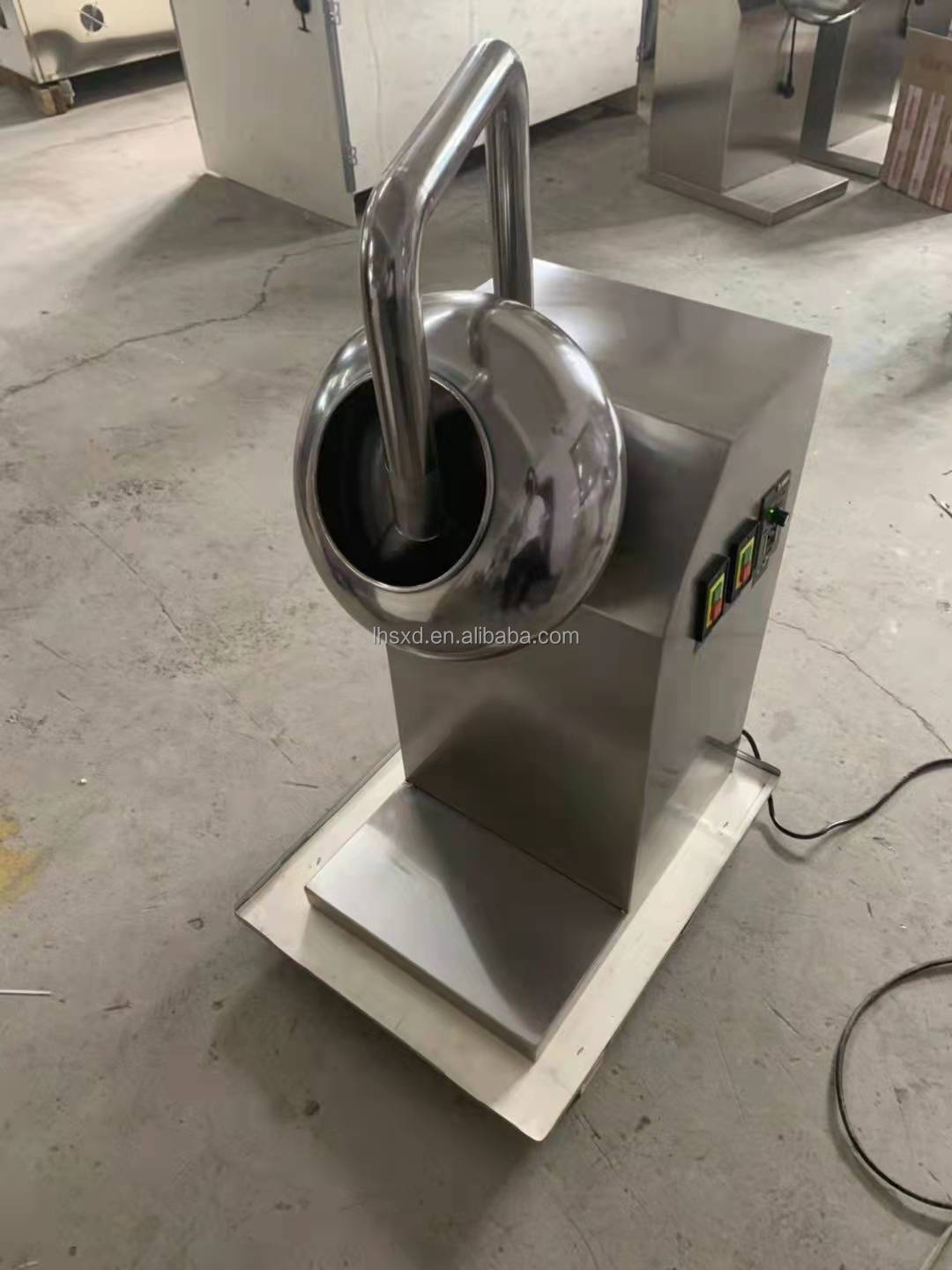

Applicator without fan bracket
finished product
Packaging and Shipping:
company information:
our service:
1) Strict testing of equipment is carried out in each process, quality first; fast and safe delivery;
2) Assist customers in equipment infrastructure construction;
3) Send engineers to install and debug equipment;
4) On-site training of front-line operators;
5) Regularly visit customers to solve production problems;
6) Provide lifelong maintenance services;
7) Provide technical exchanges;
