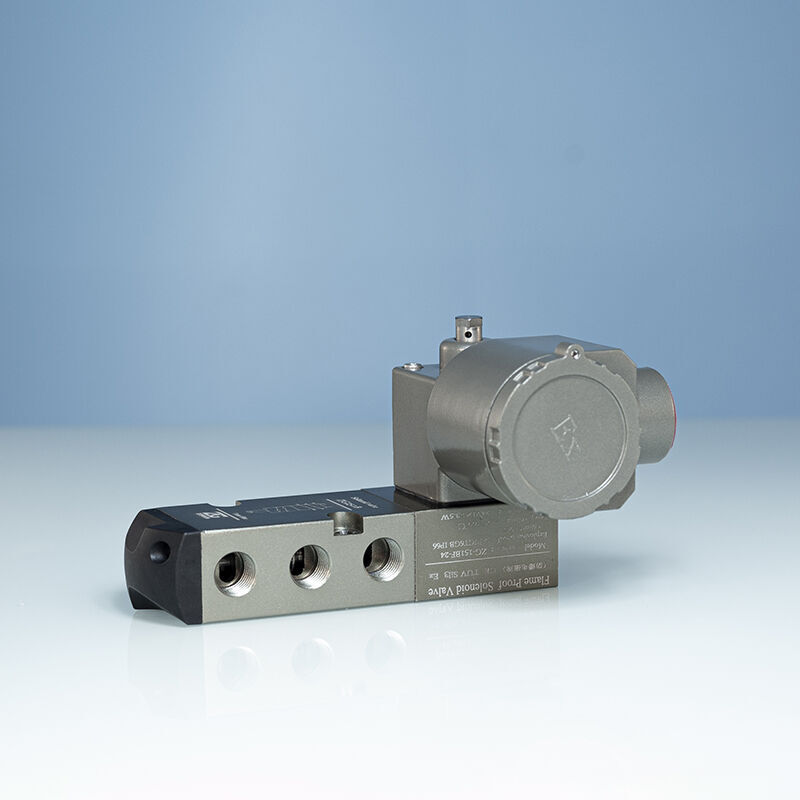

5/2 & 5/3-Explosion-proof type Way Pneumatic Solenoid Valve -151 Series

Product details

Brand: Zorgon.
Body Material: Aluminum alloy or 316L Stainless steel.
Seal: Nitrile O-ring.
Type: Namur
Working pressure:1-8 Bar(Aluminum alloy)/1.5-8 Bar(SS316L)
Voltage:DC12V;DC24V;AC24V 50HZ/60HZ;AC220V 50HZ/60HZ;AC380V 50HZ/60HZ
Insulation Class: F Grade(Optional H Grade)
Explosion-proof Grade: Ex d II CT6/ DIP A20 TA,T6
Voltage:DC12V;DC24V;AC24V 50HZ/60HZ;AC220V 50HZ/60HZ;AC380V 50HZ/60HZ

An electromagnetic reversing valve is the core control element in a valve automation control system. Selecting a high-quality electromagnetic reversing valve is a reliable safety guarantee for on-off valves. The product, ambient temperature of the product should meet the limited temperature of the site.
According to the corrosion and temperature environment of the site, select the product with the corresponding material or temperature. The protective solenoid valve and explosion-proof solenoid valve produced by our company meet the two assembly requirements of NAMUR board connection and pipe connection at the same time. It has the functions of one-position five-way and two-position three-way. It can directly control single-acting and double-acting pneumatic actuators without any adapter plate assistance and is equipped with a safe and reliable manual device on the pilot, which is a real multi-function solenoid valve.
