aluminum arch window and doors making machine for machine for bending metal profiles windows

Supplier: Jinan Haijinna CNC Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Jinan Hisena
Price: $9500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	50 Set/Sets per Month;	Overall Dimension:	120011001100mm;
Fixed wheel center distance:	350-650mm;	Power:	AC 380V 50Hz;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Port:	Any Port;
Brand Name:	Hisena;	Packaging Detail:	Wooden Pallet;
Applicable Material:	Aluminum;	Power(W):	5kw;
Machine Type:	Aluminium Door-Window Processing machine;	After-sales Service Provided:	Online support,Video technical support;
Warranty:	1 Year;	Roller die maximum radius:	250mm;
Dimension(LWH):	120011001100mm;	Arc bending radius:	R80mm;
weight:	850kg;	Production Capacity:	50set/month;
Weight:	850kg;	Voltage:	AC 380V 50Hz;
work air pressure:	0.4-0.8Mpa;	Motor power:	5kw;
Hydrulic Pressure:	20T(200Mpa);

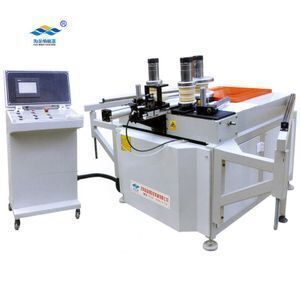

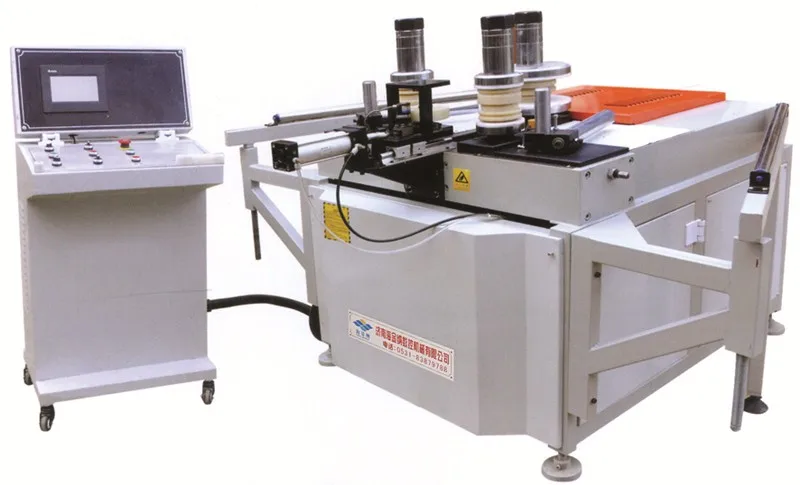

YH200-CNC acrylic arch bending cnc aluminium profile bending rolling bending machine

Product Description

Main Features:

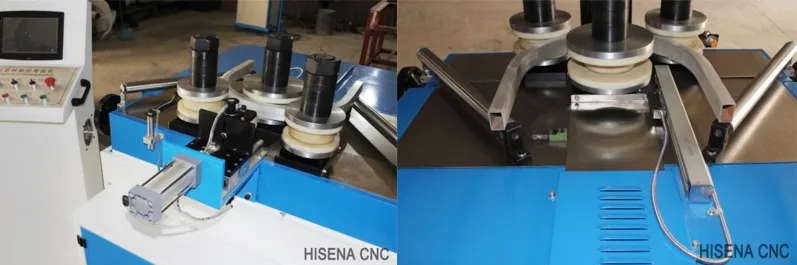

1.Four axis positioning system,to minimize profile distorted ,making a closed space in the bending area .

2.CNC machine , more acurate bending size ,error in 2.5mm.

3.Hydraulic control system , positioning in 0.05mm.

4. Fewer reflective , use independent technology.

5.Bengding shape ,C -type , U-type , Oval ,Circular , Spring shape etc.

6.Surface treatment profile can bending ,without damage.

Main Technique Parameter:

Power	380V 50Hz
Motor power	5kw
Air pressure	0.4-0.8 M pa
Arc bending radius	R 80mm
Fixed wheel center distance	350-650mm
Roller die max radius	φ250mm
Hydrulic pressure	20T
Roller speed	1-14r/min
Roller dimension	R 60mm
Up roller positioning	0.05mm
Up roller route	280mm
Overall Dimension	1200×1100×1100mm
Weight	850Kg

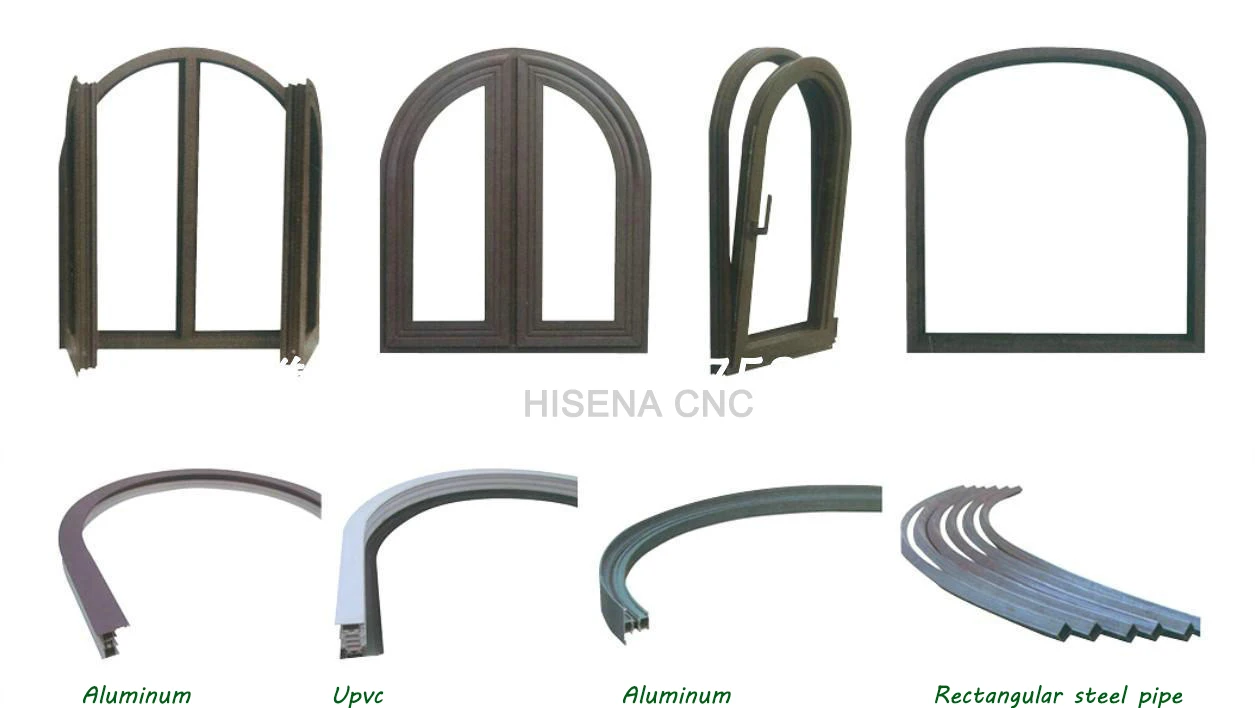

Finished products

Related Products

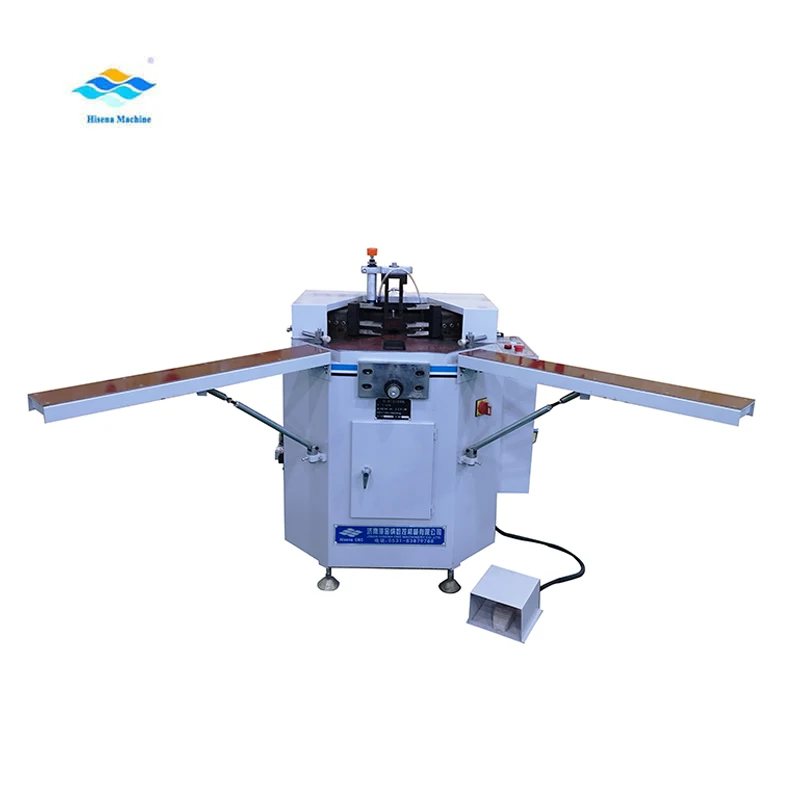

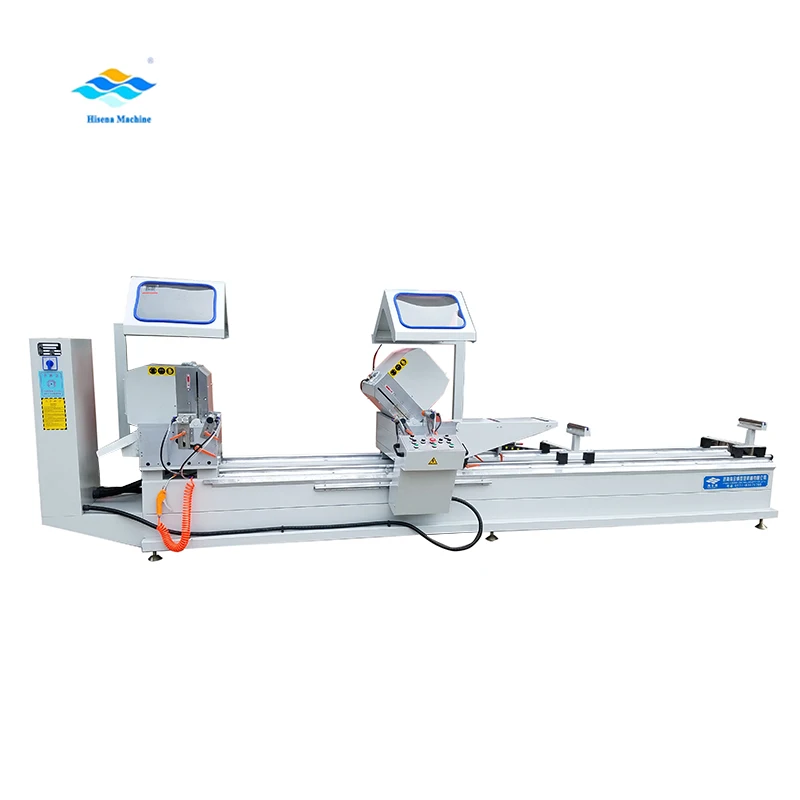

Double head mitre saw Aluminum window production line Coner crimping machine
